Description
PRODUCT OVERVIEW:

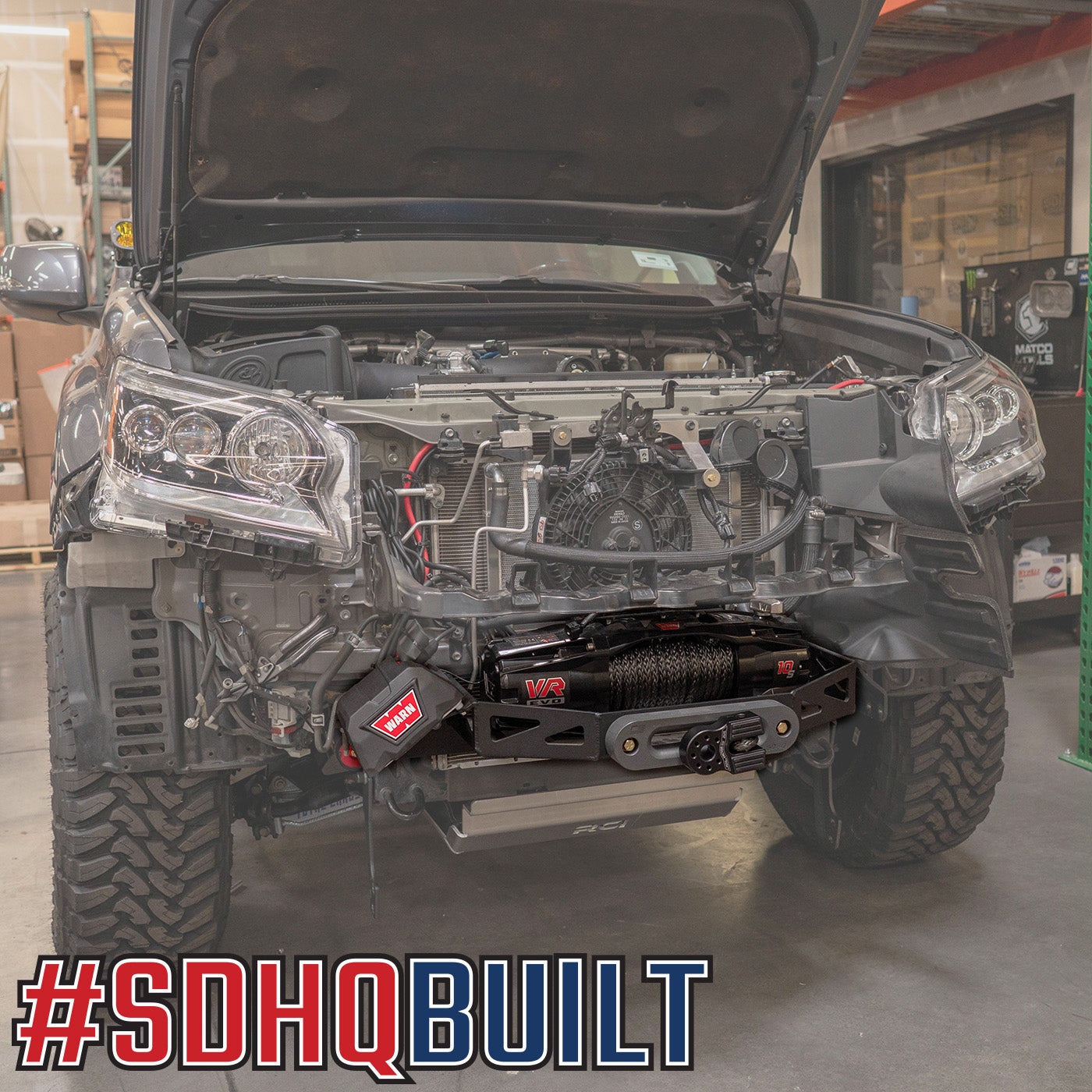

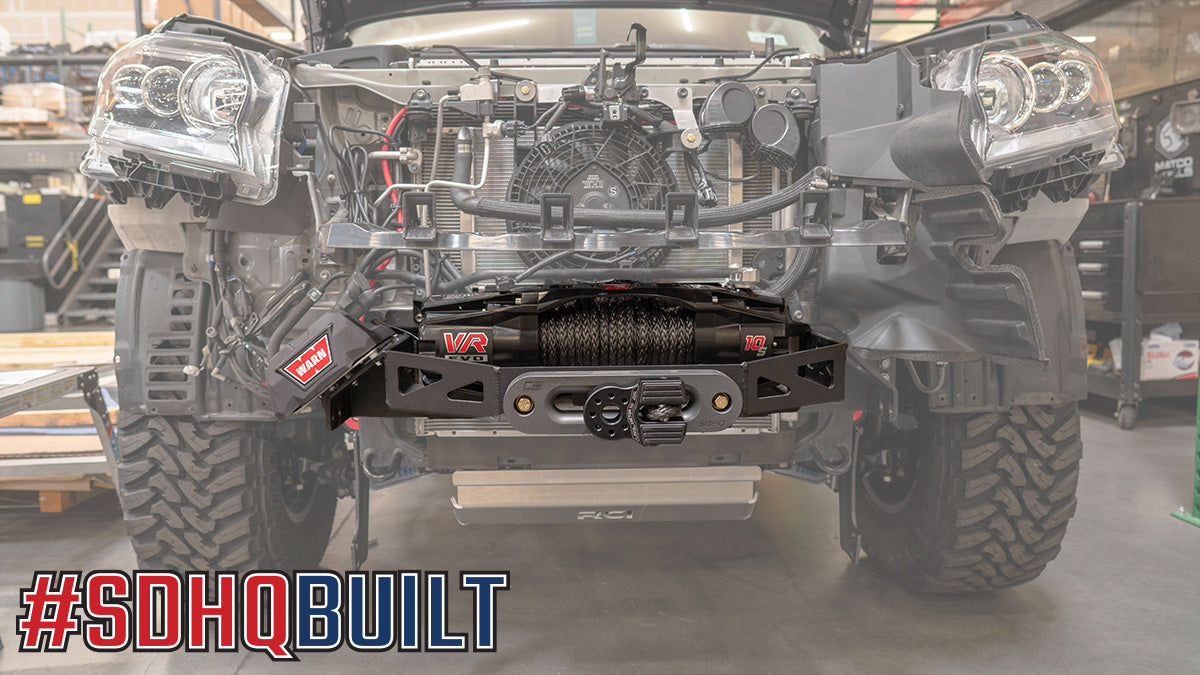

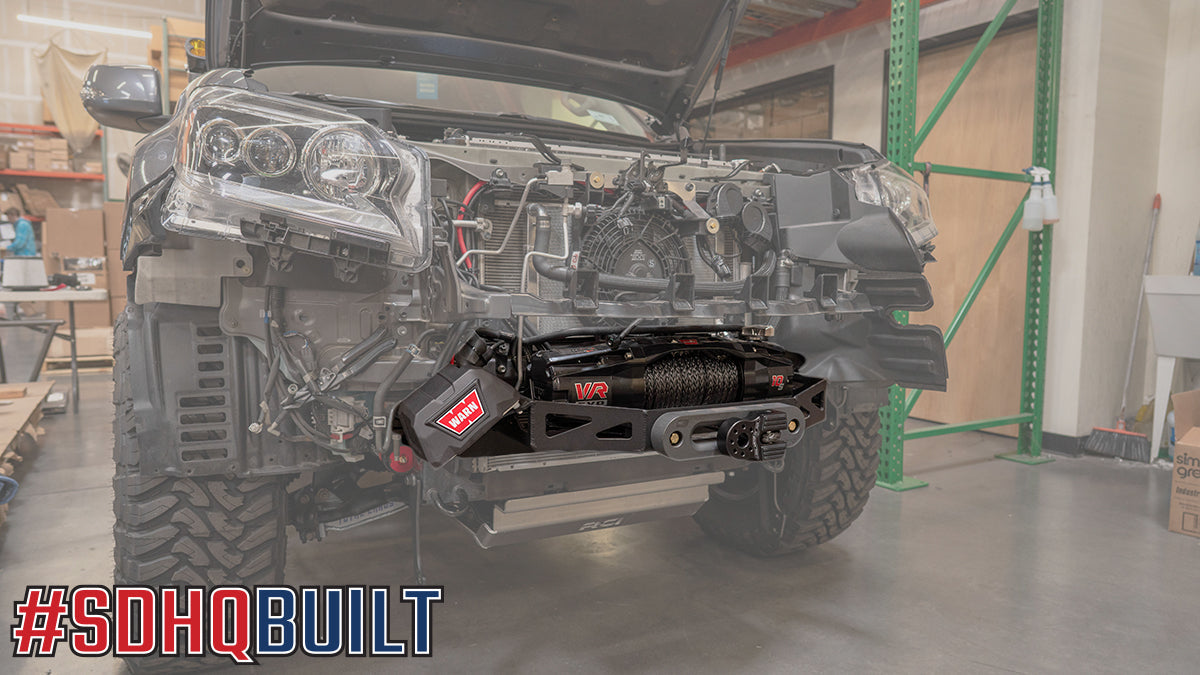

The SDHQ Built Winch Mount for the 2014-Current Lexus GX460 will allow Lexus GX460 owners to mount a Warn Zeon or EVO Series Winch while maintaining their OEM front bumper. This winch mount is designed to have a direct from the factory fit and finish.
VEHICLE FITMENT: 2014-Current Lexus GX460
KEY FEATURES:
- Designed to work with Warn Zeon and EVO Series winch
- Fabricated 1/8” from sheet metal for durability
- Triangulated mounting locations create unmatched strength and durability
- Skid Plate system increases the front bumper’s ground clearance by approximately 4"
- ½” thick steel plate support brackets with integrated recovery points
- ¼” thick steel plate side load brackets strengthen the support brackets by triangulating and including another frame attachment location
- ¼" thick steel plate construction for durability
- Included lower bumper support
WHAT'S INCLUDED:
- Main Winch Mount
- Lower Support Brackets
- Lower Bumper Bracket
- Hardware Package
- Hawse and Roller Fairlead Cut Template
- Skid Plate Kit (Drilling and cutting of the factory bumper and fender liner will be required for skid plate setup)
- SDHQ Built 1.5" Fairlead
- SDHQ Built Warn Control Pack Relocation Kit
A 1.5" Fairlead is required for proper fitment and winch use. You can select our SDHQ 1.5" Fairlead or source your own.
COMPONENT BREAKDOWN:

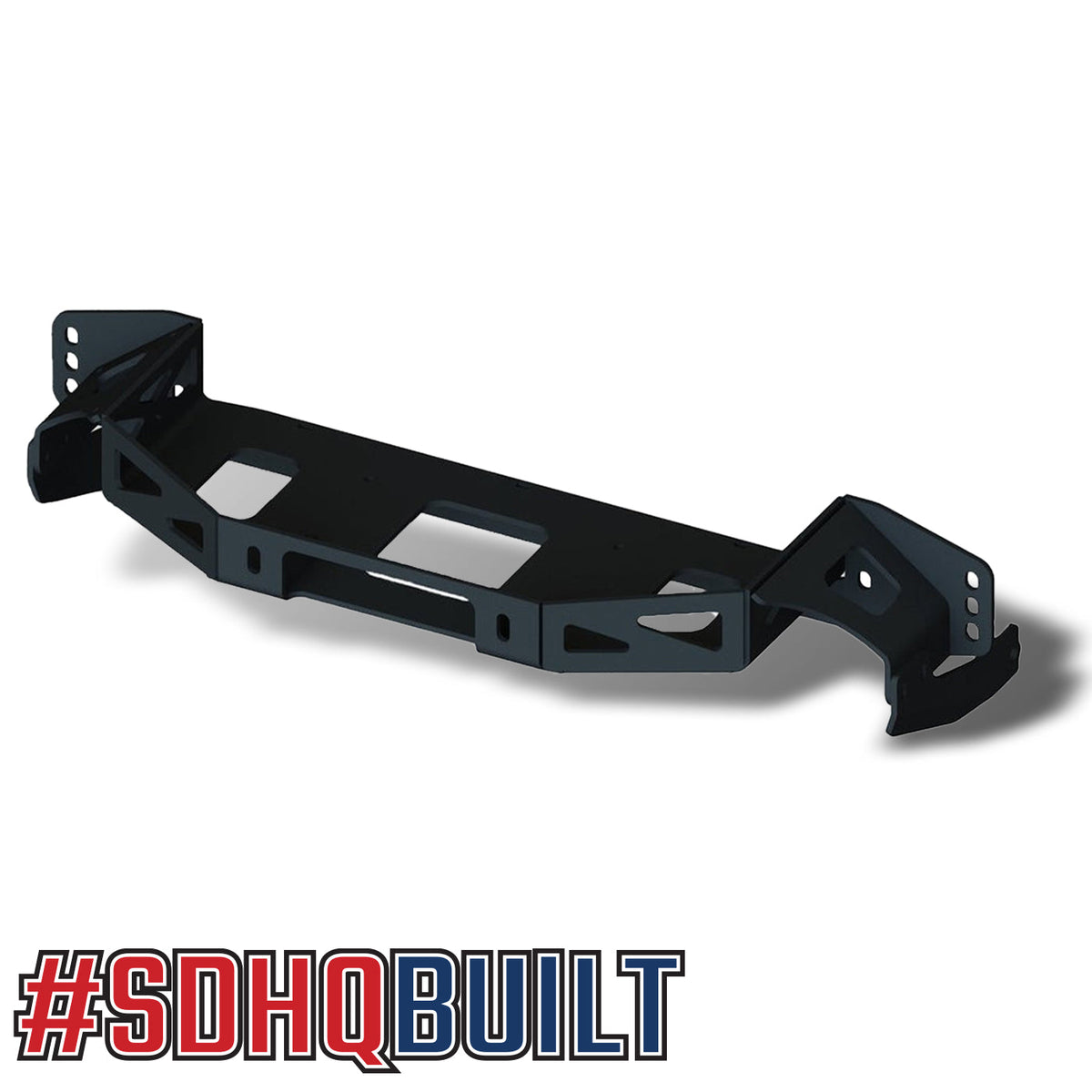

SDHQ Built Lexus GX460 Stock Bumper Hidden Winch Mount Kit (SDHQ-54-1650-G5)
The SDHQ Built Winch Mount allows Lexus GX460 owners to mount a Warn Industries VR EVO or Zeon Series Winch while maintaining the OEM front bumper. This winch mount has a direct from the factory OEM fit and finish.
WINCH MOUNT KEY FEATURES:
- 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
- Designed to work with Warn VR EVO and ZEON Series winches
- ½” thick steel plate support brackets with integrated recovery points
- Triangulated mounting locations create unmatched strength and durability
- ¼” thick steel plate side load brackets strengthen the support brackets by triangulating and including another frame attachment location
- ¼" thick steel plate construction for durability
- Included lower bumper support
- Made in the USA
WHAT'S INCLUDED (SDHQ-54-1650-G5):
- Main Winch Mount
- Lower Support Brackets
- Lower Bumper Bracket
- Hardware Package
- Hawse and Roller Fairlead Cut Template

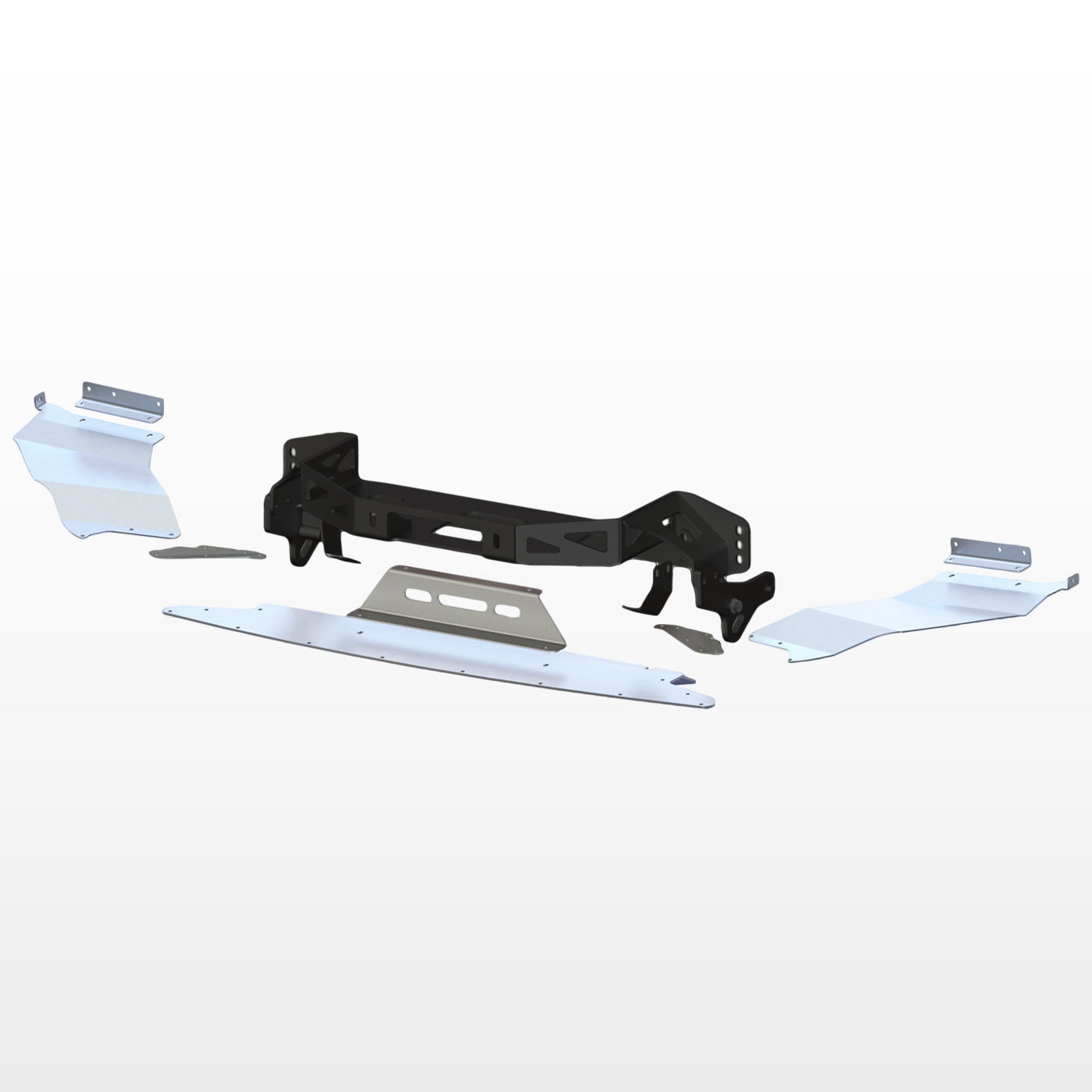

2014-Current Lexus GX460 SDHQ Built Winch Mount Skid Plate Kit (SDHQ-56-1651-150)
Our SDHQ Built Winch Mount Kit Plate Kit for the 2014-Current Lexus GX460 is designed to be an OEM replacement that will increase the front bumper's ground clearance up to 4".
SKID PLATE KEY FEATURES:
- 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
- Seamless integration with our Hidden Winch Mount
- The Main Skid Plate is constructed from 3/16” Aluminum and mounts to our hidden winch mount using the skid plate supports
- Our Skid Plate Kit is designed to fit with RCI Style Engine Skid Plate (does not fit OEM Skid)
- Drilling and cutting of the factory bumper and fender liner will be required for skid plate setup
- Skid Plate system increases the front bumper’s ground clearance by approximately 4”.
- The Main Skid Plate secures to the sides of the bumper and fender liner.
- Driver and passenger side skid plates are constructed from ⅛” Aluminum and supports the sides of the bumper and fender liner.

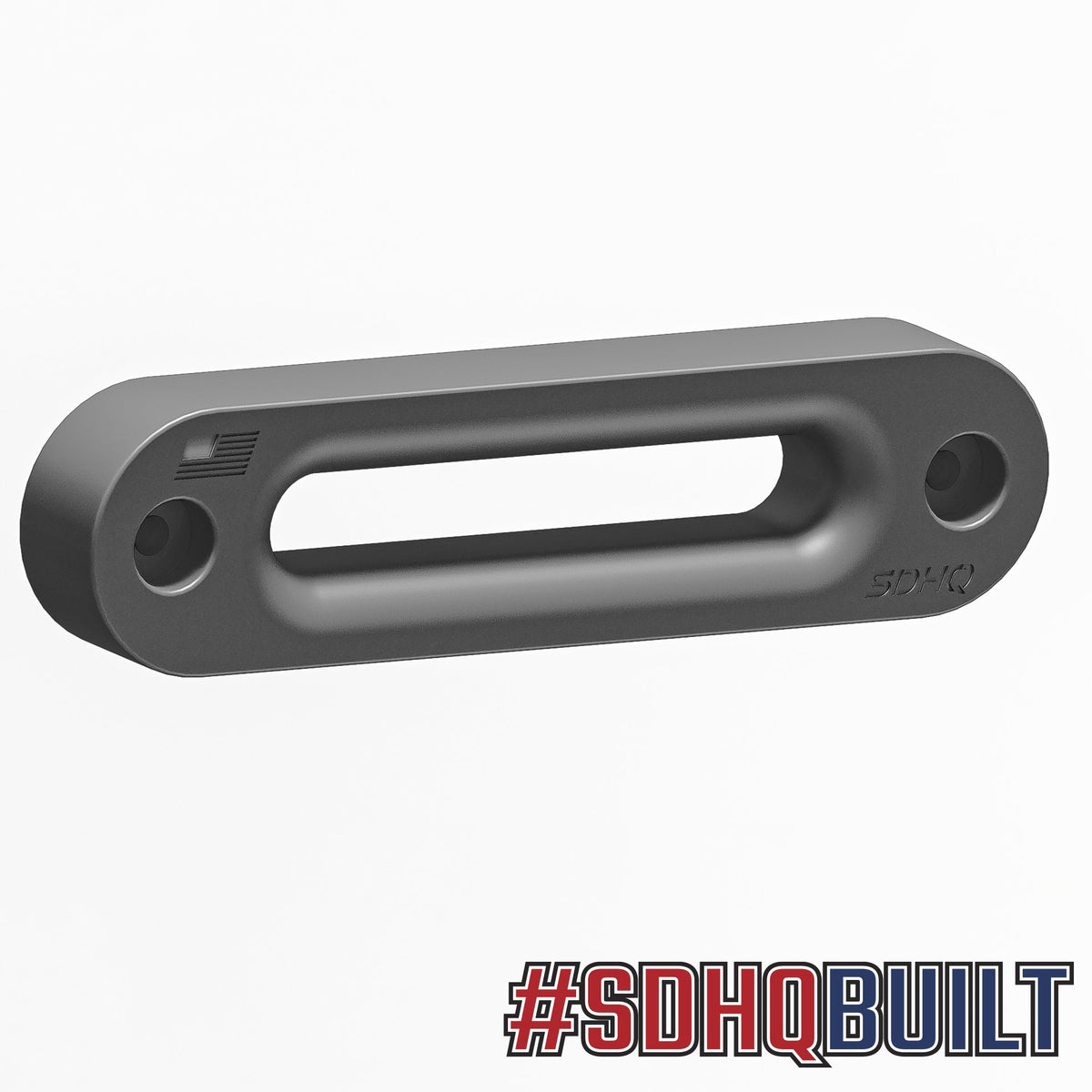

SDHQ Built Universal 1.5” Billet Aluminum Fairlead (SDHQ-00-1650-15)
Our SDHQ Built 1.5" Billet Aluminum Fairlead features a larger inner fillet radius to reduce stress on winch ropes in high-angle situations.
FAIRLEAD KEY FEATURES:
- CNC machined from Billet 6061 Aluminum
- Engraved SDHQ Logo and US Flag
- 1 1/2” thick with standard 10” bolt spacing.
- 2-Step Tumble and deburr process for high finish quality
- Larger inner fillet radius to reduce stress on winch ropes in high angle situations
- For synthetic winch ropes ONLY
- 12 ⅛” x 3” x 1.5”
SPECS:
- TYPE III Hard Anodize for abrasion resistance
- PTFE for reduced friction on synthetic winch ropes
Relocating the control box for a warn winch is possible without our kit; however, the end-user will need to source their own wires and hardware. This kit includes all the wiring and hardware.
