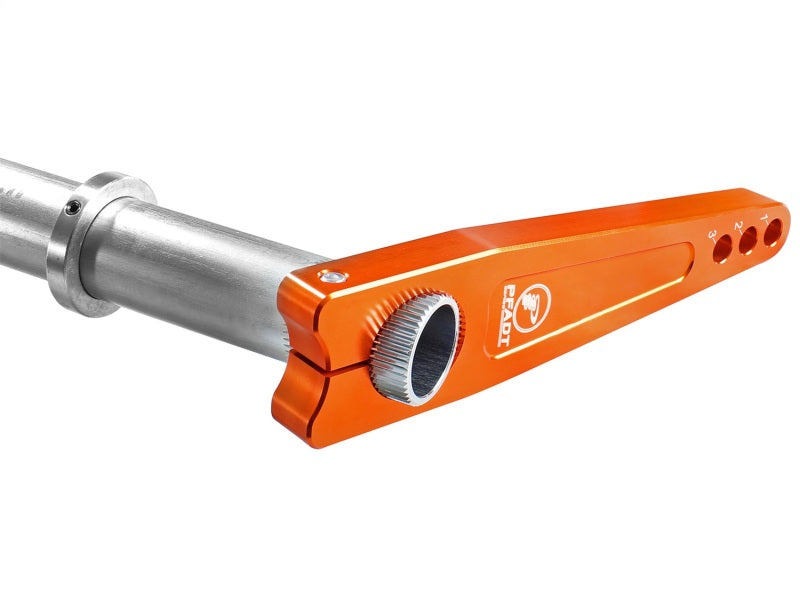

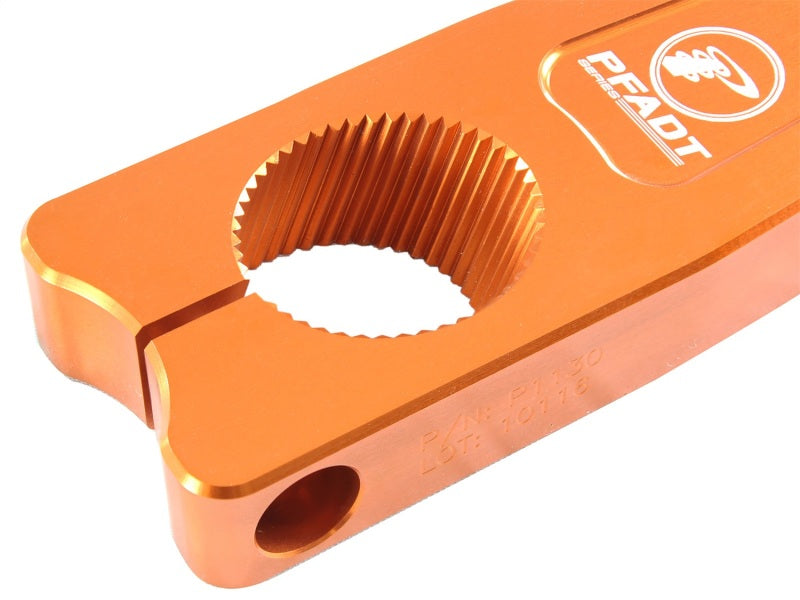

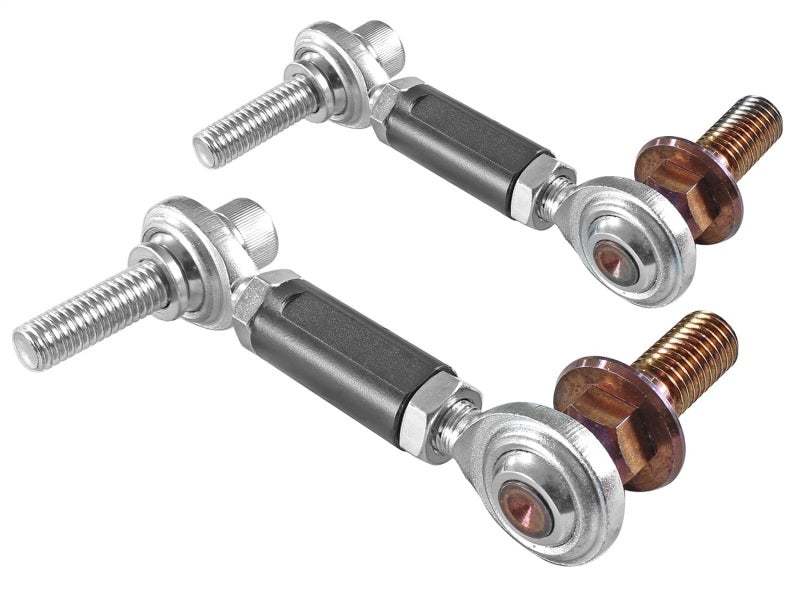

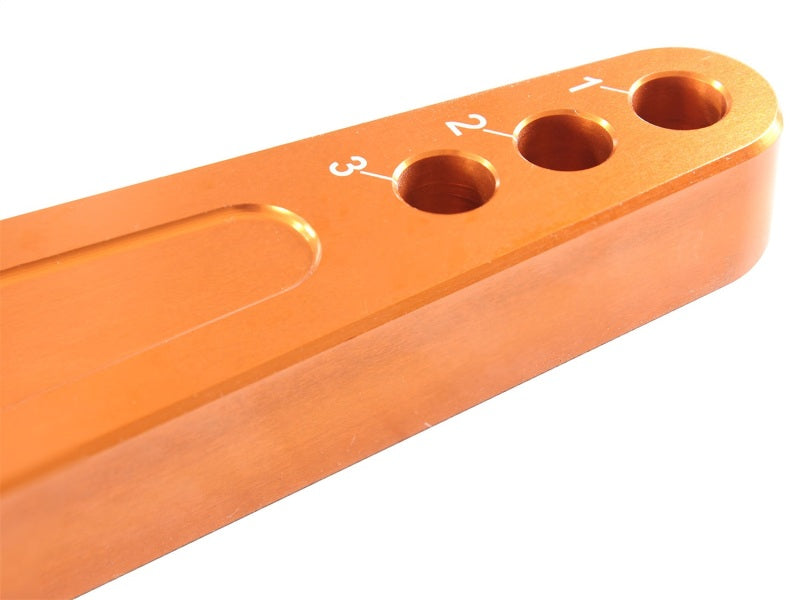

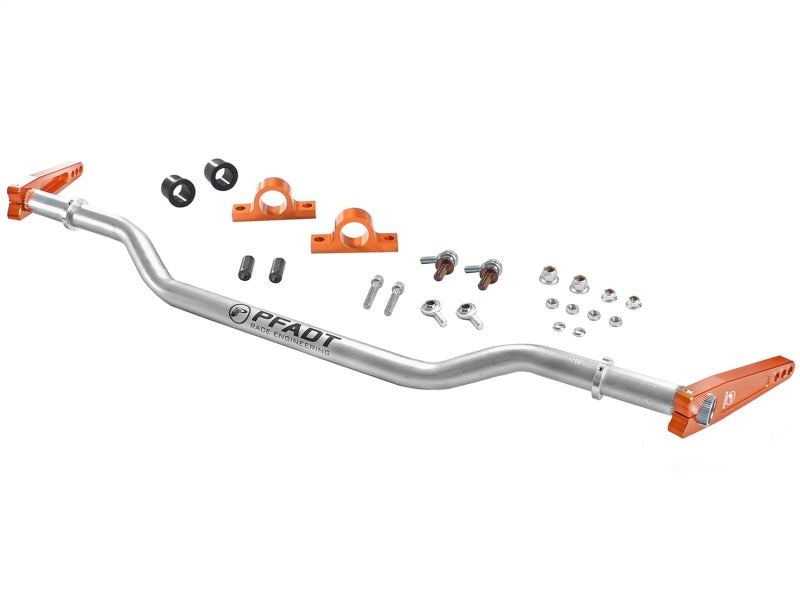

aFe Control is proud to introduce the PFADT Series Drag Racing Rear Sway Bar for the 1997-2013 C5 & C6 Corvettes. The PFADT Series Drag Racing Rear Sway Bar was designed for those that are looking for the ultimate drag race sway bar for their Corvette. The addition of a stiff rear sway bar reduces the independence of the rear suspension increasing traction of both rear tires. The PFADT Series Drag Racing Rear Sway Bar is the ultimate upgrade for improving launch performance. This 3-piece sway bars utilize a 4130 Chromoly torsion bar with splined ends and a clear zinc finish for corrosion resistance and durability. The kit features ultra-lightweight 7050-T7 aluminum arms that are anodized orange and feature broached splines with laser etched adjustment markers giving you 3 different sway bar rate combinations. The adjustable end links are designed to be lightweight and strong while allowing maximum articulation. The use of a turnbuckle allows precise corner balancing without having to disconnect the end link from the car. Included in the kit are solid 6061-T6 pillow block bushing mounts and Moly (Molybdenum) impregnated nylon bushings. The kit comes complete with all necessary hardware and centering rings. The PFADT Series Drag Racing Rear Sway Bar was designed to be the perfect addition to Corvette racecars and are not intended to be driven on the street, or public roads.
Installation InstructionsThis Part Fits:
| Year |
Make |
Model |
Submodel |
| 2013 |
Chevrolet |
Corvette |
427 |
| 2008 |
Chevrolet |
Corvette |
427 Limited Edition Z06 |
| 2003 |
Chevrolet |
Corvette |
50th Anniversary Edition |
| 2003 |
Chevrolet |
Corvette |
50th Anniversary Edition Pace Car |
| 1997-2013 |
Chevrolet |
Corvette |
Base |
| 2010-2013 |
Chevrolet |
Corvette |
Grand Sport |
| 1998 |
Chevrolet |
Corvette |
Indianapolis 500 Pace Car |
| 2001-2004,2006-2013 |
Chevrolet |
Corvette |
Z06 |
| 2011 |
Chevrolet |
Corvette |
Z06 Carbon |
| 2009-2013 |
Chevrolet |
Corvette |
ZR1 |
