APR 09-13 Audi A3 Quattro FWD 2.0T Low Pressure Fuel Pump

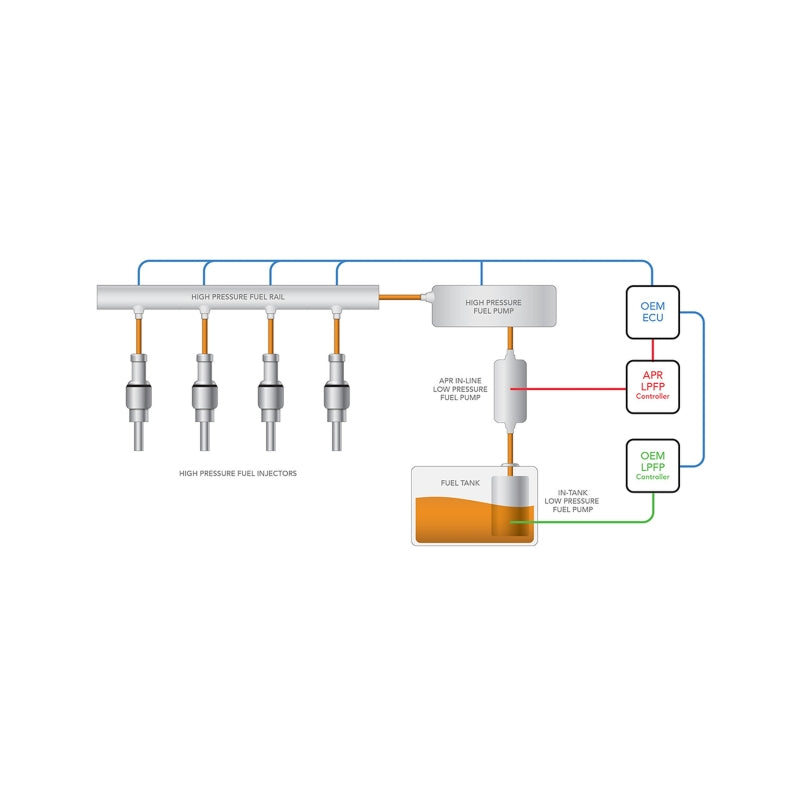

The factory LPFP sits in a basket submerged in the vehicle's gas tank. The pump operates off of a pulse-width modulated (PWM) signal sent from the pump's control module, which is mapped in the ECU. As fueling demand increases and decrease, the PWM signal adjusts to send only the required amount of fuel through the pump. Unfortunately upgrading the LPFP is not a simple drop in task. The pump's factory enclosure presents some packaging constraints limiting clean expansion to a larger unit. Likewise, doing so often results in overheating and subsequent protective shut down of the factory control unit as it's operating outside of its intended design. This is even true when installing larger and expensive factory units like those found on high output vehicles, such as the Audi TT RS and RS3. Furthermore, upgrading the LPFP control module with the matching expensive higher output control units present other issues as the controller receives CAN messages from integrated vehicle componentry not common on vehicles requiring an upgraded LPFP.

• Quick fuel tank emptying mode for use with switching fuel grades or dry storage/transportation
• Allows for higher output calibrations with select APR Stage 3/3+ Turbocharger Systems.
• Clean and simple solution to OEM low pressure fueling system
• OEM quality fuel lines, crimp clamps & quick connectors
• Quiet and cool low power operation, only on when needed

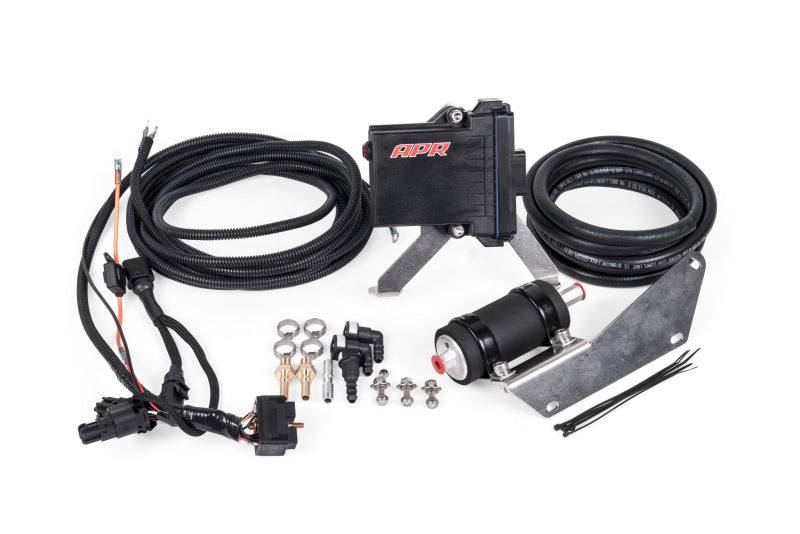

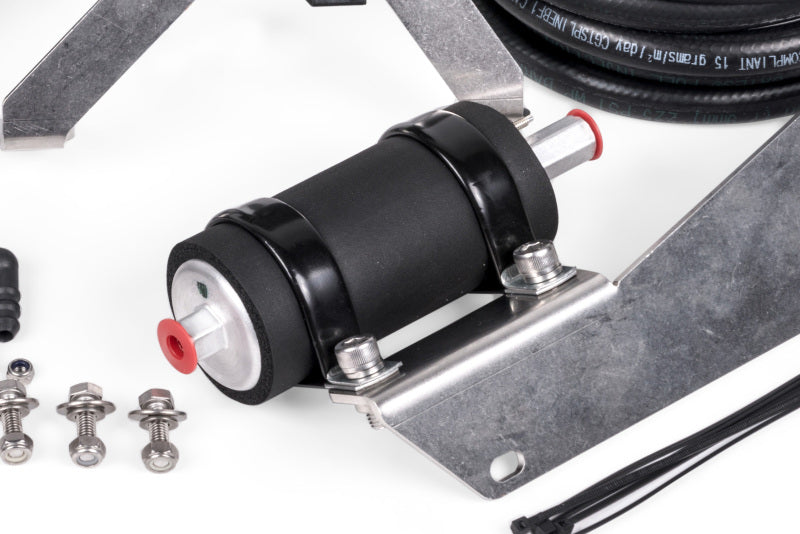

• APR 255 LPH high pressure inline fuel pump & bracket
• No unintended side effects common with other parts
• Only needed where specified by APR

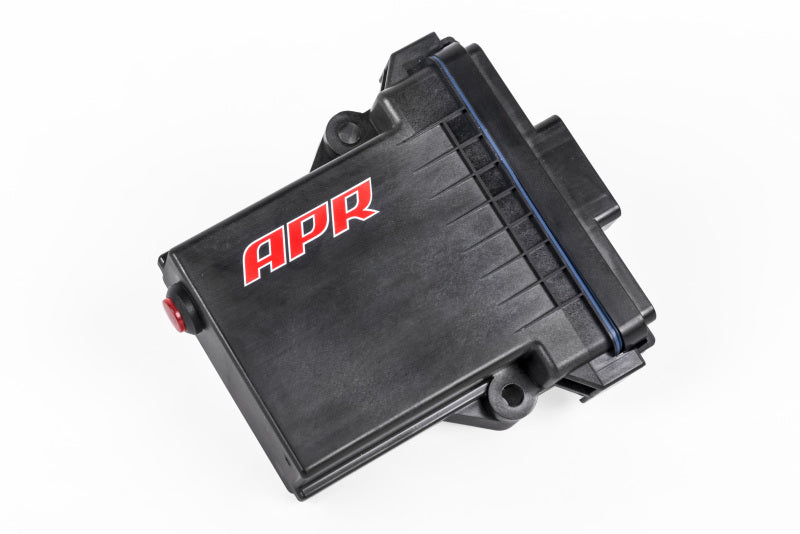

• APR LPFP ECU, harness & bracket
• Integrated into factory CAN bus
• No ECU software required
