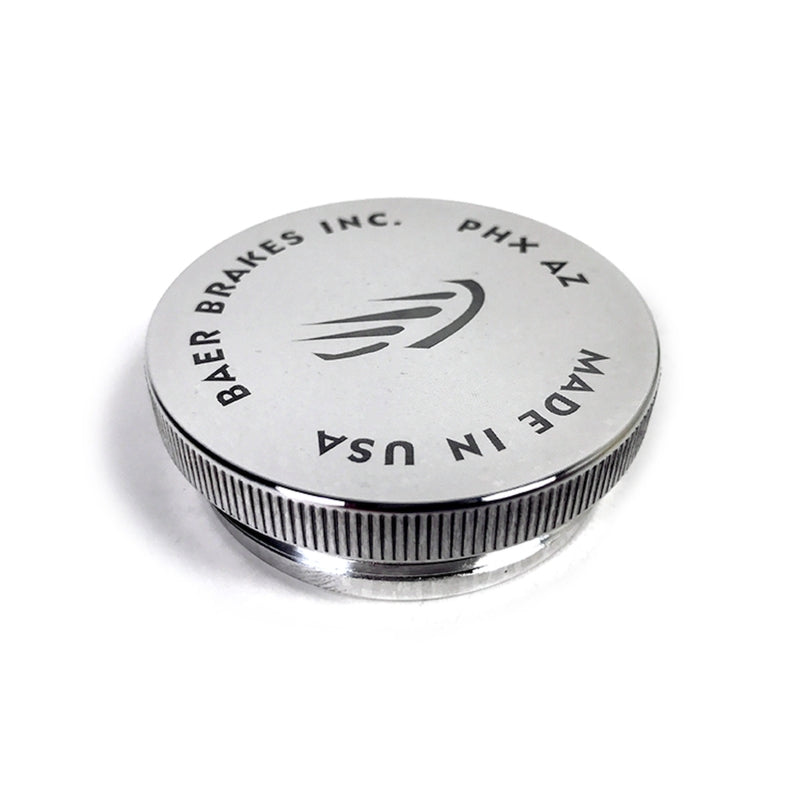

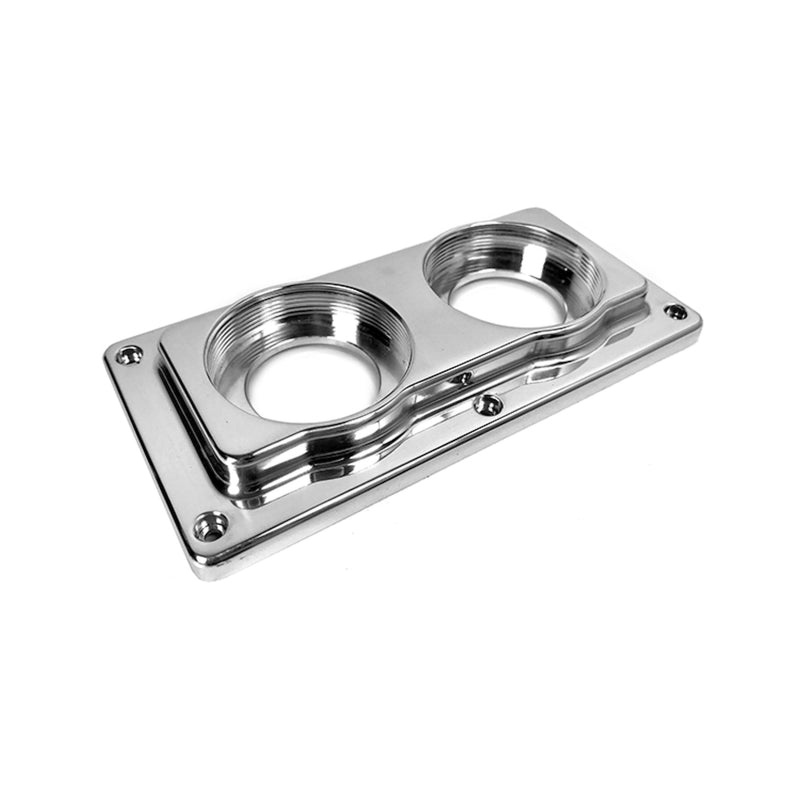

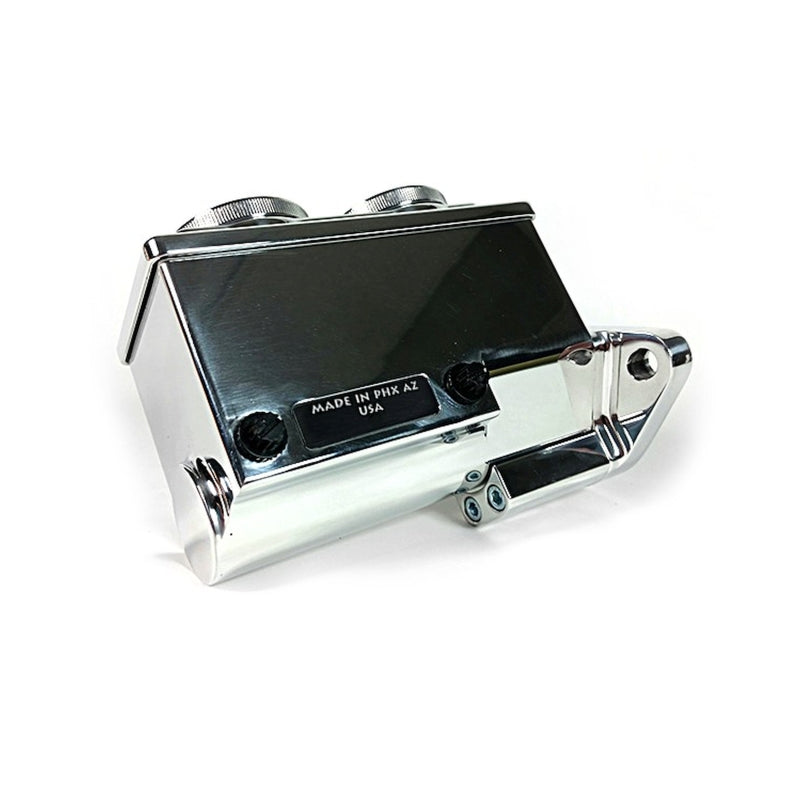

This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 1" bore, left side ports and a 2-bolt mounting flange fitting many Ford and GM applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage. The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications. Optional proportioning valves also available
Installation Instructions

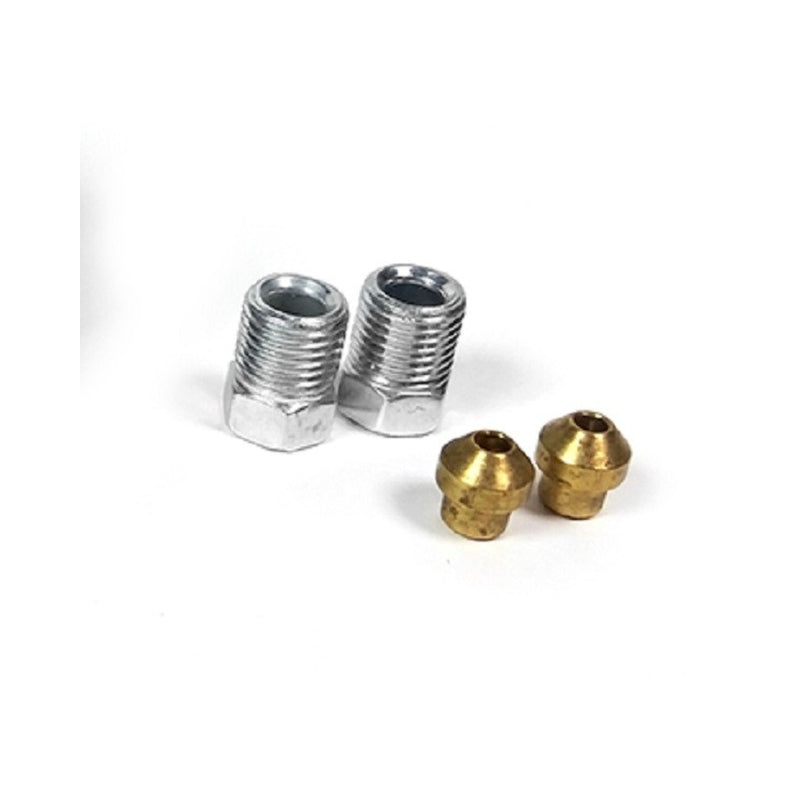

- Unique 3/8-24 outlet port design allows for either inverted flare (w/included removable seats), banjo style or straight fittings.
- Machined and knurled screw-on caps for easy access to fill without spillage
- Fully machined 6061 T6 billet aluminum construction
- Anodized Remasters feature laser-etched logos
- 2-Bolt GM/Ford Firewall Mounting Bracket
- Left Side Ports
