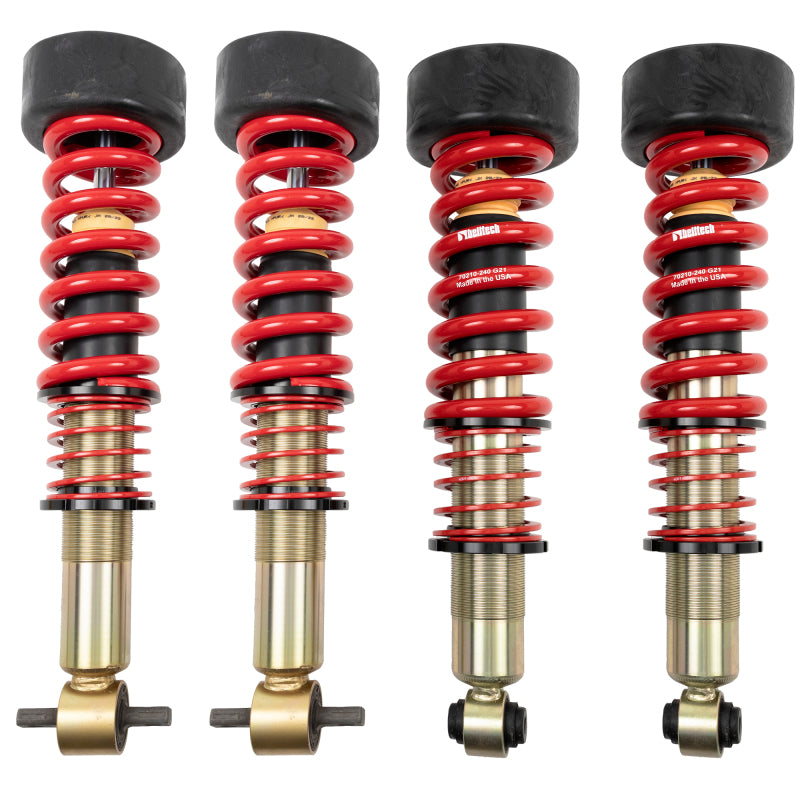

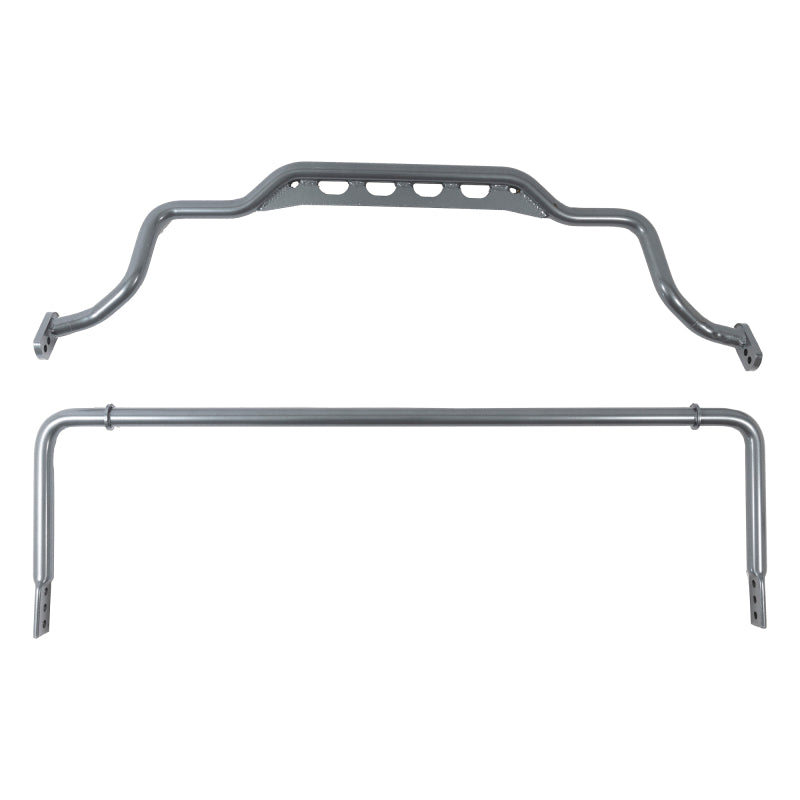

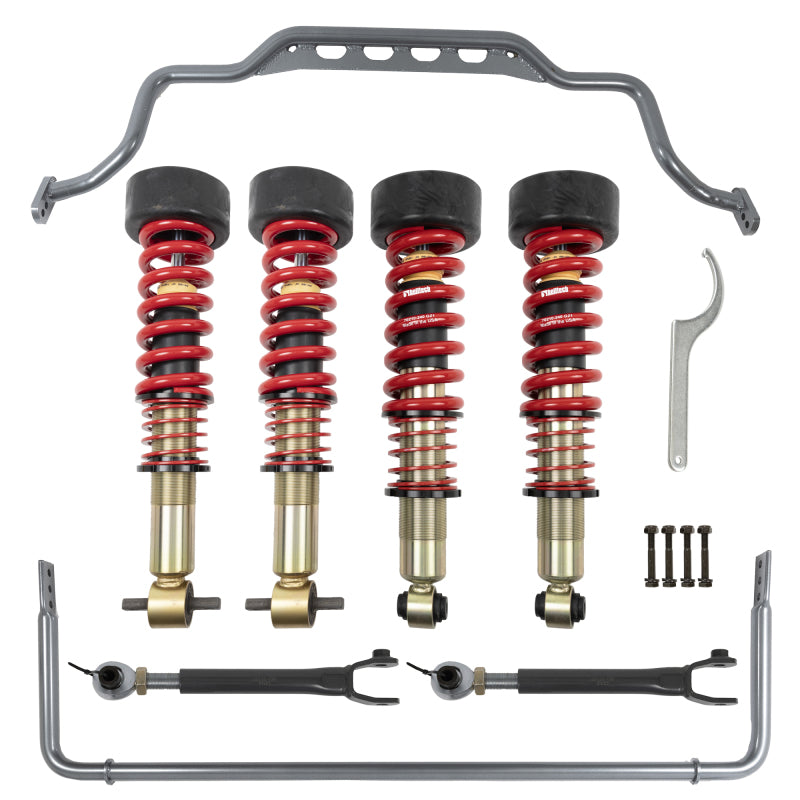

Discover the next level of performance with the new line of Belltech 2021+ GM SUV lowering kits. Our kit lowers the front of your vehicle -0.5" to -3" and -1" to -4.5" at the rear to set the perfect stance and a lower center of gravity. We go well beyond looks and deliver the ride quality you have been dreaming of. The front and rear suspension includes our robust Belltech lowering coilovers designed using high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech damper that features a large, 2.4" (60mm) damper body and 35mm independent rebound and compression valves. Together, these details keep oil cool and deliver precise, consistent damping throughout travel. The external threads and spring perch offer customizable height adjustability. We feature a large main spring and smaller helper spring. Both the main spring and the helper spring are made of cold-formed tensile steel and are powder-coated to prevent rust and wear. The coilover uses a progressive rate polymer, open-cell, bump stop for ideal bump stop engagement, and the OE top mounts for simplified installation. For lateral control we include a 1-3/8" diameter solid front sway bar and 1-1/4" diameter solid rear sway bar that are made of cold-formed steel and powder coated for longevity. The front bar feature 2 settings of adjustability and the rear has 3 settings to meet your specific performance needs. For the rear suspension we showcase a Belltech rear angle correction control arm kit designed to correct negative camber, return proper ball joint angles, prevent unwanted pulling, and reduce tire wear, which in the long term, is truly pertinent. Engineered specifically for the 2021+ GM SUV, the control arms are easy to install and built to last due to their solid steel construction. We finish with a high-quality powder coat to increase their longevity. Our Belltech handling kits provide a smoother, safer ride and improved handling.
