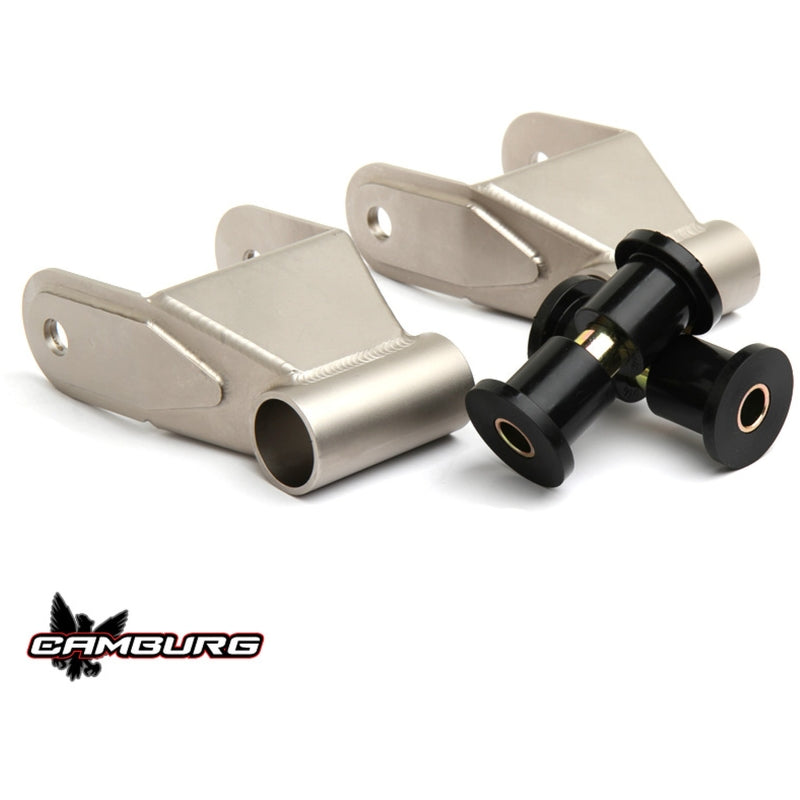

Camburg 83-12 Ford Ranger/82-03 F-150 2WD/99-18 Silverado 1500 TIG 4130 Shackles (1.5in. extended)

Our extended shackle is designed around using Deaver leaf springs but can also be used with stock springs. We’ve updated the design to a fully boxed/sealed version so they don’t have the dimple dies. These are longer length  than the stock shackles and allow for maximum wheel travel. Using polyurethane bushings keeps them from deflecting under articulation like the stock ones and also allows them to pivot smoother and unrestricted. The stock shackles are too short and limit droop. These are 1" longer on the Chevrolet Silverado and 1.5" longer on the Ranger and F-150. Since the shackles are longer, they will lower the ride height slightly compared to the stock shackles. On Ford Rangers you will need to cut a hole in the bed for the shackle to clear or use an aftermarket drop hanger which will raise the ride height back up. These are laser cut from 4130 chromoly, CNC formed, TIG welded and then bead blasted and powder coated textured gray. These shackles are 6" eye to eye in length. Fully boxed design Extended length Increased wheel travel Smoother action and less deflection Made in the USA.

This Part Fits:

Year	Make	Model	Submodel
1999-2005	Chevrolet	Silverado 1500	Base
2016-2018	Chevrolet	Silverado 1500	Custom
2014-2018	Chevrolet	Silverado 1500	High Country
2004-2006,2009-2013	Chevrolet	Silverado 1500	Hybrid
1999-2013,2015-2018	Chevrolet	Silverado 1500	LS
1999-2018	Chevrolet	Silverado 1500	LT
2007-2018	Chevrolet	Silverado 1500	LTZ
2003-2006	Chevrolet	Silverado 1500	SS
2015-2018	Chevrolet	Silverado 1500	SSV
2002-2018	Chevrolet	Silverado 1500	WT
2010-2013	Chevrolet	Silverado 1500	XFE
2004-2005	Chevrolet	Silverado 1500	Z71 Off-Road
1986	Ford	F-150	Base
1987-1992	Ford	F-150	Custom
1995-1996	Ford	F-150	Eddie Bauer
1993-1995	Ford	F-150	Lightning
1995-1996	Ford	F-150	Special
1986-1996	Ford	F-150	XL
1993-1996	Ford	F-150	XLT
1986-1992	Ford	F-150	XLT Lariat
1989-1992	Ford	Ranger	Custom
2001-2005	Ford	Ranger	Edge
1998-2002	Ford	Ranger	EV
2005-2009	Ford	Ranger	FX4
1989	Ford	Ranger	GT
2002	Ford	Ranger	Postal
1989-1992	Ford	Ranger	S
1990	Ford	Ranger	S Plus
1993-1998	Ford	Ranger	Splash
1991-1993,1997,2006-2011	Ford	Ranger	Sport
1989-1997,2005-2007	Ford	Ranger	STX
2004	Ford	Ranger	Tremor
1993-2011	Ford	Ranger	XL
1995	Ford	Ranger	XL Sport
1989-2011	Ford	Ranger	XLT
2002-2005,2014-2018	GMC	Sierra 1500	Base
2001	GMC	Sierra 1500	C3
2002-2018	GMC	Sierra 1500	Denali
2002	GMC	Sierra 1500	HT
2005-2006,2009-2013	GMC	Sierra 1500	Hybrid
1999-2003,2006-2013	GMC	Sierra 1500	SL
1999-2018	GMC	Sierra 1500	SLE
1999-2018	GMC	Sierra 1500	SLT
2002-2013	GMC	Sierra 1500	WT
2010-2013	GMC	Sierra 1500	XFE
