Description

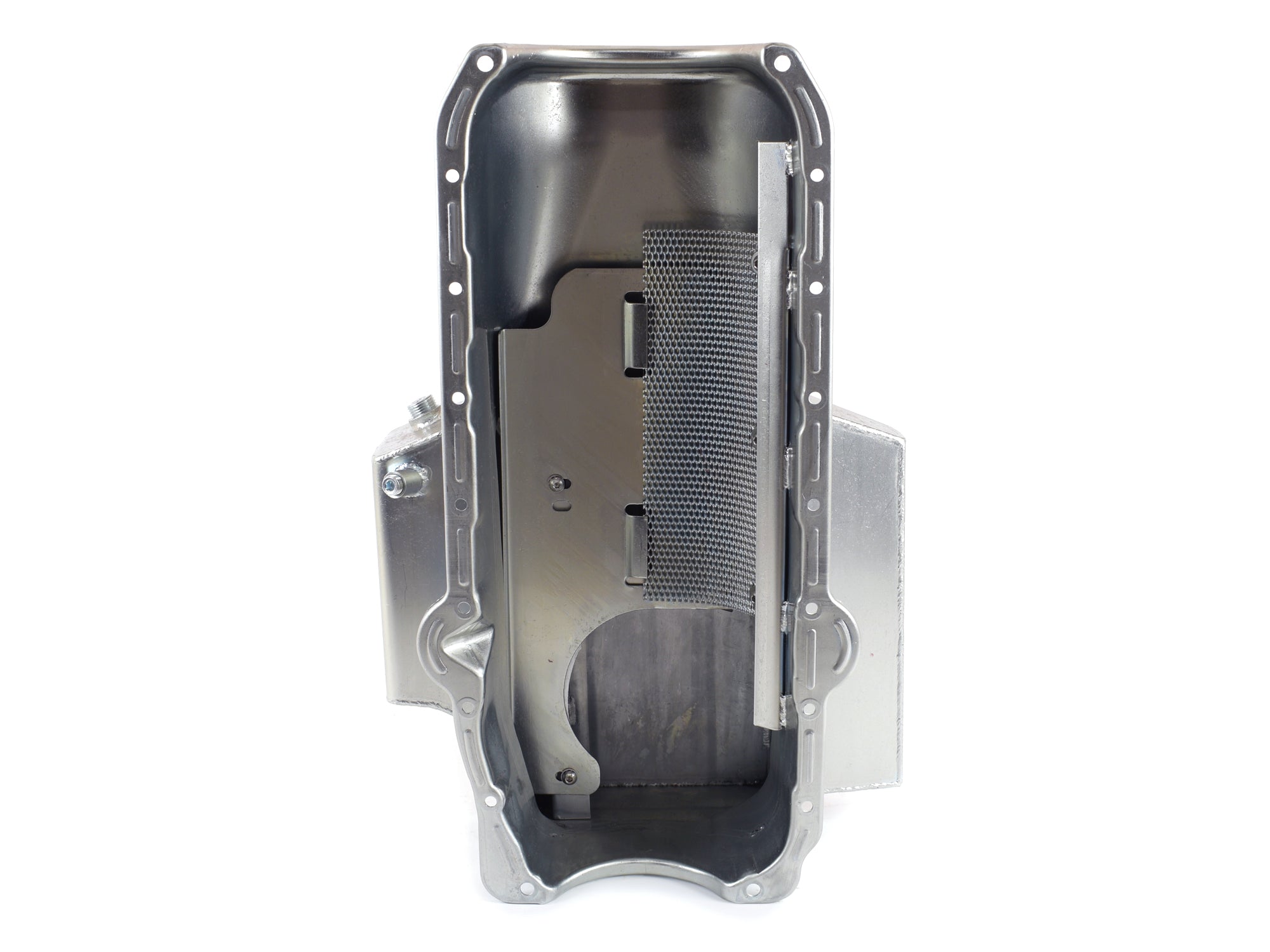

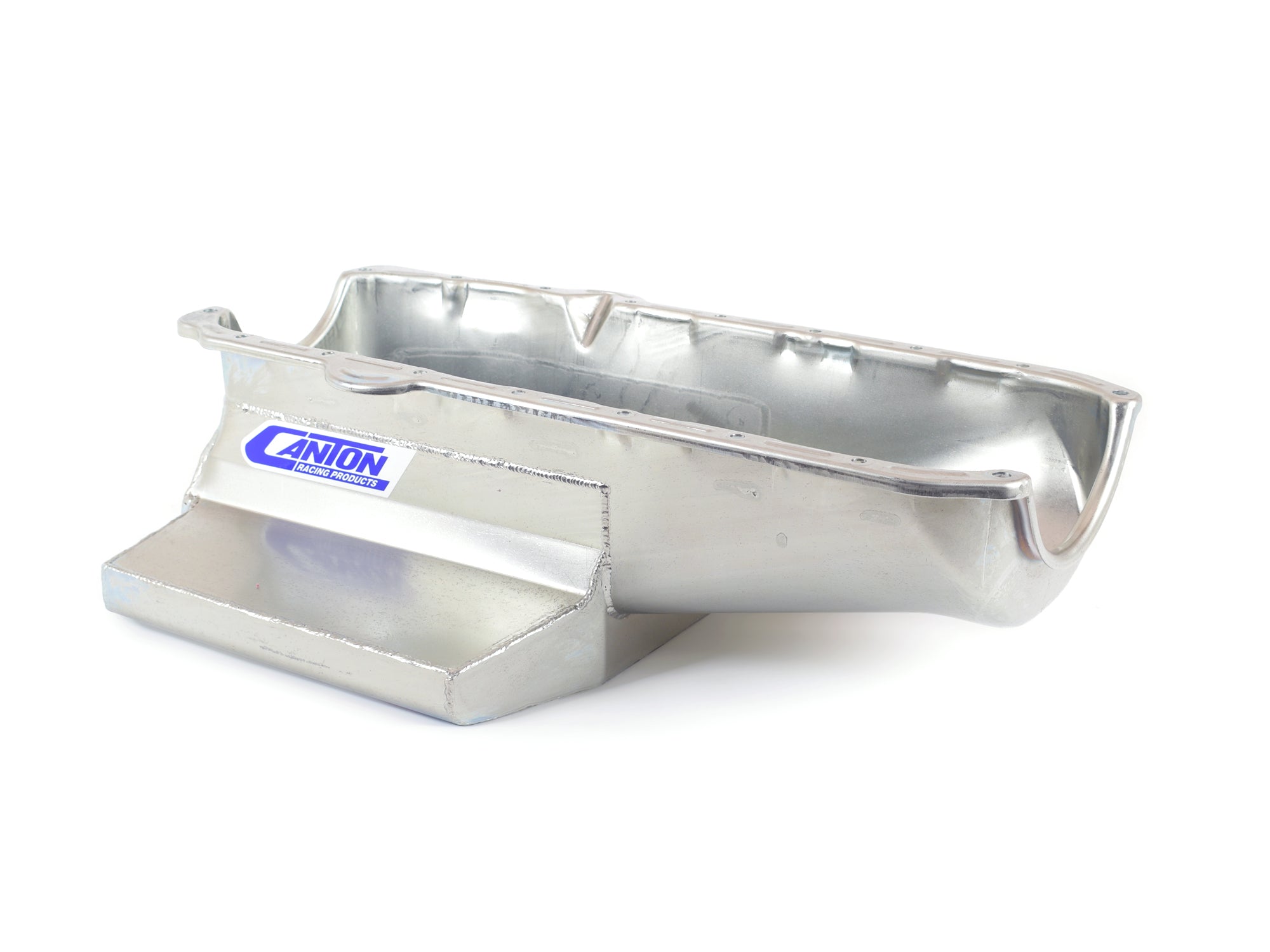

This Competition wet sump is for pre-'80 Small Block Chevys with left side dipstick. It is designed for applications where the engine is set extra low in the chassis. Fits front steer chassis with both aftermarket and Camaro front ends. The pan has a 6-1/2" deep, 15" wide, 12" long sump, and a 7 quart system capacity. Requires one of our pickups.
- 7 qt System Capacity
- 3.75" Stroke Clearance
- Six Trap Door Baffles & Three Runners
- Crank Scraper
- Bolt in Slosh Baffle
- Built in Windage Tray
- 1/2" NPT Temperature Bung
- Provison for our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711137
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For S.B. Chevy Pre-1980 Blocks
- Feature 1: Baffled with 6 Trap Doors/3 Directional Runners
- Feature 2: Bolt On Slosh Baffle For Oil Control
- Feature 3: Removable Screen Windage Tray and Built in Crank Scraper
- Feature 4: Reduces Crank Windage And Saves Horsepower
- Feature 5: Provision for Canton Pan Mounted Dipstick
- Feature 6: 1/2 NPT Temp Sensor Bung
- Feature 7: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-031 - Pickup for Small Block High Volume Pumps M55HV
- Recommended Accessory 2: 20-032 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
- Recommended Accessory 3: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
- Recommended Accessory 4: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 5: 88-100 - SBC Pre '85 Oil Pan Gasket
- Stoke: 3.75
- Sump Location: Rear Sump
- Sump Width: 15 inches
- Windage Tray Included: Yes
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24.5 x 16.25 x 9.5 inches
- Weight: 20 POUNDS
