Description

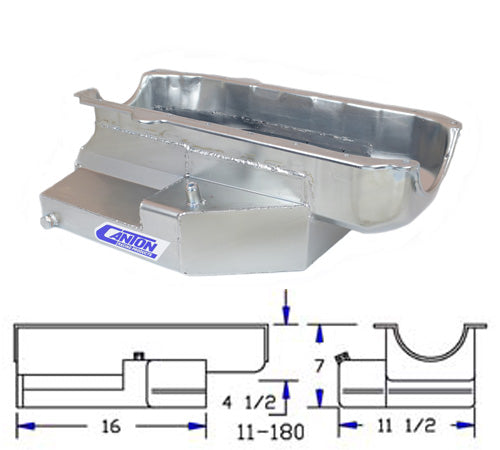

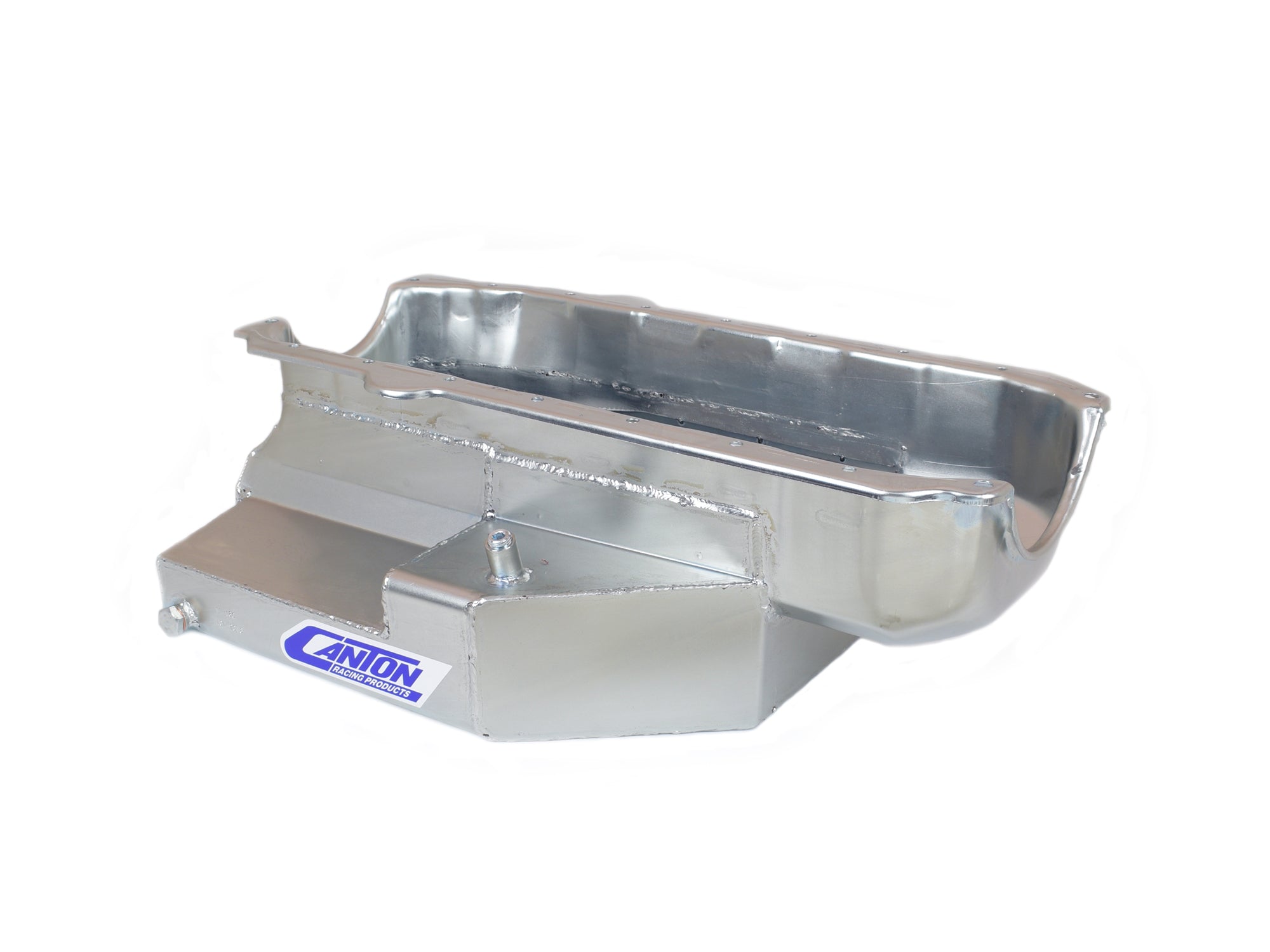

This SBC competition open chassis wet sump is for ?85 and earlier Small Block Chevys. It is designed for chassis without any x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It has a 11-1/2" wide, 16" long 7" deep ?L? sump, and a 9 quart system capacity. Requires one of our pickups.
- Clears 3.875" Stroke
- 7" Deep 16" long 11.5" wide sump
- 9 qt System Capacity
- Six Trap Door Baffle System
- Crank Scraper
- Bolt In Screen Windage Tray
- 1/2" NPT Temperature Bung
- Provision for pan mounted dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711229
- Baffled: Yes
- Capacity: 9 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For S.B. Chevy 1985 and earlier blocks
- Feature 1: Clears 3.875in Stroke
- Feature 2: 7in Deep 16in long 11.5in wide sump
- Feature 3: Baffled with 6 Trap Doors/3 Directional Runners
- Feature 4: Bolt On Slosh Baffle For Oil Control
- Feature 5: Removable Screen Windage Tray and Built in Crank Scraper
- Feature 6: Provision for Canton Pan Mounted Dipstick
- Feature 7: 1/2 NPT Temp Sensor Bung
- Feature 8: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
- Recommended Accessory 10: 88-100 - 1 Piece SBC Pre-85' Oil Pan Gasket
- Recommended Accessory 11: 88-102 - 4 Piece SBC Pre-85' Oil Pan Gasket
- Recommended Accessory 2: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
- Recommended Accessory 3: 20-070 - Pickup for Small Block High Volume Pumps M55HV
- Recommended Accessory 4: 20-072 - Pickup for Small Block High Volume Pumps w/ 3/4" Tube M155HV
- Recommended Accessory 5: 20-077 - Press In Pickup for Melling 10552 & 10555 Pumps
- Recommended Accessory 6: 20-100 - Pickup for Big Block (5-bolt) Pumps M77 & M77HV
- Recommended Accessory 7: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 8: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 9: 22-300 - SBC Oil Pan Stud Kit
- Stoke: 3.875 inches
- Windage Tray Included: Yes
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24.5 x 16.25 x 9.5 inches
- Weight: 20 POUNDS
