Description

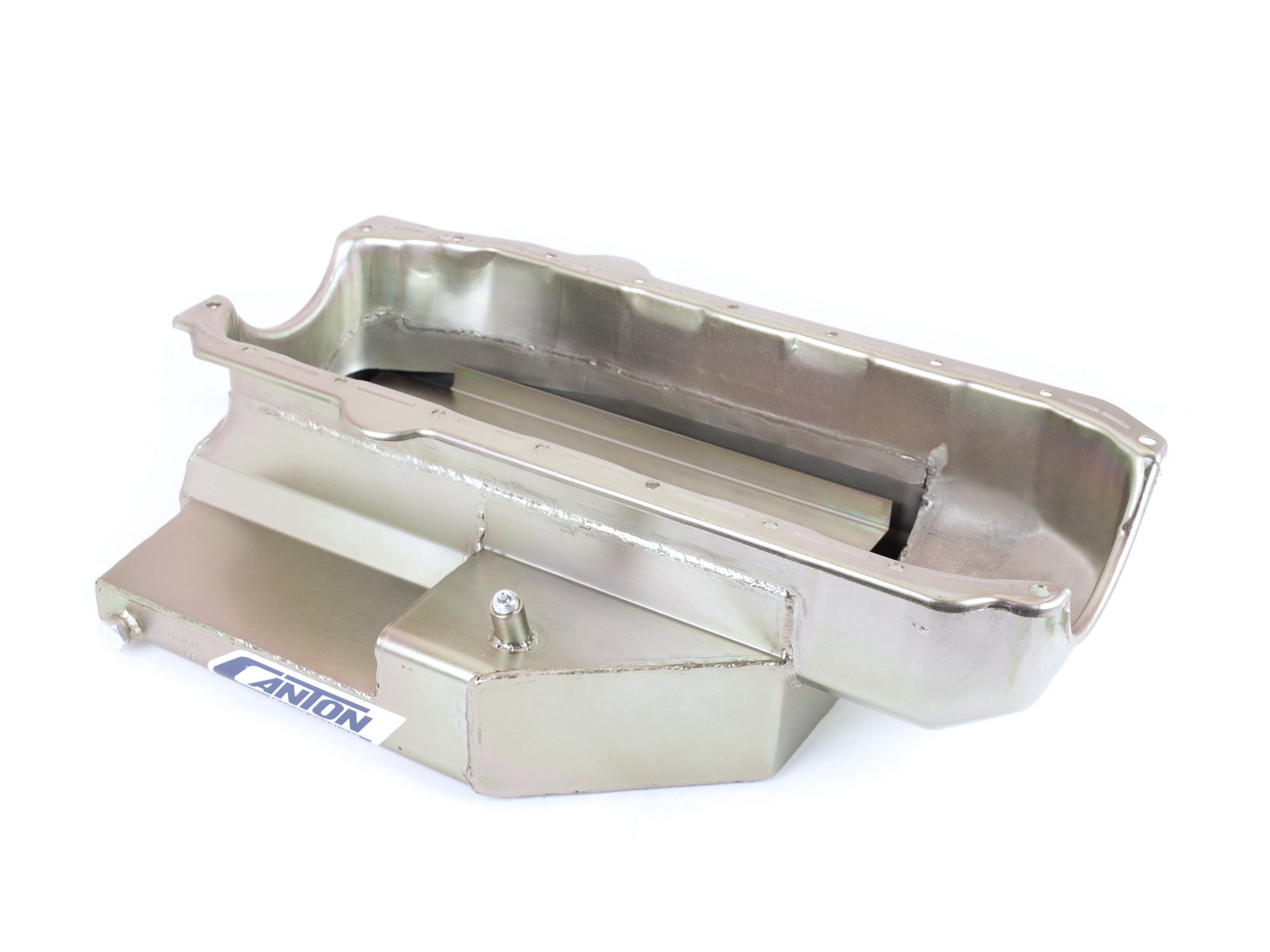

This SBC competition open chassis wet sump is for ?85 and earlier Small Block Chevys. It is designed for chassis without any x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It provided maximum ground clearance at only 6.5 inches deep, but still provides an 8 quart system capacity with its ?L? sump design. Sump measures 11-1/2" wide, 16" long 6-1/2" deep, and provides a 9 quart system capacity. Requires one of our pickups.
- 8 qt System Capacity
- Six Trap Door Baffles & Three Directional Oil Runners
- Crank Scraper
- Bolt in Slosh Baffle

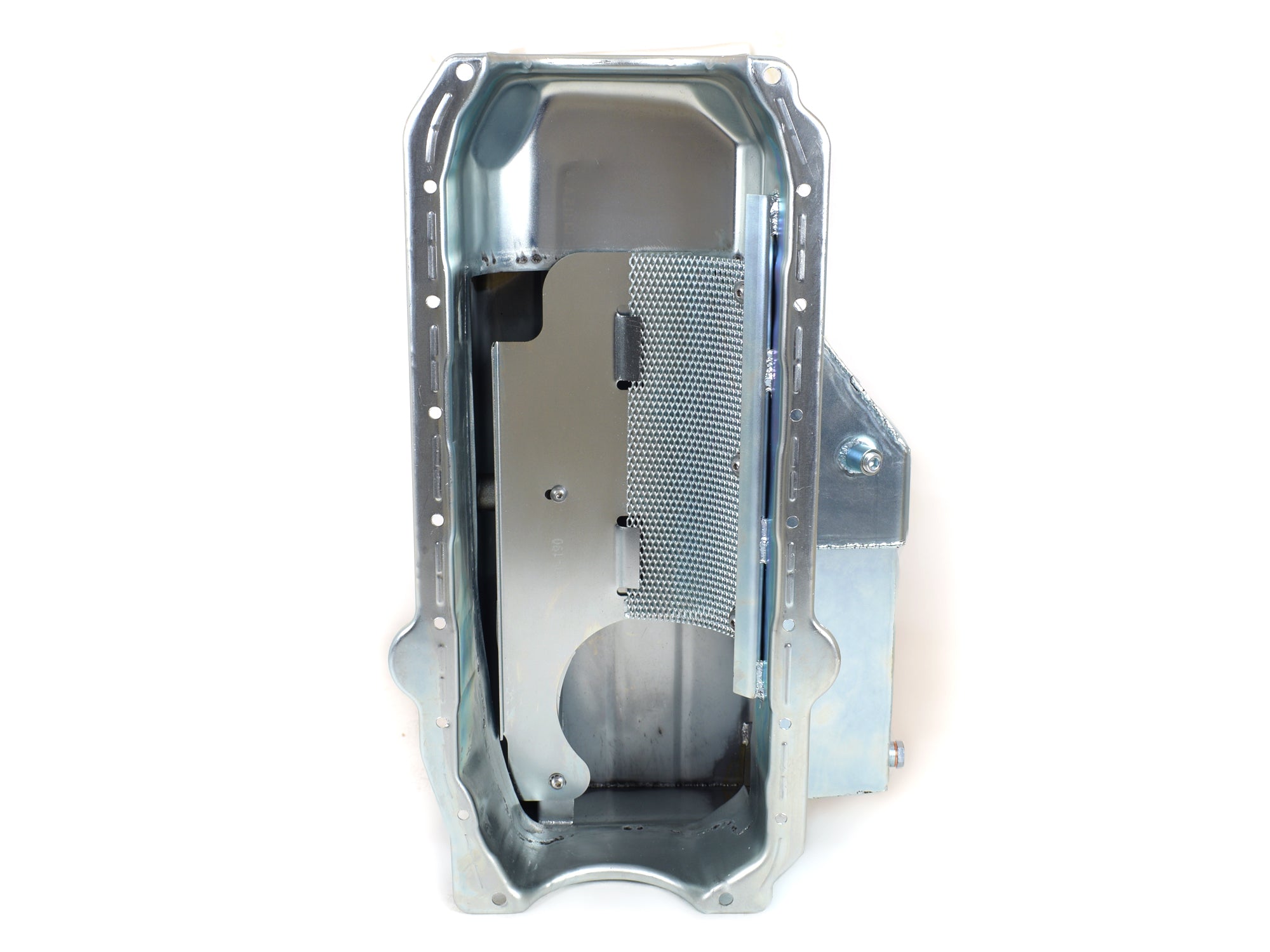

- Built in Screen Windage Tray
- 1/2” NPT Temperature Bung
- Provison for our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711267
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For S.B. Chevy 1985 and earlier blocks
- Feature 1: Provides maximum ground clearance at only 6.5 inches deep
- Feature 2: L
- Feature 3: Baffled with 6 Trap Doors/3 Directional Runners
- Feature 4: Bolt On Slosh Baffle For Oil Control
- Feature 5: Removable Screen Windage Tray and Built in Crank Scraper
- Feature 6: Provision for Canton Pan Mounted Dipstick
- Feature 7: 1/2 NPT Temp Sensor Bung
- Feature 8: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-030 - Pickup for Small Block Standard Volume Pumps M55 & M55A
- Recommended Accessory 2: 20-031 - Pickup for Small Block High Volume Pump M55HV
- Recommended Accessory 3: 20-032 - Pickup for Small Block Standard Volume M155 Pump with 3/4" Inlet
- Recommended Accessory 4: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 5: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T Fitting
- Recommended Accessory 6: 88-100 ? SBC Pre ?85 Oil Pan Gasket
- Stoke: 3.875"
- Windage Tray Included: Yes
Extended Information:
- Country of Origin: US
- Emissions : 1
- Life Cycle Status: Discontinued
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24 x 16.25 x 9 inches
- Weight: 18.5 POUNDS
