Description

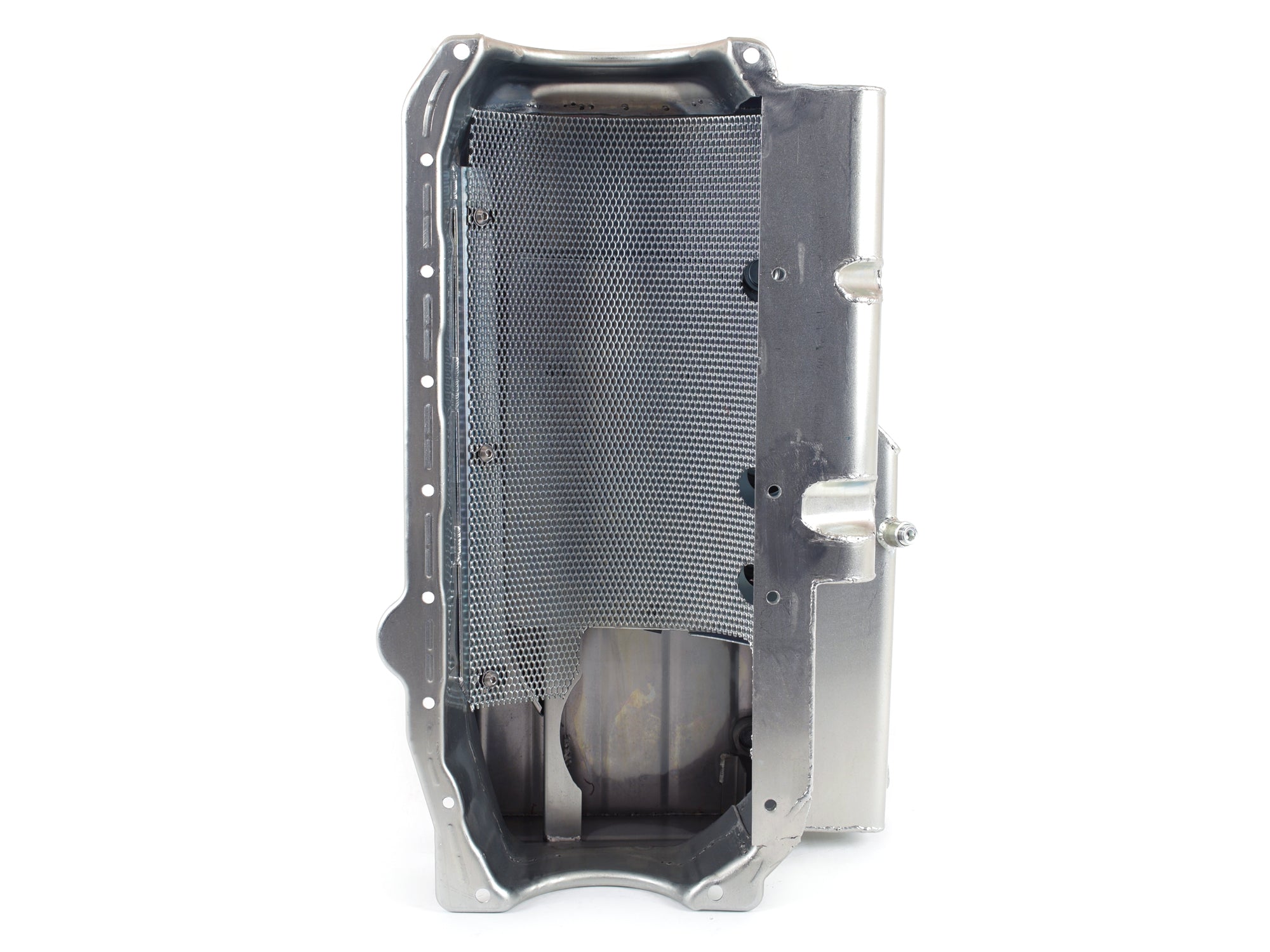

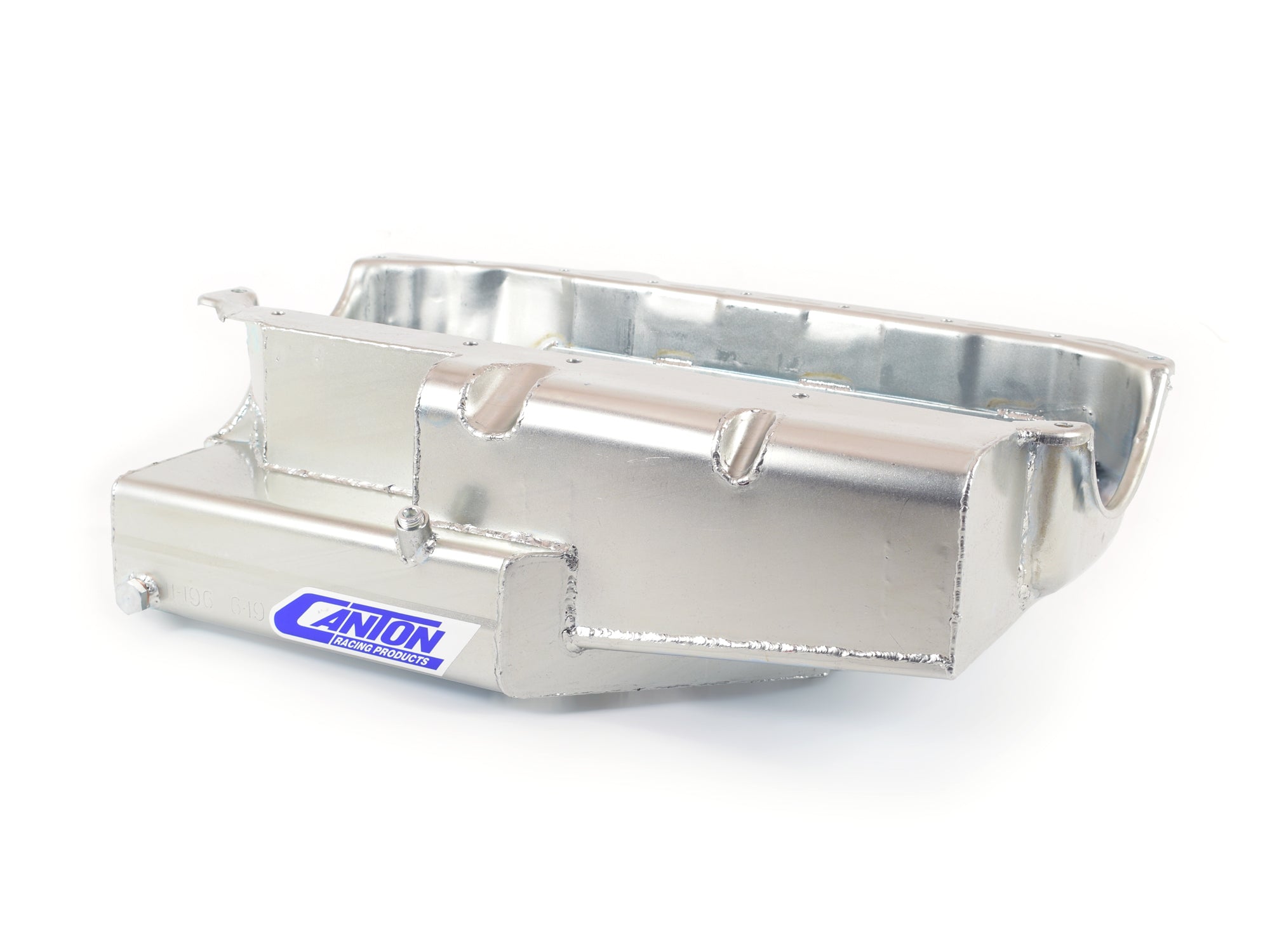

This open chassis shallow "L" style steel wet sump is for pre-?85 Small Block Chevys. The pan is designed for applications requiring extra ground clearance and with chassis without any x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It has a 16" long, 6-1/2" deep ?L? sump with an 8 quart system capacity. Requires one of our pickups. Also an available option for this pan is #20-914 Pro Louvered Windage Tray, designed to replace the standard screen tray in this pan.
- 8 qt System Capacity
- Six Trap Door Baffles & Directional Oil Runners
- Pro Style Oil Recovery Pouch
- Bolt in Slosh Baffle
- Built in Screen Windage Tray
- 1/2” NPT Temperature Bung
- Provison for our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711274
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For S.B. Chevy 1985 and earlier blocks
- Feature 1: Pro-Style Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
- Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
- Feature 3: Baffled with 6 Trap Doors/3 Directional Runners
- Feature 4: Bolt On Slosh Baffle For Oil Control
- Feature 5: Removable Screen Windage Tray
- Feature 6: Provision for Canton Pan Mounted Dipstick
- Feature 7: 1/2 NPT Temp Sensor Bung
- Feature 8: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-030 - Pickup for Small Block Standard Volume Pumps M55 & M55A
- Recommended Accessory 2: 20-031 - Pickup for Small Block High Volume Pump M55HV
- Recommended Accessory 3: 20-032 - Pickup for Small Block Standard Volume M155 Pump with 3/4" Inlet
- Recommended Accessory 4: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 5: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T Fitting
- Recommended Accessory 6: 88-100 ? SBC Pre ?85 Oil Pan Gasket
- Stoke: 3.875"
- Windage Tray Included: Yes
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24.5 x 16.25 x 9.5 inches
- Weight: 23 POUNDS
