Description

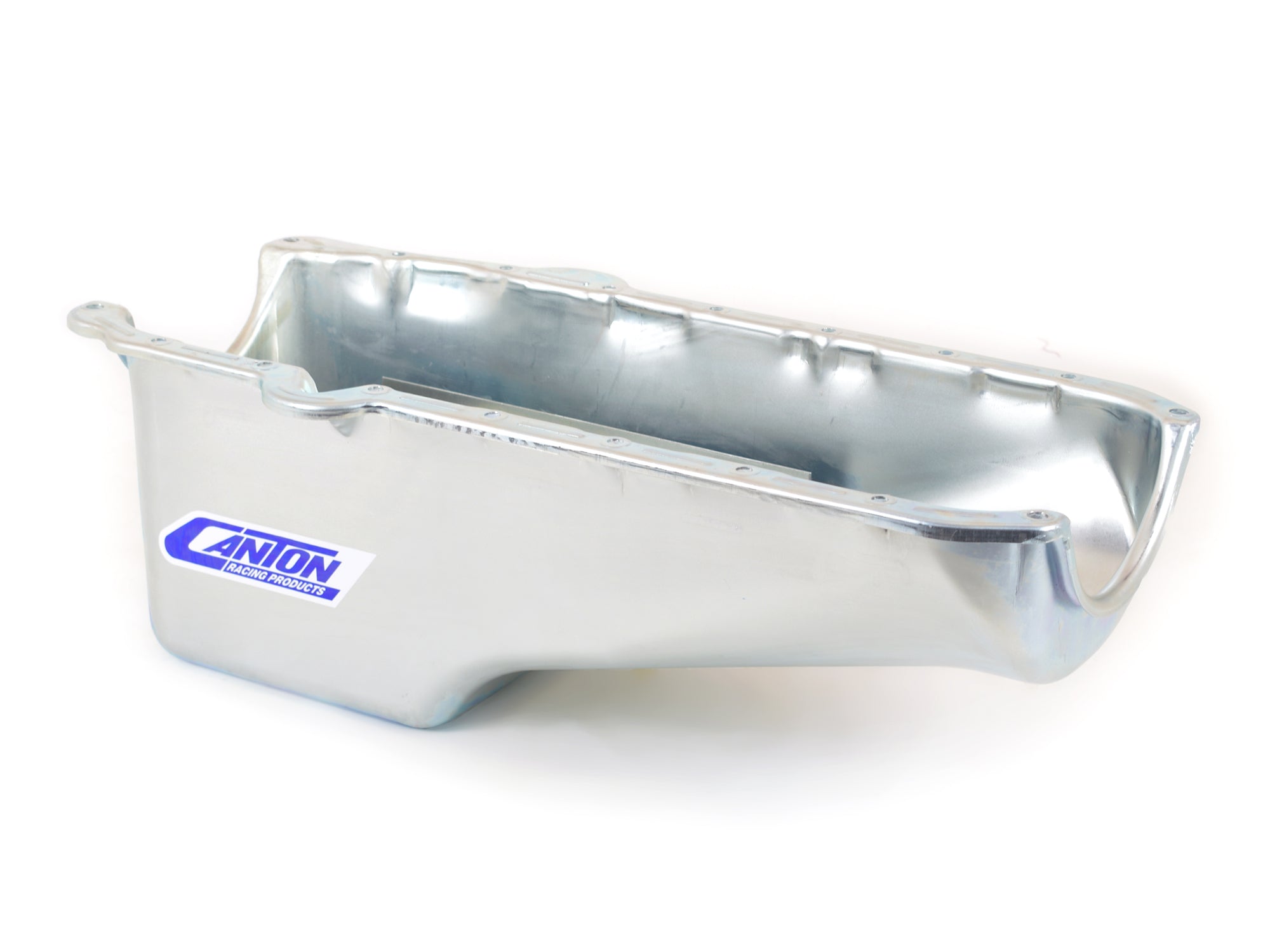

This circle track stock appearing pan is for ?86 and newer Small Block Chevys with one piece seal. It is designed for circle track applications where a stock appearing oil pan is required, such as strictly stocks or mini-stocks. Stock dimensions are capacity are retained, but Canton's specially designed baffling system ensures increased oil control. This pan requires our 20-002 pickup.
- 7.5" Deep
- 5 qt System Capacity

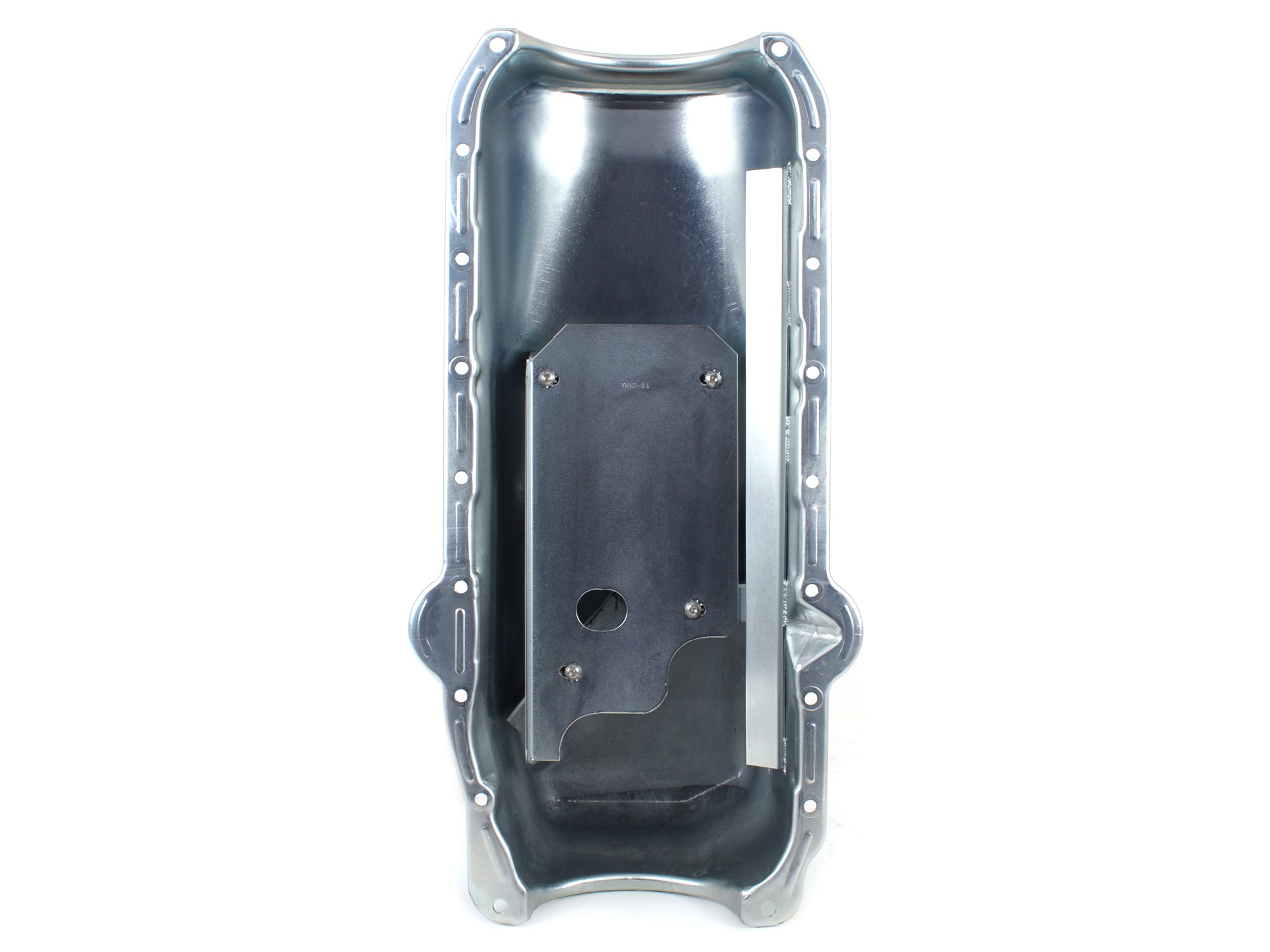

- Double Trap Door Baffles
- Crank Scraper
- Removable Windage/Anti-Slosh Baffle
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711304
- Baffled: Yes
- Capacity: Stock System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: No
- Drain Plug Included: Yes
- Engine: For S.B. Chevy 1986 and newer blocks with one piece seal
- Feature 1: Retains Stock Oil Pan Dimensions
- Feature 2: Baffled with Double Trap Door Baffles
- Feature 3: Removable Windage / Anti-Slosh Baffle
- Feature 4: Built in Crank Scraper
- Feature 5: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-002 - Pickup For Small Block Standard Volume Only - M-55 or M-55A Oil Pumps
- Recommended Accessory 2: 88-100T ? SBC 86+ Oil Pan Gasket
- Stoke: 3.75 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23 x 12 x 9 inches
- Weight: 13 POUNDS
