Description

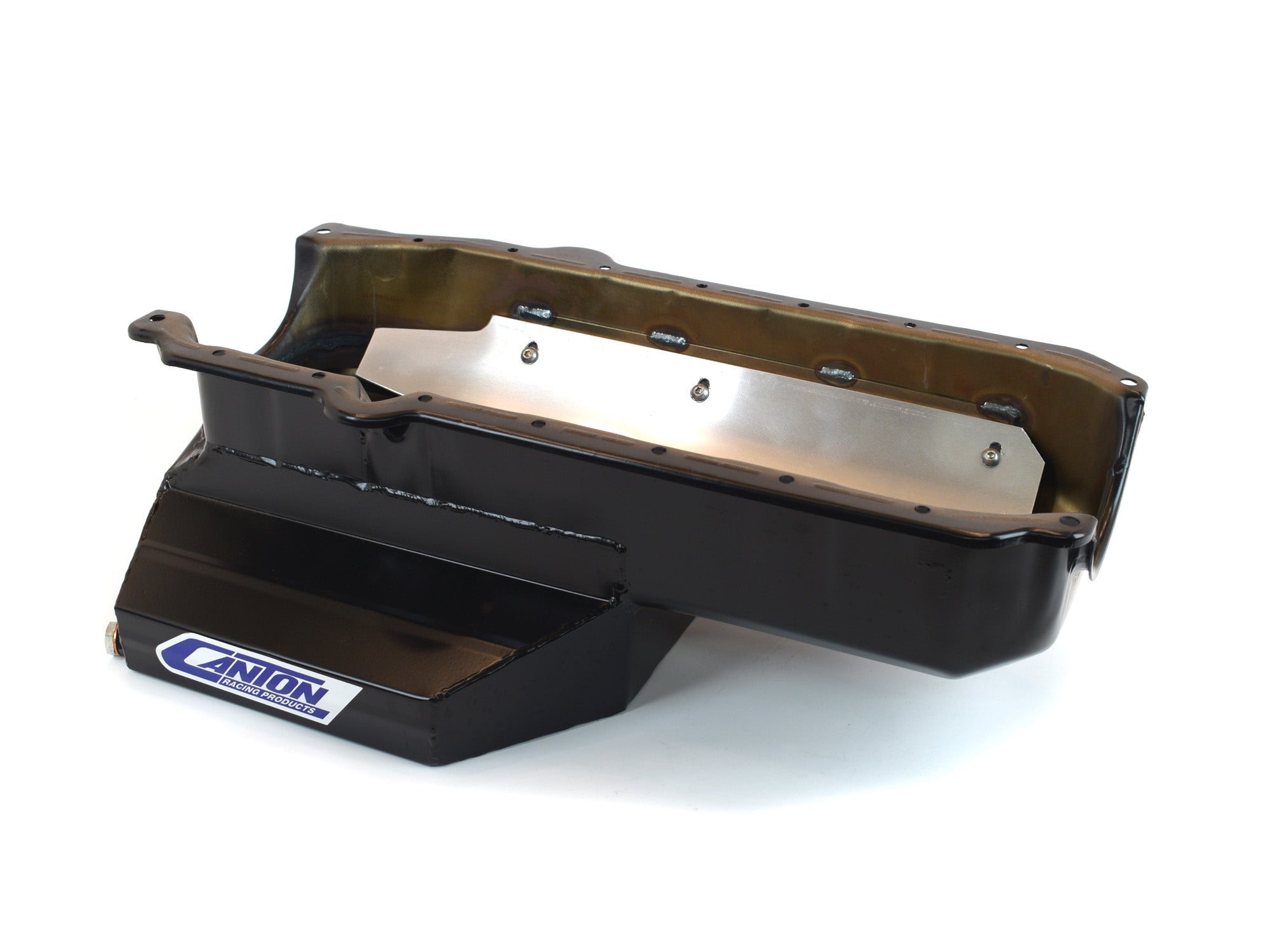

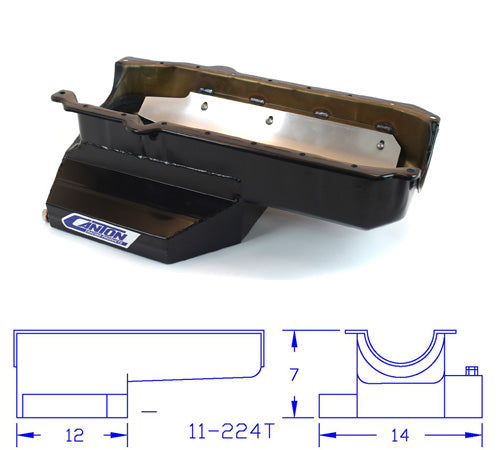

This Competition wet sump is for '86 and newer Small Block Chevys with a one piece seal. The oil pan is designed to be replacement/upgrade for the GM performance circle track crate engine "late model" pan. The deep "T" sump gives increased oil capacity in a shallow sump design. It has a 7" deep, 12" long, 14" wide sump and a 8 quart system capacity. Requires one of our pickups.
- 8 qt System Capacity
- 3.75" Stroke Clearance
- Six Trap Door Baffles & Three Runners
- Crank Scraper
- Bolt in Louvered Windage Tray
- 1/2” NPT Temperature Bung
- Provision for our Pan Mounted Dipstick
- Black Powder coat Finish
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711311
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For S.B. Chevy 1986 and newer blocks with one piece seal
- Feature 1: Shallow T Sump Gives Increased Oil Capacity
- Feature 2: Baffled with 6 Trap Doors To Direct Oil to Pickup
- Feature 3: Built in Crank Scraper
- Feature 4: Removable Louvered Windage Tray
- Feature 5: Oil Check Plug
- Feature 6: Replaces the GM performance Late Model Circle Track Oil Pan
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
- Recommended Accessory 2: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
- Recommended Accessory 3: 20-070 - Pickup for Small Block High Volume Pumps M55HV
- Recommended Accessory 4: 20-072 - Pickup for Small block High Volume M155HV Pump w/ 3/4" Tube
- Recommended Accessory 5: 20-077 - Press In Pickup for M10552 & M10555 Pump
- Recommended Accessory 6: 20-071 - Flange Mount Pickup for M10552 & M10555 Pump
- Recommended Accessory 7: 20-100 - Pickup for Big Block 5 bolt pumps M77 & M77HV
- Recommended Accessory 8: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
- Recommended Accessory 9: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Stoke: 3.875 inches
- Windage Tray Included: Yes
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Discontinued
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24 x 9.75 x 19.15 inches
- Weight: 16.75 POUNDS
