Description

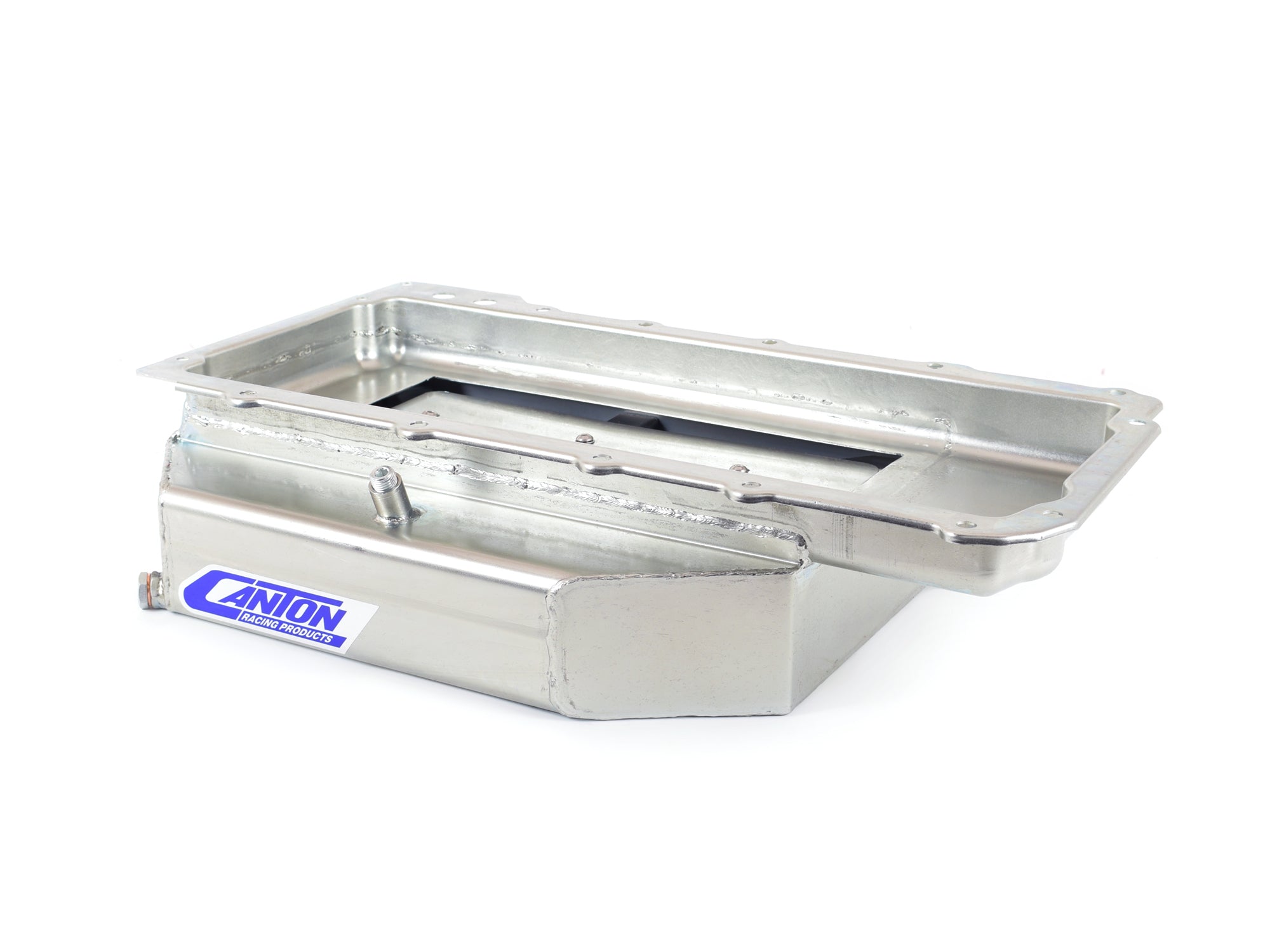

This circle track steel rear sump is designed for GM LS1 open chassis applications. It is 7" deep from center line of crank, 4-3/4" deep from the pan rail, 11" wide, 16" long and has a 7 quart system capacity. This pan requires our 11-281 pickup, and LS1 Filter Adapter or Filter Mount.
- This pan requires our filter adapter or filter mount.
- 7 qt System Capacity
- 4.25" Stroke Clearance

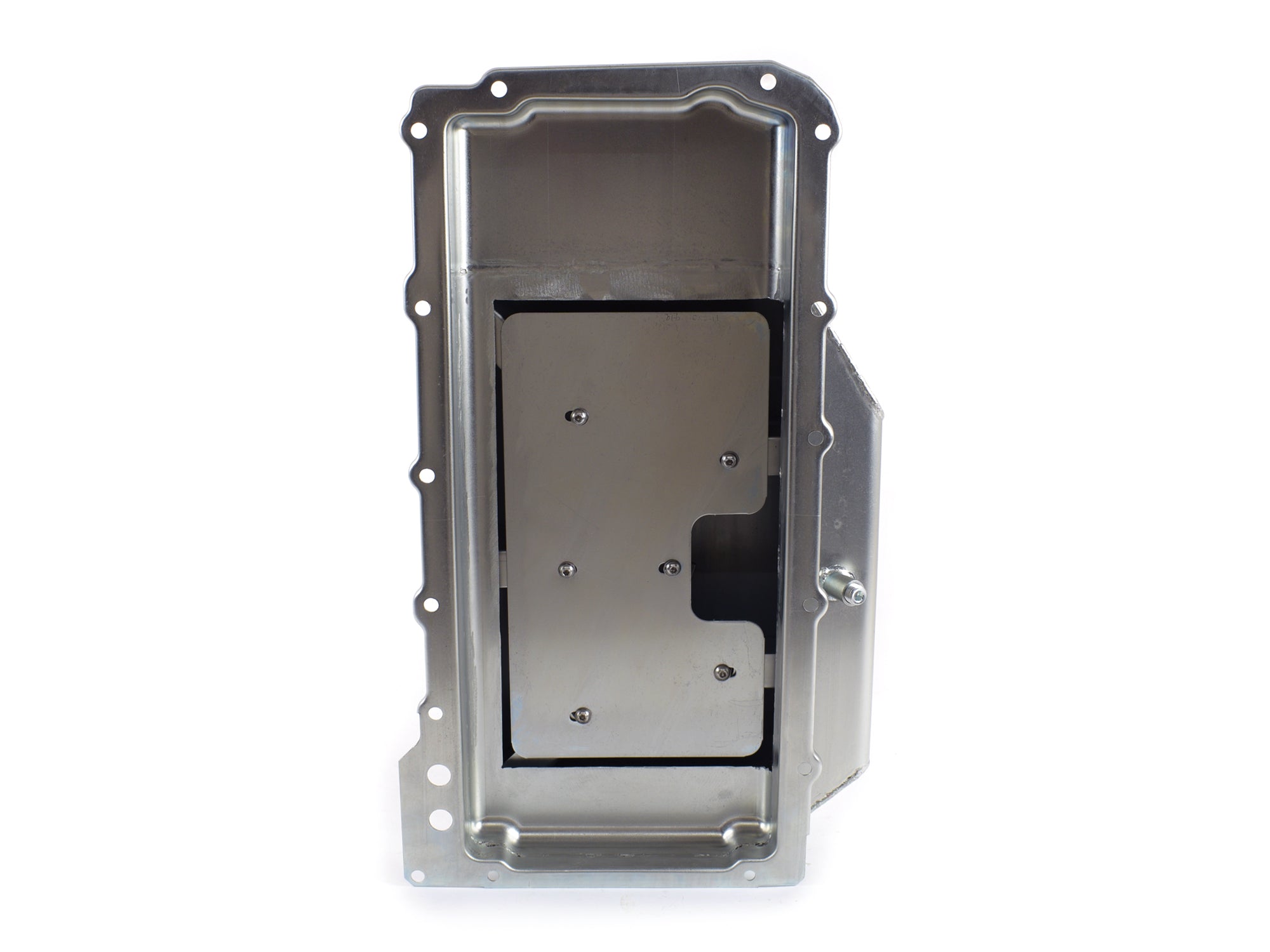

- Circle Track Trap Door Baffle System
- Bolt in Slosh Baffle
- 1/2" NPT Temperature Bung
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711335
- Finish: Clear Zinc
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24 x 16 x 10 inches
- Weight: 12 POUNDS
