Description

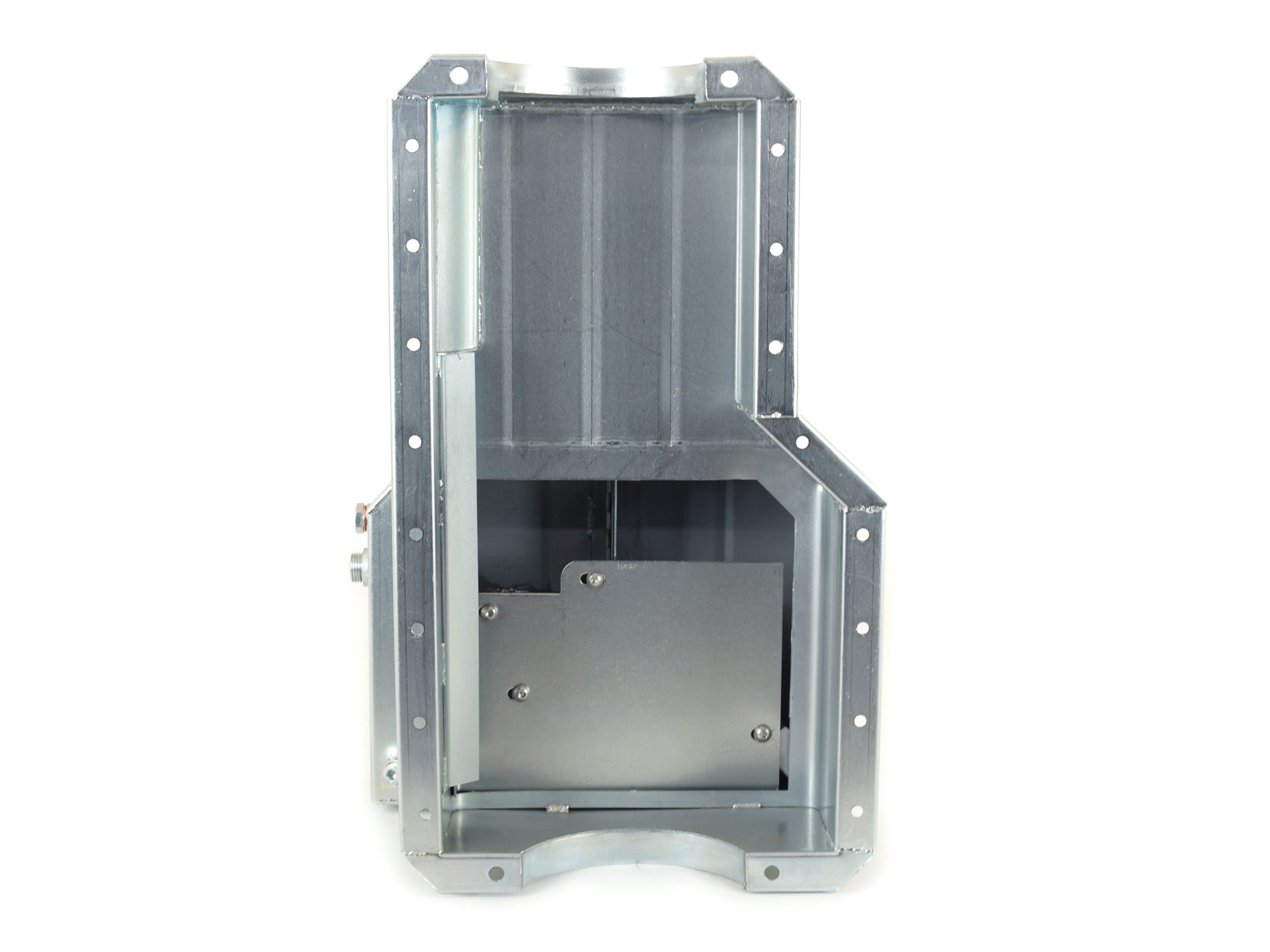

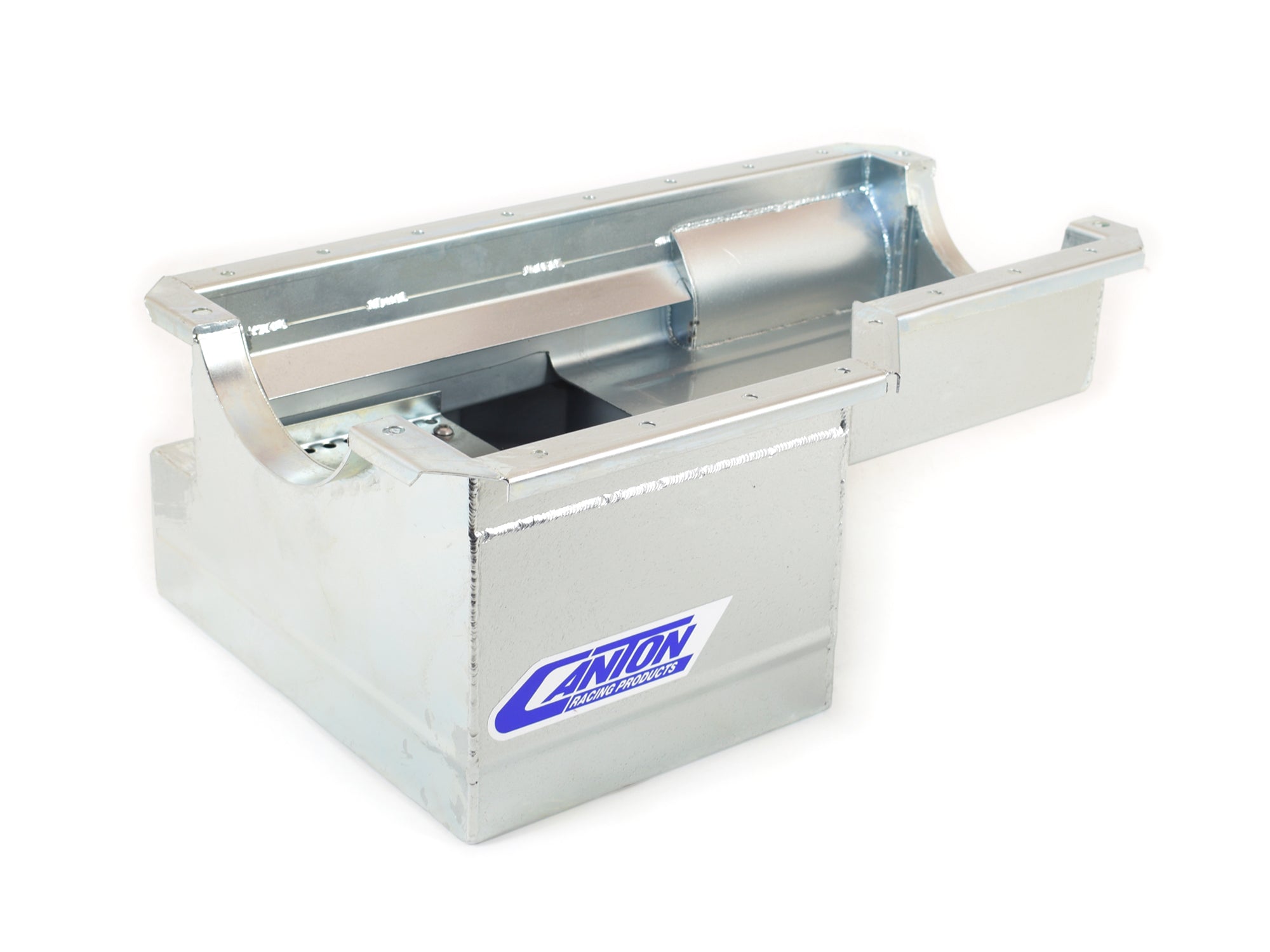

This Ford left turn front sump is for ?74-97 2300cc ohc engines in front sump Pinto chassis and mini-modifieds. It has a 7-1/2" Deep, 12" Wide, 9-1/2" Long sump that holds 5-1/2 quarts and has a 6 quart system capacity. This pan works with our 2300 main support when using a 86C pump and pan's crank scraper is modified for clearance. This pan requires our 11-921 pickup.
- 6 qt System Capacity
- Three Trap Door Baffles & Directional Oil Runners
- Crank Scraper
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711380
- Baffled: Yes
- Capacity: 6 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For Ford '74-'97 2300cc ohc engines
- Feature 1: Baffled with 3 Trap Doors and Directional Runners
- Feature 2: Bolt On Windage / Anti-Slosh Baffle For Oil Control
- Feature 3: Built in Crank Scraper
- Feature 4: Provision for Canton Pan Mounted Dipstick
- Feature 5: 1/2 NPT Temp Sensor Bung
- Feature 6: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 11-911 - 3/4" Dia. Tube pickup for 86 C & 86 CHV pumps
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Stoke: 3.126"
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 20 POUNDS
