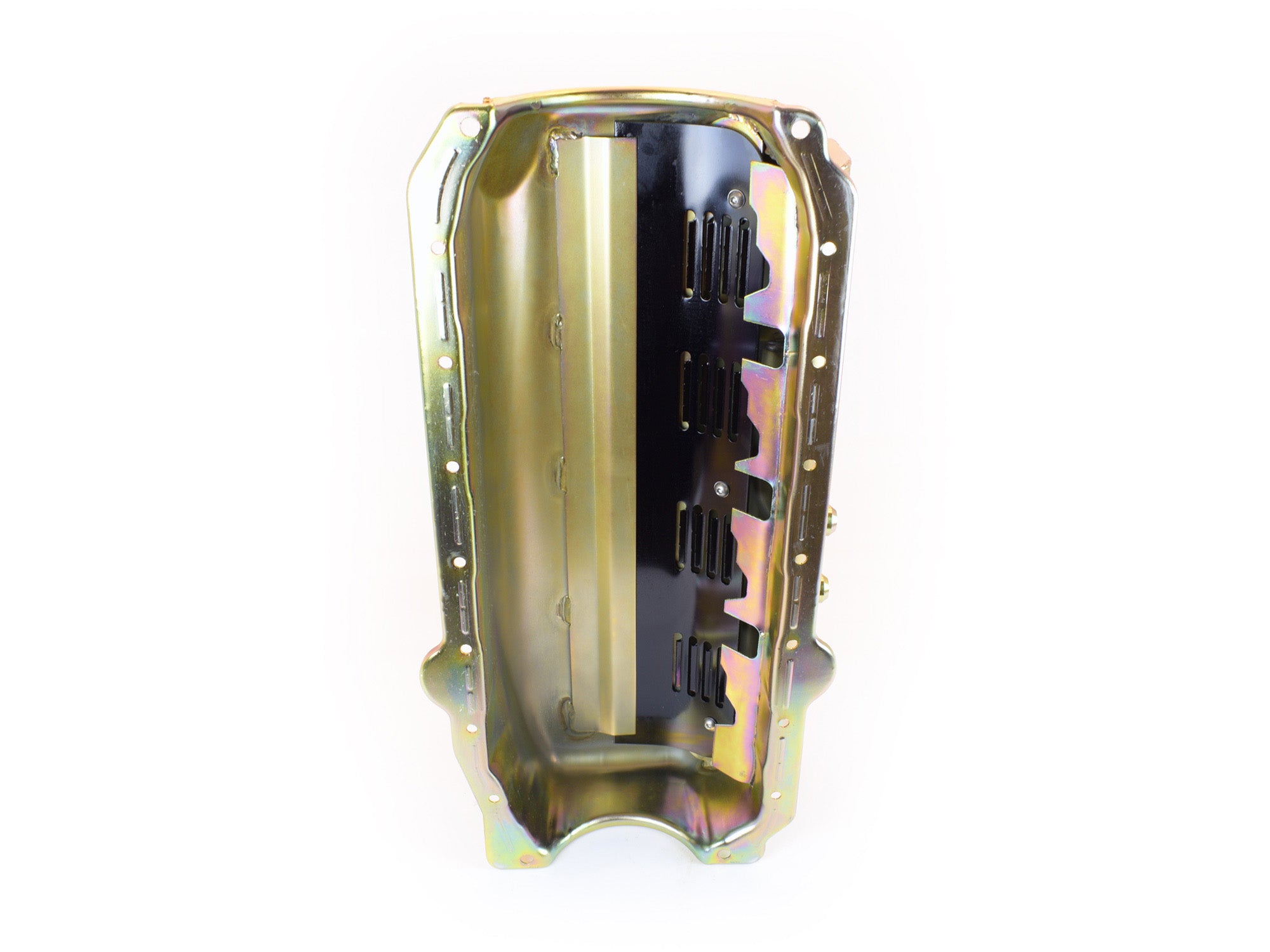

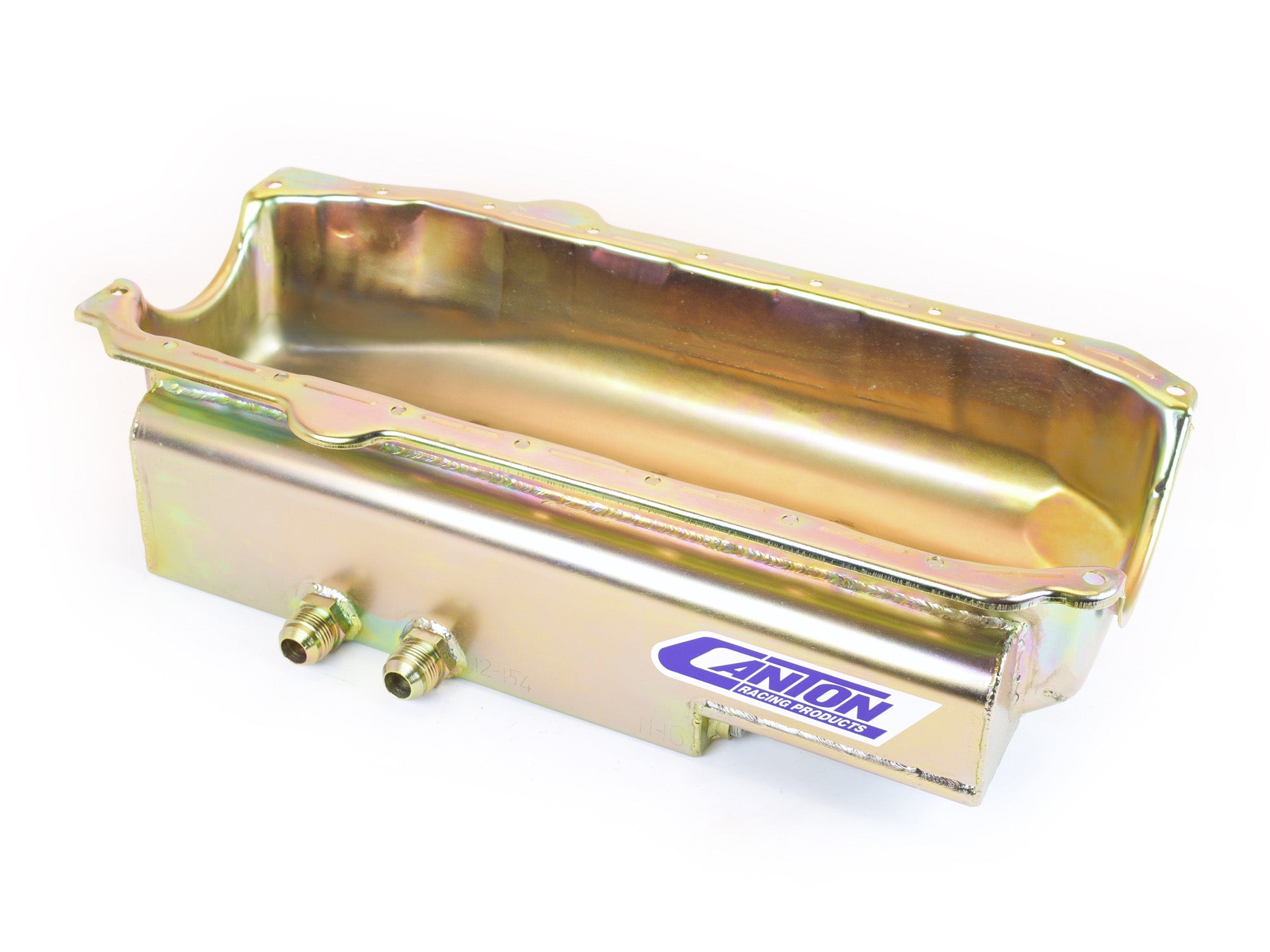

This SBC dry sump power pan is for all pre-?85 blocks with left or right side dipstick. The pan is 5-1/2" deep. Works with aftermarket starter and 153 or 168 tooth flywheel, or with a left hand or rear mounted starter.
- Two -12AN Pickups Exiting on the Right Side
- Pickup Tube Clean Out Ports
- Oil Recovery Pouch
- 1" Deep Oil Collection Trough
- Crank Scraper
- Built In Louver Windage Tray
Attributes:
-
Brand Name: Canton
-
GTIN: 00887753711441
-
Baffled: No
-
Crank Scraper Included: Yes
-
Drain Plug Included: Yes
-
Feature 1: Two -12AN Pickups Exiting on the Right Side
-
Feature 2: Pickup Tube Clean Out Ports
-
Feature 3: Oil Recovery Pouch
-
Feature 4: 1" Deep Oil Collection Trough
-
Feature 5: Crank Scraper
-
Feature 6: Built In Louver Windage Tray
-
Finish: Silver Plating
-
Gasket or Seal Included: No
-
Hardware Included: No
-
Kicked Out: No
-
Material: 16 Gauge Steel
-
Pickup Included: No
-
Recommended Accessory 1: 22-300 - SBC Oil Pan Stud Kit
-
Recommended Accessory 2: 22-540 - SBC Oil Input Adapter
-
Recommended Accessory 3: 22-640 - In-Line Screen Protector -8 AN Fittings
-
Recommended Accessory 4: 22-650 - In-Line Screen Protector -10 AN Fittings
-
Recommended Accessory 5: 22-660 - In-Line Screen Protector -12 AN Fittings
-
Recommended Accessory 6: 22-750 - -12 AN Screen Pump Protector
-
Recommended Accessory 7: 23-110L - 10qt Universal Dry Sump Tank w/ Left Side Fittings
-
Recommended Accessory 8: 23-120 - 10qt Sprint Style Dry Sump Tank w/ Right Side Fittings
-
Recommended Accessory 9: 88-100 - SBC Pre ?85 Oil Pan Gasket
-
Stoke: 3.875 inches
-
Windage Tray Included: Yes
Extended Information:
-
Country of Origin: United States
-
Emissions : CARB Eligible
-
Life Cycle Status: Discontinued
Packing Information:
-
Quantity of Each: 1
-
Package UOM: EA
-
Dimension: 23 x 12 x 9 inches
-
Weight: 13 POUNDS
