Description

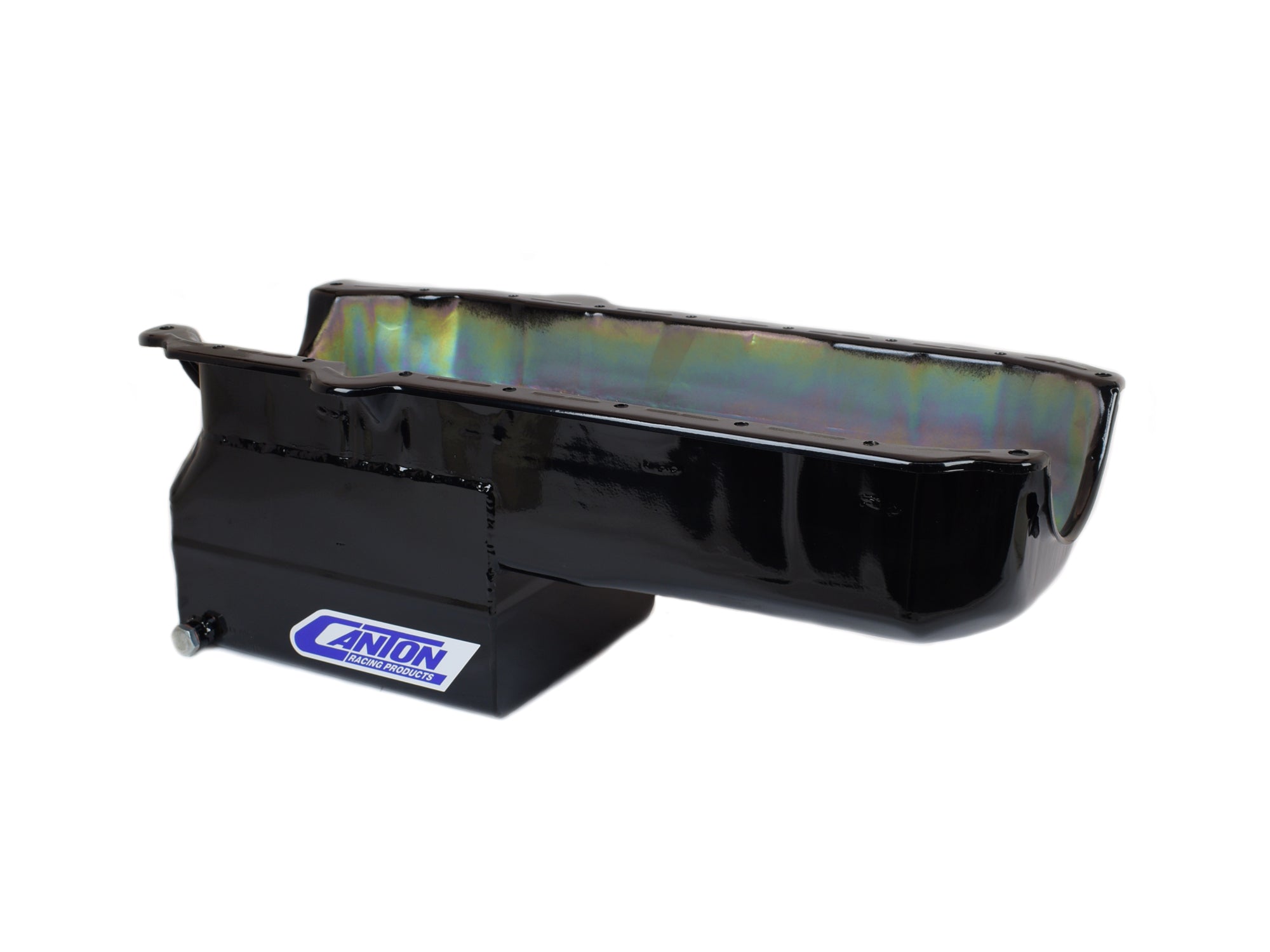

This black powder coat bracket drag race oil pan is for Small Block Chevy ?86 and up blocks with a one piece seal and is designed to fit most stock chassis. It has an 8" deep by 9-1/2" long sump and a 6 qt. system capacity. Clears a 3.875" stroke with a steel rod. Will work with stock or aftermarket starters. This pan requires one of our pickups.
- 6 qt System Capacity
- Clears 3.875" Stroke
- Drag Racing Trap Door Baffle System

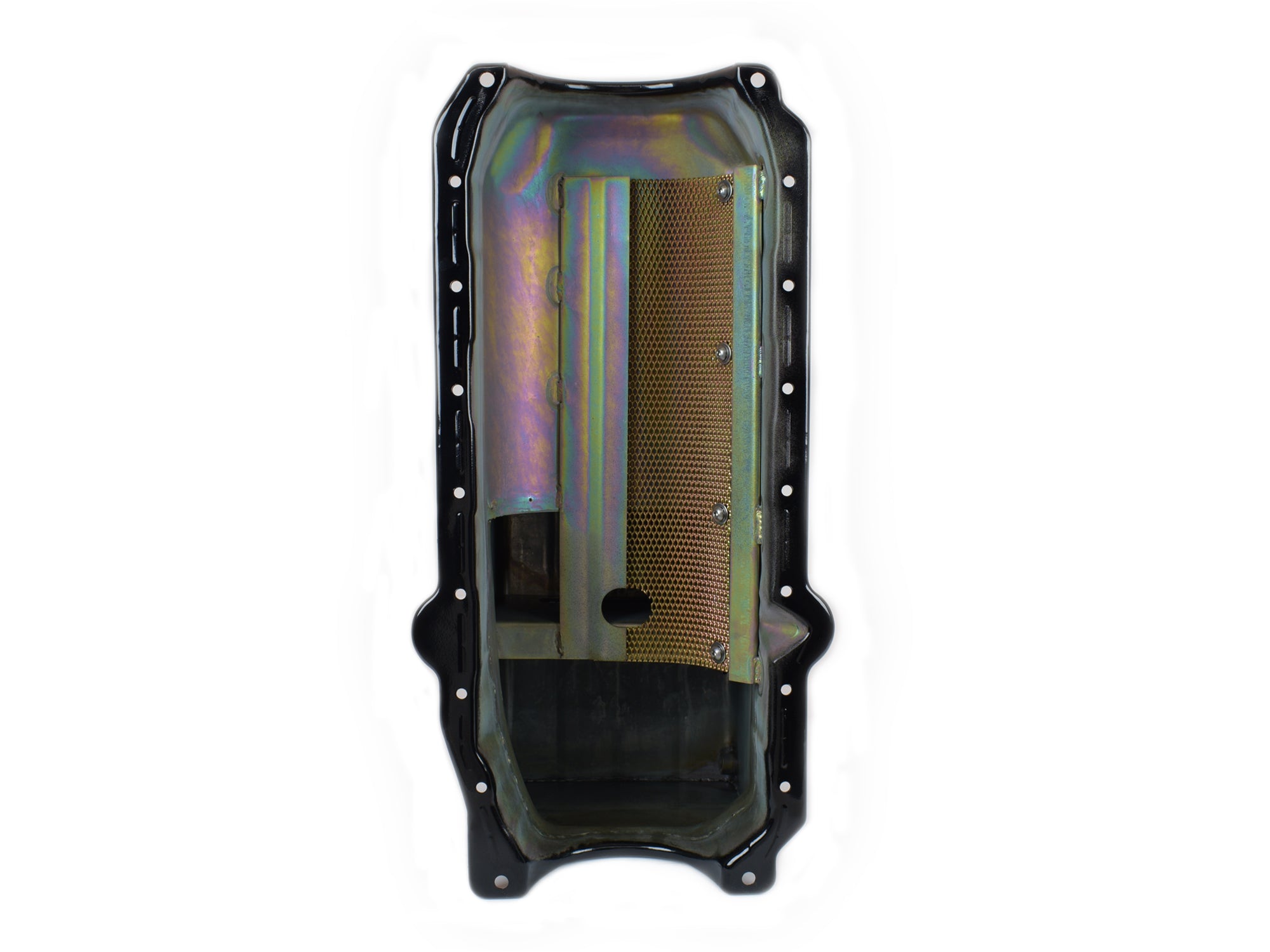

- Screen Windage Tray
- Crank Scraper
- Crank Scraper
- Black Powder Coat
Attributes:
- Brand Name: Canton
- GTIN: 00887753711557
- Baffled: Yes
- Capacity: 6 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: No
- Drain Plug Included: Yes
- Engine: For S.B. Chevy 1986 and newer blocks with one piece seal
- Feature 1: Features Competition Oil Recovery System
- Feature 2: Removable Screen Windage Tray
- Feature 3: Built in Crank Scraper
- Feature 4: Trap Door Baffle For Oil Control
- Feature 5: Magnetic Drain Plug
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-050 - Pickup for SBC Standard Volume Pumps M55 & M55A
- Recommended Accessory 2: 20-055 - Pickup for SBC Standard Volume Pump M155 w/ 3/4" Inlet
- Recommended Accessory 3: 20-080 - Pickup for SBC High Volume Pump M55HV
- Recommended Accessory 4: 20-081 - Bolt-On Pickup for Melling M10555 Pumps
- Recommended Accessory 5: 20-082 - Press-in Pickup for SBC High Volume Melling 10555 Pump
- Recommended Accessory 6: 20-085 - Pickup for SBC High Volume Pump M155HV w/ 3/4" Inlet
- Recommended Accessory 7: 88-100T ? SBC Pre ?85 Oil Pan Gasket
- Stoke: 3.875 inches
- Sump Depth: 8 inches
- Sump Width: 7.5 inches
- Windage Tray Included: Yes
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23.75 x 11.5 x 9.25 inches
- Weight: 14 POUNDS
