Description

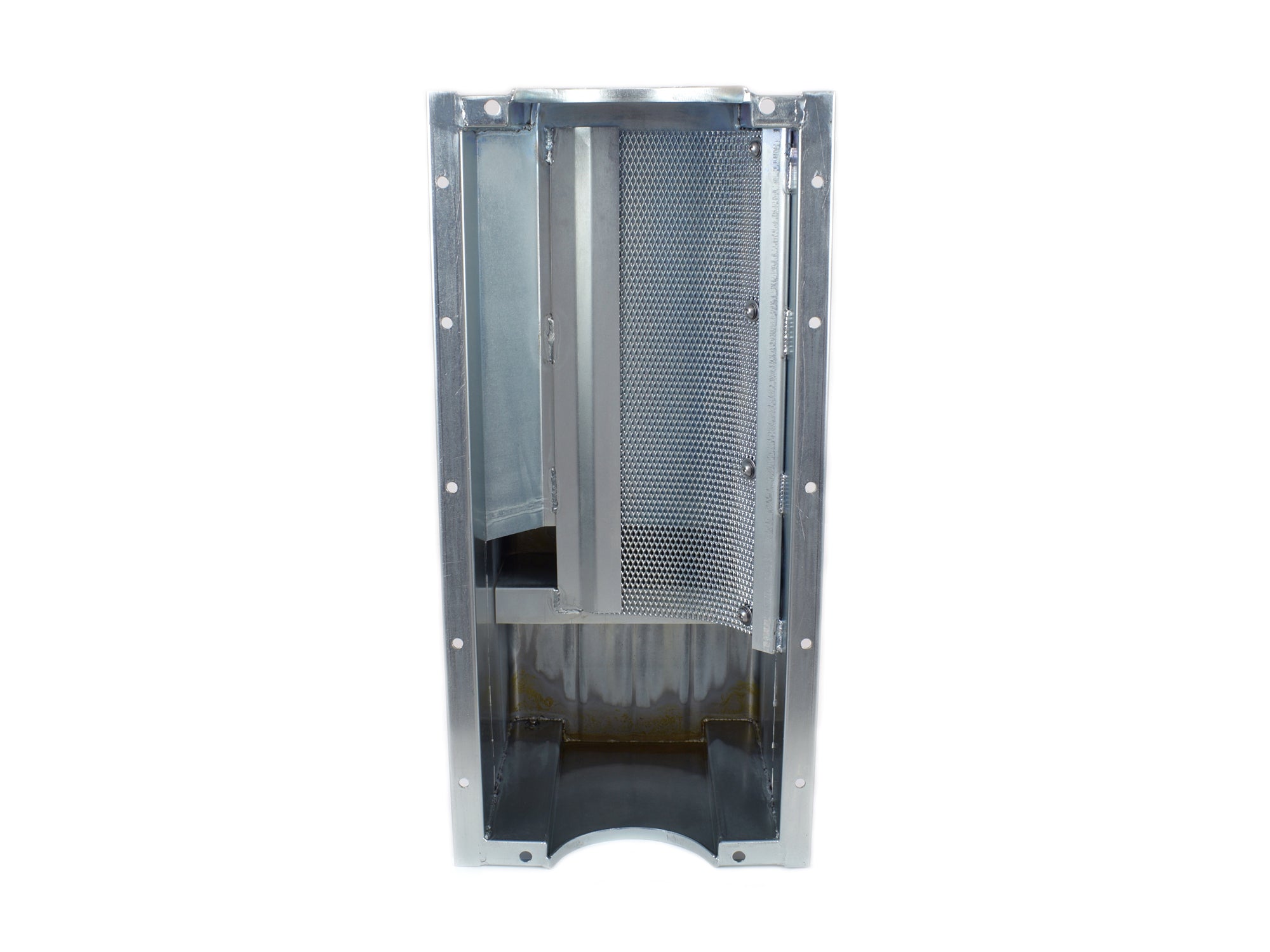

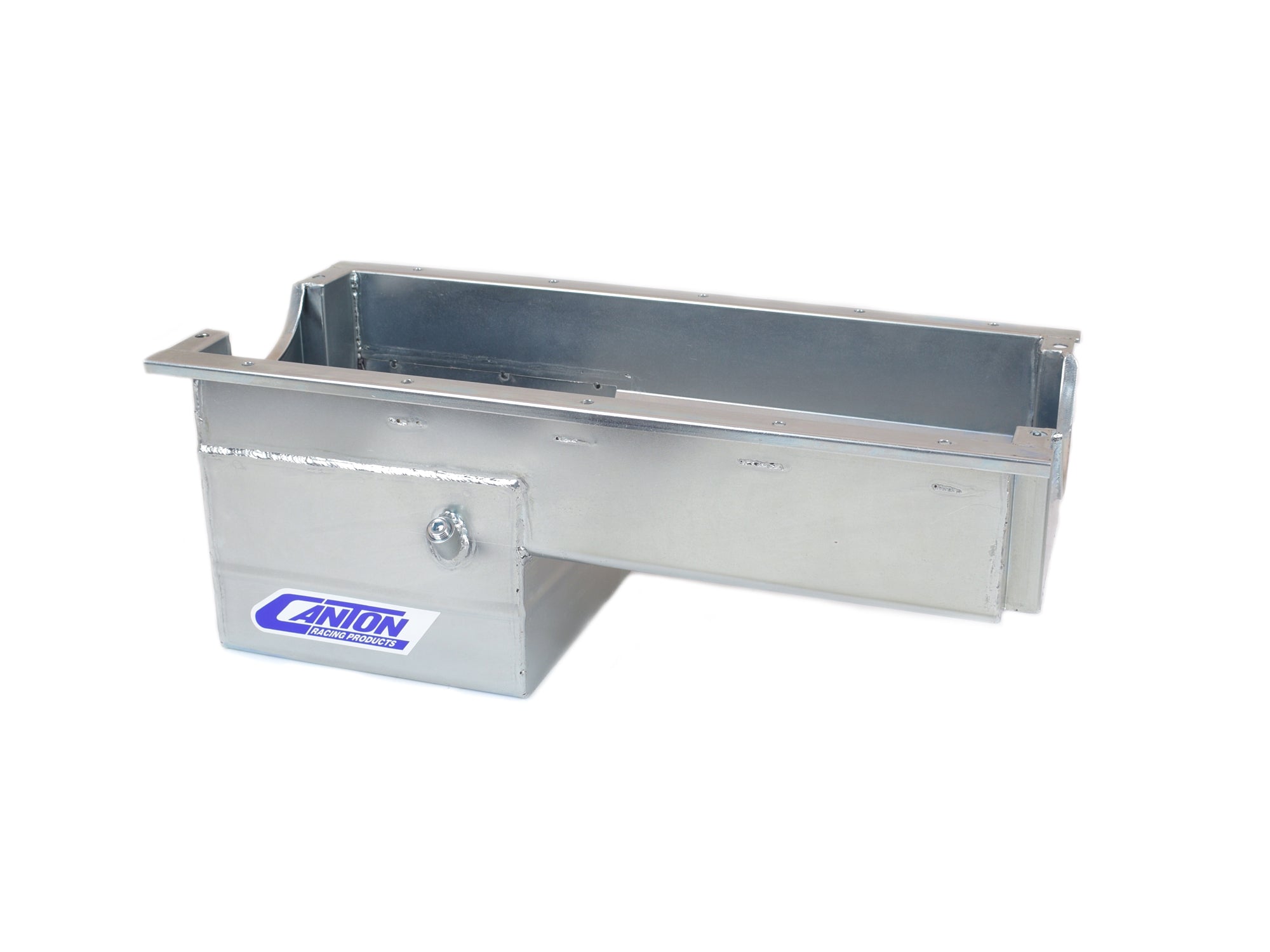

This bracket drag race oil pan is for Dart/Rocket aluminum and iron, spread rail blocks. It has an 8-1/4" deep by 9-1/2" long by 8-1/2" wide sump with a 6 qt. system capacity. Clears a 4.25" stroke with a steel rod. Will work with stock or aftermarket starters. This pan requires one of our pickups.
- Clears 4.125" Stroke
- 6 qt System Capacity
- Trap Door Baffle
- Screen Windage Tray
- Crank Scraper
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711588
- Baffled: Yes
- Capacity: 6 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For Dart Rocket Alum and Iron Spread Rail Blocks
- Feature 1: Features Competition Oil Recovery System
- Feature 2: Removable Screen Windage Tray
- Feature 3: Built in Crank Scraper
- Feature 4: Trap Door Baffle For Oil Control
- Feature 5: Provision for Canton Pan Mounted Dipstick
- Feature 6: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-050 - Pickup for Small Block Standard Volume Pumps M55 & M55A
- Recommended Accessory 2: 20-055 - Pickup for Small Standard Volume Pump M155 w/ 3/4" Inlet
- Recommended Accessory 3: 20-080 - Pickup for Small Block High Volume Pump M55HV
- Recommended Accessory 4: 20-081 - Bolt-On Pickup for Melling 105552 & 10555 Pumps
- Recommended Accessory 5: 20-082 - Press-in Pickup for Melling 105552 & 10555 Pump
- Recommended Accessory 6: 20-085 - Pickup for Small Block High Volume M155HV Pump w/ 3/4" Inlet
- Recommended Accessory 7: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
- Recommended Accessory 8: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Stoke: 4.125 inches
- Sump Depth: 8.25 inches
- Sump Width: 8.5 inches
- Windage Tray Included: Yes
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 14 POUNDS
