Description

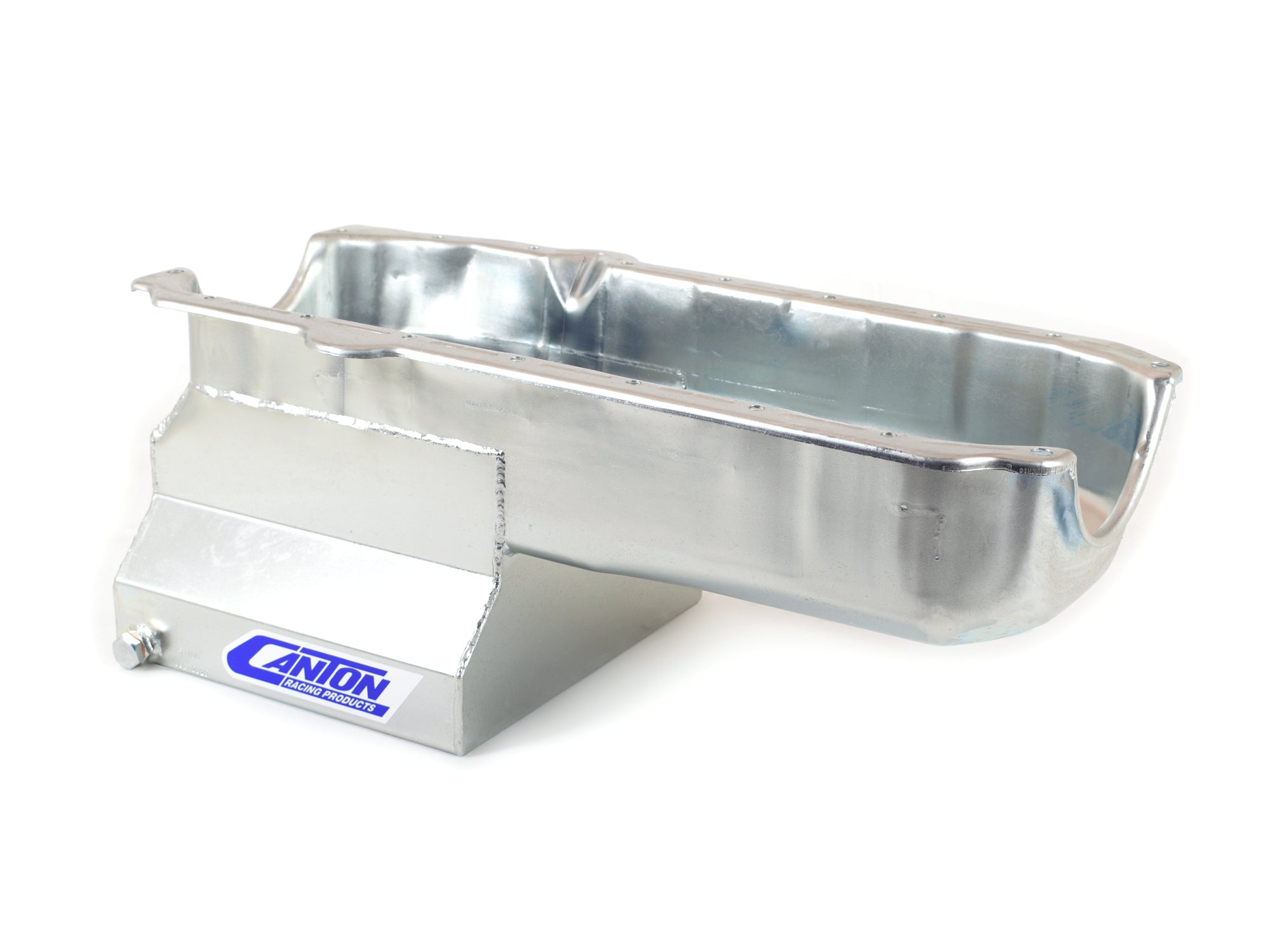

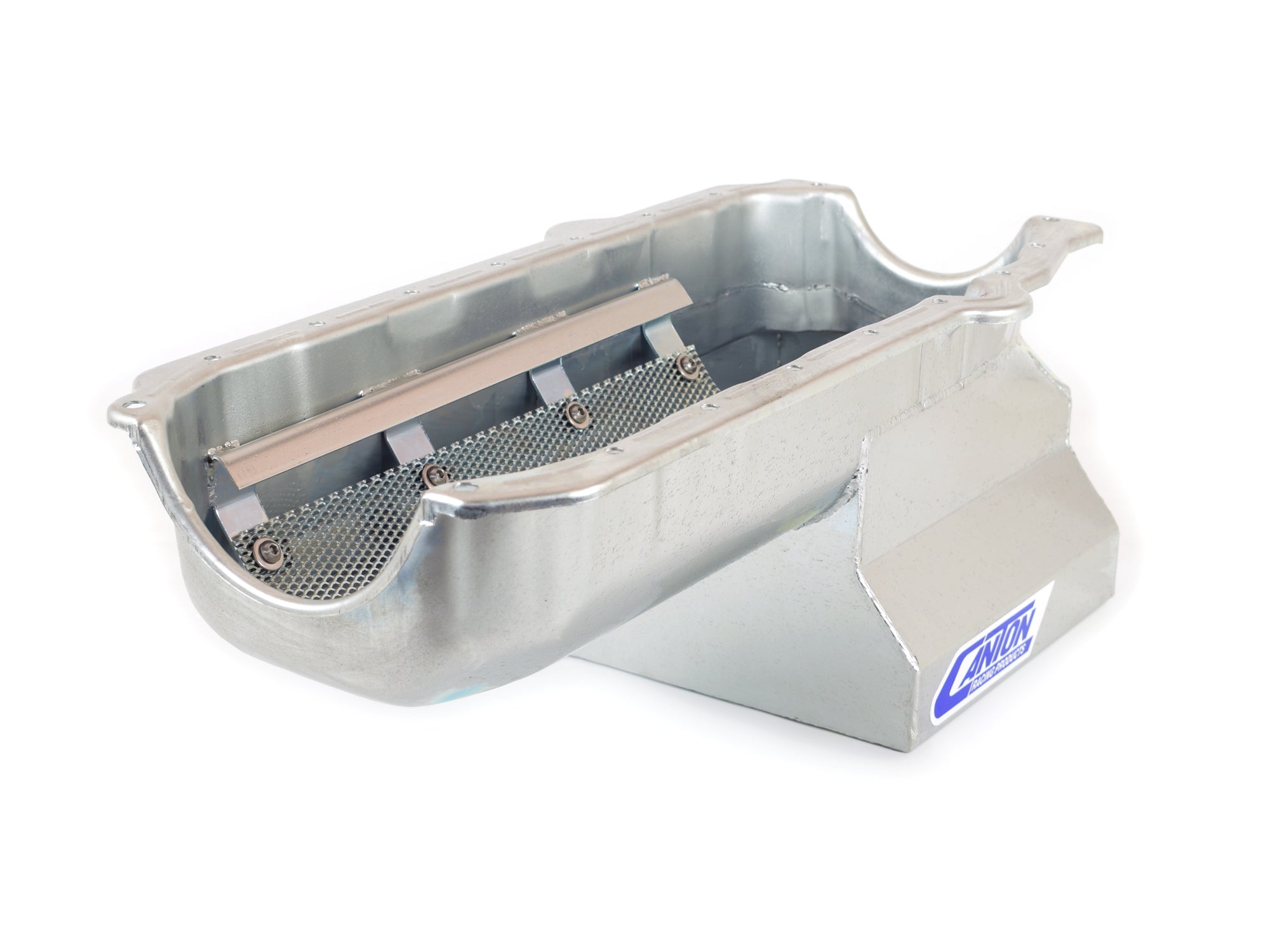

This Small Block Chevy "T" sump drag race oil pan is for pre-?80 blocks with a left side dipstick. It has a 8-1/2" deep, 9-1/2" long by 10-1/2" wide sump and an 8 qt system capacity. Clears a 3.875" stroke with a steel rod. Will work with stock or aftermarket starters. This pan requires one of our pickups.
- Clears 3.875" Stroke
- 8 qt System Capacity
- Drag Racing Trap Door Baffle System
- Windage Tray
- Crank Scraper
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711601
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: No
- Drain Plug Included: Yes
- Engine: For S.B. Chevy Pre-1980 Blocks
- Feature 1: Features Competition Oil Recovery System
- Feature 2: Removable Screen Windage Tray
- Feature 3: Built in Crank Scraper
- Feature 4: Trap Door Baffle For Oil Control
- Feature 5: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-060 - Pickup for Small Block Standard Volume Pumps M55 & M55A
- Recommended Accessory 2: 20-090 - Pickup for Small Block High Volume Pump M55HV
- Recommended Accessory 3: 20-095 - Pickup for Small Block High Volume Pump M155HV with 3/4" Inlet
- Recommended Accessory 4: 88-100 ? SBC Pre ?85 Oil Pan Gasket
- Stoke: 3.875 inches
- Sump Depth: 8.5 inches
- Sump Width: 10.5 inches
- Windage Tray Included: Yes
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23 x 12 x 9 inches
- Weight: 14 POUNDS
