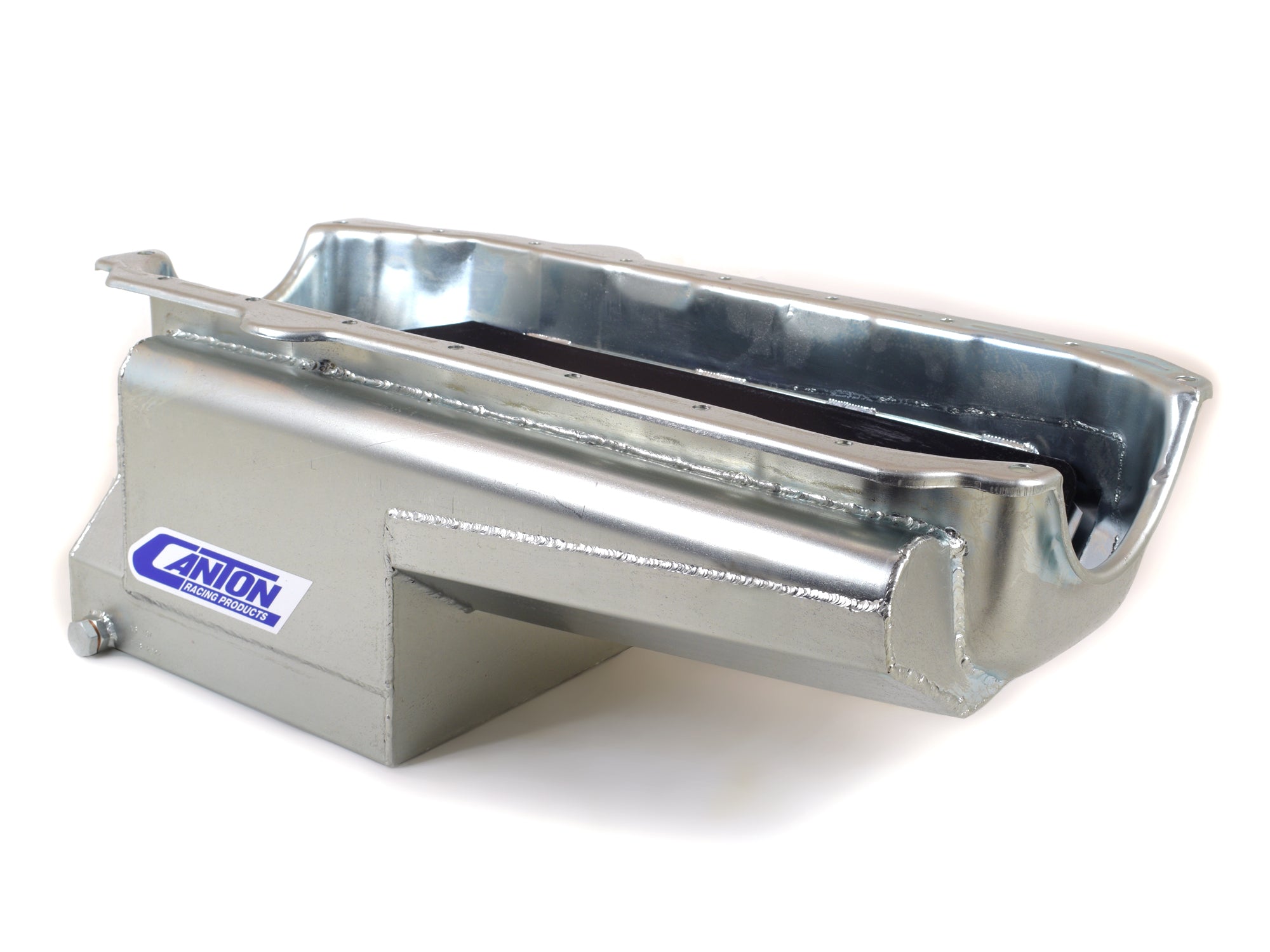

Canton 13-104 Oil Pan Small Block Chevy Pre-1985 Drag Race Power Series Pan

This Drag Race Oil Pan is for pre-?85 Small Block Chevys with left side dipstick. It has an 8" deep by 9-1/2" long by 10-1/2" wide sump and a 7 qt. system capacity. Works with an aftermarket starter and a 153 or 168 tooth flywheel. This pan requires one of our pickups.

• 7 qt System Capacity
• Clears 3.875" Stroke
• Oil Recovery Pouch
• Drag Race Trap Door Baffle System

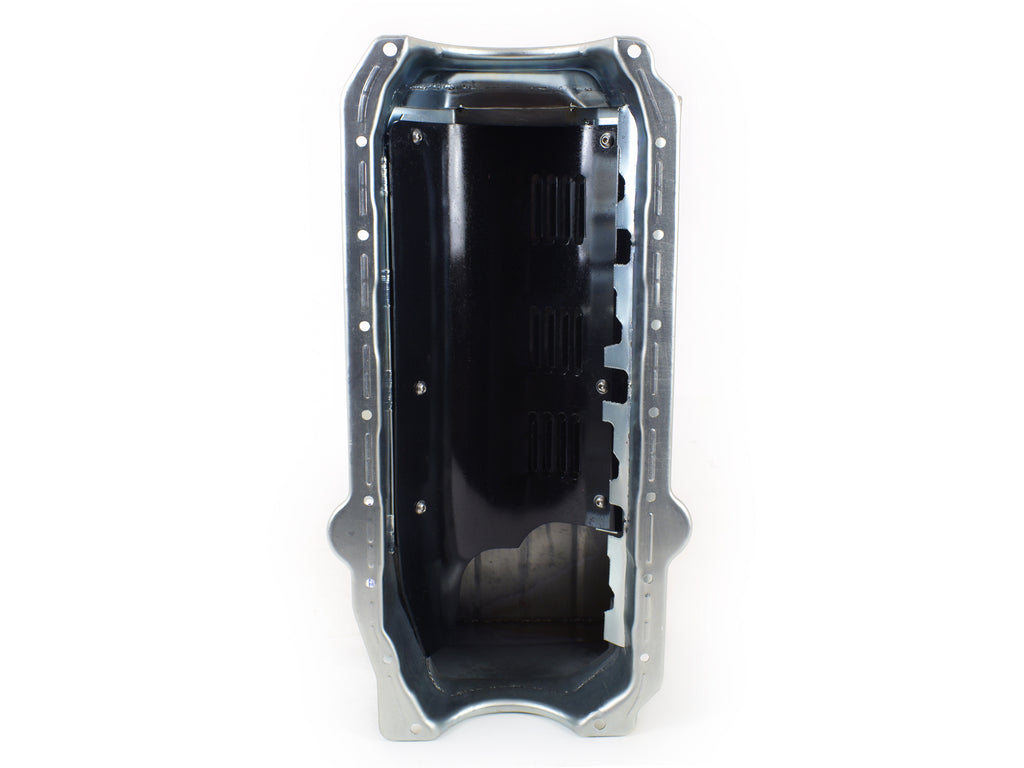

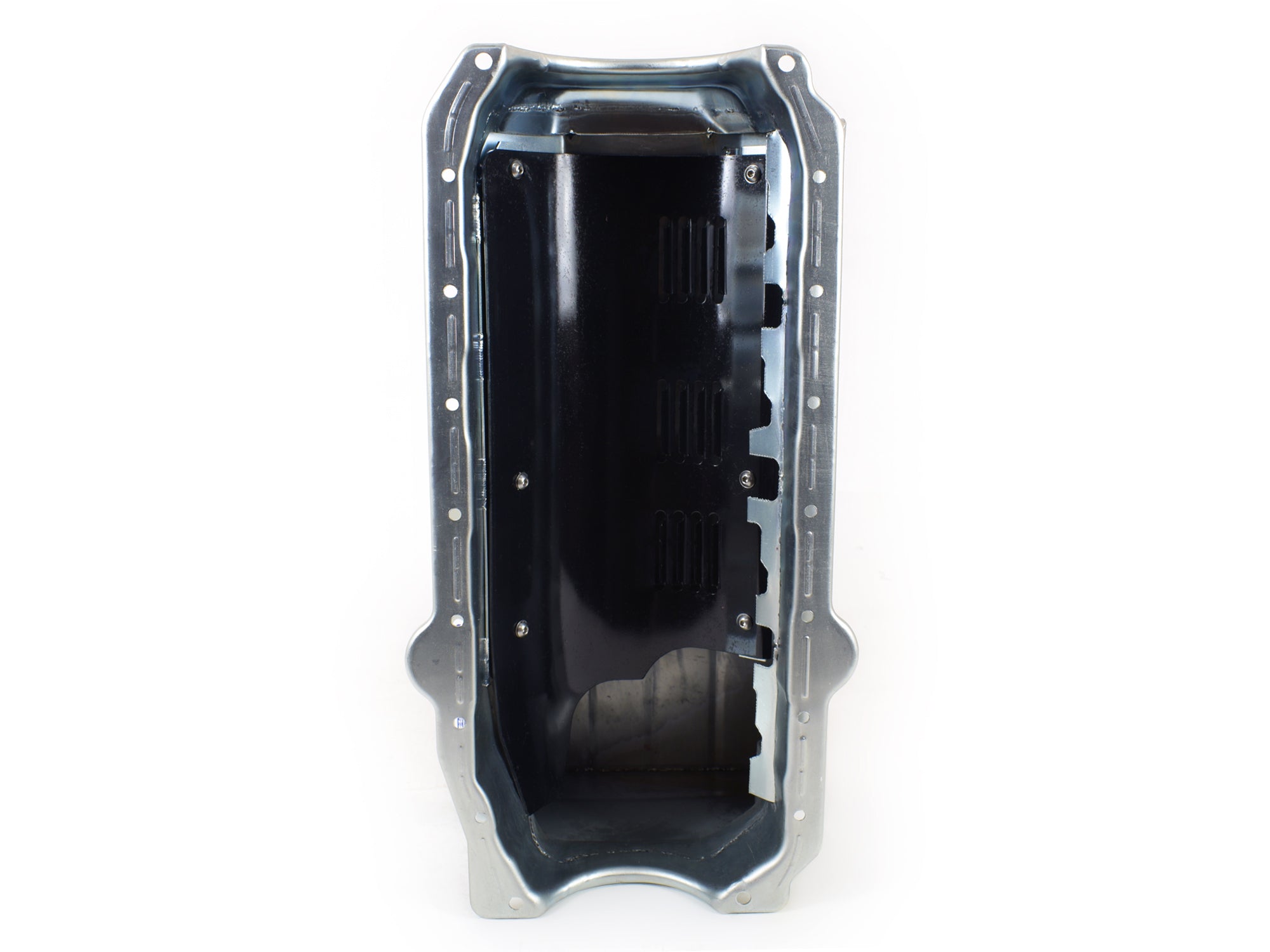

• Windage Tray
• Crank Scraper
• Provision For Our Pan Mounted Dipstick
• Magnetic Drain Plug

Attributes:

• Brand Name: Canton
• GTIN: 00887753711625
• Baffled: Yes
• Capacity: 7 Quart System Capacity
• Crank Scraper Included: Yes
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Engine: For S.B. Chevy Pre-1980 Blocks
• Feature 1: Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
• Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
• Feature 3: Features Competition Oil Recovery System
• Feature 4: Removable Louvered Windage Tray
• Feature 5: Built in Crank Scraper
• Feature 6: Trap Door Baffle For Oil Control
• Feature 7: Provision for Canton Pan Mounted Dipstick
• Feature 8: Magnetic Drain Plug
• Finish: Silver Plating
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: Yes
• Material: 16 Gauge Steel
• Pickup Included: No
• Recommended Accessory 1: 20-050 - Pickup for Small Block Standard Volume Pumps M55 & M55A
• Recommended Accessory 2: 20-055 - Pickup for Small Standard Volume Pump M155 w/ 3/4" Inlet
• Recommended Accessory 3: 20-080 - Pickup for Small Block High Volume Pump M55HV
• Recommended Accessory 4: 20-081 - Bolt-On Pickup for Melling 105552 & 10555 Pumps
• Recommended Accessory 5: 20-082 - Press-in Pickup for Melling 105552 & 10555 Pump
• Recommended Accessory 6: 20-085 - Pickup for Small Block High Volume M155HV Pump w/ 3/4" Inlet
• Recommended Accessory 7: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
• Recommended Accessory 8: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
• Stoke: 3.875 inches
• Sump Depth: 8 inches
• Sump Width: 10.5 inches
• Windage Tray Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23 x 12 x 9 inches
• Weight: 17 POUNDS
