Description

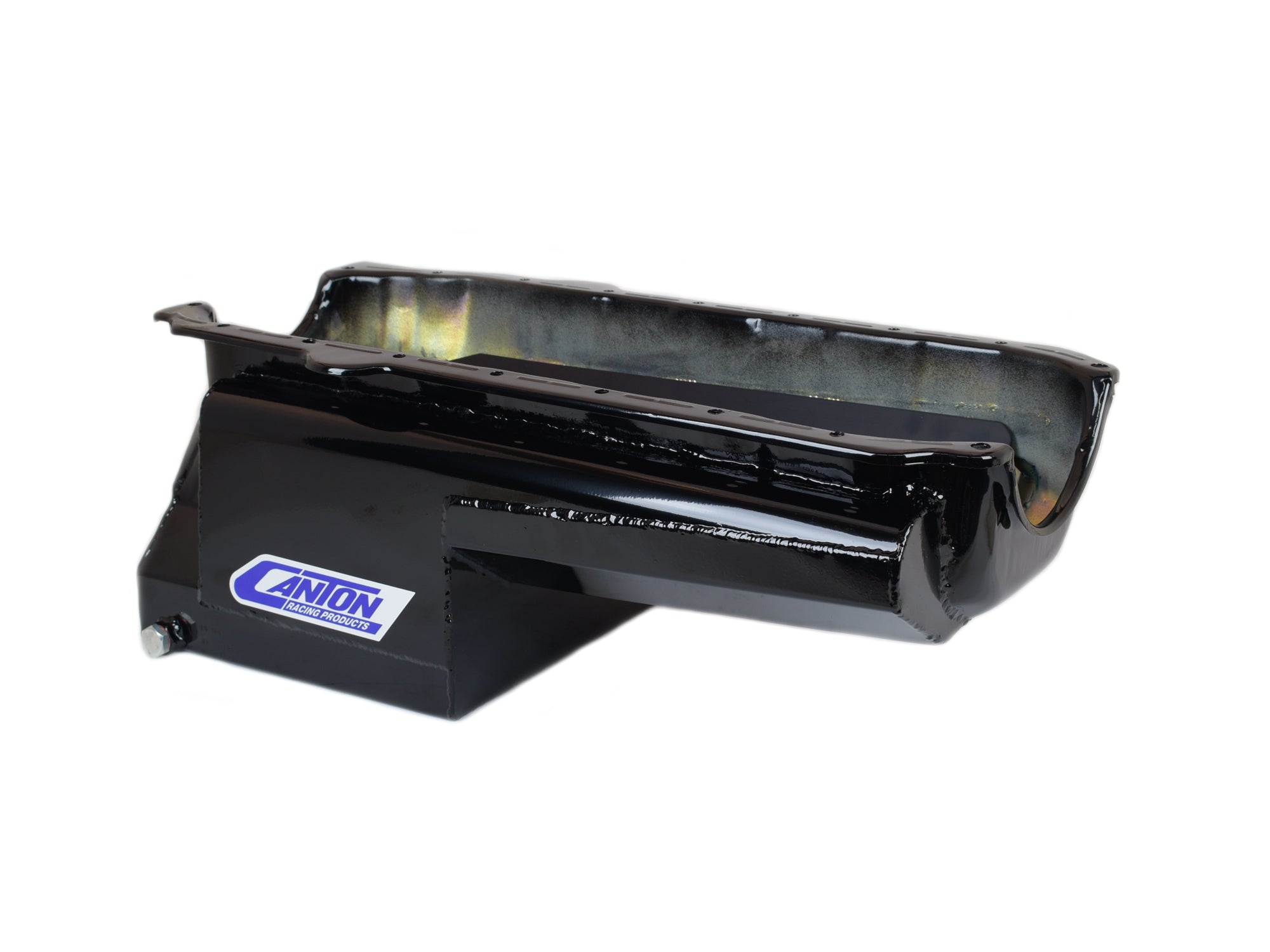

This black powder coat Drag Race Oil Pan is for pre-?85 Small Block Chevys with left side dipstick. It has an 8" deep by 9-1/2" long by 10-1/2" wide sump and a 7 qt. system capacity. Works with an aftermarket starter and a 153 or 168 tooth flywheel. This pan requires one of our pickups.
- 7 qt System Capacity
- Clears 3.875" Stroke
- Oil Recovery Pouch
- Drag Race Trap Door Baffle System
- Windage Tray
- Crank Scraper
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711632
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For S.B. Chevy Pre-1980 Blocks
- Feature 1: Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
- Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
- Feature 3: Features Competition Oil Recovery System

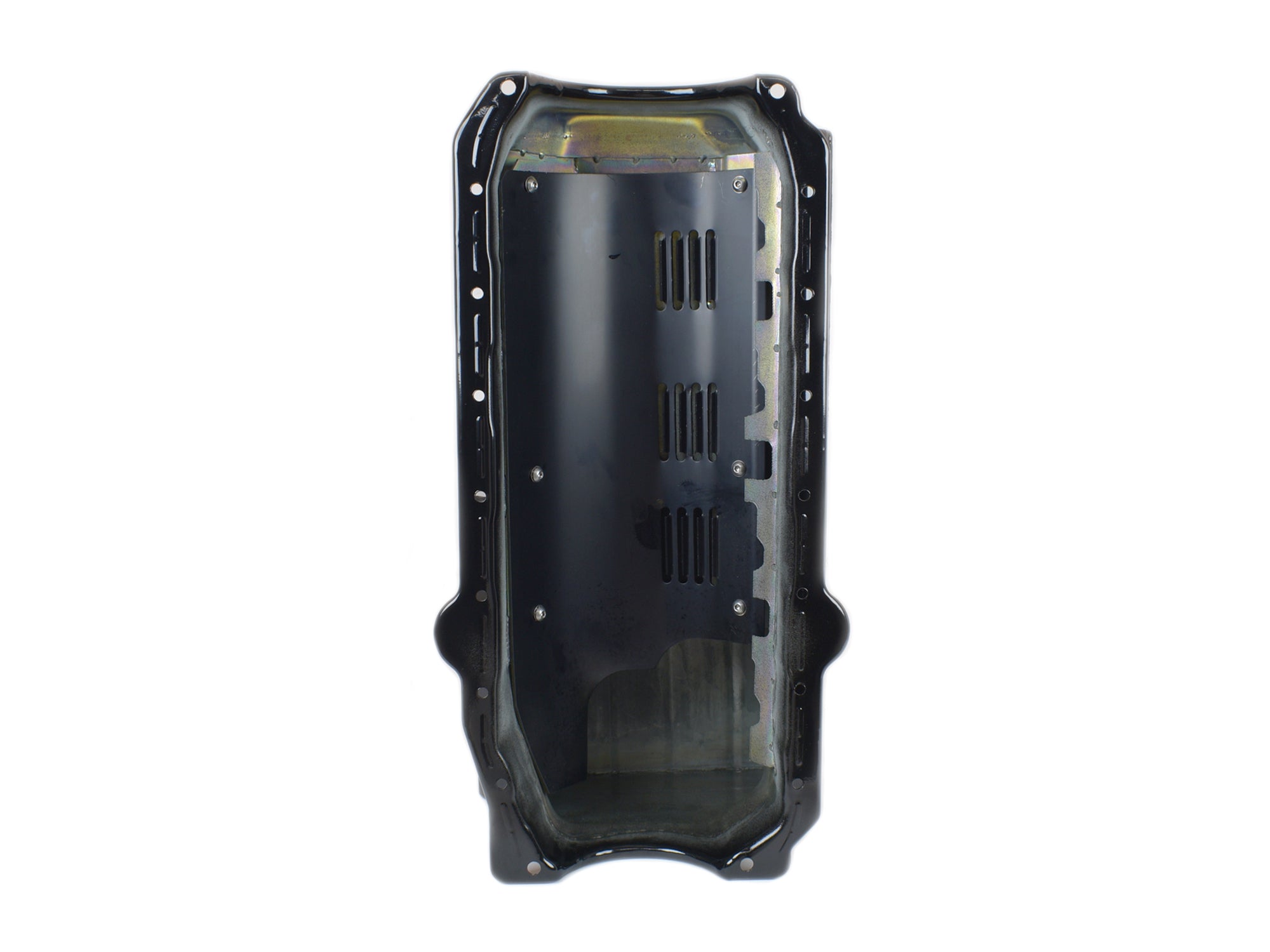

- Feature 4: Removable Louvered Windage Tray
- Feature 5: Built in Crank Scraper
- Feature 6: Trap Door Baffle For Oil Control
- Feature 7: Provision for Canton Pan Mounted Dipstick
- Feature 8: Magnetic Drain Plug
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-050 - Pickup for Small Block Standard Volume Pumps M55 & M55A
- Recommended Accessory 2: 20-055 - Pickup for Small Standard Volume Pump M155 w/ 3/4" Inlet
- Recommended Accessory 3: 20-080 - Pickup for Small Block High Volume Pump M55HV
- Recommended Accessory 4: 20-081 - Bolt-On Pickup for Melling 105552 & 10555 Pumps
- Recommended Accessory 5: 20-082 - Press-in Pickup for Melling 105552 & 10555 Pump
- Recommended Accessory 6: 20-085 - Pickup for Small Block High Volume M155HV Pump w/ 3/4" Inlet
- Recommended Accessory 7: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
- Recommended Accessory 8: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Stoke: 3.875 inches
- Sump Depth: 8 inches
- Sump Width: 10.5 inches
- Windage Tray Included: Yes
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23 x 12 x 9 inches
- Weight: 17 POUNDS
