Description

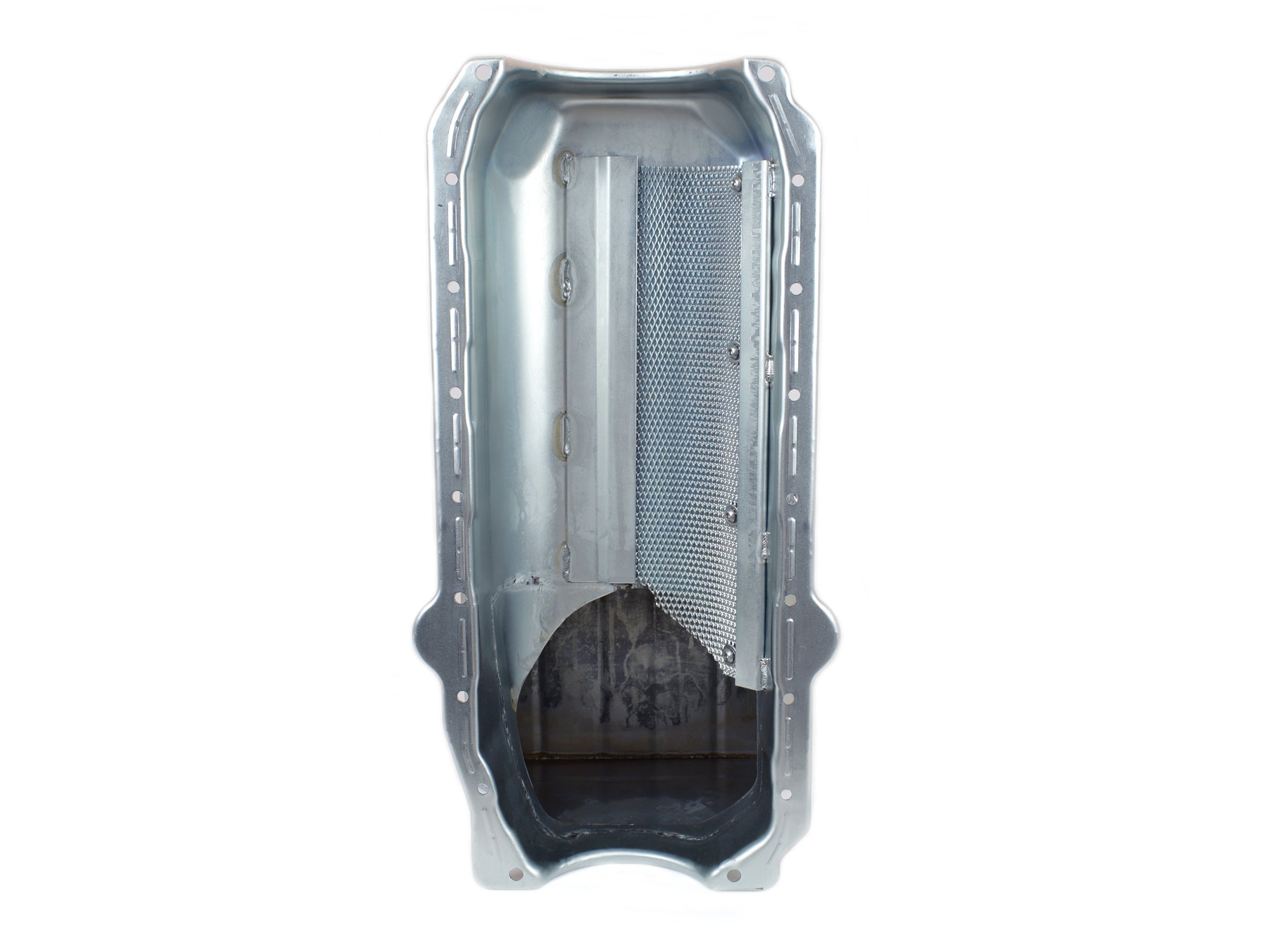

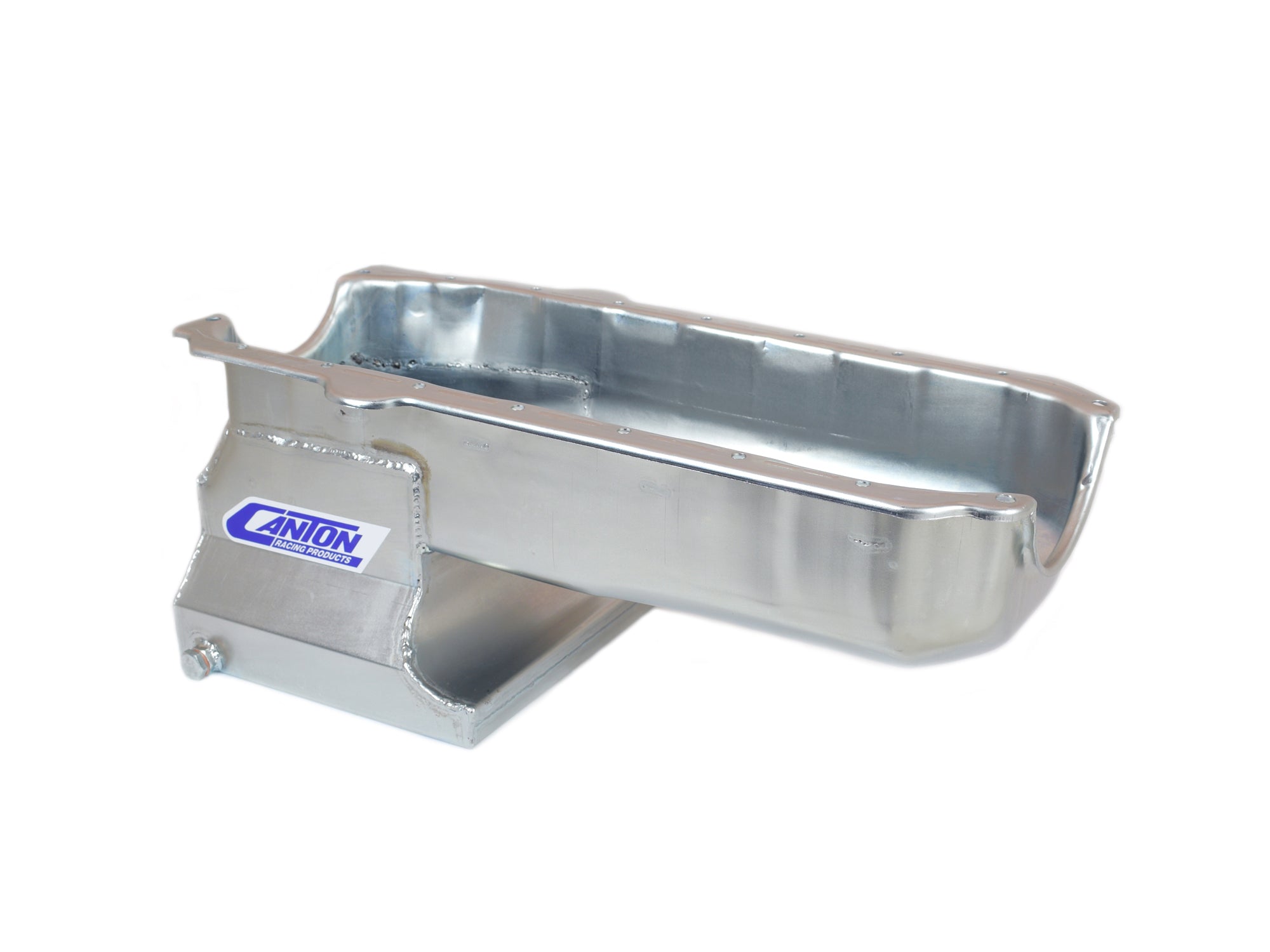

This Drag Race Oil Pan is for pre-?85 Small Block Chevys with left side dipstick. It is designed to convert a Chevy II without power steering to a rear sump. It has a 8-1/2" deep by 10-1/2" wide sump and a 6 qt. system capacity. Clears a 3.875" stroke with a steel rod. Will work with stock & aftermarket starters with 153 or 168 tooth flywheel. This pan requires one of our pickups.
- 6 qt System Capacity
- Clears 3.875" Stroke
- Drag Race Trap Door Baffle System
- Screen Windage Tray
- Crank Scraper
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711663
- Baffled: Yes
- Capacity: 6 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For S.B. Chevy 1985 and earlier blocks
- Feature 1: Features Competition Oil Recovery System
- Feature 2: Removable Screen Windage Tray
- Feature 3: Built in Crank Scraper
- Feature 4: Provision for Canton Pan Mounted Dipstick
- Feature 5: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-060 - Pickup for Small Block Standard Volume Pumps M55 & M55A
- Recommended Accessory 2: 20-090 - Pickup for Small Block High Volume Pump M55HV
- Recommended Accessory 3: 20-095 - Pickup for Small Block High Volume Pump M155HV with 3/4" Inlet
- Recommended Accessory 4: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
- Recommended Accessory 5: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 6: 88-100 ? SBC Pre ?85 Oil Pan Gasket
- Stoke: 3.875 inches
- Sump Depth: 8.5 inches
- Sump Width: 10.5 inches
- Windage Tray Included: Yes
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status: Discontinued
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23 x 12 x 9 inches
- Weight: 17 POUNDS
