Description

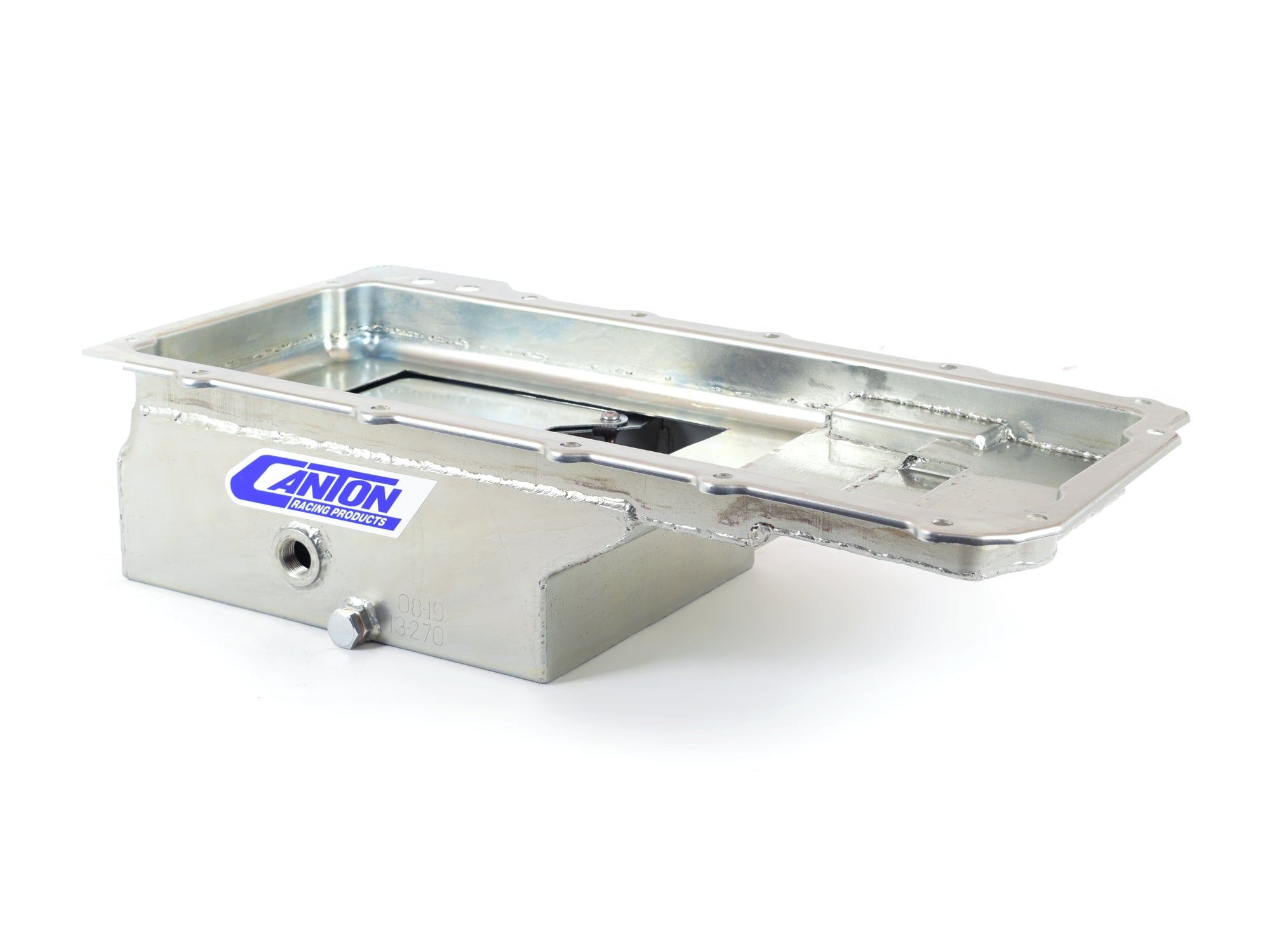

This pan is for GM LS1/LS6 powered cars that need a rear sump drag race oil pan and owners of 98+ F-Body chassis looking to install a GM LS1/LS6 engine in their car.
- 6.5 qt System Capacity

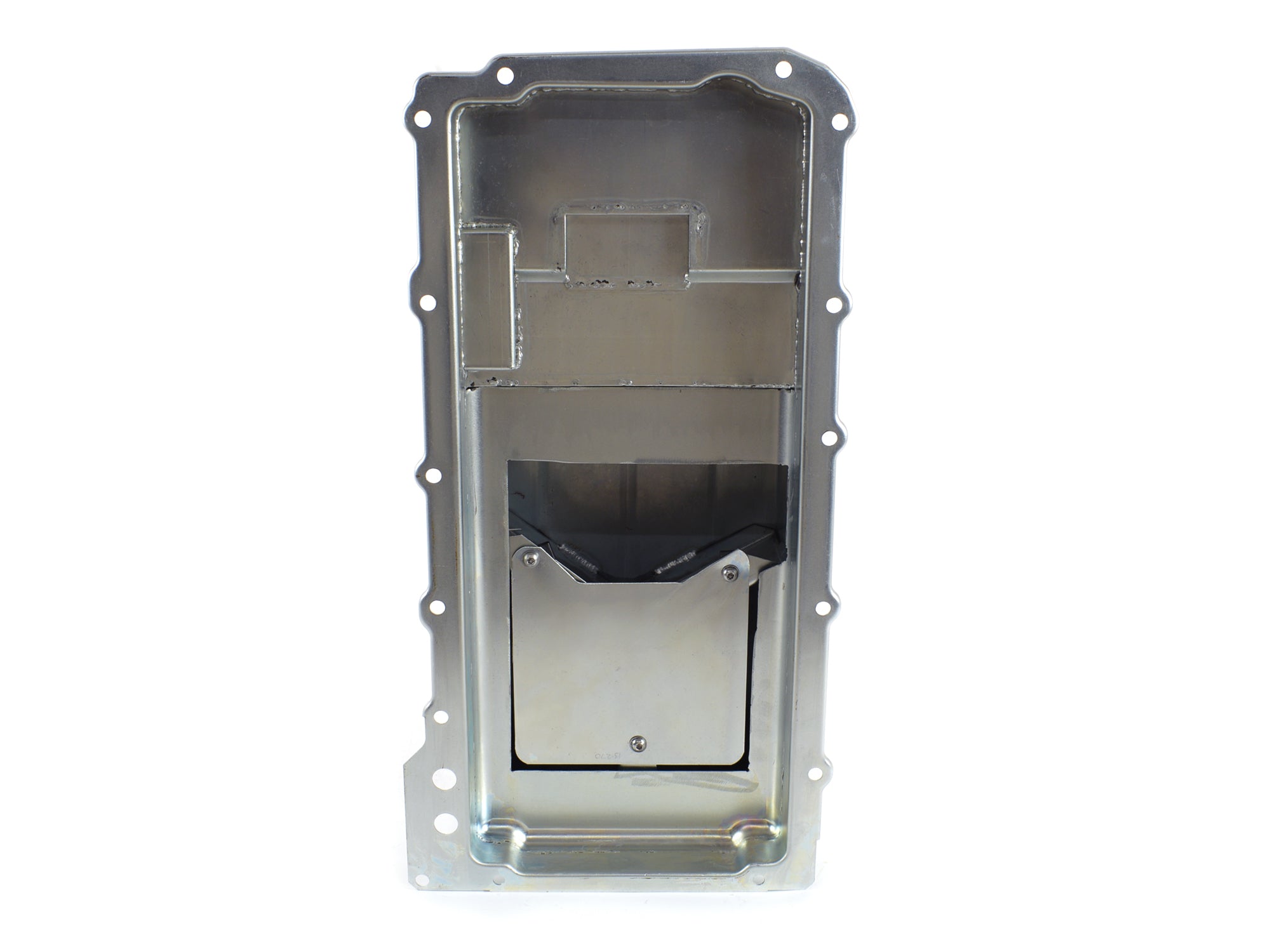

- Drag Race Trap Door Baffle Assembly
- Removable Windage Anti-Slosh Baffle
- Provision for 20mm oil temperature sensor
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711687
- Baffled: Yes
- Capacity: 6 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Engine: For GM LS Blocks
- Feature 1: Double Trap Door Baffle For Oil Control
- Feature 2: Bolt On Windage / Anti-Slosh Baffle For Oil Control
- Feature 3: 20mm Port for GM Low Oil Warning Sender
- Feature 4: Magnetic Drain Plug
- Feature 5: Can Be Used With OEM Windage Tray #12558253
- Feature 6: To Use With Canton #22-405 20mm Plug If Not Using Oil Sender Port
- Feature 7: To Use With Canton Filter Adapter or Filter Mount
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 21-870 - LS flywheel cover
- Recommended Accessory 2: 22-302 - GM LS Oil Pan Stud Kit
- Recommended Accessory 3: 22-630 - LS1 Remote Filter Adapter
- Recommended Accessory 4: 22-632 - LS1 90 Degree Remote Filter Adapter
- Recommended Accessory 5: 22-631 - LS1 Pan Mounted Spin-on Filter Mount
- Recommended Accessory 6: 22-620 - Billet Aluminum Spin-on Filter Adapter
- Recommended Accessory 7: 22-405 - 20mm Plug(needed if Not using low oil sender
- Recommended Accessory 8: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 9: 21-870 - Aluminum Flywheel Cover
- Stoke: 3.62 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26.5 x 1.5 x 10 inches
- Weight: 12.8 POUNDS
