Description

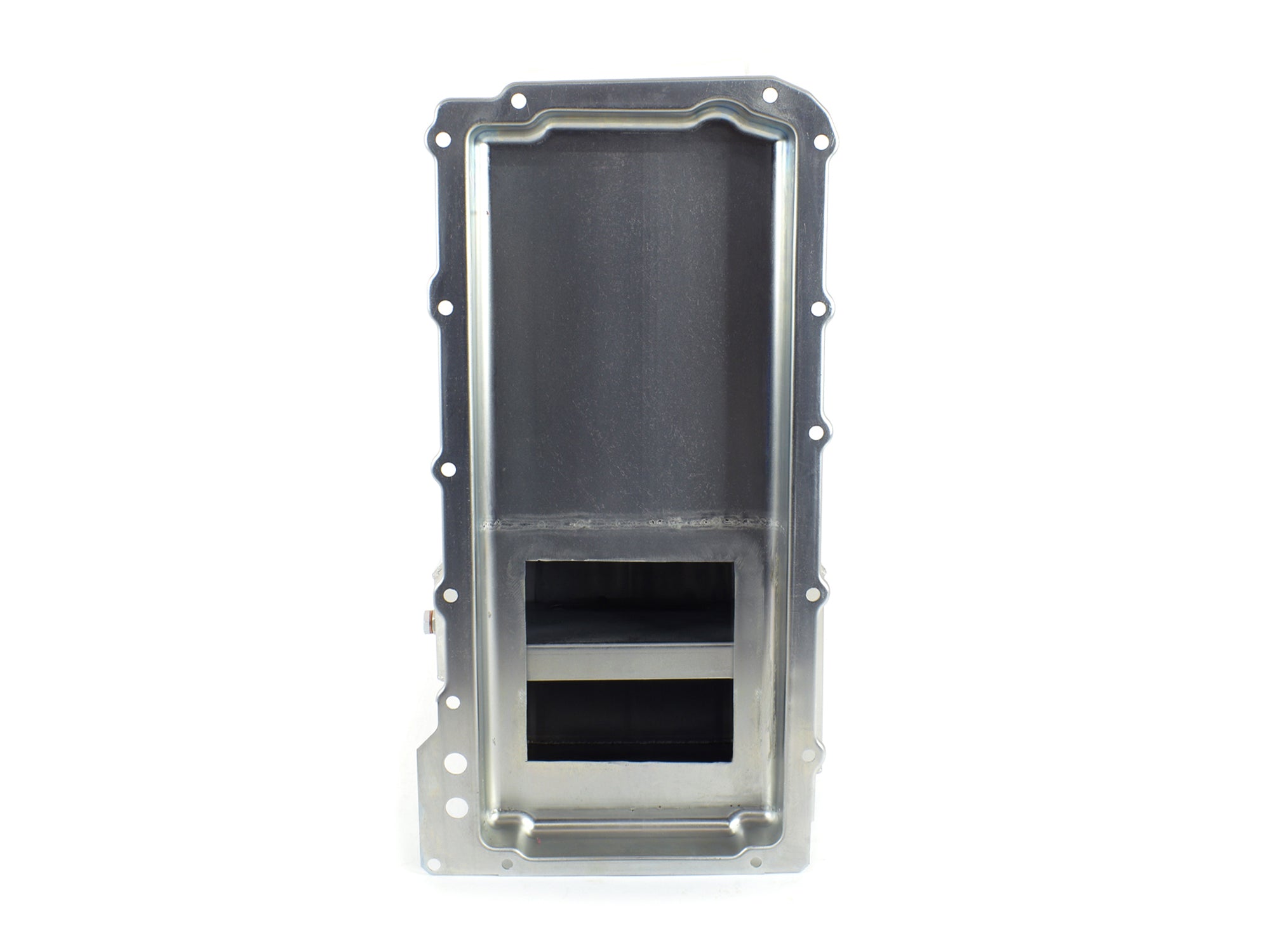

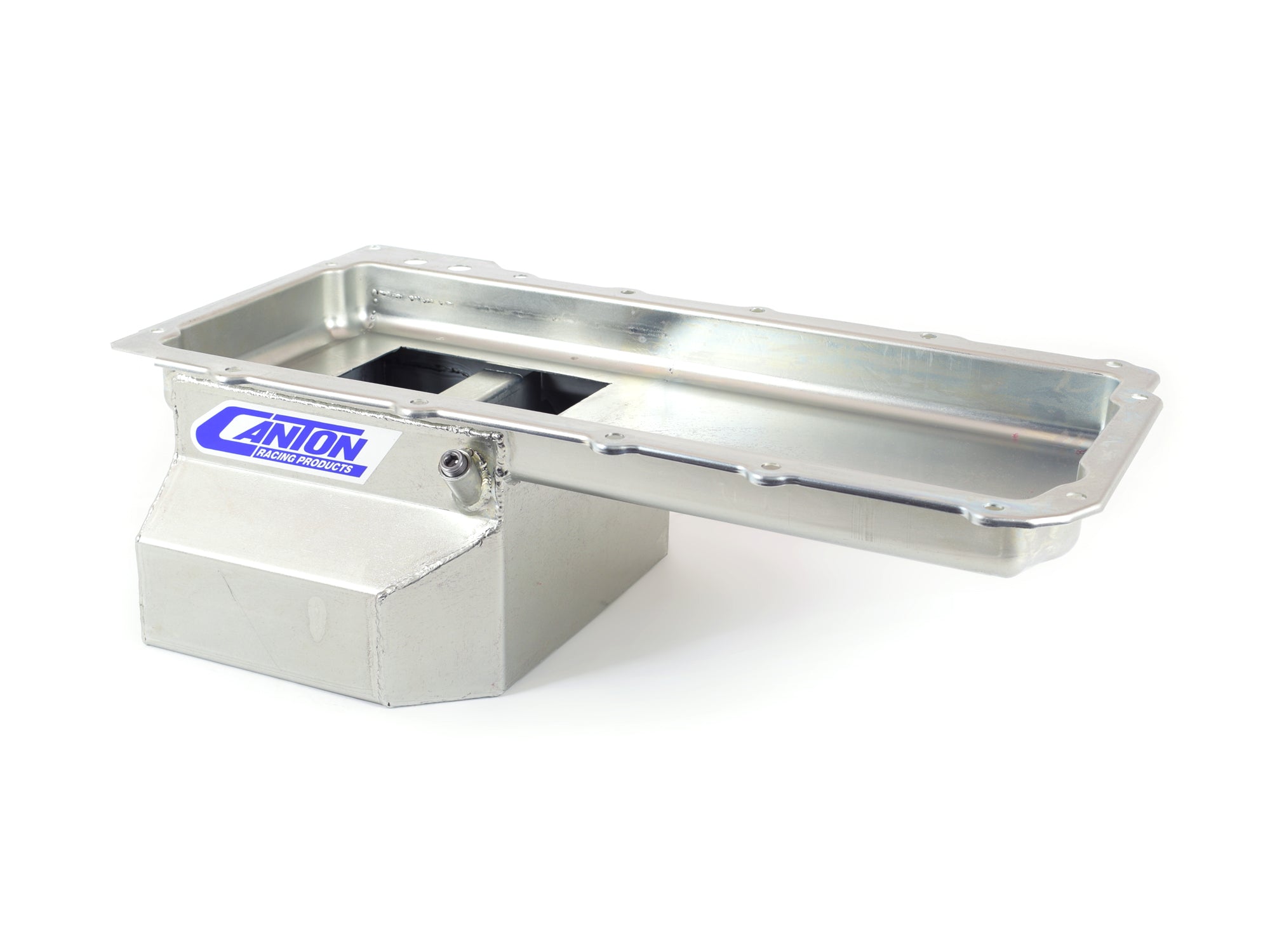

This steel drag race oil pan is designed for installing LS1/LS6 blocks into earlier chassis. Fits A, F, Y, & 1970?s X body cars. It has 6-1/2" deep, 9" long, 11-3/4" wide sump, for a 6-1/2 qt. capacity. Works with OEM GM#12558253 windage tray. This pan Requires our LS1 remote filter adapter or filter mount and our 13-275 pickup. Different sump configurations available as special order.
- 6.5 qt System Capacity
- Clears 4.125" Stroke
- Drag Race Trap Door Baffle System
- Works with OEM GM# 12558253 windage tray
Attributes:
- Brand Name: Canton
- GTIN: 00887753711717
- Baffled: No
- Capacity: 6.5 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Engine: For GM LS Blocks
- Feature 1: Trap Door Baffle For Oil Control
- Feature 2: Magnetic Drain Plug
- Feature 3: Can Be Used With OEM Windage Tray #12558253
- Feature 4: To Use With Canton Filter Adapter or Filter Mount
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 13-275 - Pickup for 13-274 LS Oil Pan
- Recommended Accessory 2: 21-870 - LS flywheel cover
- Recommended Accessory 3: 22-302 - GM LS Oil Pan Stud Kit
- Recommended Accessory 4: 22-630 - LS1 Remote Filter Adapter
- Recommended Accessory 5: 22-632 - LS1 90 Degree Remote Filter Adapter
- Recommended Accessory 6: 22-631 - LS1 Pan Mounted Spin-on Filter Mount
- Recommended Accessory 7: 22-620 - Billet Aluminum Spin-on Filter Adapter
- Stoke: 4.125 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 14 POUNDS
