Description

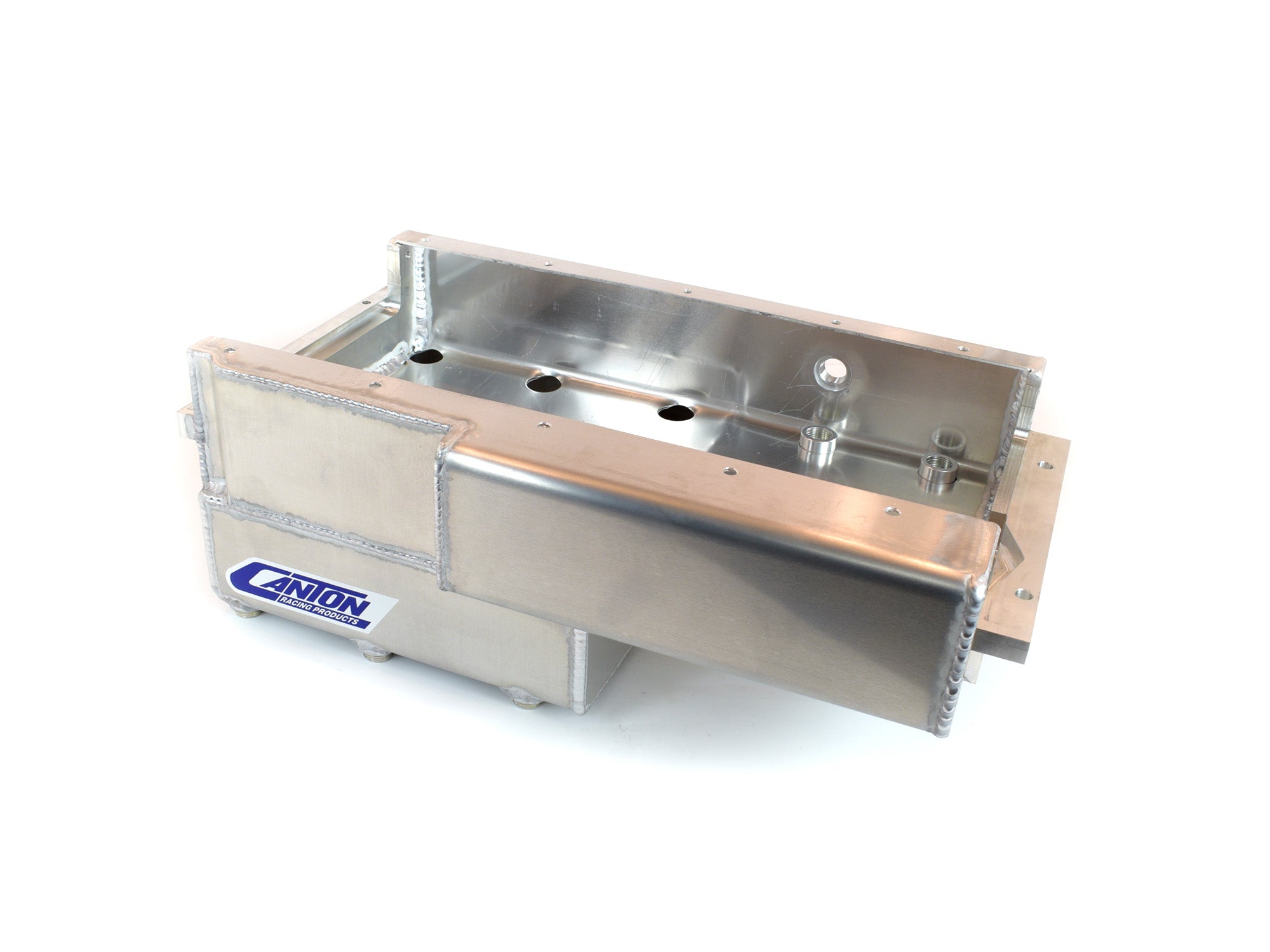

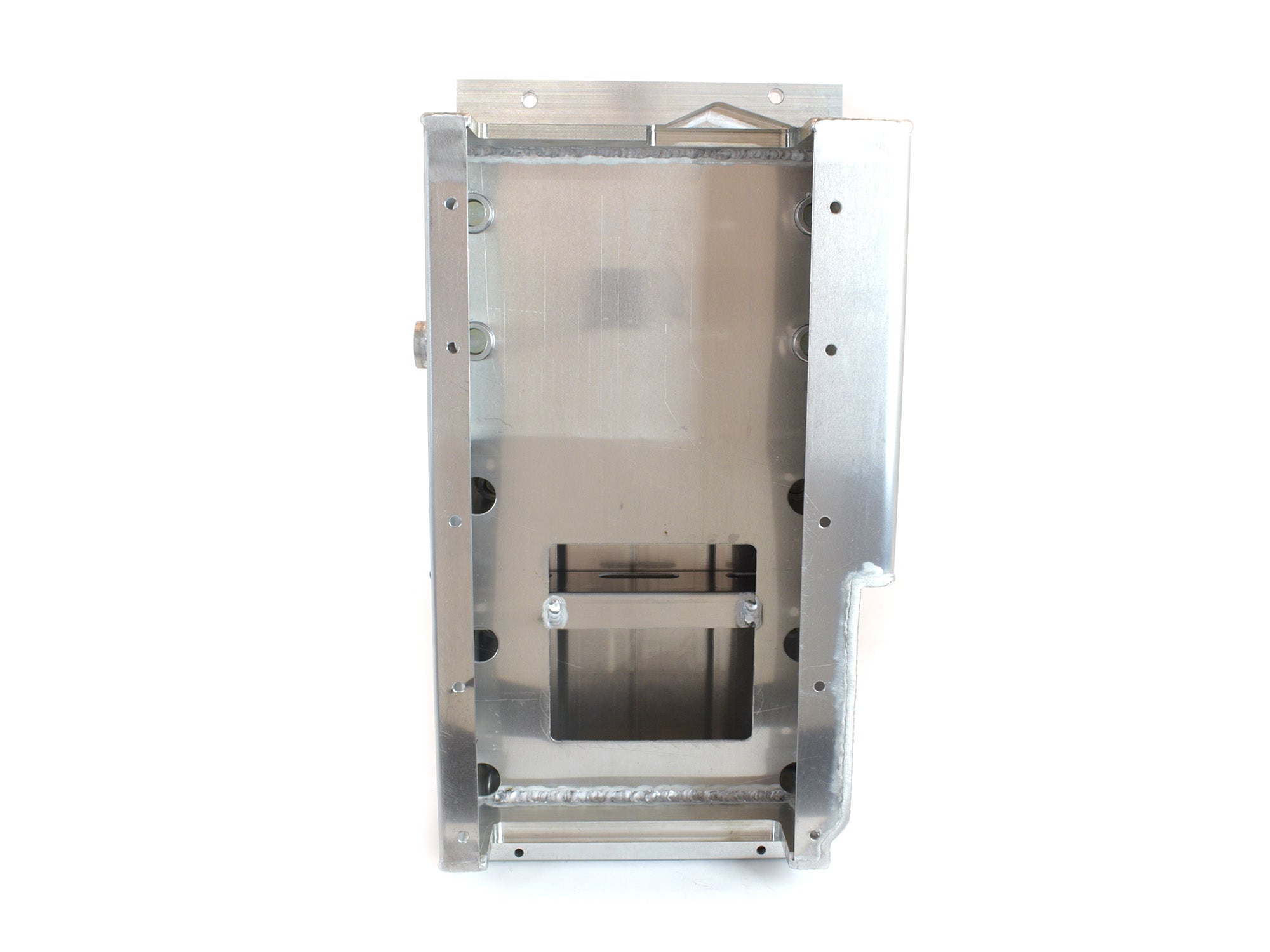

Our LS NEXT rear sump drag pan is designed to take the changes that Dart has made to the LS block and completely maximize their effectiveness. Our billet end caps offer a precise fit to the unique pan rail of the Dart LS NEXT block. Our Pro-Style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end. Our drag racing baffle is designed to control the oil in street and strip applications of hard acceleration and deceleration.
- 5.25" Deep from rear engine cover, 7.25" Deep from rail 11" long by 11" wide sump
- 6.5 qt Capacity
- Pro Style Oil Recovery Pouch
- Machined Billet Front & Rear Seals
- Built in Slosh Baffle
- Drag Race Trap Door Baffle System
- Magnetic Drain Plug
- Provision for pan mounted dipstick
Attributes:
- Brand Name: Canton
- GTIN: 00887753711755
- Baffled: Yes
- Capacity: 6.5 Quarts
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: Dart LS Next
- Feature 1: Pro-Style Recovery Pouch
- Feature 2: Machined Billet Front & Rear Seals
- Feature 3: Double Trap Door Baffles
- Feature 4: Removable Windage/Anti-Slosh Baffle
- Feature 5: Provision For Pan Mounted Dipstick
- Feature 6: Magnetic Drain Plug
- Finish: Raw Aluminum
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: .100 Aluminum
- Pickup Included: No
- Recommended Accessory 1: 13-281 - LS Next Pickup for #13-280
- Recommended Accessory 2: 21-870 - LS Flywheel Cover for T56 Bellhousing
- Recommended Accessory 3: 22-304 - LS NEXT Oil Pan Stud Kit
- Recommended Accessory 4: 22-620 - Billet Aluminum remote spin-on filter mount 13/16"-16 Thread
- Windage Tray Included: No
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status: Discontinued
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 25 x 16 x 9 inches
- Weight: 16 POUNDS
