Description

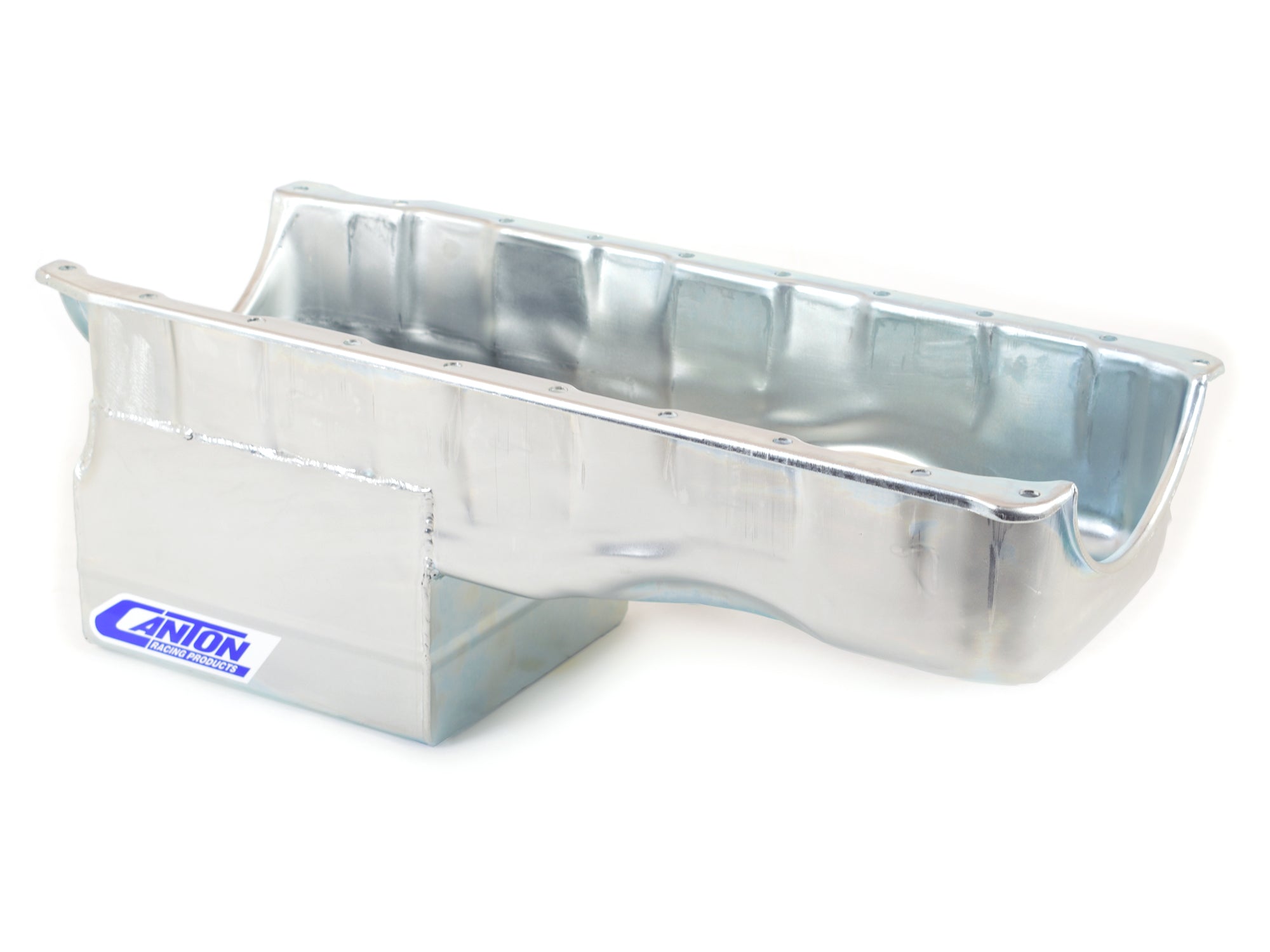

This BBC bracket drag oil pan is for Mark 5 / Gen. 6 blocks. It has a 9" deep by 9-1/2" long sump and a 7 qt. system capacity. Takes up to a 4.25 stroke with a steel rod. This pan requires our 20-190 pickup. Will work with stock or aftermarket starters.
- 7 qt System Capacity
- Drag Race Trap Door Baffle System

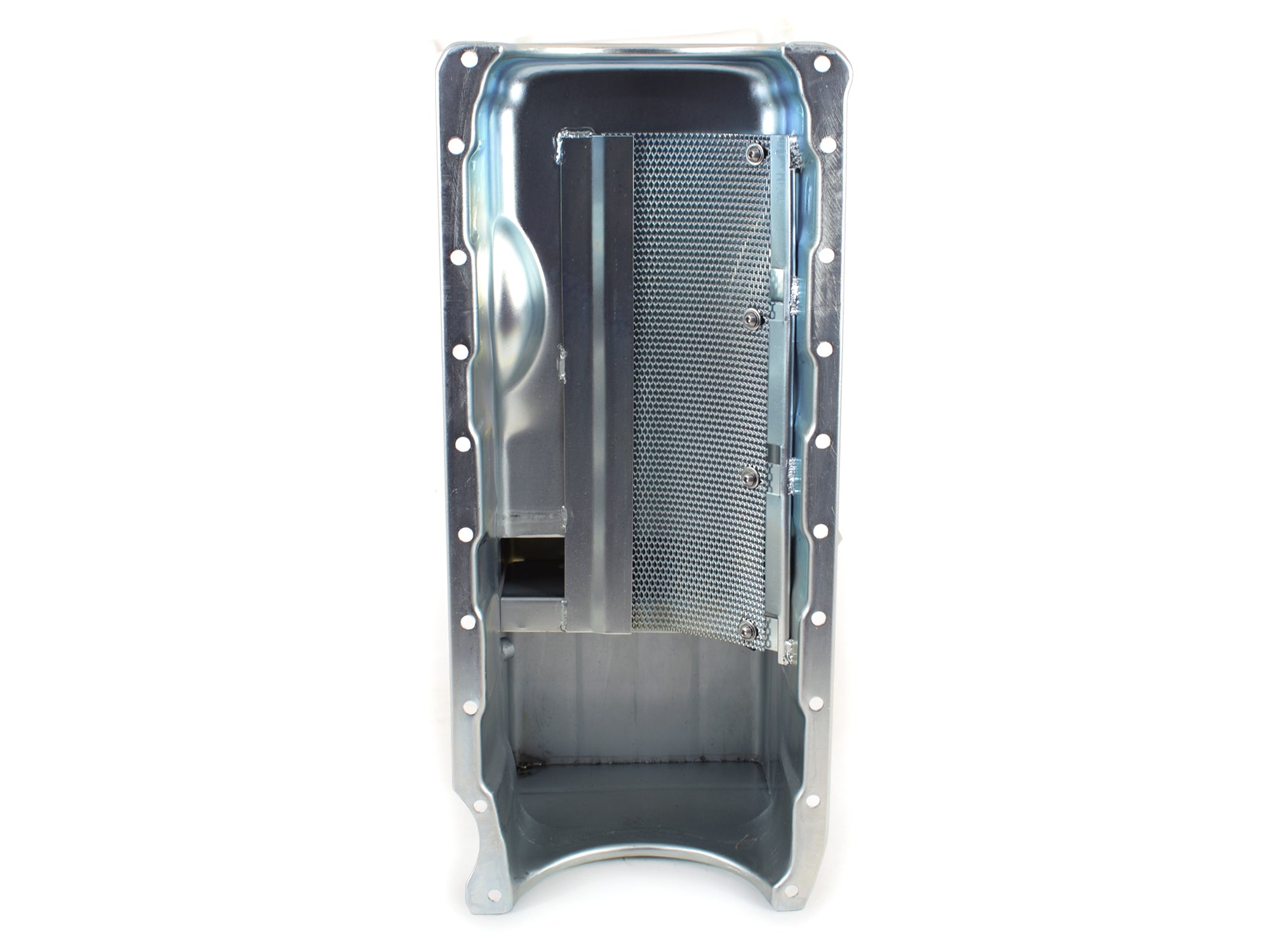

- Screen Windage Tray
- Crank Scraper
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711793
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For B.B. Chevy Mark 5 / Gen 6 Blocks
- Feature 1: Features Competition Oil Recovery System
- Feature 2: Removable Screen Windage Tray
- Feature 3: Built in Crank Scraper
- Feature 4: Trap Door Baffle For Oil Control
- Feature 5: Provision for Canton Pan Mounted Dipstick
- Feature 6: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-190 - Pickup for BBC Pumps
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Stoke: 4.5 inches
- Sump Depth: 9 inches
- Sump Width: 8.375 inches
- Windage Tray Included: Yes
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 27 x 13.5 x 10 inches
- Weight: 15.8 POUNDS
