Description

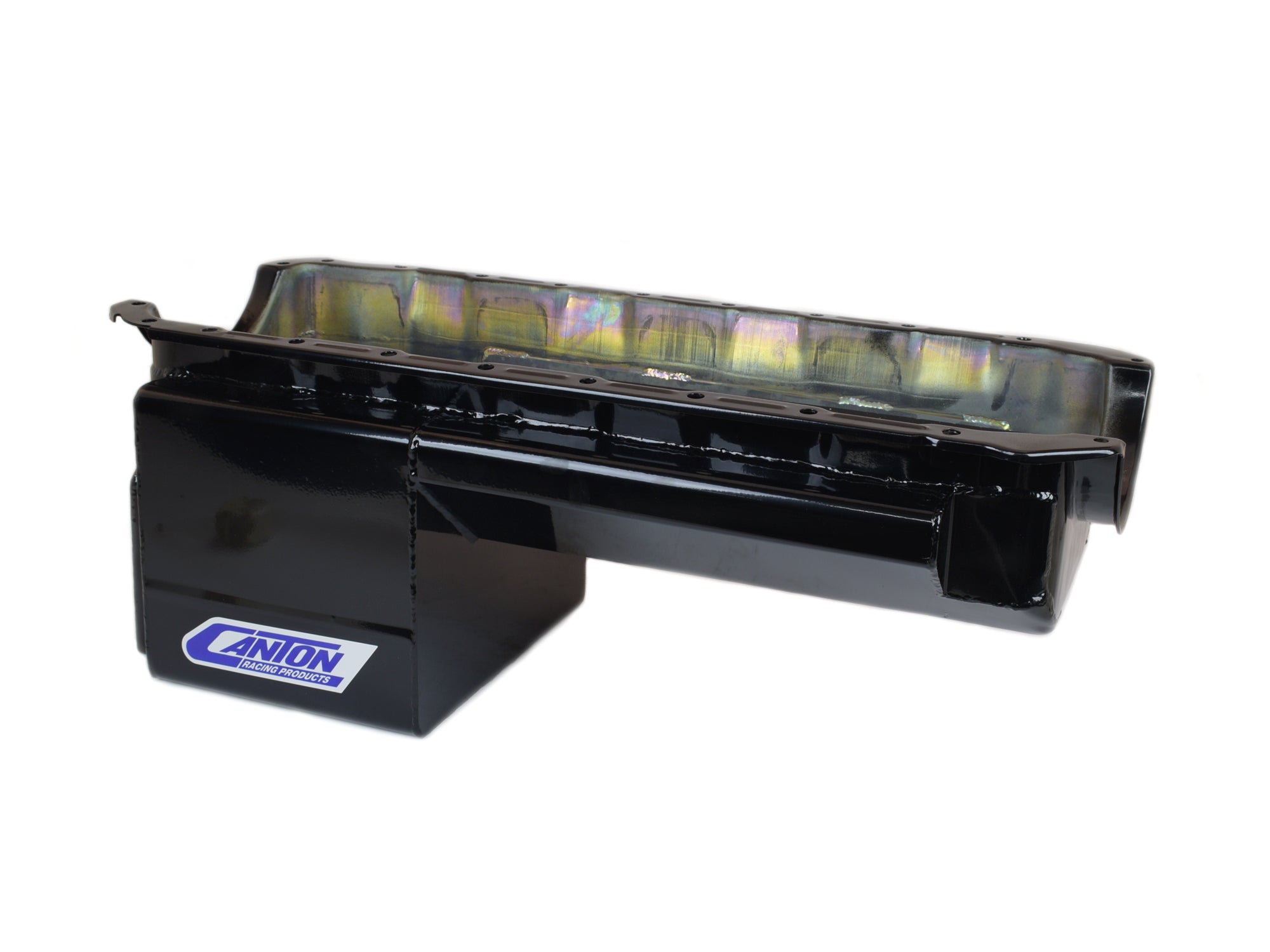

This black powder coat BBC drag race power series oil pan is for Mark 4 blocks. It has a 9" deep by 9" long and 9" wide sump and a 7 quart system capacity. It is designed to fit most stock chassis. Will work with aftermarket offset starters. This pan requires our 20-190 pickup.
- 7 qt System Capacity
- Drag Race Trap Door Baffle System
- Oil Recovery Pouch
- Designed For Stock Style Starter Clearance

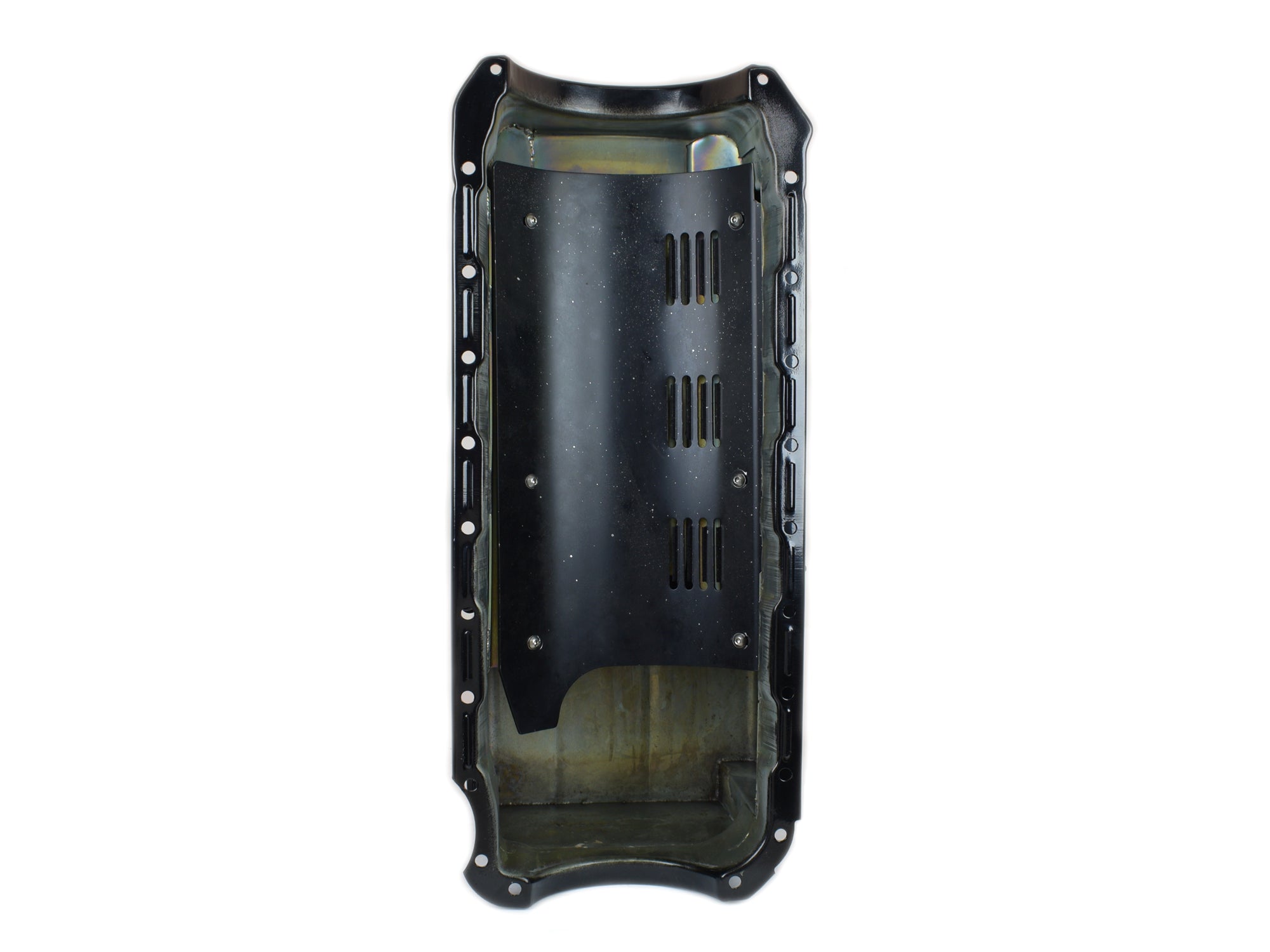

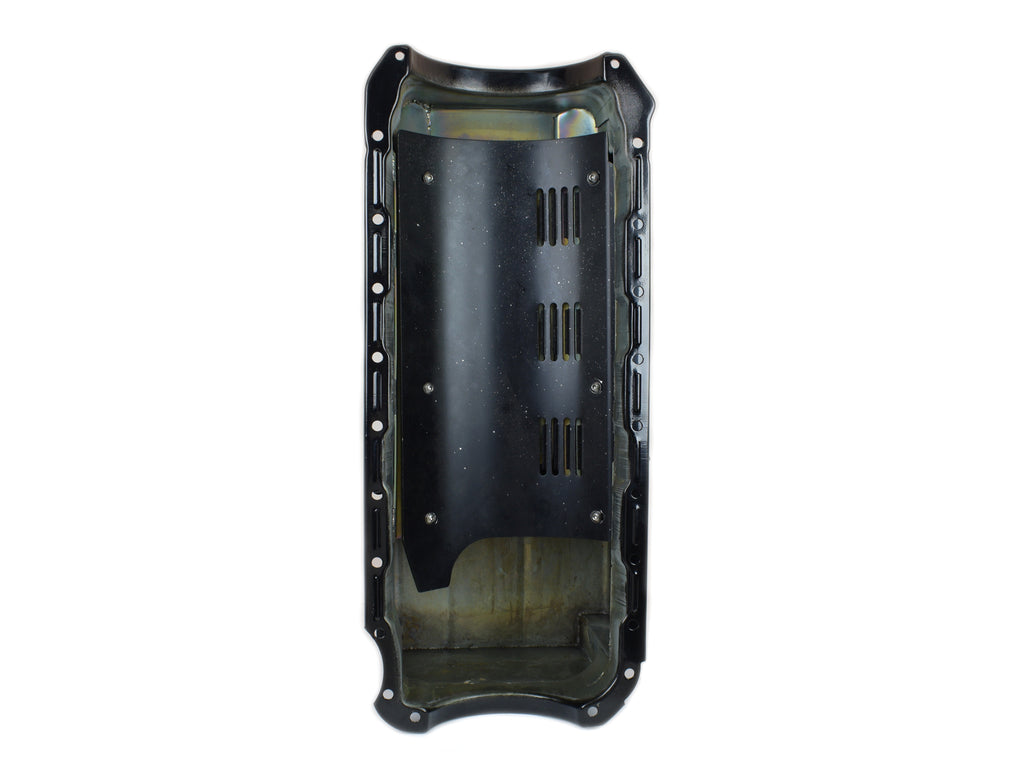

- Bolt In Louvered Windage Tray
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711823
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For B.B. Chevy Mark 4 Blocks
- Feature 1: Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
- Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
- Feature 3: Removable Louvered Windage Tray
- Feature 4: Trap Door Baffle For Oil Control
- Feature 5: Provision for Canton Pan Mounted Dipstick
- Feature 6: Magnetic Drain Plug
- Feature 7: Black Powder coat
- Finish: Black Powder coat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-190 - Pickup for BBC Pumps
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
- Stoke: 4.5 inches
- Windage Tray Included: Yes
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Discontinued
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 19 POUNDS
