Description

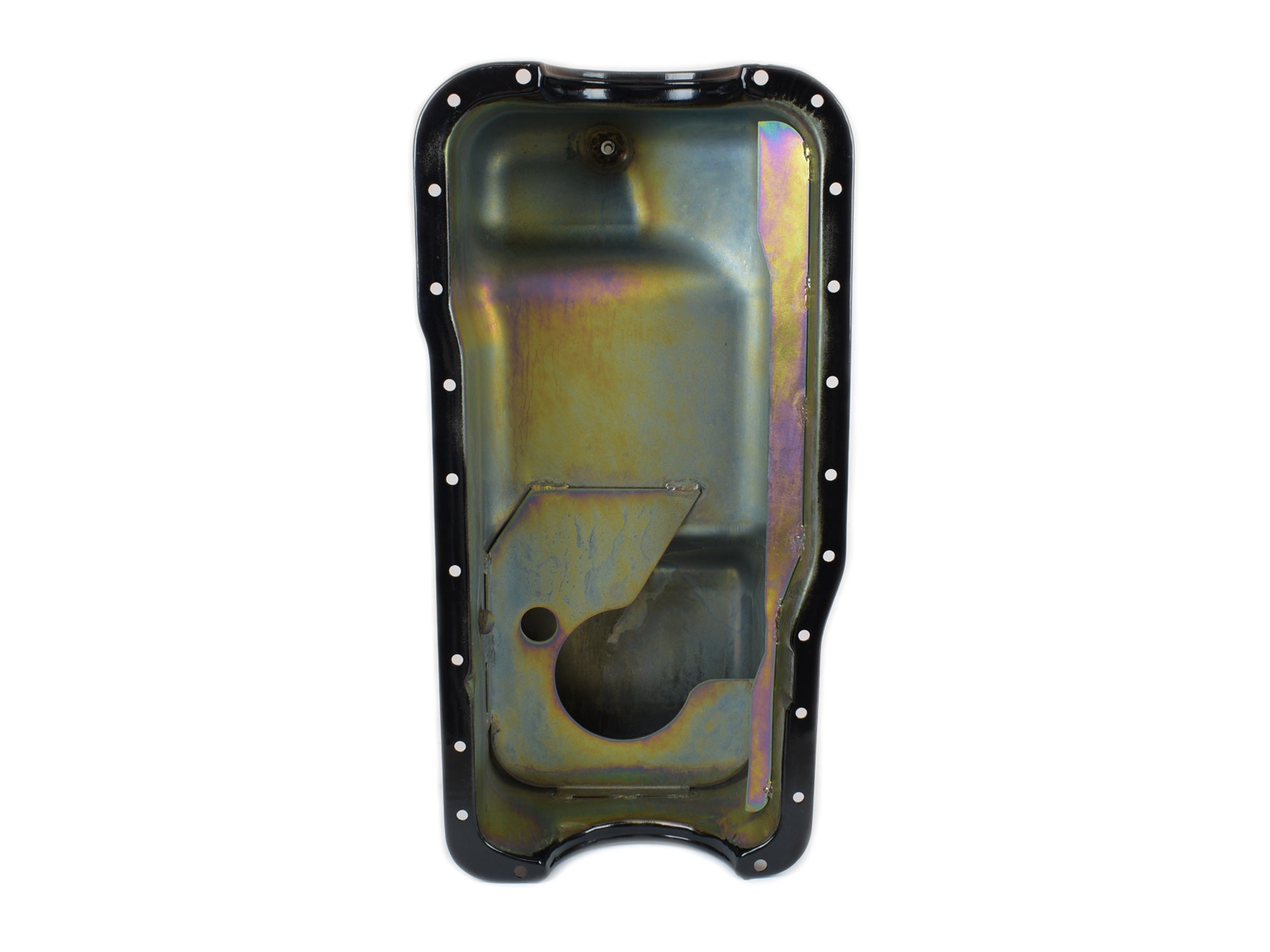

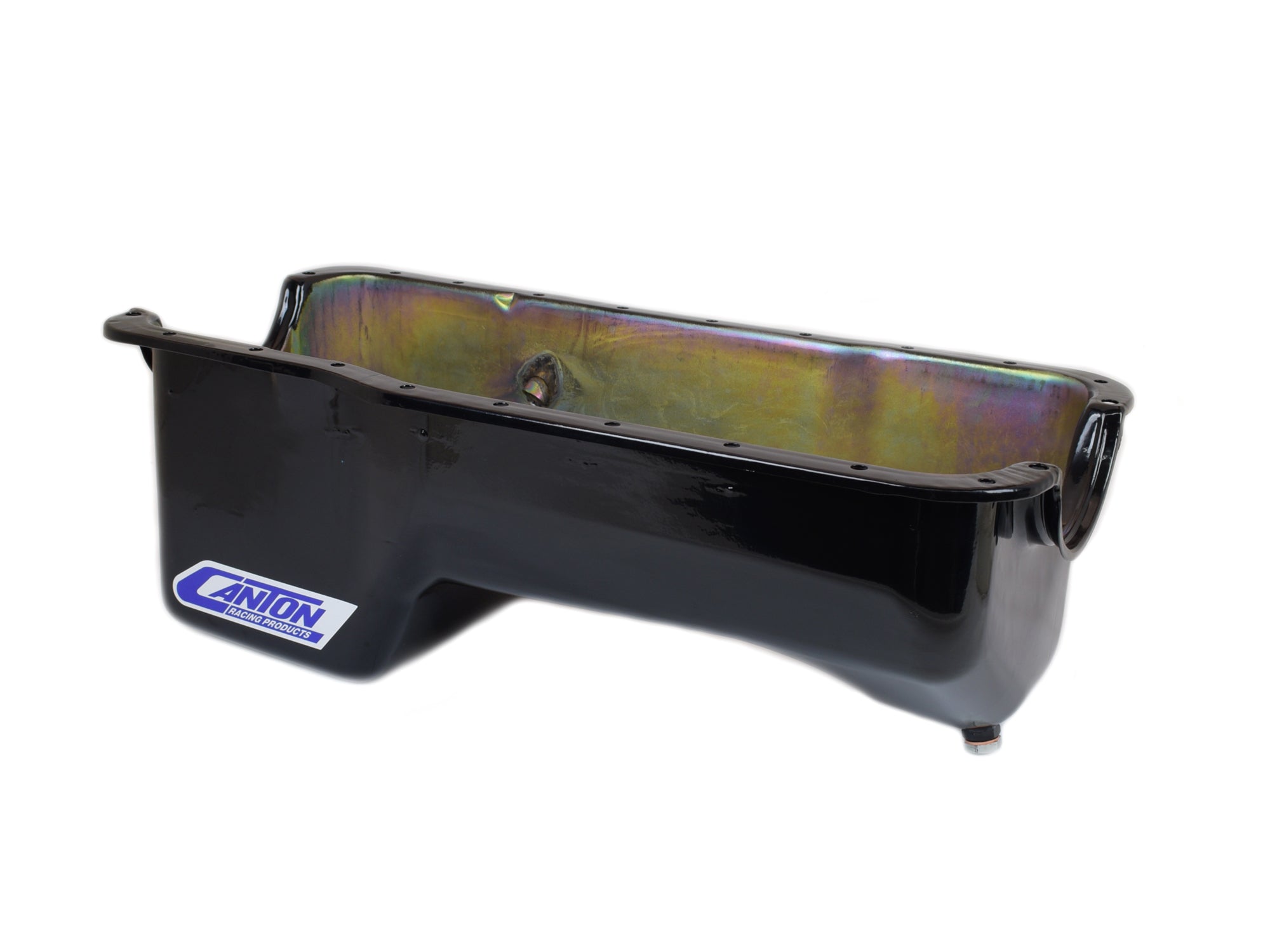

This black powder coat rear sump stock eliminator pan is for Ford 289-302 blocks. This oil pan is designed for drag race stock eliminators, NMRA factory stock, and others requiring a stock appearing oil pan. Pan is notched for 2 bolt rear main sportsman engine blocks. This pan uses a stock pickup.
- Retains Stock Oil Pan
- Dimensions & Capacity
- Crank Scraper
- Slosh Baffle
- Works with our 21-060 Main Support
- Magnetic Drain Plug
- Provision for a pan mounted dipstick
- Black Powder Coat
Attributes:
- Brand Name: Canton
- GTIN: 00887753711878
- Baffled: Yes
- Capacity: Stock System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For Ford 302 Blocks
- Feature 1: Slosh Baffle For Oil Control
- Feature 2: Built in Crank Scraper
- Feature 3: Magnetic Drain Plug
- Feature 4: Black Powdercoat
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-641 - Stock Replacement 302 Oil Pan
- Recommended Accessory 2: 15-647 - 3/4" P/U for us with 21-060 Main Support
- Recommended Accessory 3: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
- Recommended Accessory 4: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 5: 20-950 - Oil Pump P/U Stud for 302 Engine
- Recommended Accessory 6: 88-602 ? Small Block Ford 289-302 One Piece Oil Pan Gasket
- Stoke: 3.4 inches
- Sump Depth: 7.5 inches
- Sump Width: 9 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 11 POUNDS
