Description

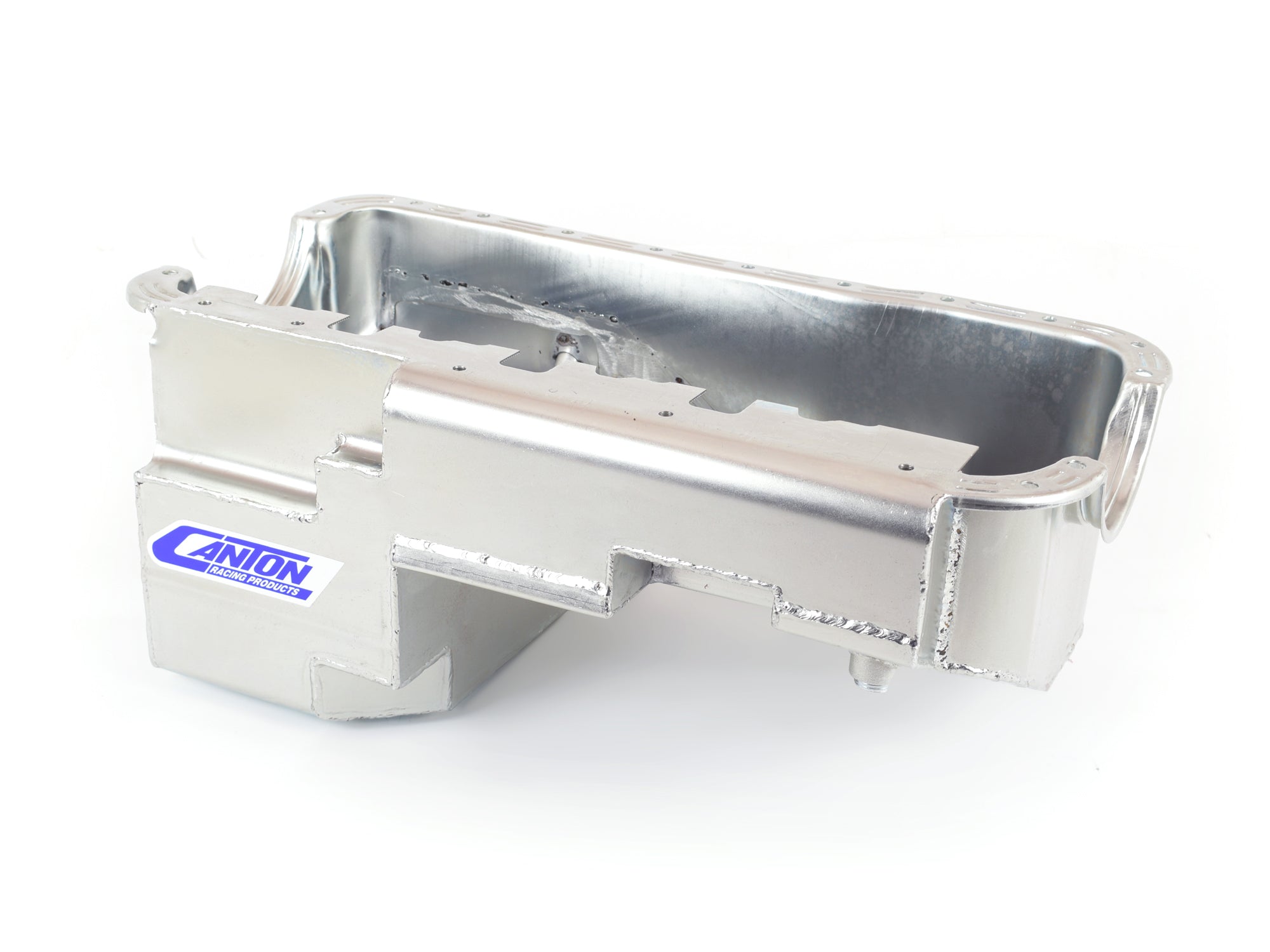

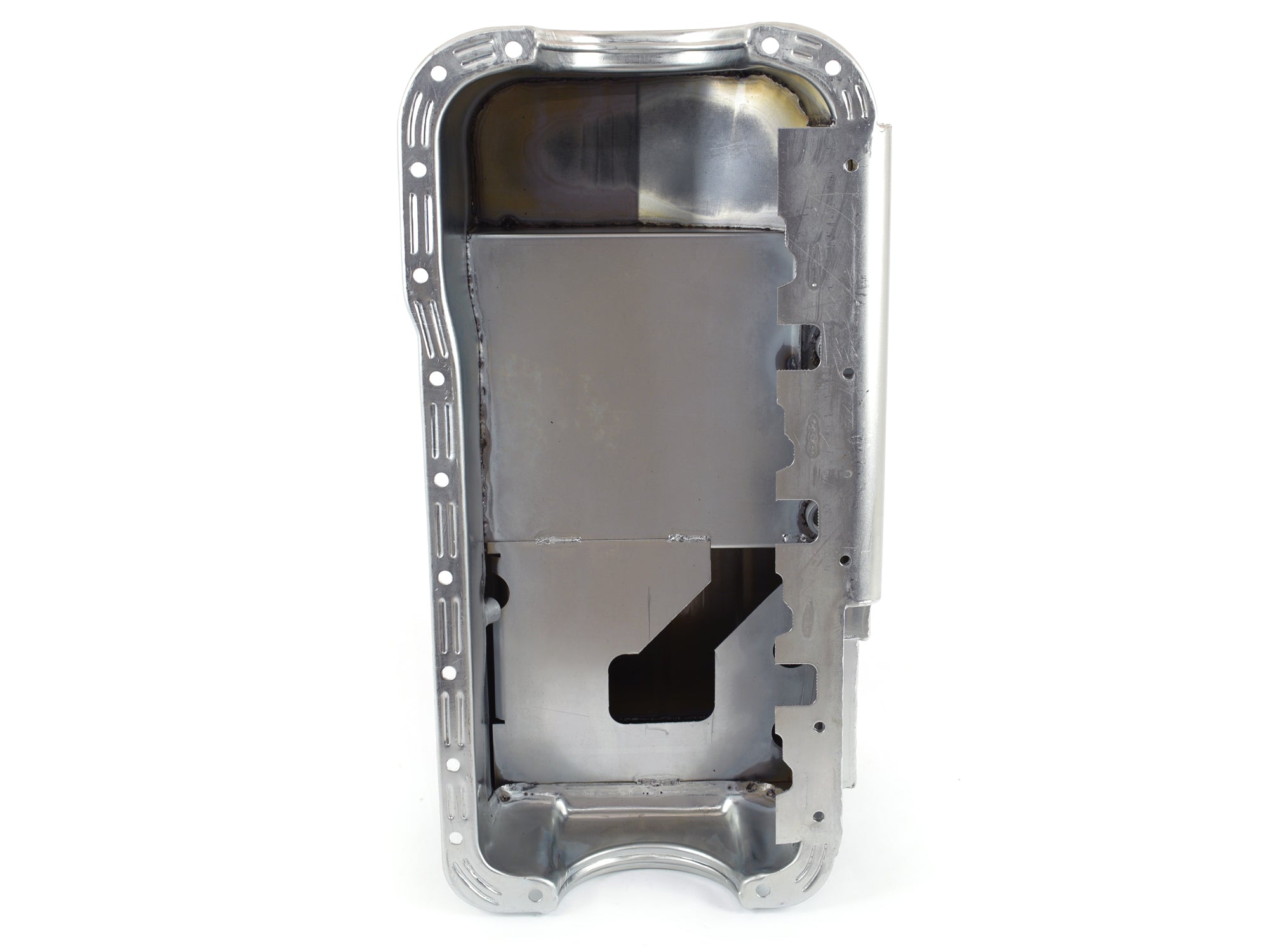

This Fox Body drag race pro-style power pan is for Ford 289-302 blocks. It has a 9" deep by 7" long by 11" wide rear sump and a 7 qt. system capacity. The front sump is 6-1/2" deep. The large oil recovery pouch requires the right side mounting bolts to be accessed through plugs in the bottom of the pan. Works with long tube headers & late model stock starter.
- Oil Recovery Pouch
- 7 qt System Capacity
- Works With Late Model Starter
- Pro Style Oil Recovery Pouch
- Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711885
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For Ford 302 Blocks
- Feature 1: Pro-Style Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
- Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
- Feature 3: Slosh Baffle For Oil Control
- Feature 4: Provision for Canton Pan Mounted Dipstick
- Feature 5: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-621 - 3/4" Dia. Pickup
- Recommended Accessory 2: 15-625 - 3/4" Dia. Pickup for Other Steel Main Supports
- Recommended Accessory 3: 15-627 - 3/4" Dia. Pickup for Canton Main Support
- Recommended Accessory 4: 20-960 - 302 Windage Tray for 21-060 Main Support
- Recommended Accessory 5: 20-950 - Oil Pump Pickup Stud for 302 Based Engines
- Recommended Accessory 6: 20-953 - Oil Pump Pickup Stud for R302 Based Engines
- Recommended Accessory 7: 20-850 - Universal Dipstick Kit with 1/4" N.P.T Fitting
- Recommended Accessory 8: 20-854 - Universal Steel Braided Dipstick Kit with 1/4" N.P.T. Fitting
- Recommended Accessory 9: 88-600 - Small Block Ford 289-302 Four Piece Oil Pan Gasket
- Stoke: 3.4 inches
- Sump Depth: 9 inches
- Sump Width: 11 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 17 POUNDS
