Description

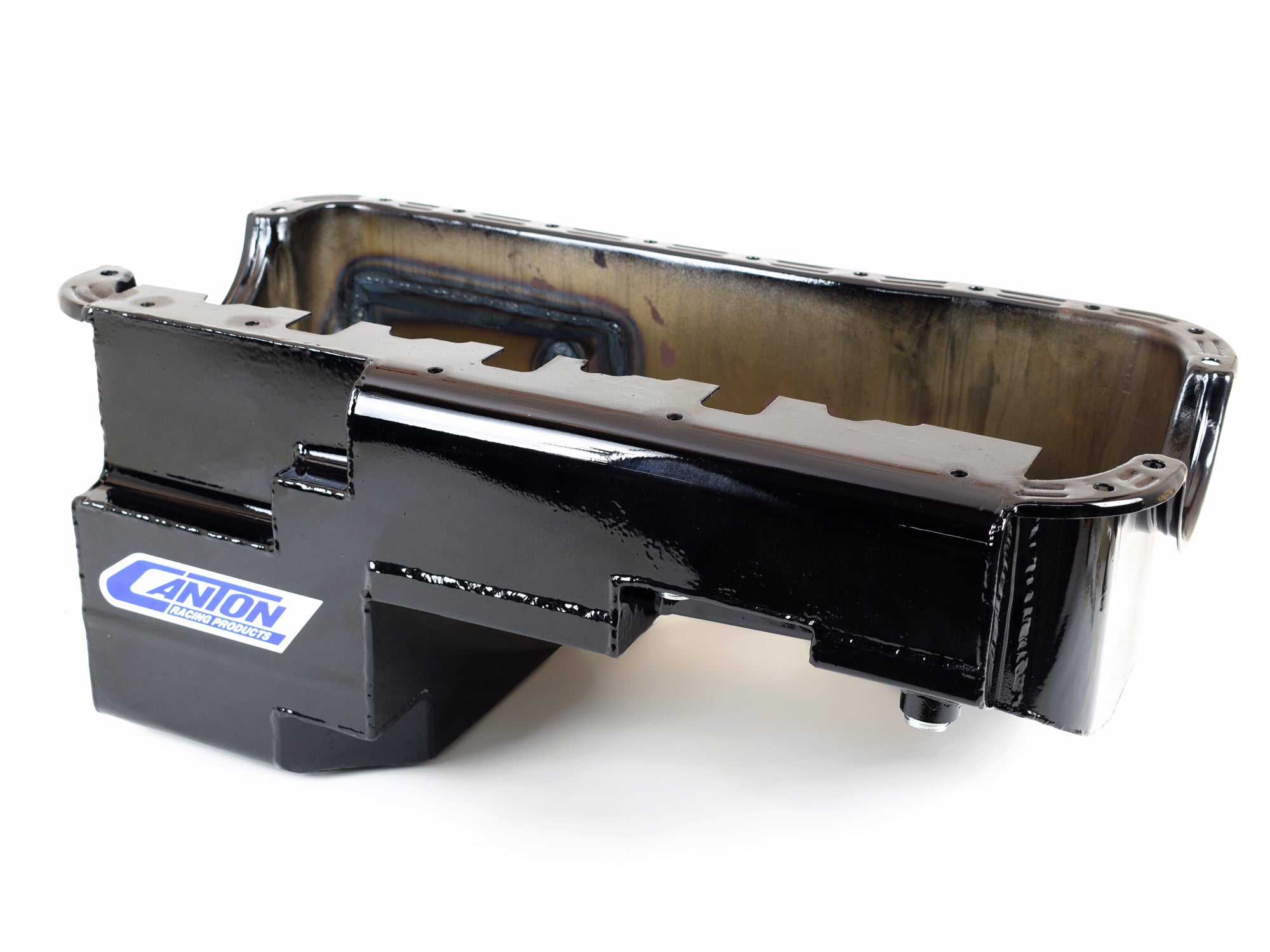

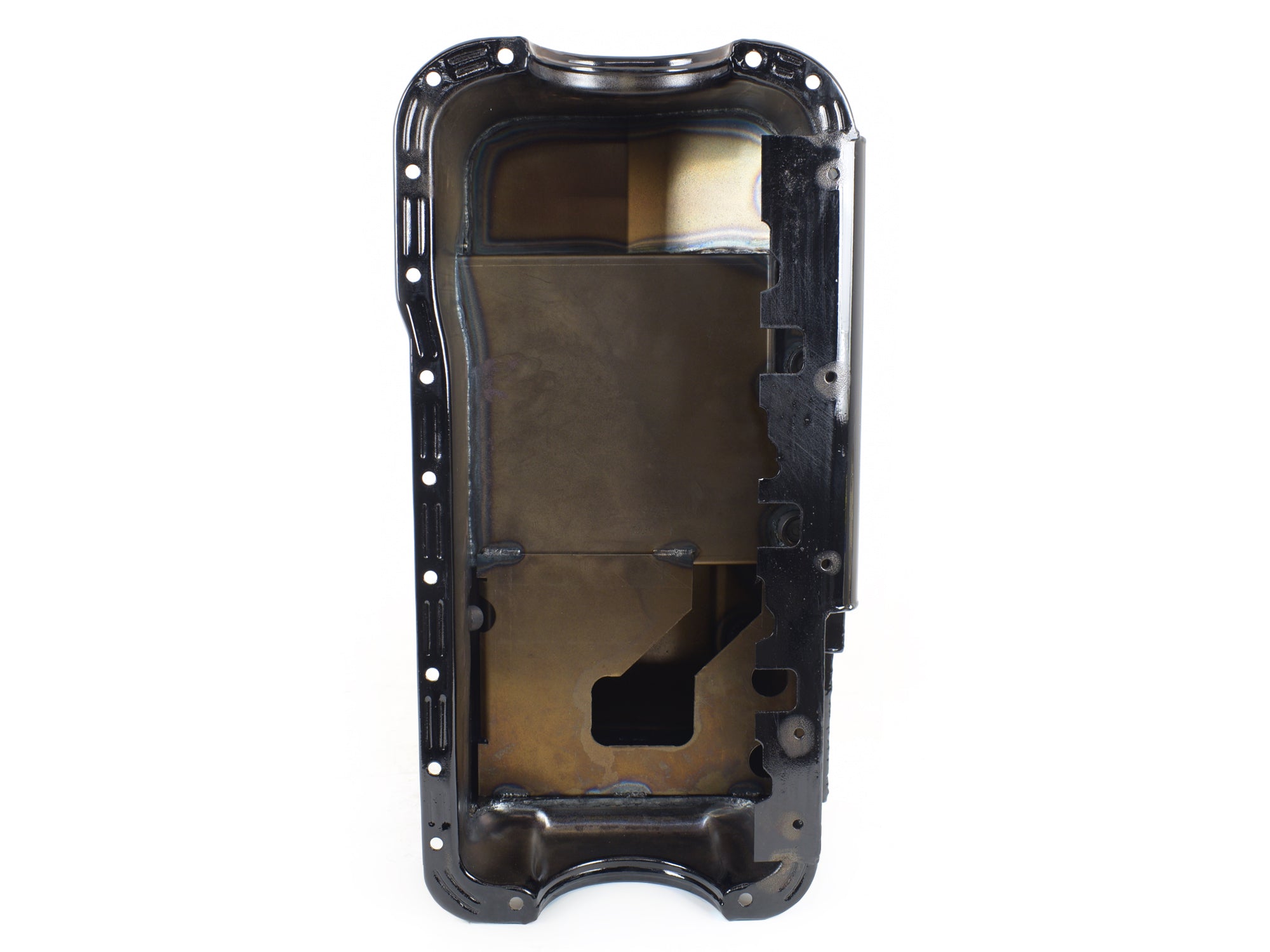

This Fox Body drag race pro-style power pan is for Ford 289-302 blocks. It has a 9" deep by 7" long by 11" wide rear sump and a 7 qt. system capacity. The front sump is 6-1/2" deep. The large oil recovery pouch requires the right side mounting bolts to be accessed through plugs in the bottom of the pan. Works with long tube headers & late model stock starter.
- Oil Recovery Pouch
- 7 qt System Capacity
- 7 qt System Capacity
- Pro Style Oil Recovery Pouch
- Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711892
- Finish: Black Powder Coat
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 18 POUNDS
