Description

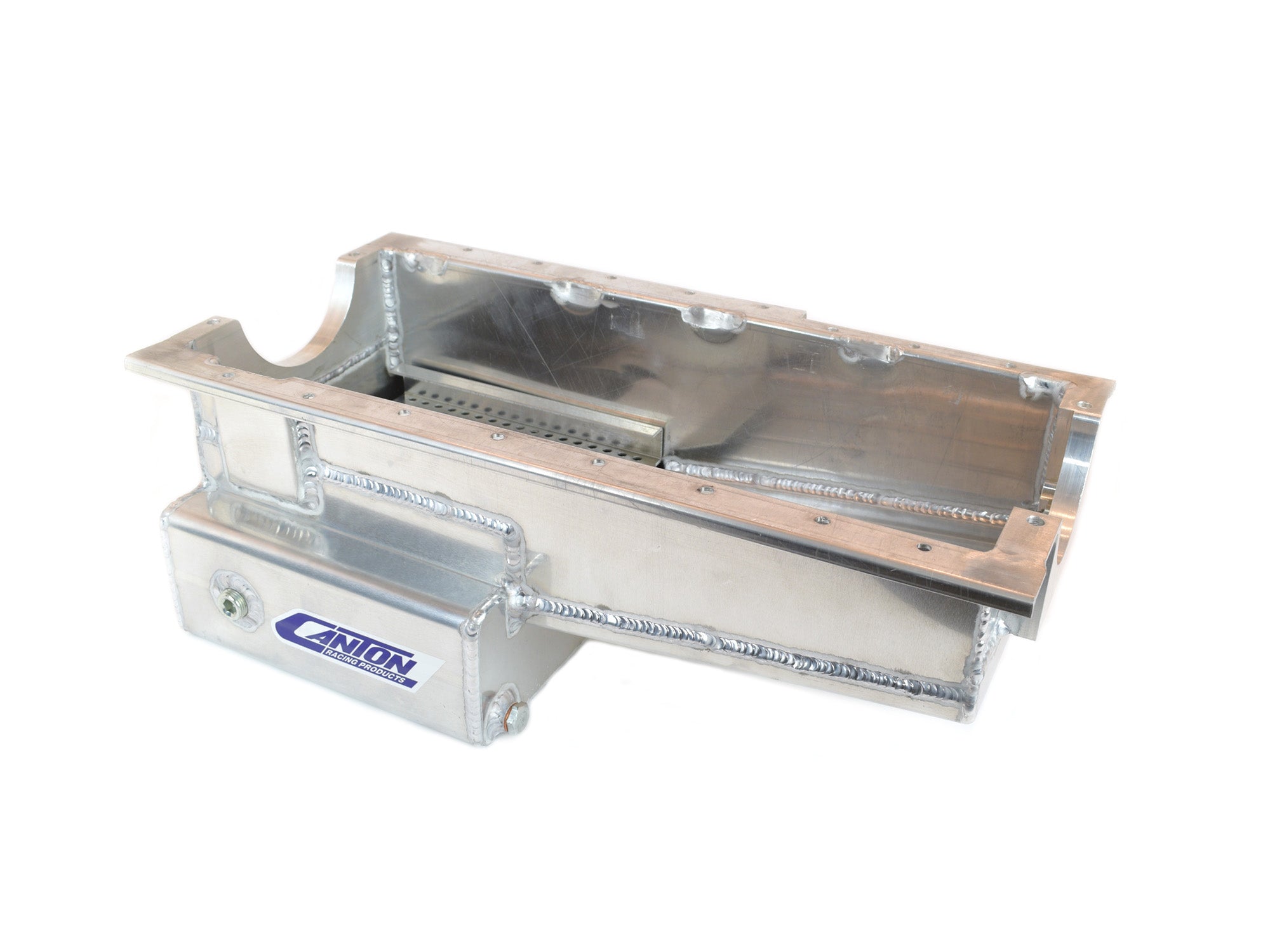

This aluminum front sump multi baffled pan is for Ford 289-302 blocks. It has a 8" Deep, 10" long, 12" Wide sump, with an 8 qt. system capacity. Front sump designed to fit stock, aftermarket & SVO blocks. This pan requires our 15-611 pickup.
- 8 qt System Capacity

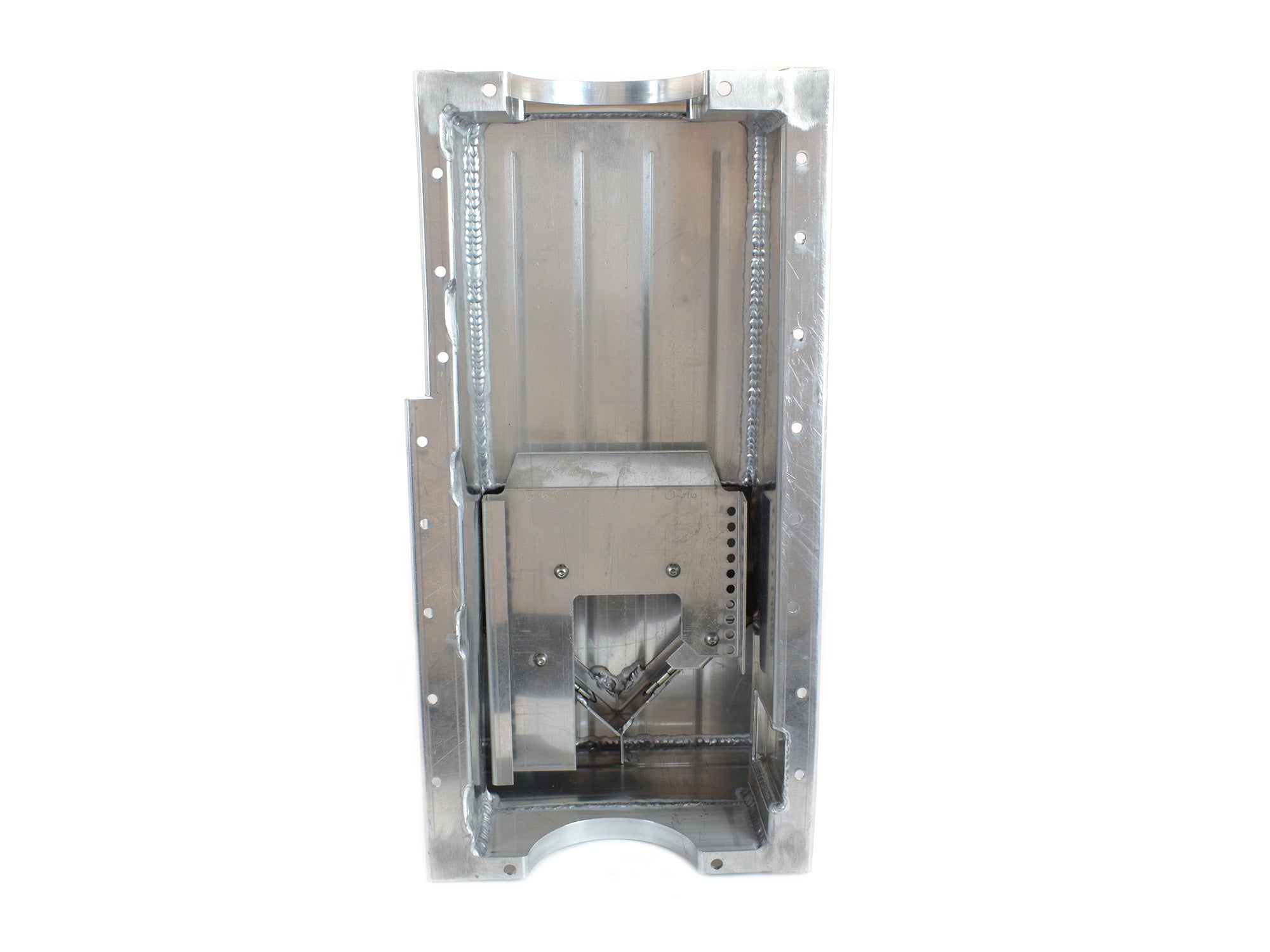

- Four Trap Door Baffles
- Removable Windage/Anti-Slosh Baffle
- Billet Seals For a Proper Fit.
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711908
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For Ford 302 Blocks
- Feature 1: Features Four Trap Door Baffle Assembly
- Feature 2: Bolt On Windage / Anti-Slosh Baffle For Oil Control
- Feature 3: Provision for Canton Pan Mounted Dipstick
- Feature 4: 1/2 NPT Temp Sensor Bung
- Feature 5: Magnetic Drain Plug
- Feature 6: Billet Seals for a Proper Fit
- Finish: Raw Aluminum
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: .100 Thick Aluminum
- Pickup Included: No
- Recommended Accessory 1: 15-611 - 3/4" Dia. Pickup
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4? N.P.T. Fitting
- Recommended Accessory 4: 88-600 ? Small Block Ford 289-302 Four Piece Oil Pan Gasket
- Stoke: 3.4 inches
- Sump Depth: 8 inches
- Sump Width: 12 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : 1
- Life Cycle Status: Discontinued
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 13 POUNDS
