Description

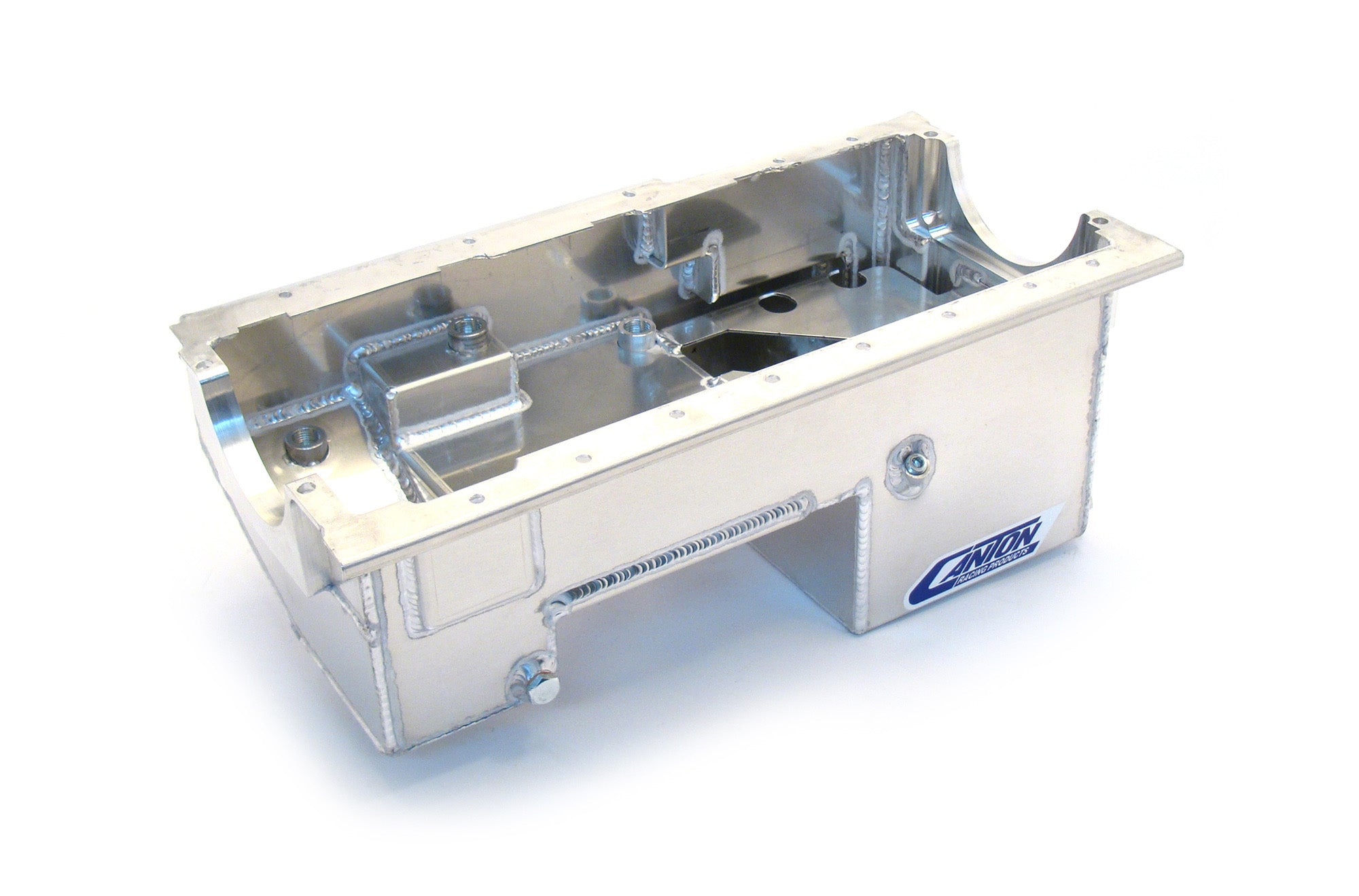

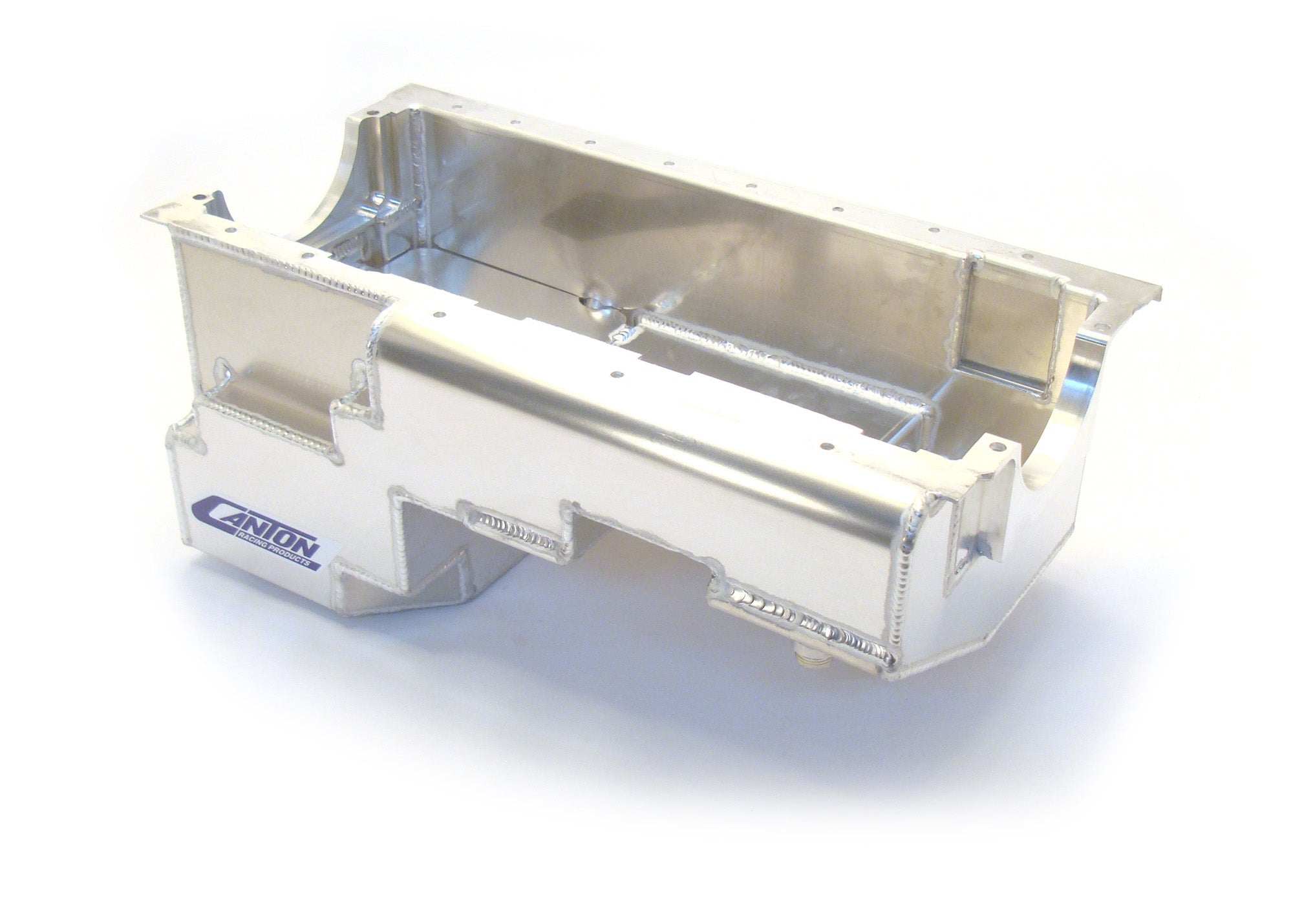

This Aluminum fox body drag race pro-style power pan is for 351W SVO blocks with 2 or 4 bolt rear main caps & 164 or 157 tooth flywheel applications. It has a 9" deep rear sump with a 7 qt. system capacity. Designed to work with our one-way screen windage tray, which mounts directly to the main cap studs. The large oil recovery pouch requires the right side mounting bolts to be accessed through plugs in the bottom of the pan. Works with long tube headers & late model stock starter. Requires modification for use with main support.
- 7 qt System Capacity
- Billet Seals For A Proper Fit
- Pro Style Oil Recovery Pouch
- Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711939
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For Ford 351W Blocks
- Feature 1: Pro-Style Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
- Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
- Feature 3: Slosh Baffle For Oil Control
- Feature 4: Provision for Canton Pan Mounted Dipstick
- Feature 5: Magnetic Drain Plug
- Feature 6: Billet Seals for a Proper Fit
- Finish: Raw Aluminum
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: .100 Thick Aluminum
- Pickup Included: No
- Recommended Accessory 1: 15-671 - 3/4" Dia. Pickup for use With or Without CANTON Main Support
- Recommended Accessory 2: 15-673 - 7/8" Dia. Pickup for Engines Without Main Support
- Recommended Accessory 3: 15-675 - Pickup for Others Steel Main Support
- Recommended Accessory 4: 20-953 - Oil Pump Pickup Stud for 351W Based Engines
- Recommended Accessory 5: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
- Recommended Accessory 6: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 7: 88-650 ? Small Block Ford 351W Four Piece Oil Pan Gasket
- Stoke: 4.0 inches
- Sump Depth: 9 inches
- Sump Width: 11 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 12 POUNDS
