Description

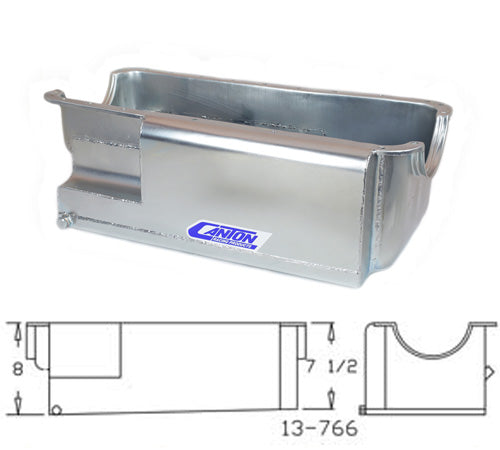

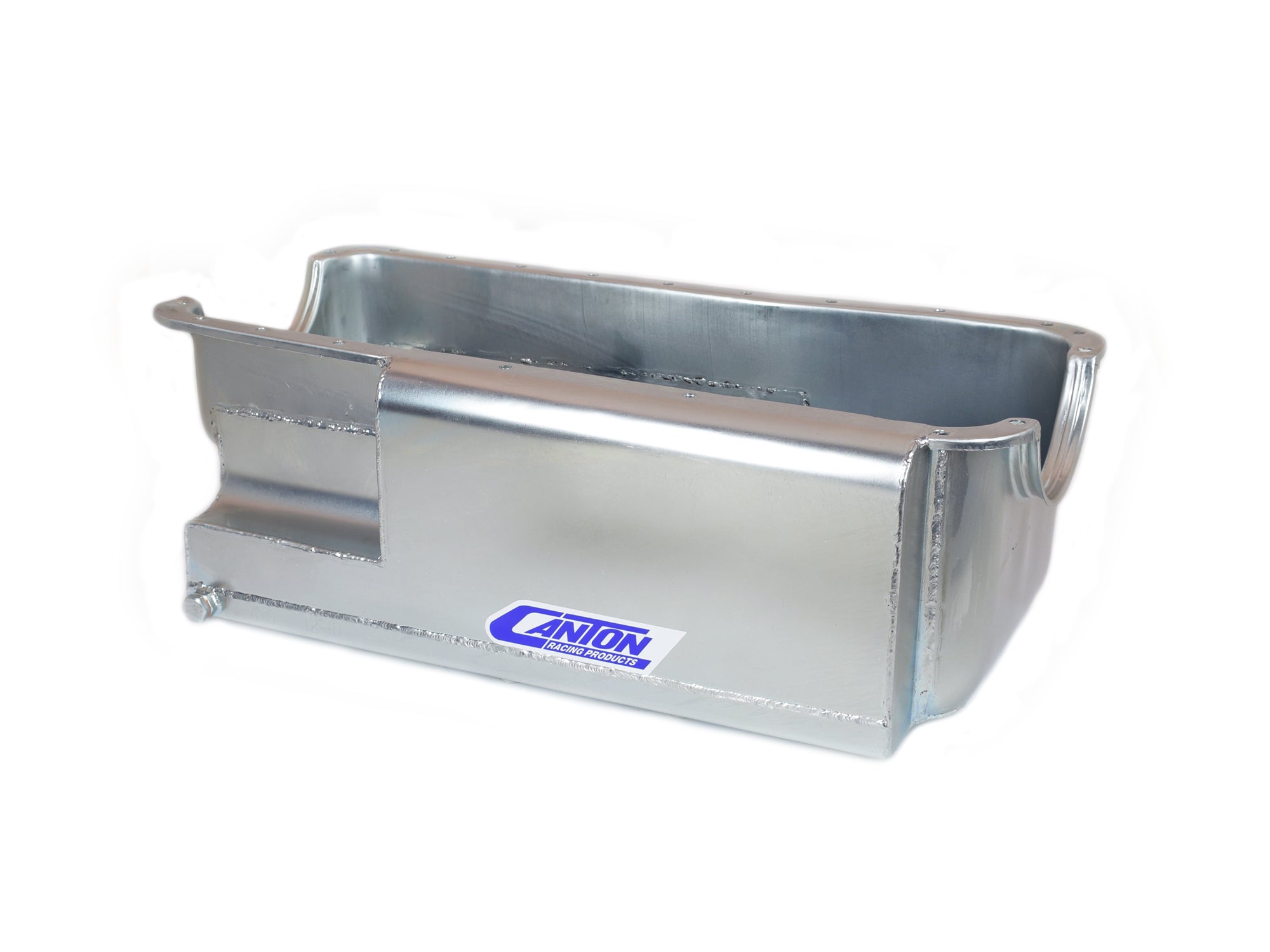

This Ford 429-460 drag race flat bottom Pro Power pan is designed for chassis without x-members or steering links under the engine. It is 7-1/2" Deep in front and 8" Deep in the rear and holds 8 qts., system capacity is 9 qts. The large oil recovery pouch requires the right side mounting bolts to be accessed through plugs in the bottom of the pan. This pan requires our 13-769 pickup. Will work with late model stock starters. Modifications needed for use with some aftermarket blocks.
- 7 qt System Capacity
- Pro Style Oil Recovery Pouch
- Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711960
- Baffled: Yes
- Capacity: 9 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For Ford 429-460 Blocks
- Feature 1: Pro-Style Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
- Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
- Feature 3: Triple Trap Door Baffles For Oil Control
- Feature 4: Midsump Pickup Compartment
- Feature 5: Provision for Canton Pan Mounted Dipstick
- Feature 6: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 13-769 - 7/8" Dia. Pickup
- Recommended Accessory 2: 20-956 - Oil Pump Pickup Stud
- Recommended Accessory 3: 20-936 - One-way Screen Windage Tray
- Recommended Accessory 4: 20-946 - Windage Tray Mounting Kit
- Recommended Accessory 5: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 6: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 7: 21-066 - Ford 429-460 Main Support
- Recommended Accessory 8: 88-750 - Big Block Ford 429-460 Four Piece Oil Pan Gasket
- Stoke: 4.5 inches
- Sump Depth: 8 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : 1
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 18 POUNDS
