Description

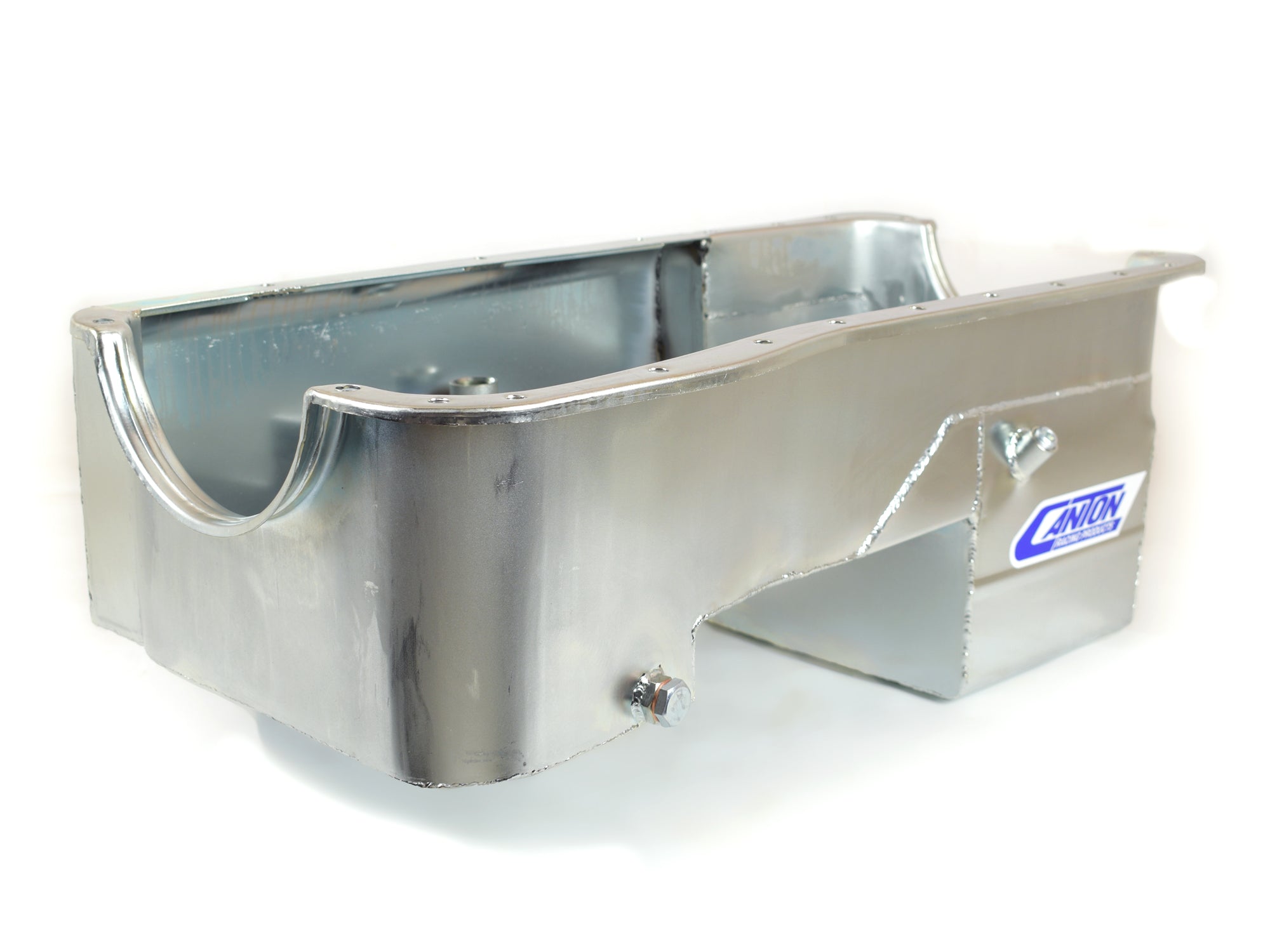

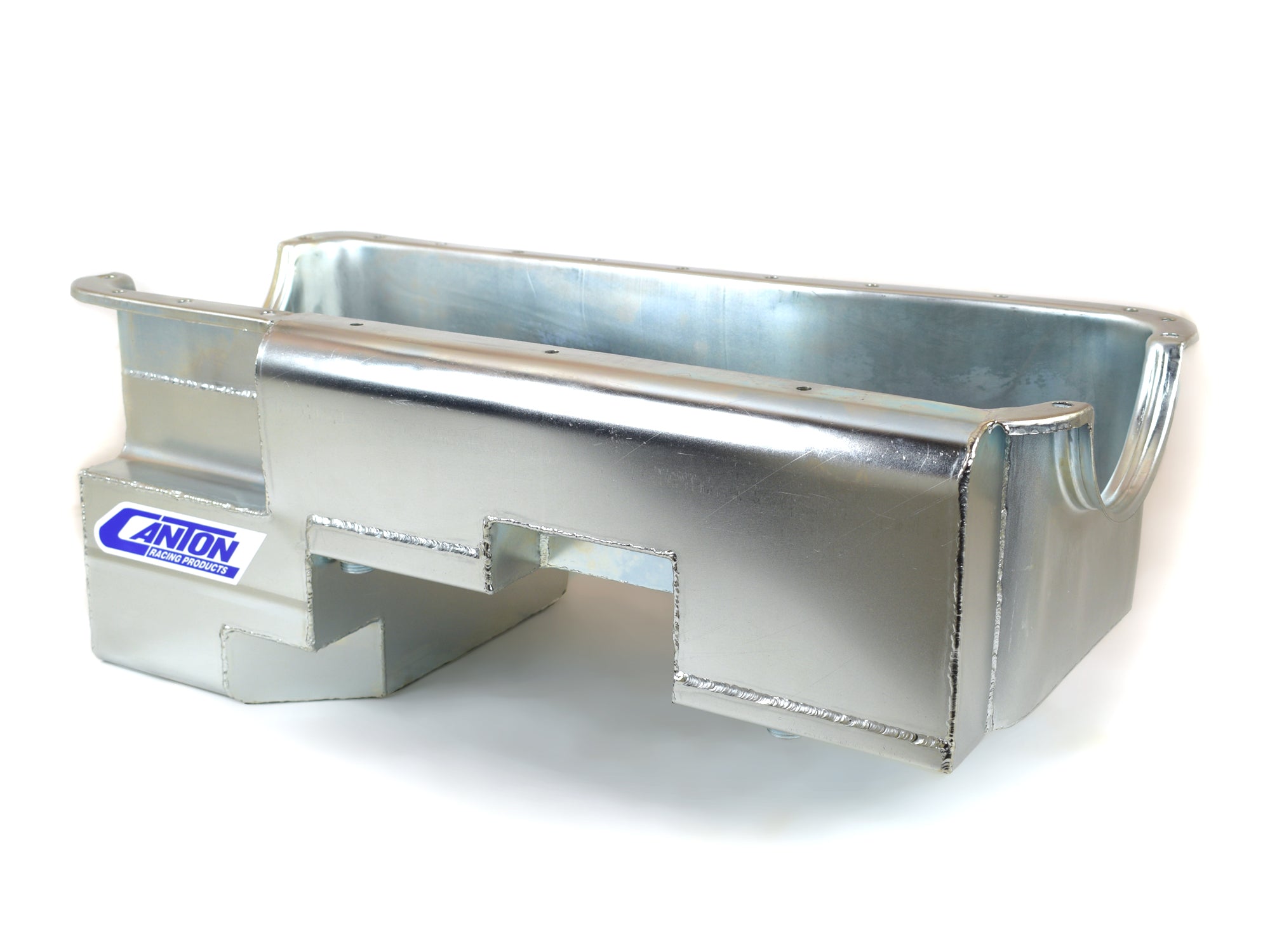

This Fox body drag race pro-style power pan is for Ford 429-460 blocks. It has a 9" deep rear sump and a 7 qt. system capacity. For maximum power this pan features a horsepower saving oil recovery pouch and is designed to work with our one-way screen windage trays, which mount directly to the main caps studs. The large oil recovery pouch requires the right side mounting bolts to be accessed through plugs in the bottom of the pan. Works with long tube headers.
- 7 qt System Capacity
- Pro Style Oil Recover Pouch
- Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753711991
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For Ford 429-460 Blocks
- Feature 1: Pro-Style Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
- Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
- Feature 3: Slosh Baffle For Oil Control
- Feature 4: Provision for Canton Pan Mounted Dipstick
- Feature 5: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-771 - 3/4" Dia. Pickup
- Recommended Accessory 2: 15-777 - Pickup for our CANTON MAIN SUPPORT
- Recommended Accessory 3: 20-956 - Oil Pump Pickup Stud for 460 Based Engines
- Recommended Accessory 4: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 5: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 6: 21-066 - Ford 429-460 Main Support
- Recommended Accessory 7: 20-966 - Ford 429-460 Main Support Windage Tray
- Recommended Accessory 8: 88-750 - Big Block Ford 429-460 Four Piece Oil Pan Gasket
- Stoke: 4.5 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : 1
- Life Cycle Status: Discontinued
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 9 POUNDS
