Description

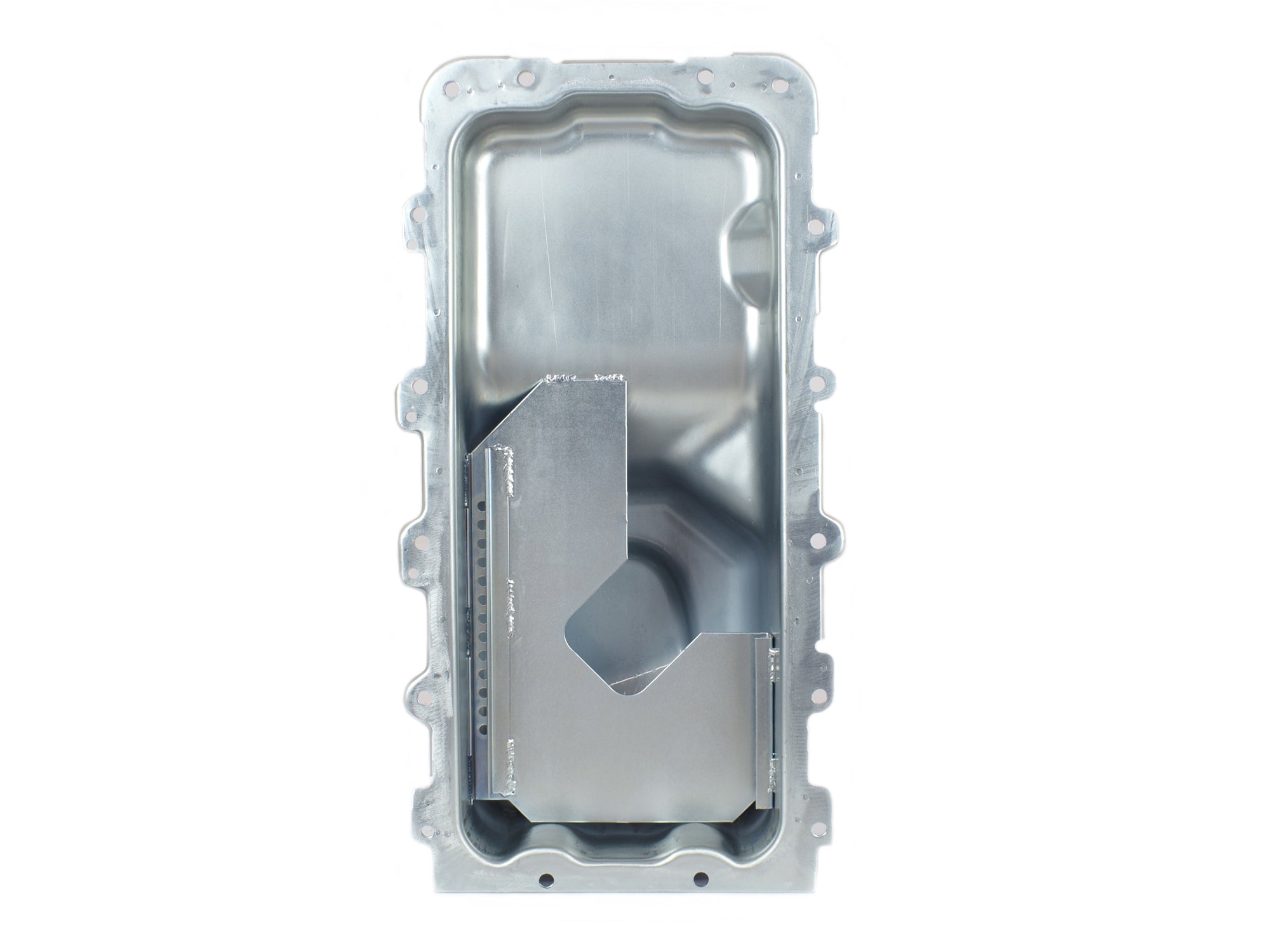

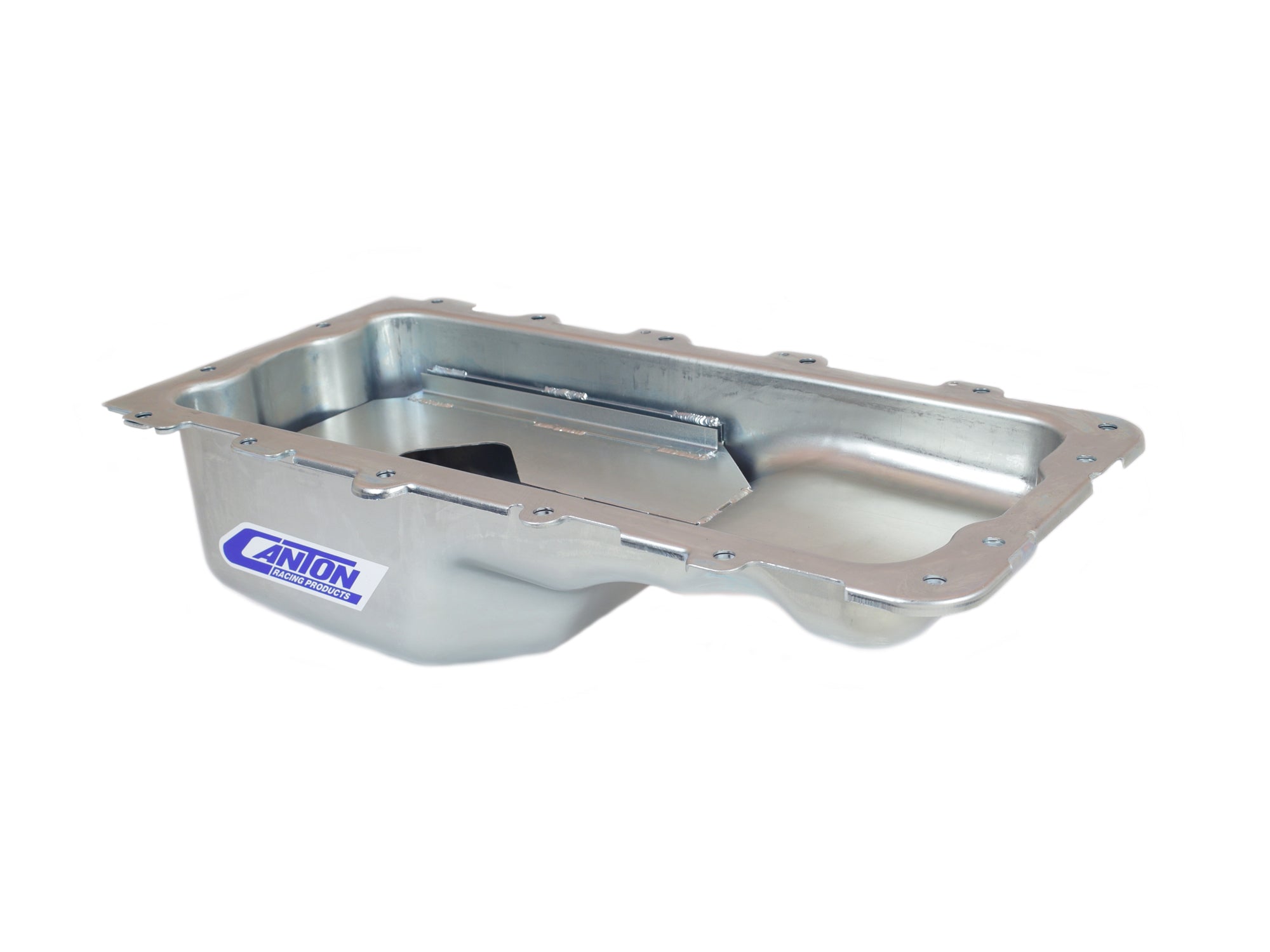

This rear sump stock appearing oil pan is for Ford 4.6 / 5.4 blocks. Pan is designed for competition drag and road racing. Uses a stock pickup.
- 5 qt System Capacity
- Stock Oil Pan Dimensions & Capacity
- Windage/Anti-Slosh Baffle
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753712011
- Baffled: Yes
- Capacity: Stock System Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Engine: For Ford 4.6 / 5.4 L Engines
- Feature 1: Windage / Anti- Slosh Baffle
- Feature 2: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-939 - 4.6 / 5.4 Engine Screen Windage Tray
- Recommended Accessory 2: 20-939P - Engine Louvered Windage Tray
- Recommended Accessory 3: 88-780 - 4.6 / 5.4 Engine Oil Pan Gasket
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24 x 12 x 10 inches
- Weight: 11 POUNDS
