Description

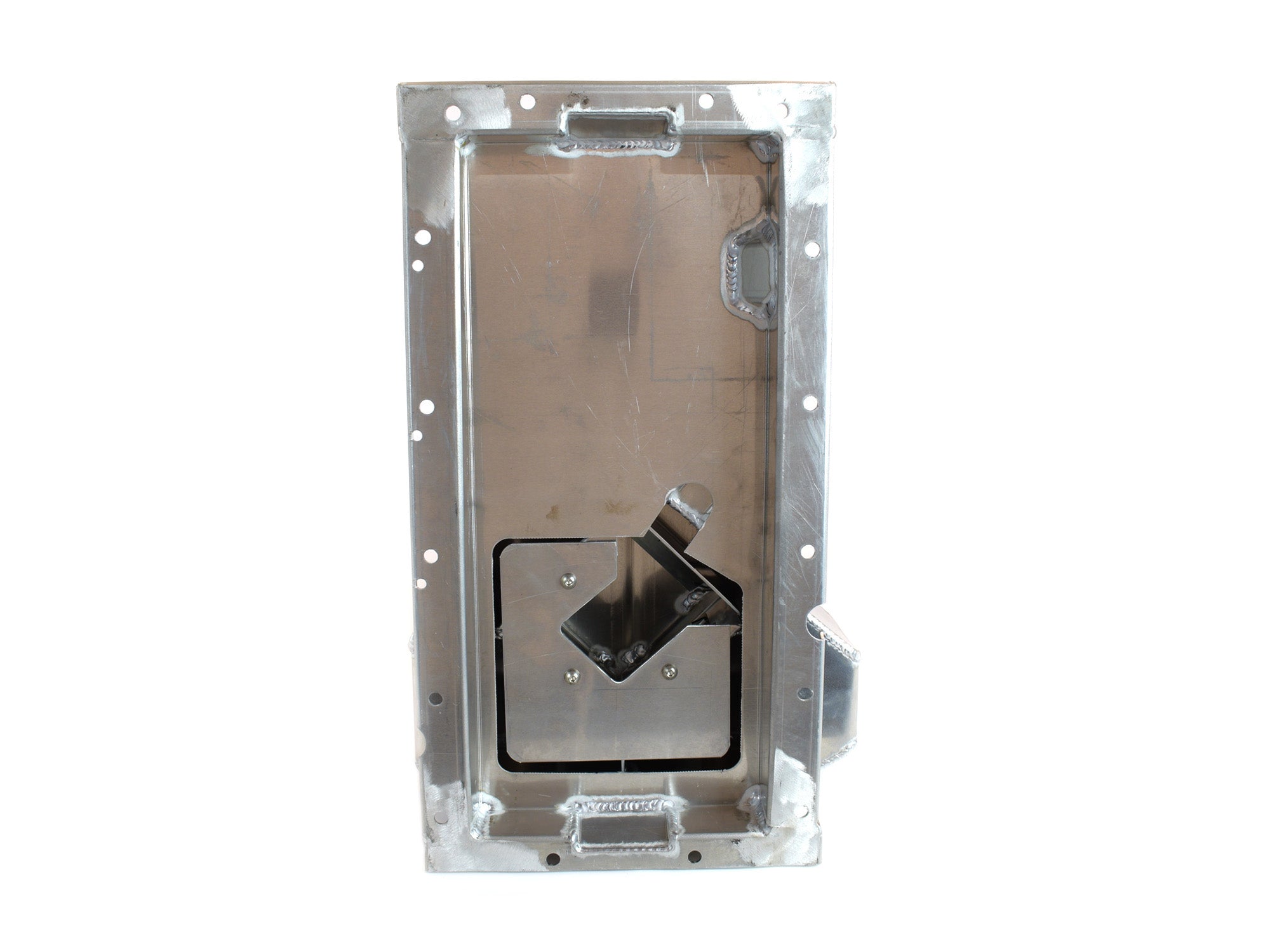

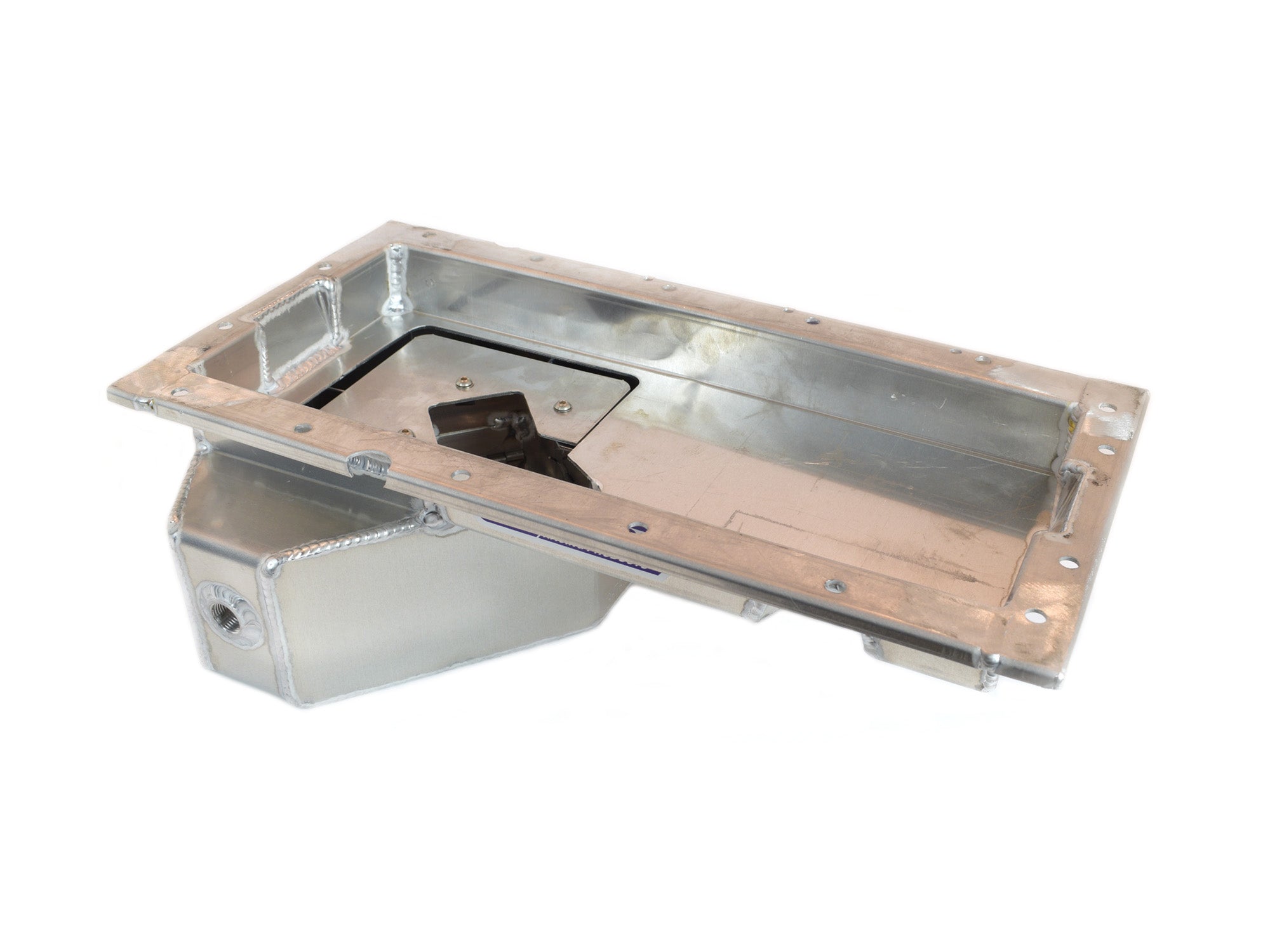

This rear sump aluminum oil pan is for Ford 4.6L / 5.4L modular engines. The "T" style sump is 6-1/4" deep, 12-3/4" wide by 9-1/4" long with a 7 quart system capacity. The pan increases oil capacity without losing ground clearance. Use the factory pickup for this pan. Designed to fit 96-04 and 05-10 Mustangs in competition drag and road racing.
- Increases Capacity Without Losing Ground Clearance
- Features Four Trap Door Baffle Assembly
- Bolt On Wind age / Anti-Slosh Baffle For Oil Control
- 1/2 NPT Temp Sensor Bung
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753712035
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Engine: For Ford 4.6 / 5.4 L Engines
- Feature 1: Increases Capacity Without Losing Ground Clearance
- Feature 2: Features Four Trap Door Baffle Assembly
- Feature 3: Bolt On Windage / Anti-Slosh Baffle For Oil Control
- Feature 4: 1/2 NPT Temp Sensor Bung
- Feature 5: Magnetic Drain Plug
- Finish: Raw Aluminum
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: .100 Thick Aluminum
- Pickup Included: No
- Recommended Accessory 1: 20-939 - Ford 4.6/5.4L Screened Windage Tray
- Recommended Accessory 2: 88-780 - Ford 4.6/5.4L Oil Pan Gasket
- Stoke: 106MM
- Sump Depth: 6.25 inches
- Sump Width: 12.75 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Discontinued
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 9 POUNDS
