Description

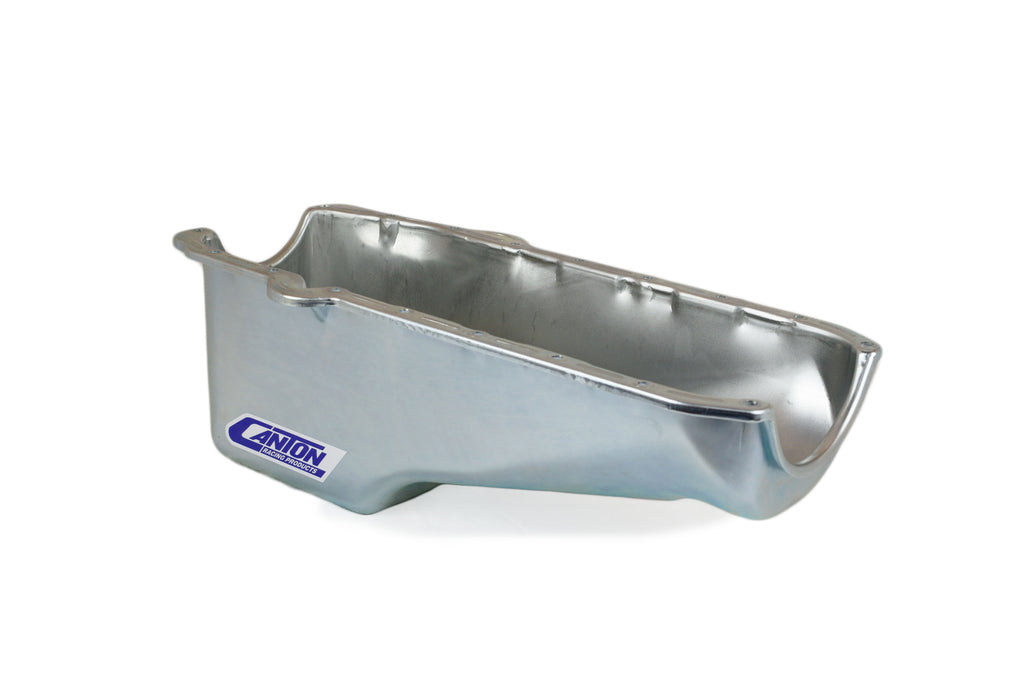

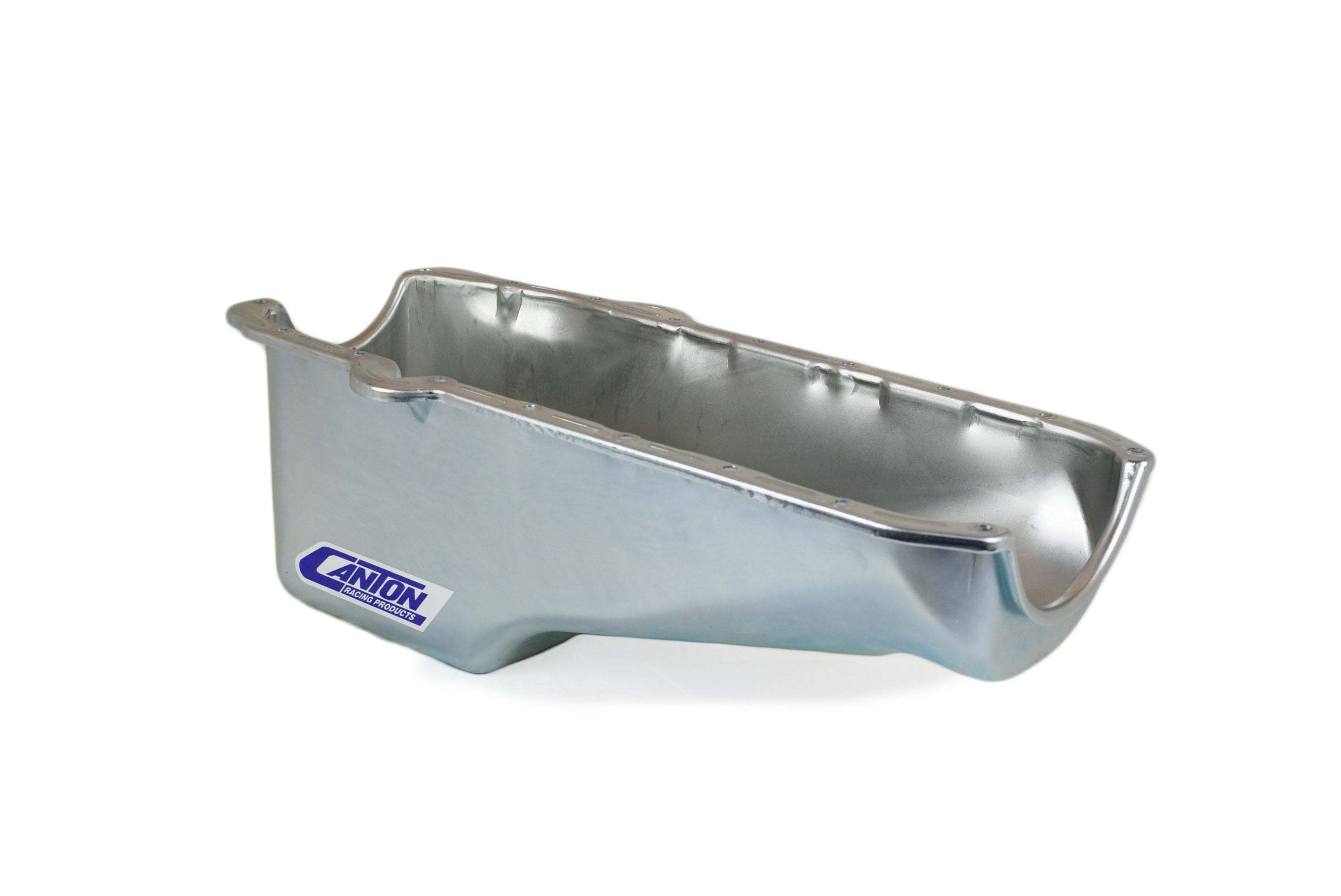

This stock appearing oil pan is for '86 and newer blocks with one piece seal. It is designed for applications that only have room for a stock oil pan, but require better control. Retains all stock oil pan dimensions and capacity. Will work with all starter flywheel combinations. Requires one of our pickups.
- 5 qt System Capacity
- Clears 3.75" stroke

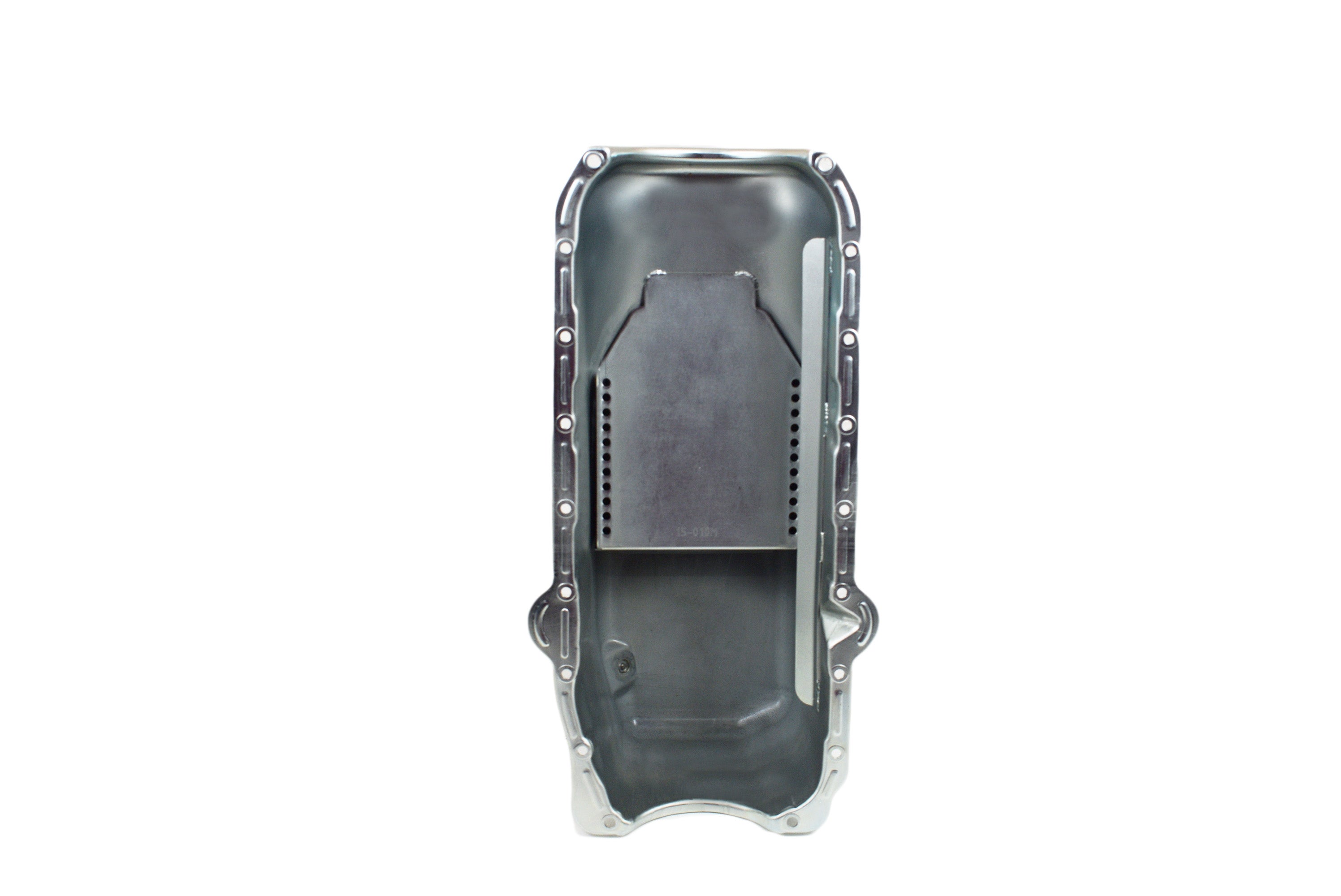

- Trap Door Baffle
- Crank Scraper
- Slosh Baffle
Attributes:
- Brand Name: Canton
- GTIN: 00887753712080
- Baffled: Yes
- Capacity: 5 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: No
- Drain Plug Included: Yes
- Engine: For S.B. Chevy 1986 and newer blocks with one piece seal
- Feature 1: Trap Door Baffle for Oil Control
- Feature 2: Crank Scraper
- Feature 3: Bolt in Slosh Baffle
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-010 - Pickup for Standard Volume Pumps M55 & M55A
- Recommended Accessory 2: 20-013 - Pickup for Standard Volume Pump M-155 w/3/4" Inlet
- Recommended Accessory 3: 20-020 - Pickup for High Volume Pump M55HV
- Recommended Accessory 4: 20-023 - Pickup for High Volume Pump M-155HV with 3/4" Inlet
- Recommended Accessory 5: 20-021 - Bolt-On Pickup for Melling M10555 Pumps
- Recommended Accessory 6: 88-100T ? SBC 86+ Oil Pan Gasket
- Stoke: 3.75 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : 1
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23 x 12 x 9 inches
- Weight: 15 POUNDS
