Description

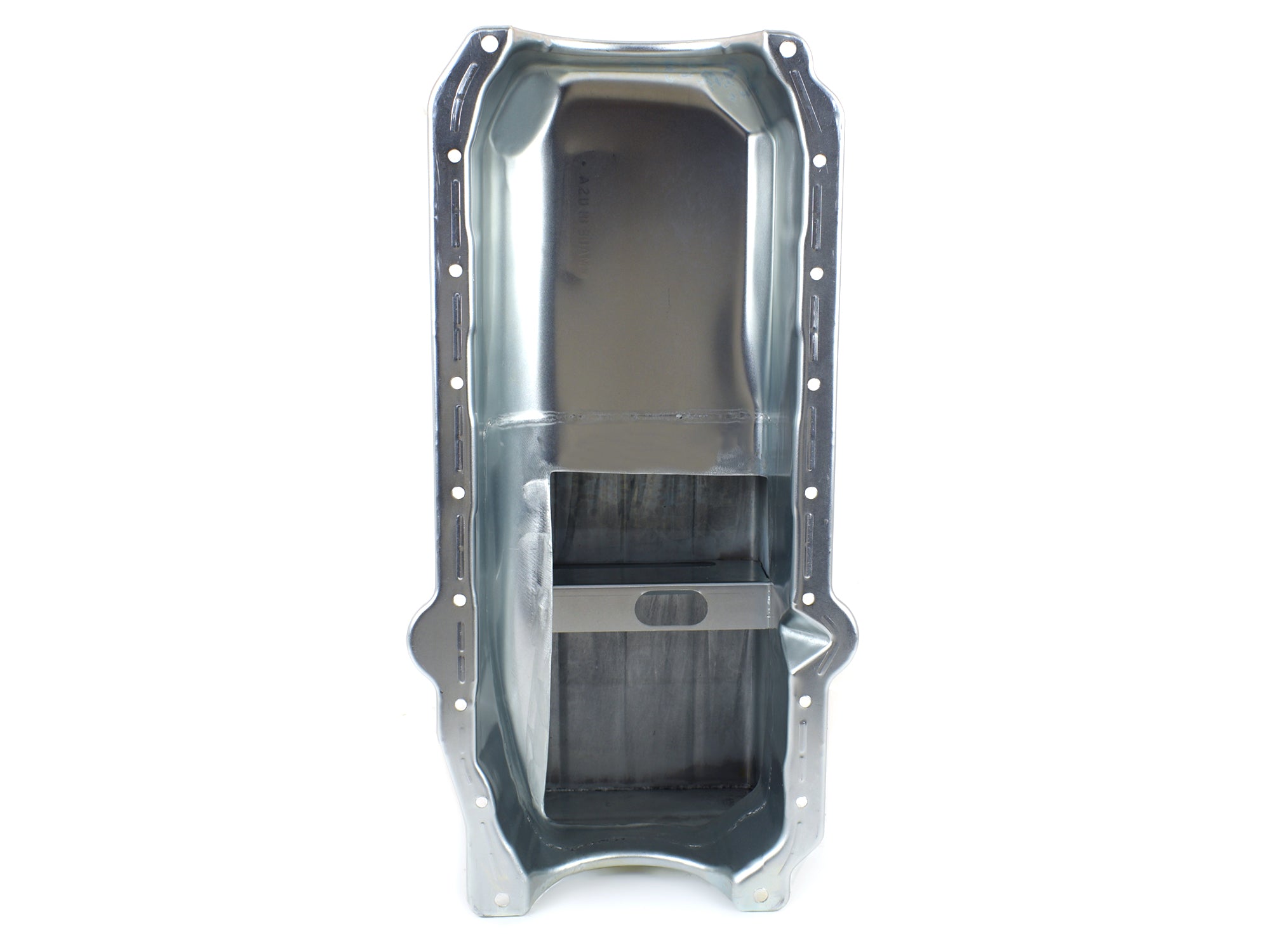

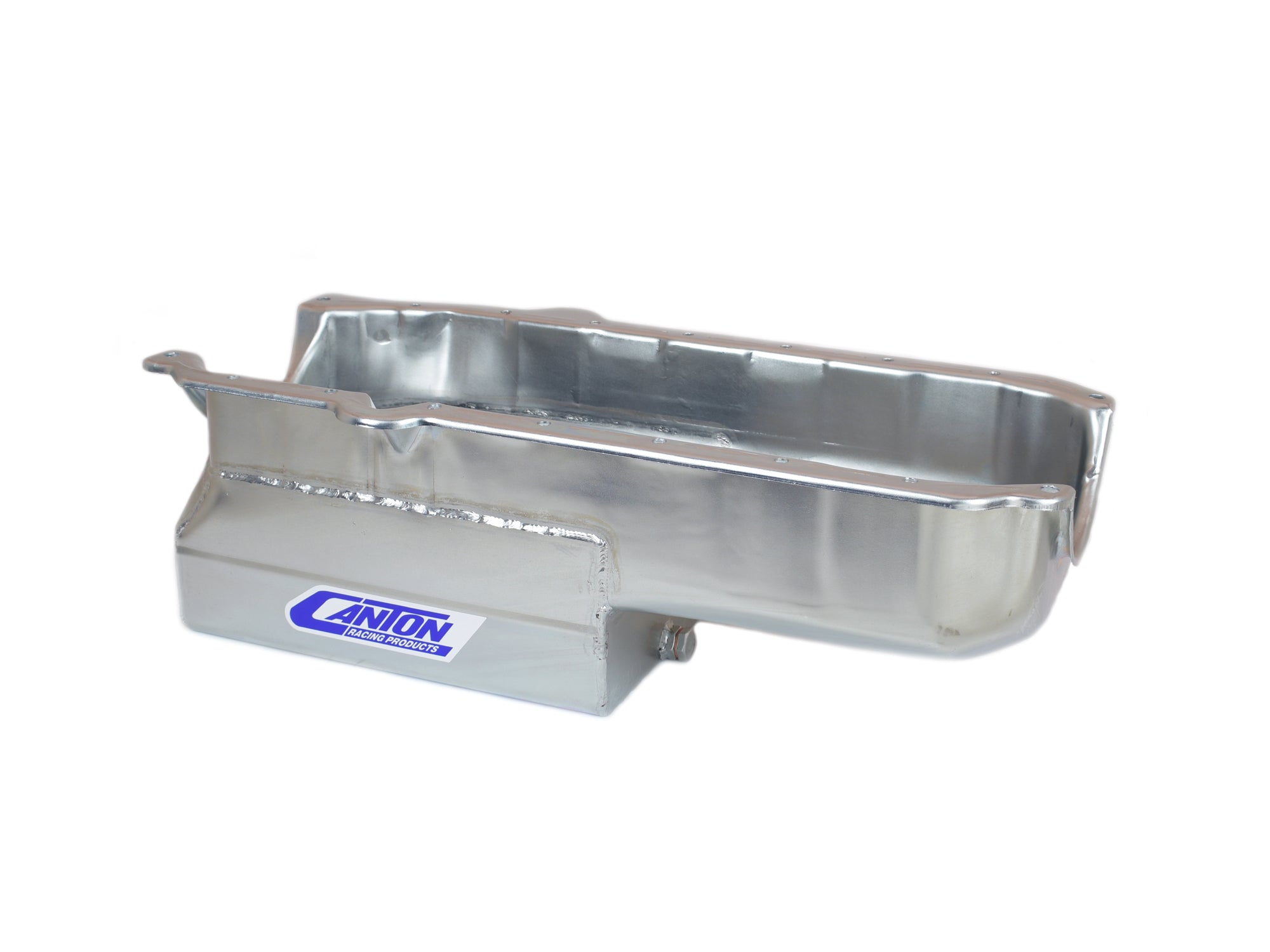

This oil pan is designed to replace the stock crate engine pan and make it easier to install a newer style engine in an older chassis. With increase oil capacity and better oil control then stock you can be assured of long engine life. This pan retains the dimensions of the original early Corvette oil pan for header, starter and oil filter clearance .
- Trap Door Baffle
- 5.5 qt System Capacity
- Works with stock starter and dipstick
Attributes:
- Brand Name: Canton
- GTIN: 00887753712103
- Baffled: Yes
- Capacity: 5.5 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Engine: For S.B. Chevy 1986 and newer blocks with one piece seal
- Feature 1: Trap Door Baffle for Oil Control
- Feature 2: Increases Capacity Without Losing Ground Clearance
- Feature 3: Works with stock starter and dipstick
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-044 - SBC Pickup for Standard Volume Melling M55 & M55A Pumps
- Recommended Accessory 2: 20-074 - SBC Pickup for High Volume Melling M55HV Pumps
- Recommended Accessory 3: 20-079 - SBC 3/4" Tube Pickup for High Volume Melling M155HV Pump
- Recommended Accessory 4: 20-850 - Universal 1/4" NPT Solid Steel Tube Dipstick
- Recommended Accessory 5: 20-854 - Universal 1/4" NPT Flexible Braided Steel Dipstick
- Recommended Accessory 6: 20-907 - SBC Louvered Stud Mounted Windage Tray
- Recommended Accessory 7: 88-100T - SBC '86+ 1 piece Oil Pan Gasket
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Discontinued
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23 x 12 x 9.25 inches
- Weight: 12.05 POUNDS
