Description

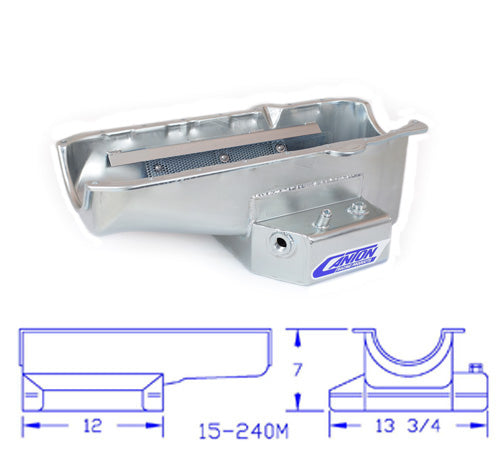

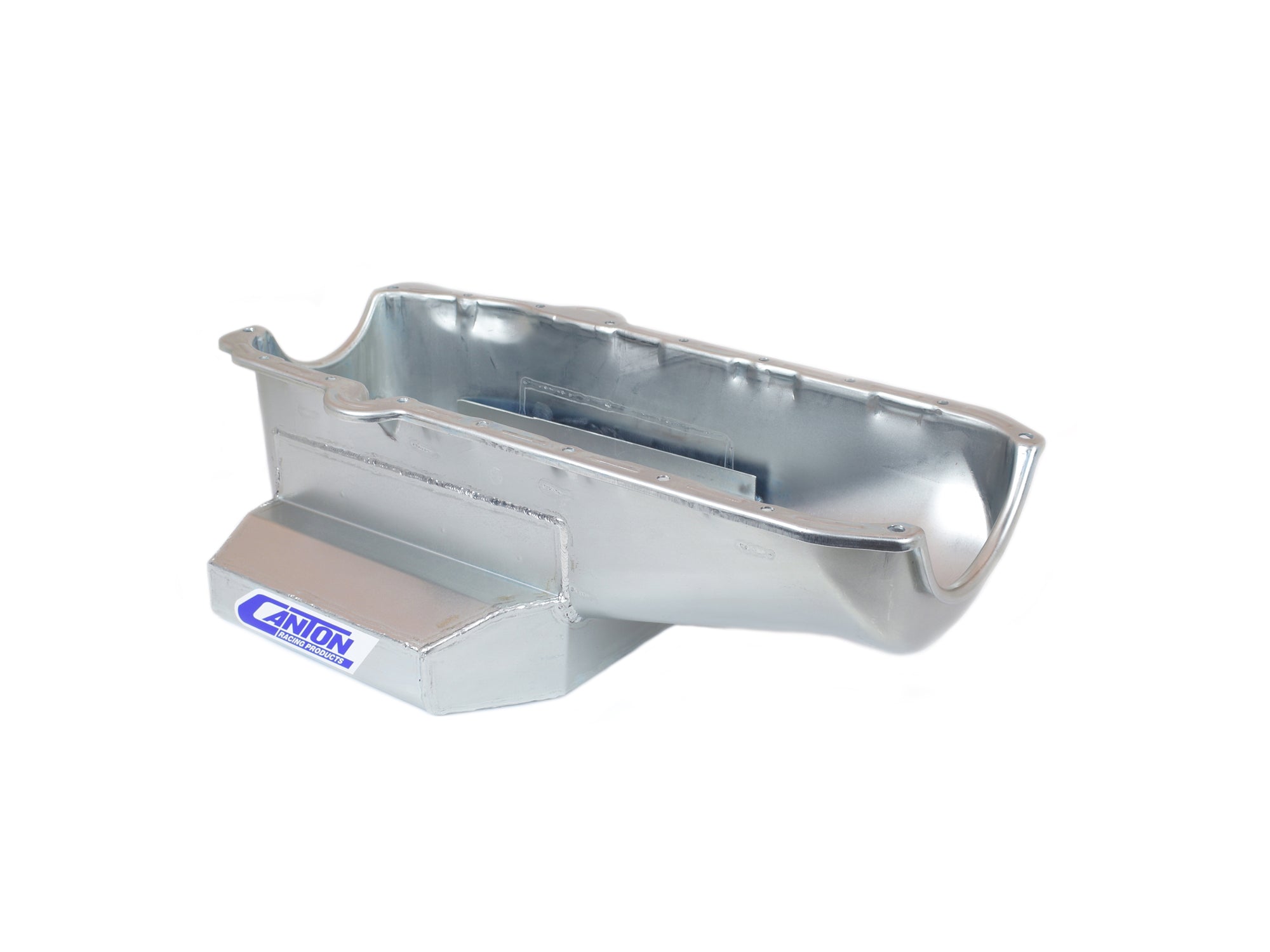

This SBC Corvette road race pan is for '80-'85 blocks with right side dipstick. It is designed for 84-96 Corvettes, but will fit in early Corvettes as well. It has a 7" deep, 13-3/4" wide, 12" long sump, with a 7 quart system capacity. Will work with stock starters. This pan requires one of our pickups.
- Five Trap Door Baffles
- Crank Scraper
- Built In Screen Windage Tray
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
- 20MM fitting For Low Oil Warning Sensor (22-405 Plug if not using sensor)
Attributes:
- Brand Name: Canton
- GTIN: 00887753712141
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For S.B. Chevy 1980-85 Blocks with right side dipstick
- Feature 1: Trap Door Baffle for Oil Control
- Feature 2: Crank Scraper
- Feature 3: Bolt in Windage Tray
- Feature 4: 1/2" NPT Temperature Bung
- Feature 5: Provision for Pan Mounted Dipstick
- Feature 6: 20mm Fitting for GM Low Oil Warning Sender
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-044 - Pickup for SBC Standard Volume Oil Pumps M55 & M55A
- Recommended Accessory 2: 20-049 - Pickup for SBC Standard Volume Oil Pump M155 with 3/4" Inlet
- Recommended Accessory 3: 20-074 - Pickup for SBC High Volume Oil Pump M55HV
- Recommended Accessory 4: 20-079 - Pickup for SBC High Volume Oil Pump M155HV with 3/4" Inlet
- Recommended Accessory 5: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 6: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 7: 22-405 - 20MM Plug for Oil Level Sender Port
- Recommended Accessory 8: 88-100 ? SBC Pre ?85 Oil Pan Gasket
- Stoke: 3.75 inches
- Windage Tray Included: Yes
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24 x 16 x 10 inches
- Weight: 17 POUNDS
