Description

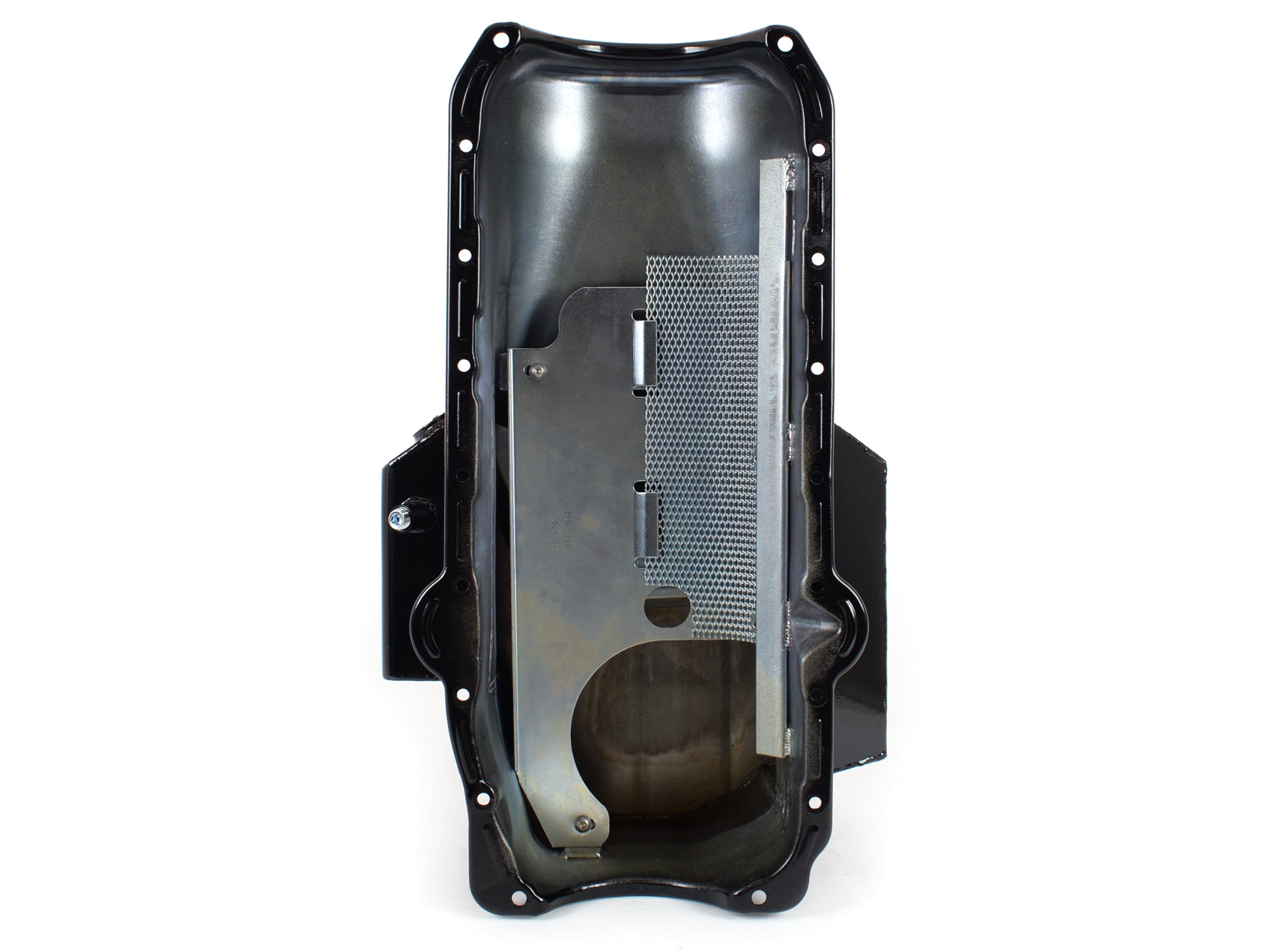

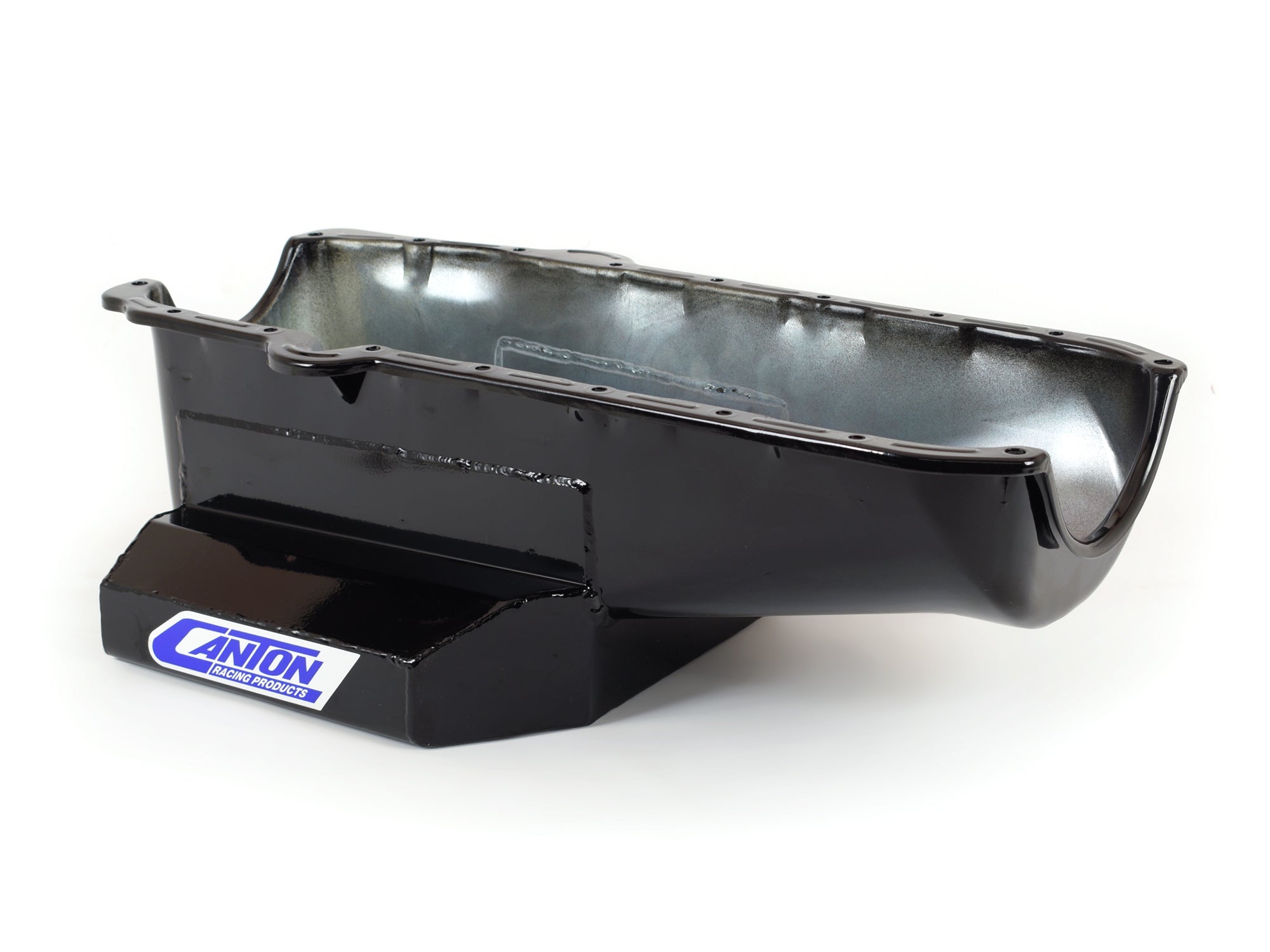

This SBC Corvette road race pan is for '80-'85 blocks with right side dipstick. It is designed for 84-96 Corvettes, but will fit in early Corvettes as well. It has a 7" deep, 13-3/4" wide, 12" long sump, with a 7 quart system capacity. Will work with stock starters. This pan requires one of our pickups.
- Five Trap Door Baffles
- Crank Scraper
- Built In Screen Windage Tray
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
- 20MM fitting For Low Oil Warning Sensor (22-405 Plug if not using sensor)
- Black Powdercoat
Attributes:
- Brand Name: Canton
- GTIN: 00887753712158
- Finish: Black Powder Coat
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24 x 16 x 10 inches
- Weight: 18 POUNDS
