Description

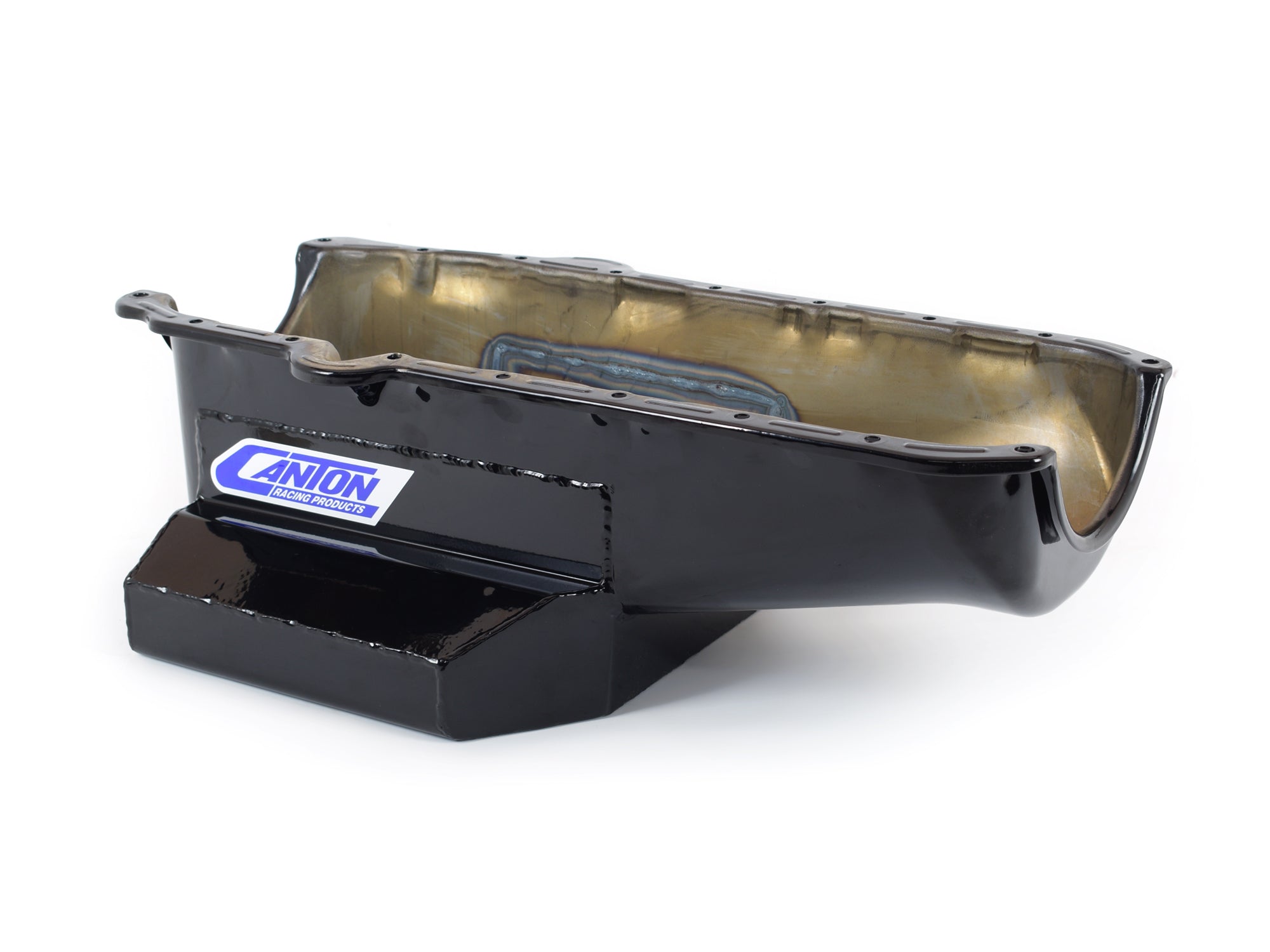

This SBC late Corvette road race pan is for ?86 and newer blocks with one piece seal. It is designed for 84-96 Corvettes, but will fit in early Corvettes as well. It has a 7" deep, 13-3/4" wide, 12" long sump, with a 7 quart system capacity. Will work with stock starter. This pan requires one of our pickups.

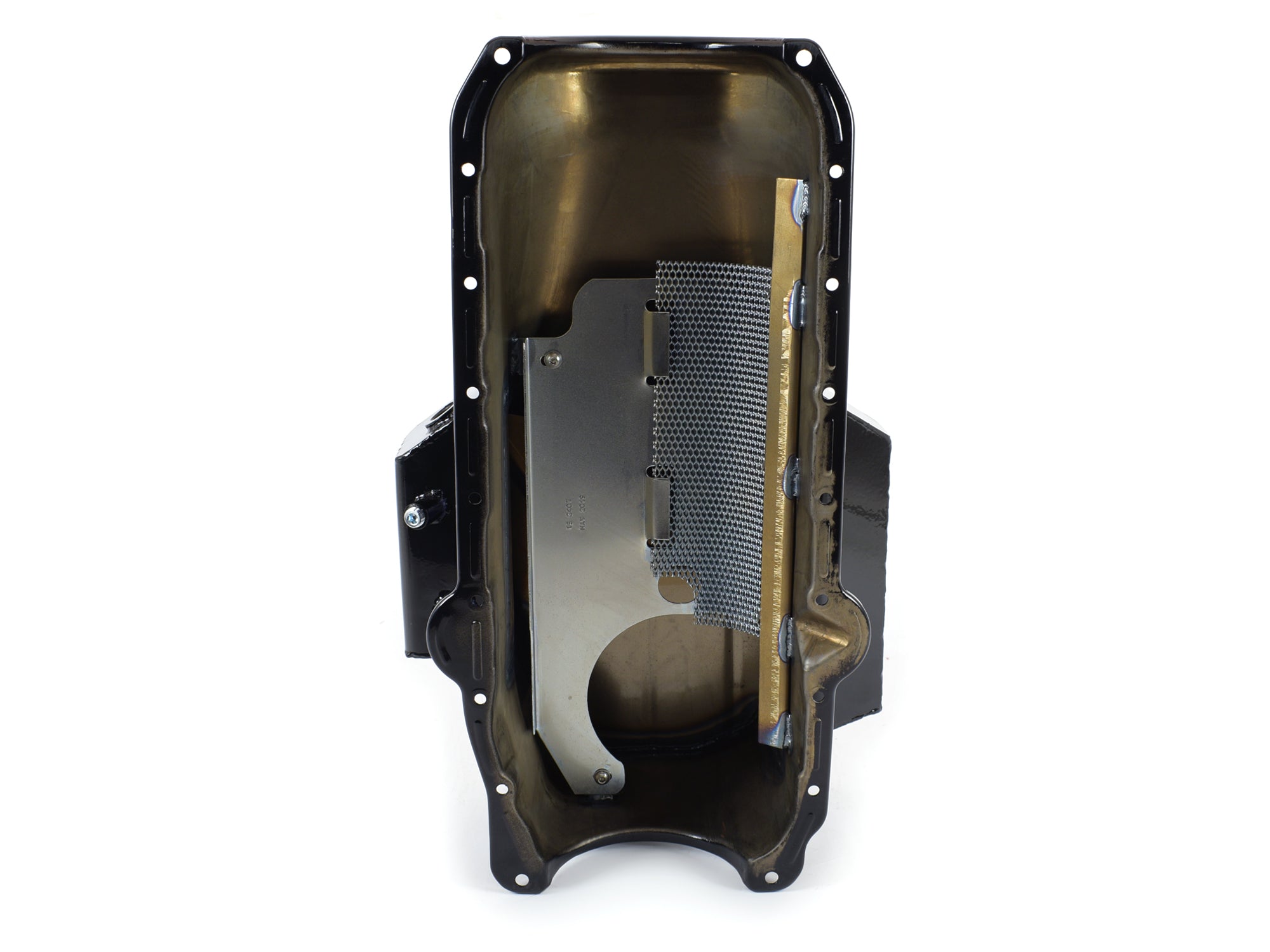

- Five Trap Door Baffles
- Crank Scraper
- Built In Screen Windage Tray
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
- Includes a 20MM fitting For Low Oil Sensor (22-405 required if not using sender)
- Black Powder Coat
Attributes:
- Brand Name: Canton
- GTIN: 00887753712172
- Finish: Black Powder Coat
Extended Information:
- Country of Origin: US
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24 x 16 x 10 inches
- Weight: 18 POUNDS
