Description

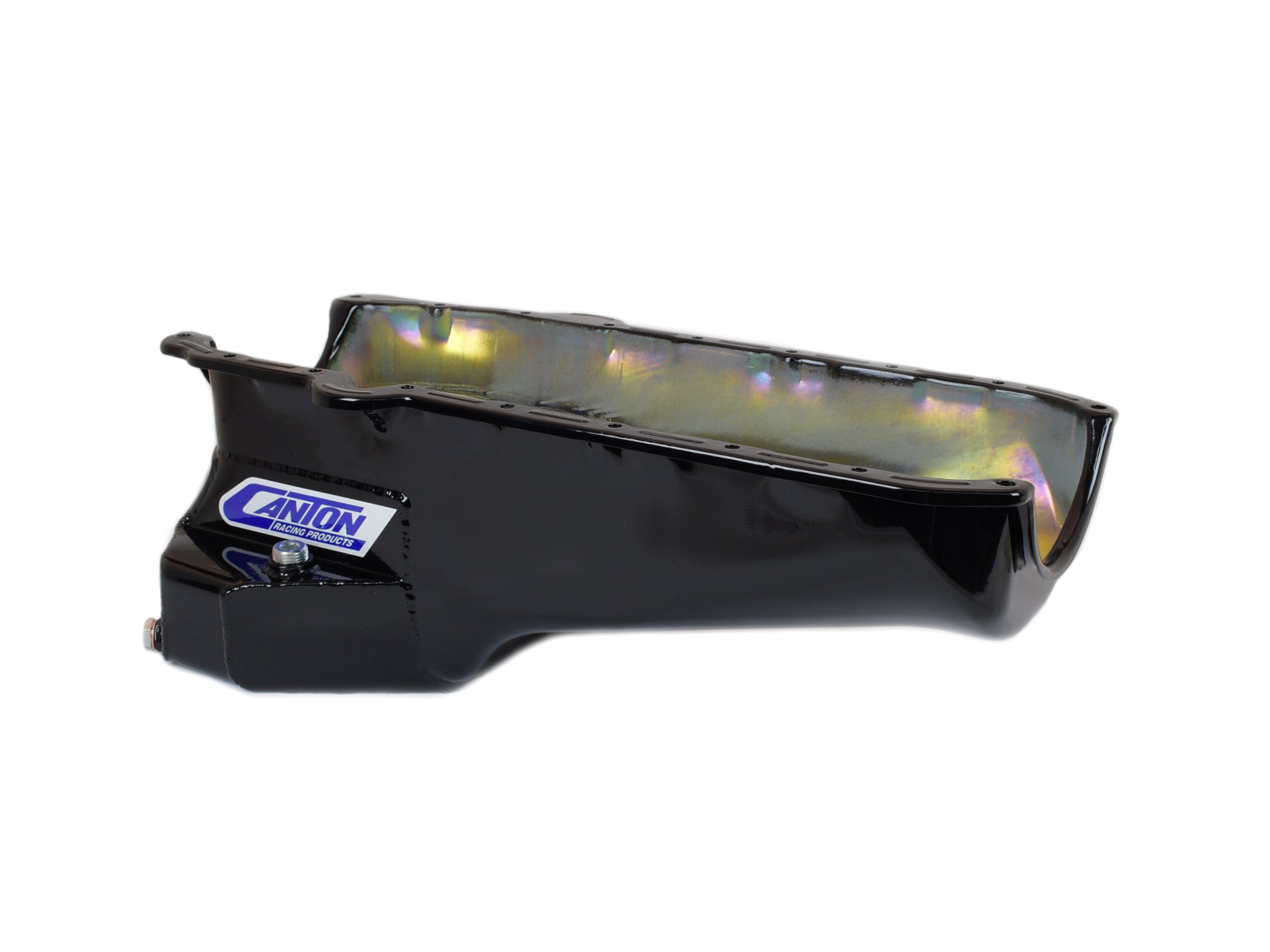

This black powder coat road race pan is for '86 and newer SBC blocks in '93-'97 F-Bodies. (also fits Impalas) It has a 7-1/2" deep, 12" wide, 8-1/4" long sump for a 6 qt. system capacity. Will work with stock starter. This pan requires one of our pickups.

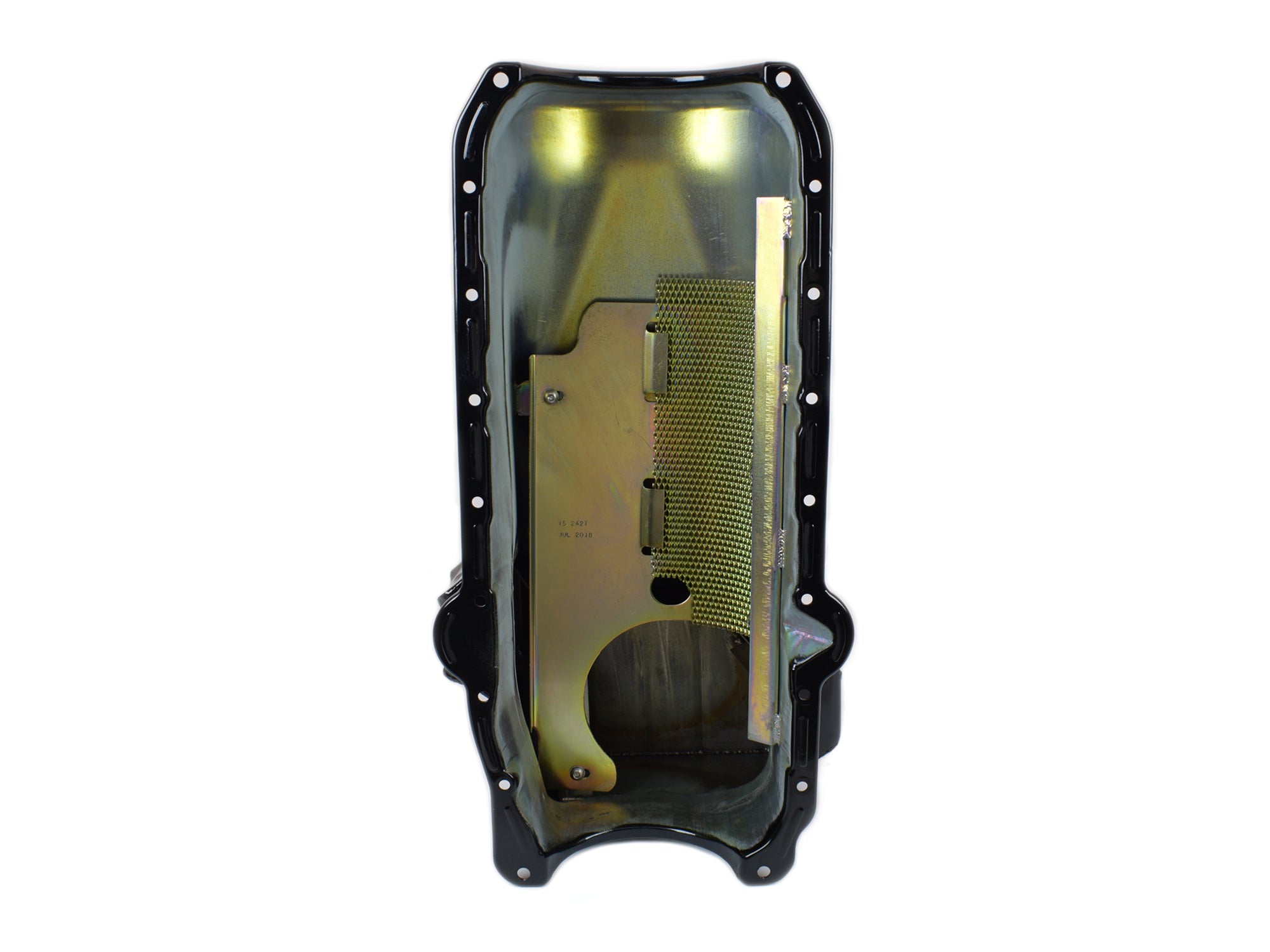

- Triple Trap Door Baffle
- Crank Scraper
- Built In Screen Windage Tray
- 1/2" NPT Temperature Bung
- Magnetic Drain Plug
- 20mm Fitting for Low Warning Sender
Attributes:
- Brand Name: Canton
- GTIN: 00887753712196
- Baffled: Yes
- Capacity: 6 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: No
- Drain Plug Included: Yes
- Engine: For S.B. Chevy 1986 and newer blocks with one piece seal
- Feature 1: Trap Door Baffle for Oil Control
- Feature 2: Crank Scraper
- Feature 3: Bolt in Windage Tray
- Feature 4: 1/2" NPT Temperature Bung
- Feature 5: 20mm Fitting for GM Low Oil Warning Sender
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-010 - Pickup for SBC Standard Volume Oil Pumps M55 & M55A
- Recommended Accessory 2: 20-013 - Pickup for SBC Standard Volume Oil Pump M155 with 3/4" Inlet
- Recommended Accessory 3: 20-020 - Pickup for SBC High Volume Oil Pump M55HV
- Recommended Accessory 4: 20-023 - Pickup for SBC High Volume Oil Pump M155HV with 3/4" Inlet
- Recommended Accessory 5: 20-021 - Bolt-On Pickup for Melling M10555 Pumps
- Recommended Accessory 6: 22-405 - 20MM Plug for Oil Level Sender Port
- Recommended Accessory 7: 88-100T ? SBC 86+ Oil Pan Gasket
- Stoke: 3.75 inches
- Windage Tray Included: Yes
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 17 POUNDS
