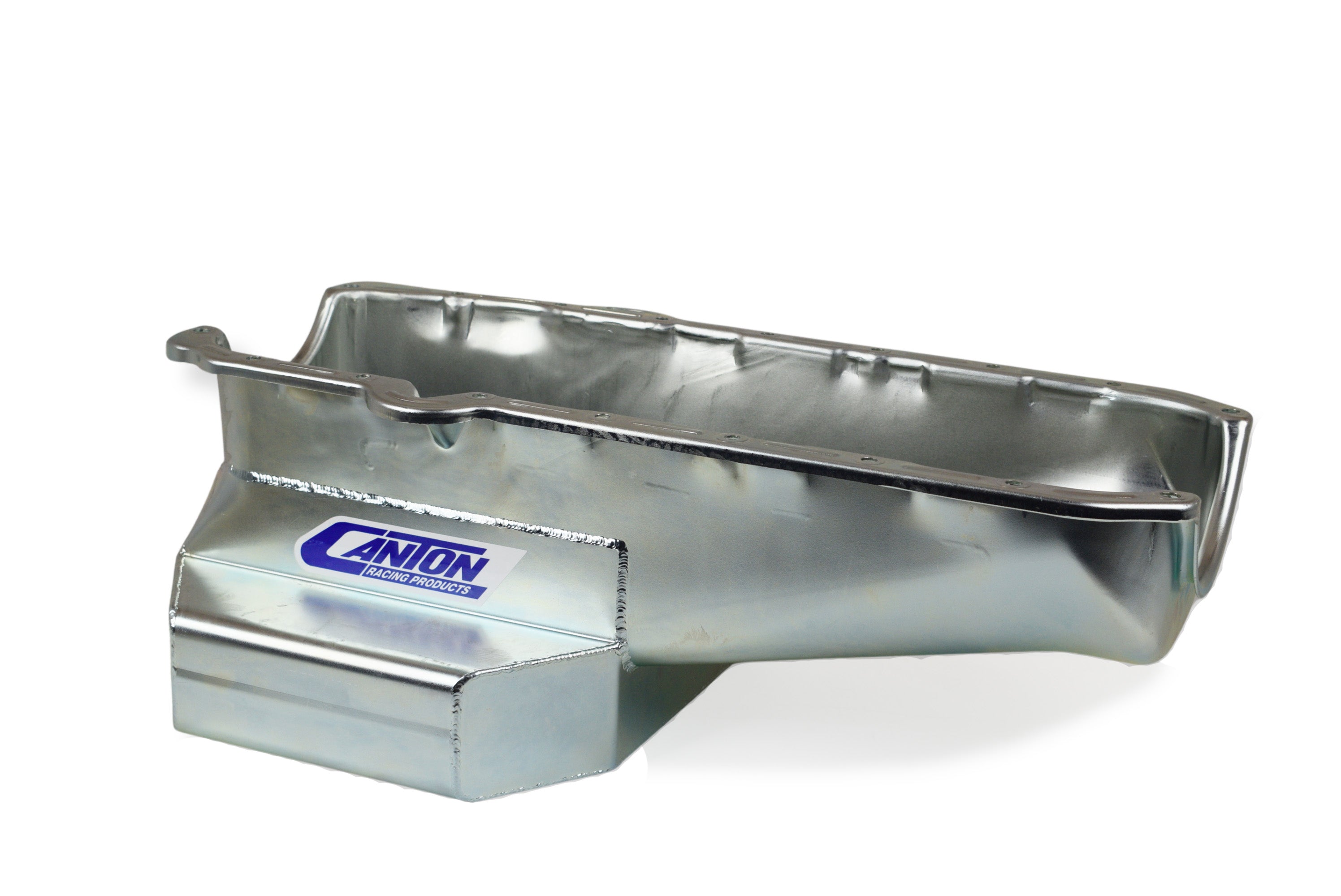

This SBC road race oil pan is for '80 - '85 blocks with a two piece seal. It is designed for GM '78 and up G-Body chassis and '70 to '81 F-Body chassis, without a cross-over exhaust. It has a 7-1/2" depth, 13-3/4" width, 10-1/2" long sump, for a 7 quart system capacity. This pan requires one of our pickups.
- 7 qt System Capacity
- Crank Scraper
- Five Trap Door Baffles
- Magnetic Drain Plug
- 1/2" NPT Temperature Bung

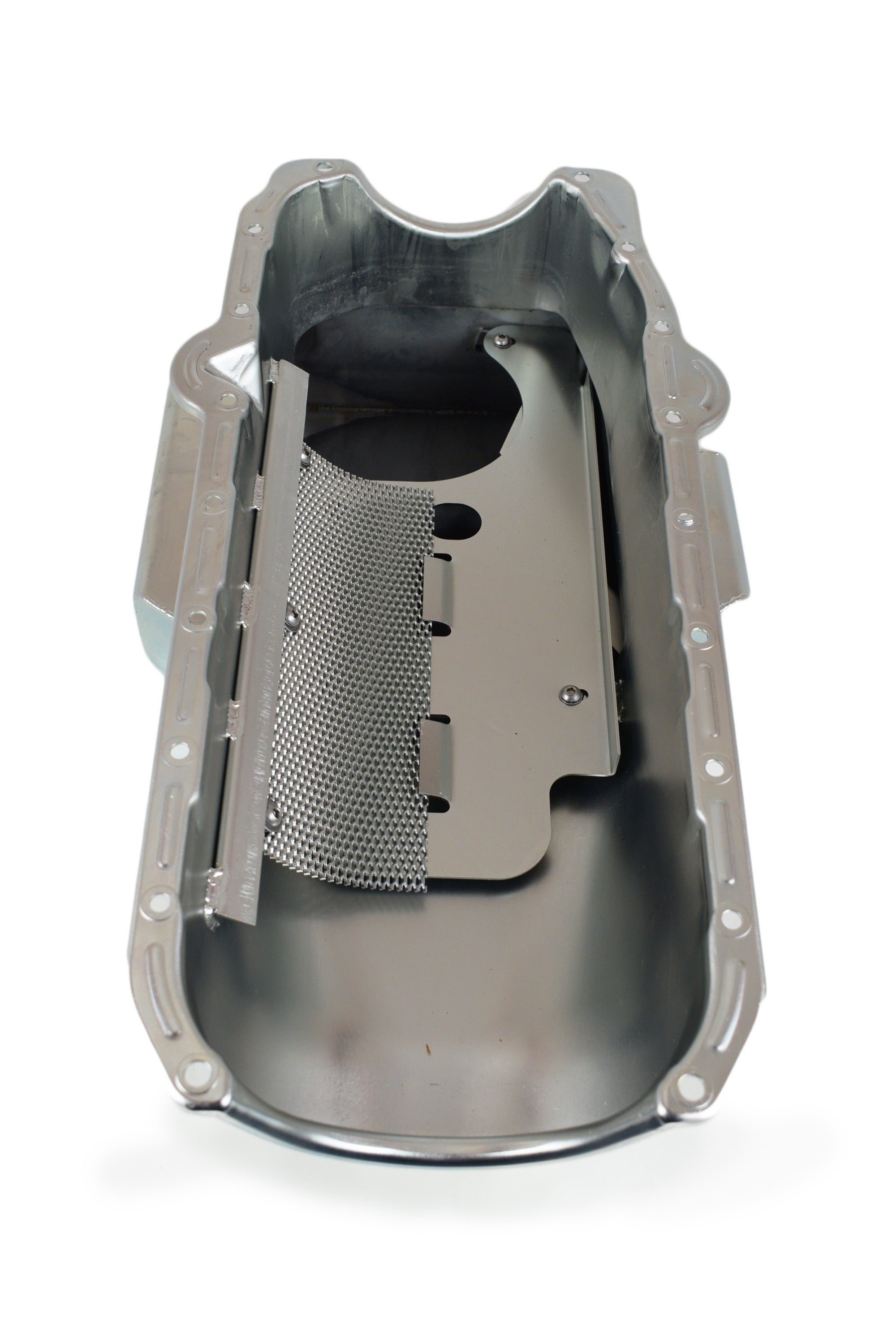

- Built in Screen Windage Tray
Attributes:
-
Brand Name: Canton
-
GTIN: 00887753992499
-
Baffled: Yes
-
Crank Scraper Included: Yes
-
Dipstick Port: No
-
Feature 1: Five Trap Door Baffles for Oil Control
-
Feature 2: Crank Scraper
-
Feature 3: Built in Screen Windage Tray
-
Feature 4: 1/2" NPT Temperature Bung
-
Finish: Silver Plating
-
Gasket or Seal Included: No
-
Material: 16 Gauge Steel
-
Pickup Included: No
-
Recommended Accessory 1: 20-010 - Pickup for SBC Standard Volume Oil Pumps M55 & M55A
-
Recommended Accessory 2: 20-013 - Pickup for SBC Standard Volume Oil Pump M155 with 3/4" Inlet
-
Recommended Accessory 3: 20-020 - Pickup for SBC High Volume Oil Pump M55HV & 10550ST
-
Recommended Accessory 4: 20-023 - Pickup for SBC High Volume Oil Pump M155HV & 10551ST with 3/4" Inlet
-
Recommended Accessory 5: 20-021 - Bolt-On Pickup for Melling M10552, 10555, and 10552ST Pumps
-
Recommended Accessory 6: 88-102 Gasket Oil Pan For Small Block Chevy '80 - '85 Right Side Dipstick
-
Stoke: 3.75 Inches
-
Windage Tray Included: Yes
Extended Information:
- Country of Origin:
-
Emissions : CARB Eligible
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1
-
Package UOM: EA
-
Dimension: 24.5 x 16.25 x 9.5 inches
-
Weight: 20 POUNDS
