Description

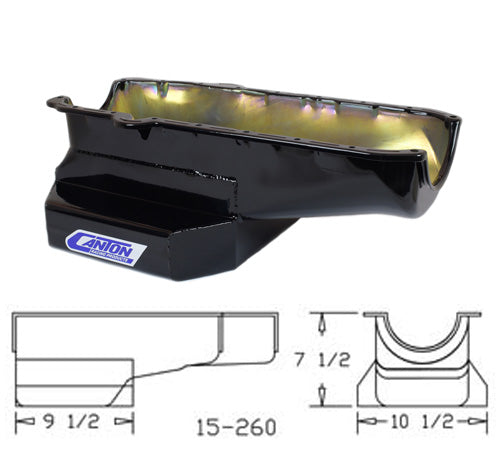

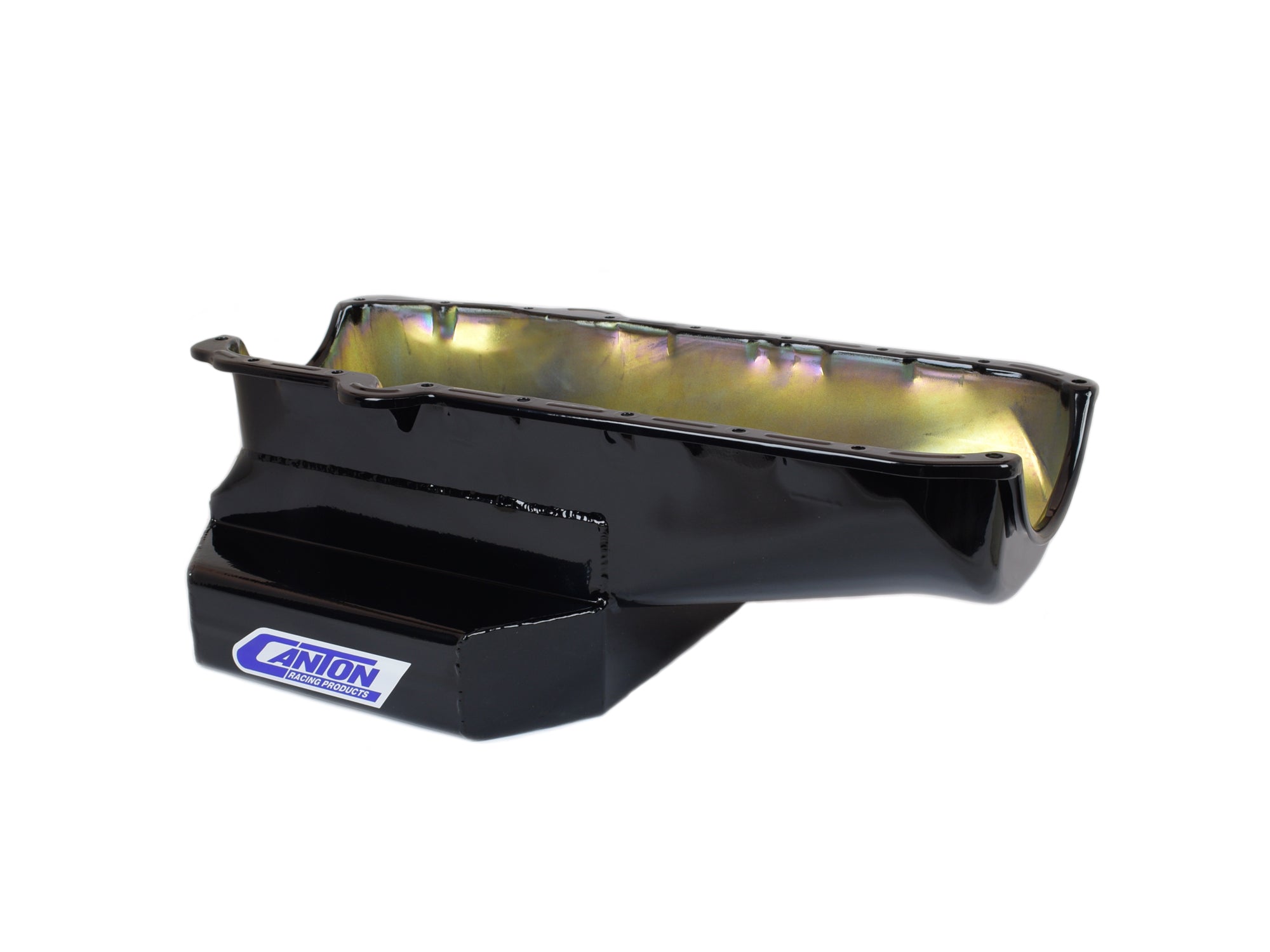

This black powder coat SBC road race pan is for pre-?80 blocks with left side dipstick. It is designed as a general purpose road race oil pan to fit in most applications, including front steer chassis with aftermarket or Camaro front ends. It has a 7-1/2" deep, 13-3/4" wide, 12" long sump with an 8 quart system capacity. This pan requires one of our pickups.
- 8 qt System Capacity
- Five Trap Door Baffles
- Crank Scraper
- Built In Screen Windage Tray
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
- Black Powder Coat
Attributes:
- Brand Name: Canton
- GTIN: 00887753712318
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For S.B. Chevy Pre-1980 Blocks
- Feature 1: Trap Door Baffle for Oil Control
- Feature 2: Crank Scraper
- Feature 3: Bolt in Windage Tray
- Feature 4: 1/2" NPT Temperature Bung
- Feature 5: Provision for Pan Mounted Dipstick
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-010 - Pickup for SBC Standard Volume Oil Pumps M55 & M55A
- Recommended Accessory 2: 20-013 - Pickup for SBC Standard Volume Oil Pump M155 with 3/4" Inlet
- Recommended Accessory 3: 20-020 - Pickup for SBC High Volume Oil Pump M55HV
- Recommended Accessory 4: 20-023 - Pickup for SBC High Volume Oil Pump M155HV with 3/4" Inlet
- Recommended Accessory 5: 20-021 - Bolt-On Pickup for Melling M10555 Pumps
- Recommended Accessory 6: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 7: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 8: 88-100 ? SBC Pre ?85 Oil Pan Gasket
- Stoke: 3.75 inches
- Sump Depth: 7.5 inches
- Sump Width: 10.5 inches
- Windage Tray Included: Yes
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24 x 16 x 10 inches
- Weight: 19 POUNDS
