Description

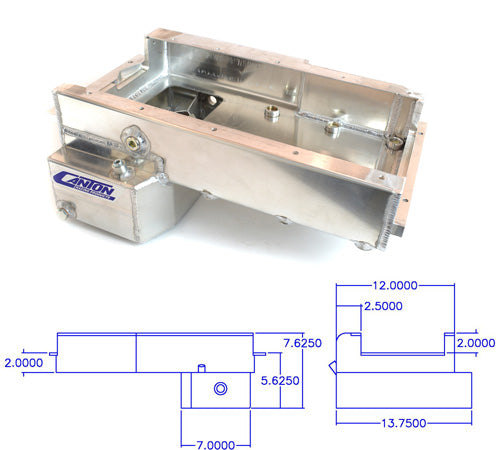

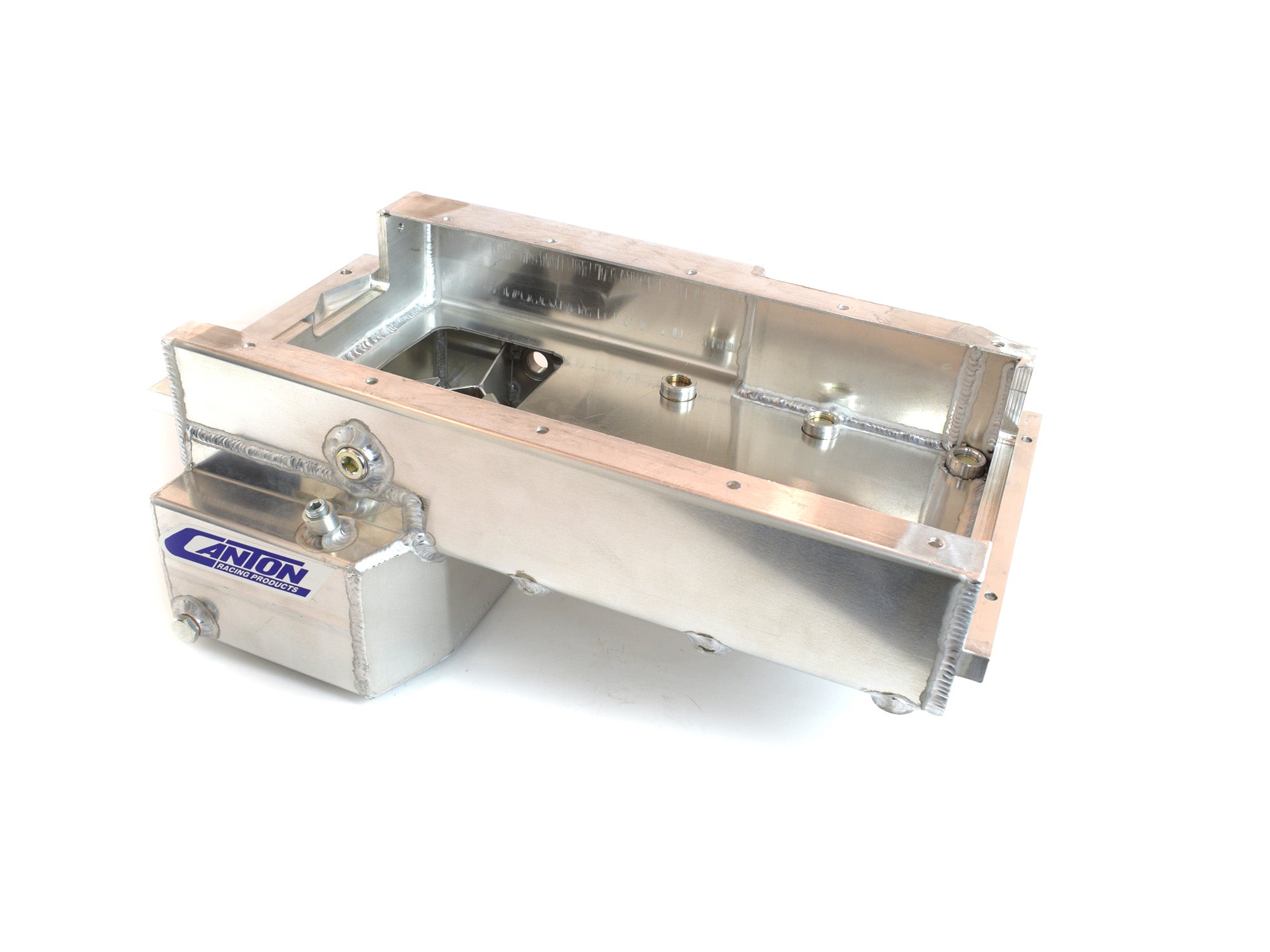

Our LS NEXT front sump road race oil pan is designed to take the changes that Dart has made to the LS block and completely maximize their effectiveness. Our pan features billet end caps that offer a precise fit to the unique pan rail of the Dart LS NEXT block. Our Pro-style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end. Our diamond shape trap door baffle along with our anti-slosh baffle allow for maximum oil control in high performance driving situations.
- 6.5 qt System Capacity
- Pro Style Oil Recovery Pouch
- Machined Billet Front & Rear Seals
- Removable Windage Slosh Baffle
- Diamond Shape Road Race Trap Door Baffle System
- Magnetic Drain Plug
- Provision for pan mounted dipstick
Attributes:
- Brand Name: Canton
- GTIN: 00887753712394
- Baffled: Yes
- Capacity: 6.5 Quarts
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: Dart LS Next
- Feature 1: Pro-Style Recovery Pouch
- Feature 2: Machined Billet Front & Rear Seals
- Feature 3: Diamond Shape Baffle Assembly
- Feature 4: Built in Louvered Windage Tray
- Feature 5: Removable Windage/Anti-Slosh Baffle
- Feature 6: Provision for Pan Mounted Dipstick
- Feature 7: Magnetic Drain Plug
- Finish: Raw Aluminum
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: .100 Aluminum
- Pickup Included: No
- Recommended Accessory 1: 15-287 - Dart LS NEXT front sump pickup for 15-286A pan
- Recommended Accessory 2: 21-870 - LS Flywheel Cover for T56 Bellhousing
- Recommended Accessory 3: 22-304 - LS NEXT Oil Pan Stud Kit
- Recommended Accessory 4: 22-405 - Plug for 20mm bung if low oil warning sender is Not used
- Recommended Accessory 5: 22-620 - Billet Aluminum remote spin-on filter mount 13/16"-16 Thread
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : 1
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 25 x 16 x 9 inches
- Weight: 16 POUNDS
