Description

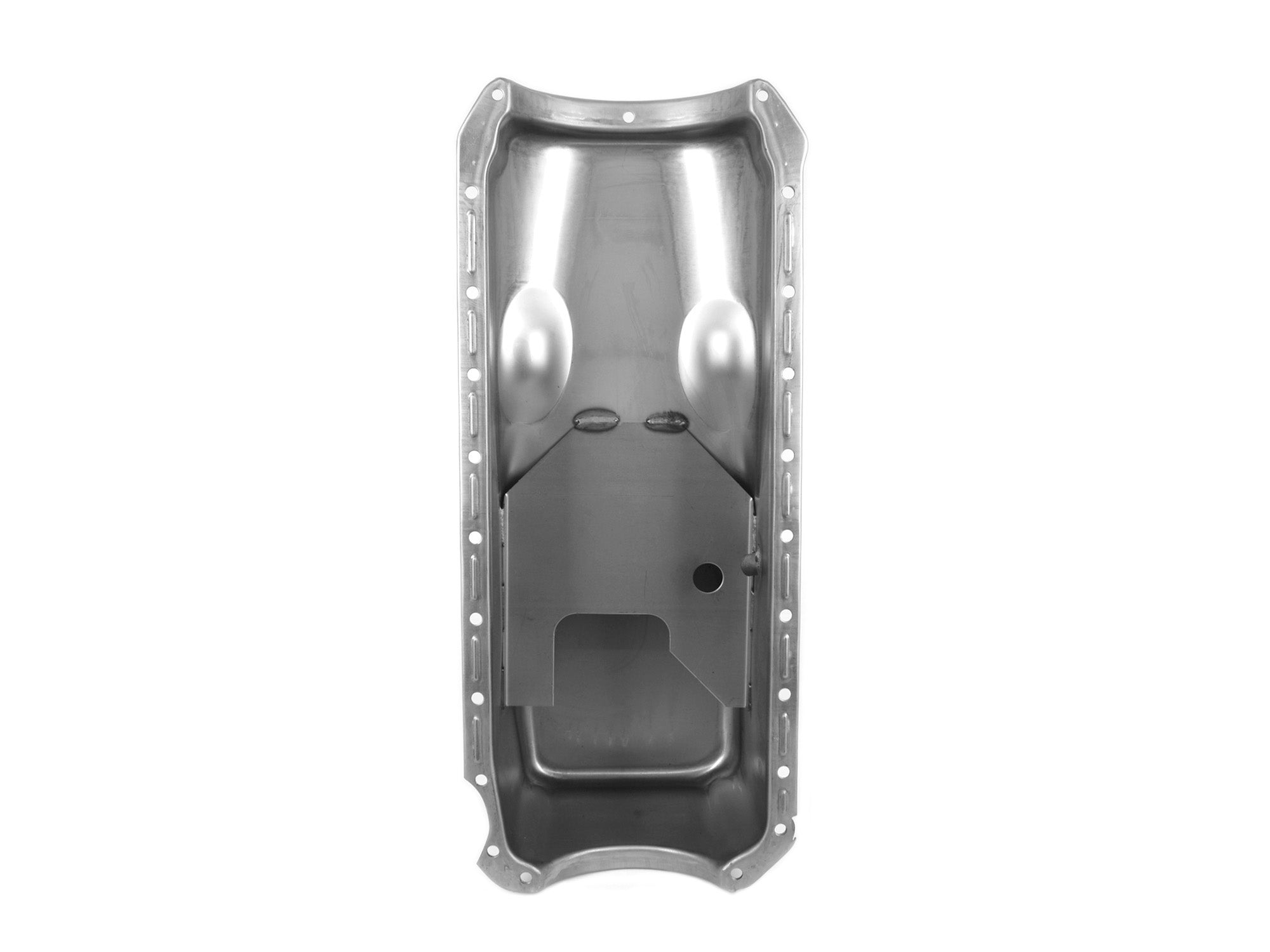

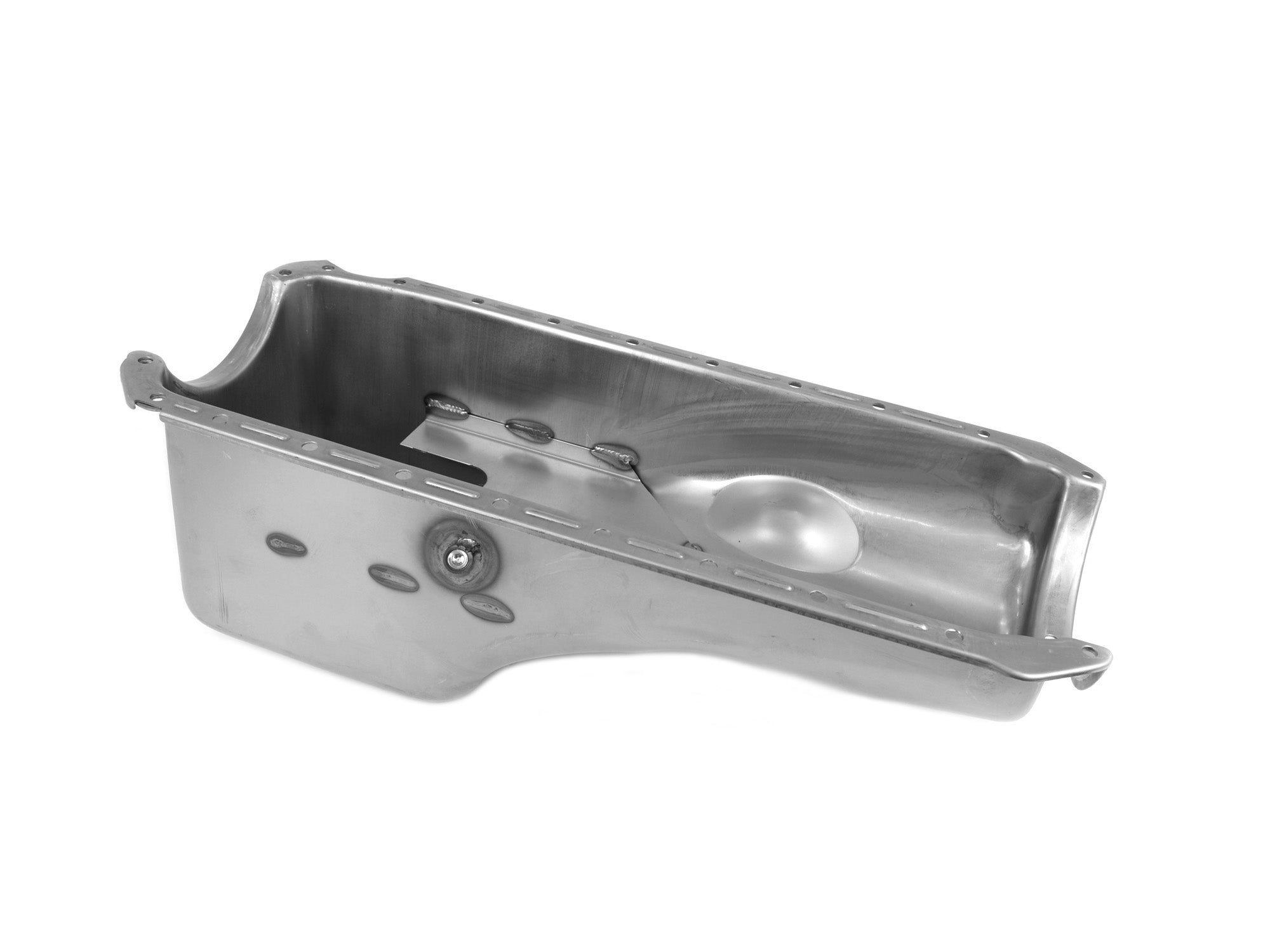

This BBC replacement pan is for Mark 4 blocks. It is stock depth and a 5 quart system capacity. For use with all starter flywheel combinations. Pan comes unplated. This pan requires our 18-301 pickup.
- Retains All Stock Oil Pan Dimensions & Capacity
- 5 qt System Capacity
- Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Pan comes unplated
Attributes:
- Brand Name: Canton
- GTIN: 00887753712417
- Baffled: Yes
- Capacity: Stock System Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Engine: For B.B. Chevy Mark 4 Blocks
- Feature 1: Slosh Baffle For Oil Control
- Feature 2: Provision for Pan Mounted Dipstick
- Feature 3: Magnetic Drain Plug
- Finish: Raw Steel
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 18-301 - Pickup for BBC Pump
- Recommended Accessory 2: 88-300 ? BBC Mark IV Oil Pan Gasket
- Stoke: 4.0 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : 1
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 13 POUNDS
