Description

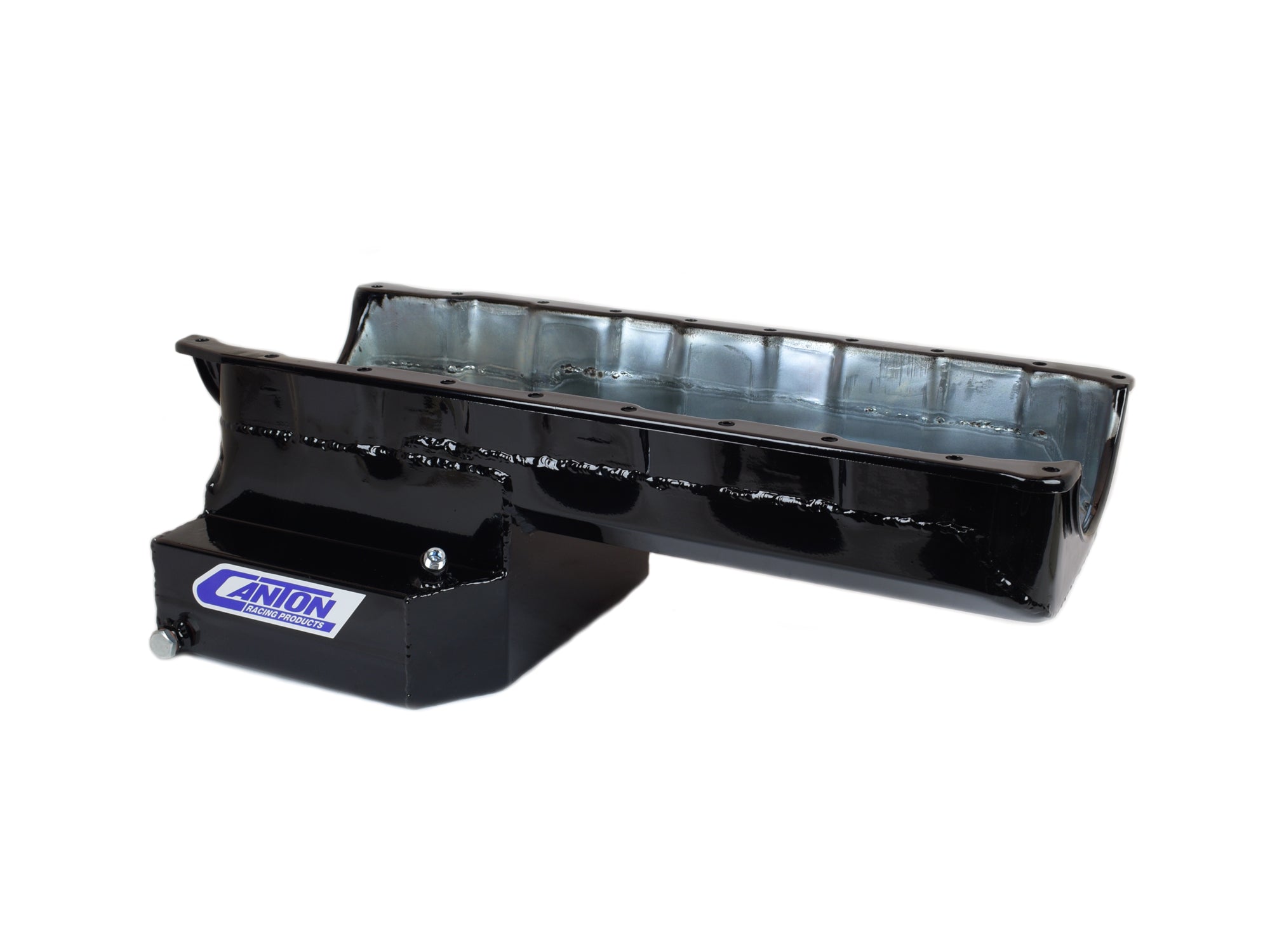

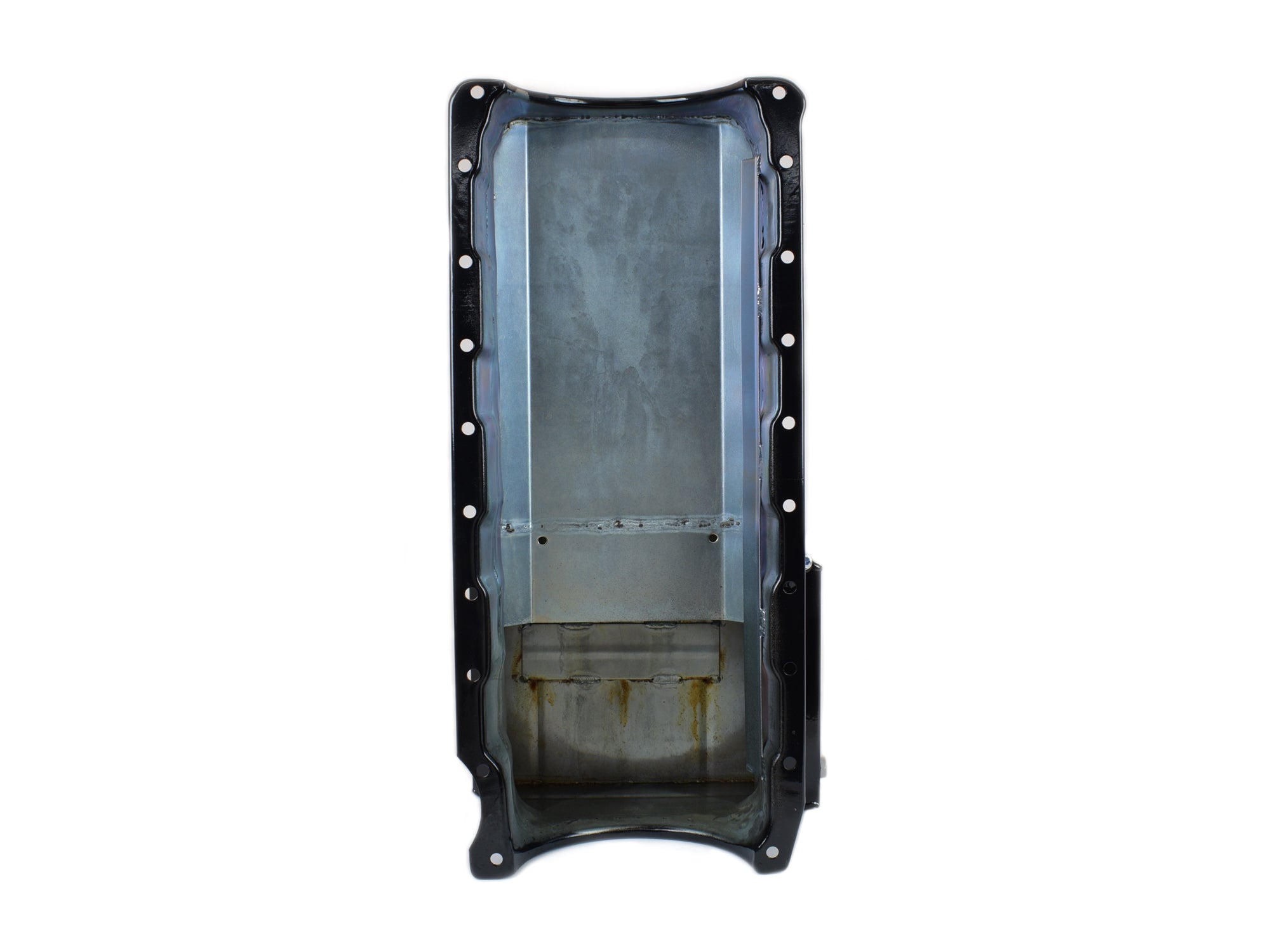

This black powder coat BBC stock depth wide sump oil pan is for Mark V and VI Big Block Chevys. It is designed with a shallow front with angled corners to clear the large cross members in early Camaros and Novas and '68-'72 Chevelle. It has an 8" Deep, 12" Wide, 9-1/2" Long sump with a 7 quart system capacity. Due to the extra shallow front section of this pan designed for large cross member clearance our main cap mounted windage trays will not clear this pan. This pan requires our 20-170 pickup.
- 7 qt System Capacity
- Pan Retains Stock Depth & Can Clear a 4.25" Stroke
- Crank Scraper
- Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753712462
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For B.B. Chevy Mark 5 / Gen 6 Blocks
- Feature 1: Slosh Baffle For Oil Control
- Feature 2: Crank Scraper
- Feature 3: Provision for Pan Mounted Dipstick
- Feature 4: Clears 4.25" Stroke
- Feature 5: Magnetic Drain Plug
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-170 - Pickup for BBC Oil Pumps
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Stoke: 4.25 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 18 POUNDS
