Description

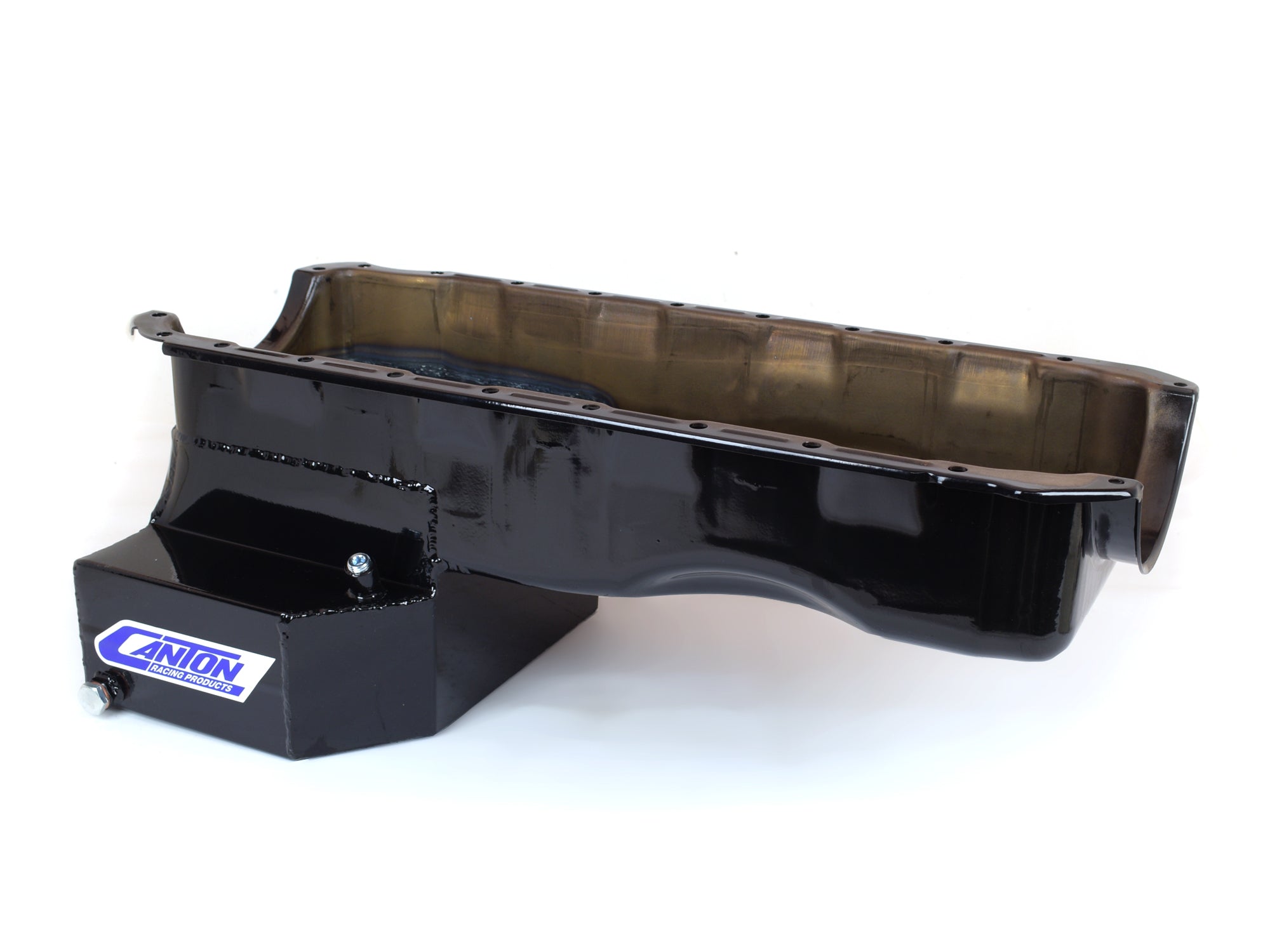

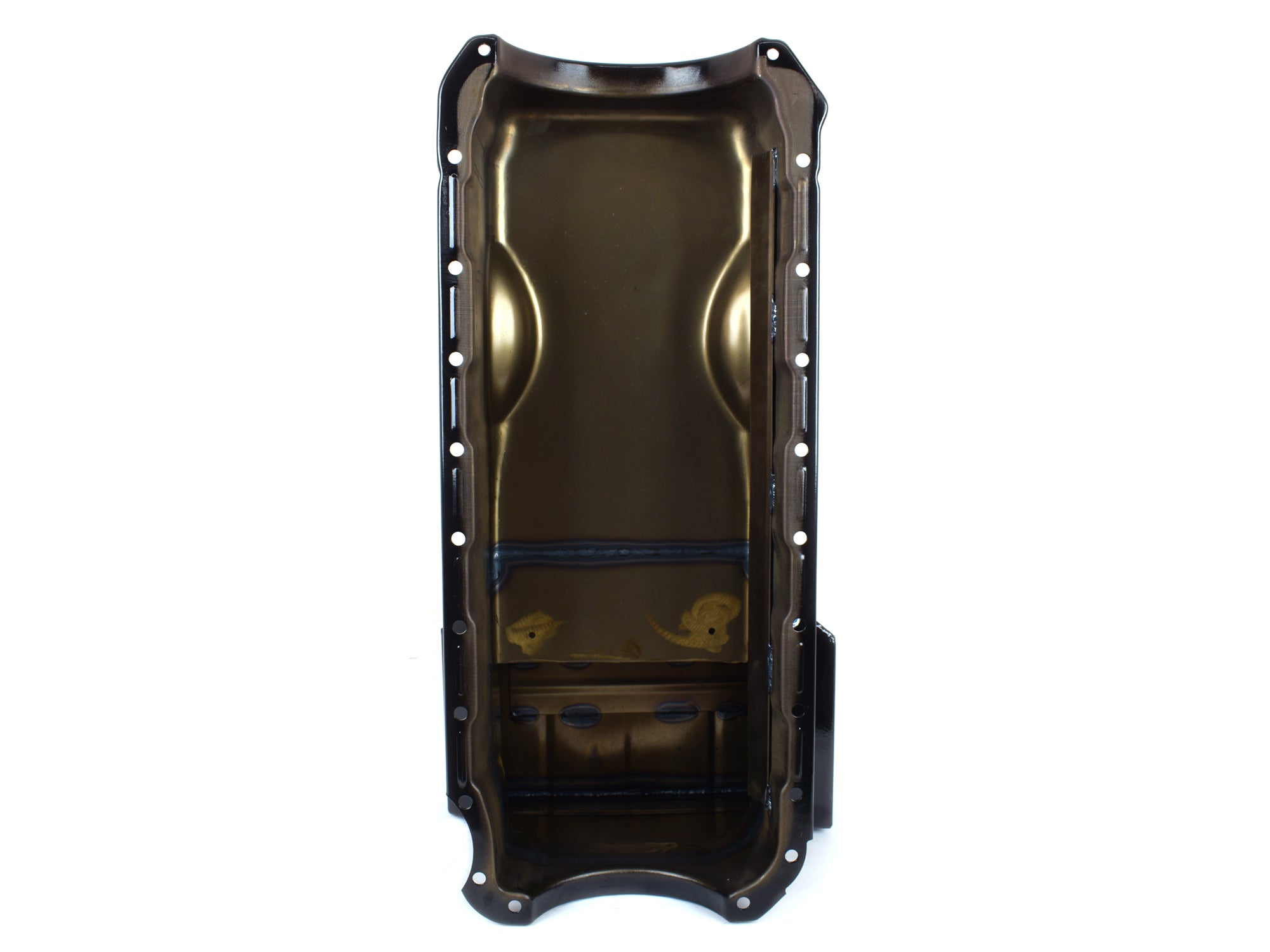

This black powdercoat BBC early Chevelle pan is for standard Mark 4 Big Blocks with a 2 piece rear seal. It is designed with angled front corners to fit in '64-'67 Chevelle and most other GM chassis. It has a 9" deep, 13" wide, 8-1/2" long sump for an 8 quart system capacity. This pan requires our 20-190 pickup.
- 8 qt System Capacity
- Pan Retains Stock Depth & Can Clear a 4.5" Stroke
- Crank Scraper
- Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753712486
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For B.B. Chevy Mark 4 Blocks
- Feature 1: Slosh Baffle For Oil Control
- Feature 2: Crank Scraper
- Feature 3: Provision for Pan Mounted Dipstick
- Feature 4: Clears 4.5" Stroke
- Feature 5: Magnetic Drain Plug
- Feature 6: Black Powdercoat
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-190 - Pickup for BBC Oil Pumps
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
- Stoke: 4.5 inches
- Sump Depth: 9 inches
- Sump Width: 13 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 18 POUNDS
