Description

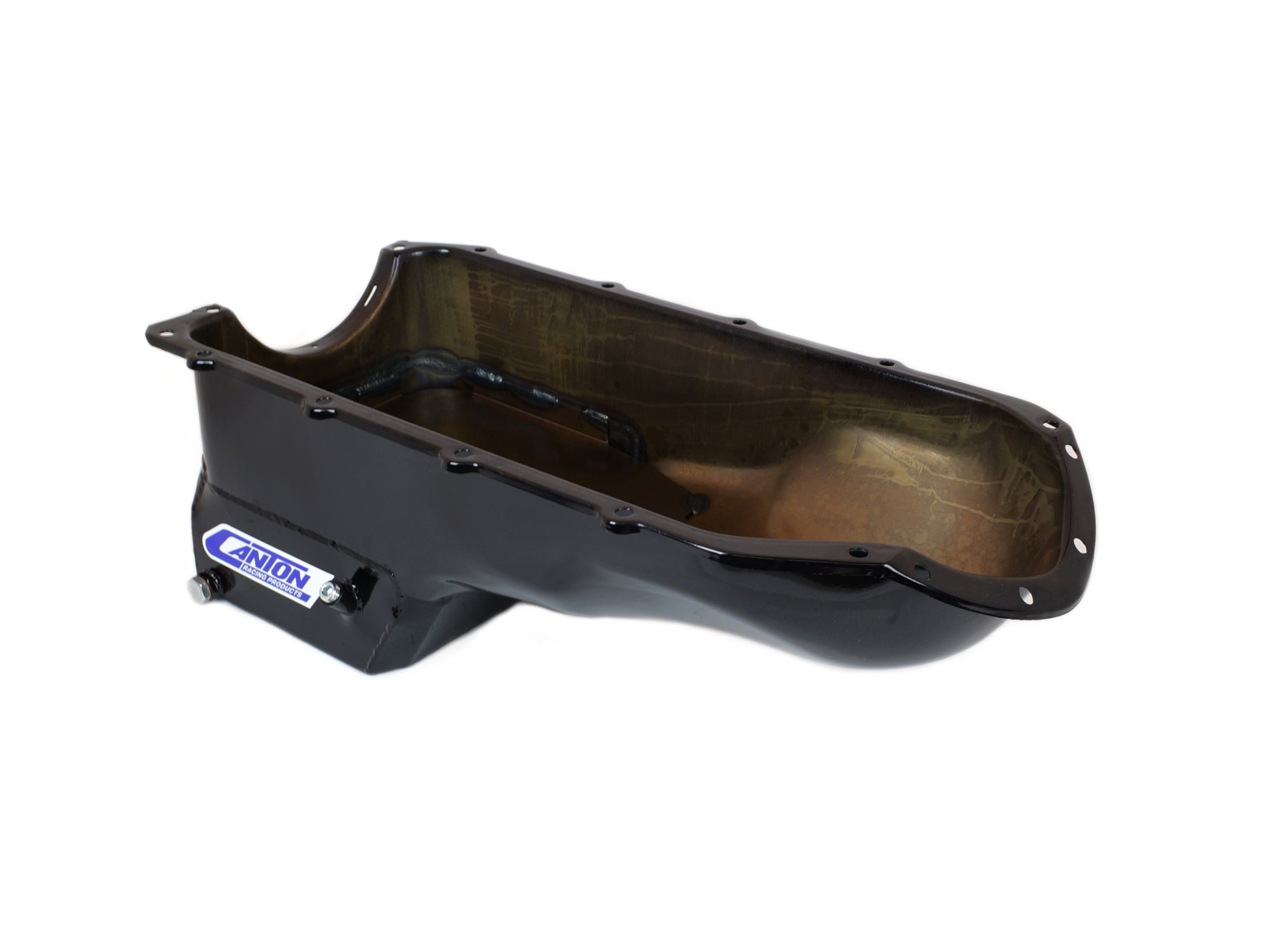

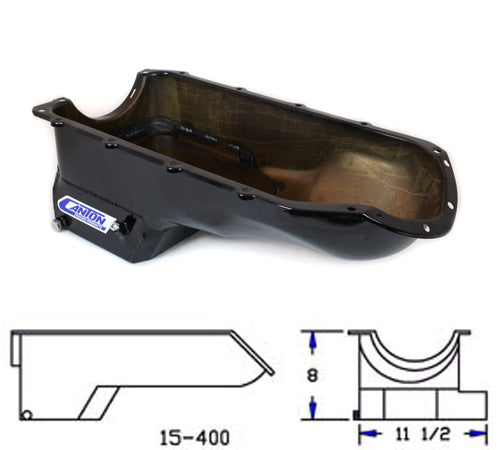

This black powdercoated high capacity pan is for Pontiac 301-455 engines and features a side pouch which offers increased oil capacity while still providing considerable x-member clearance. It has an 8" deep by 11-1/2" wide sump, with a 6-1/2 quart system capacity. This pan requires our 15-401 pickup.
- 6.5 qt System Capacity
- Retains All Stock Dimensions & Capacity
- Slosh Baffle
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753712547
- Baffled: Yes
- Capacity: 6.5 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 6.5 qt System Capacity
- Feature 2: Retains All Stock Dimensions & Capacity
- Feature 3: Slosh Baffle
- Feature 4: Magnetic Drain Plug
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-401 - Pickup with 3/4" Inlet for M54DS or M10541 Oil Pump
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 88-400 - Pontiac Oil Pan Gasket
- Stoke: 4.5 inches
- Sump Depth: 8 inches
- Sump Width: 11.5 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 15 POUNDS
