Description

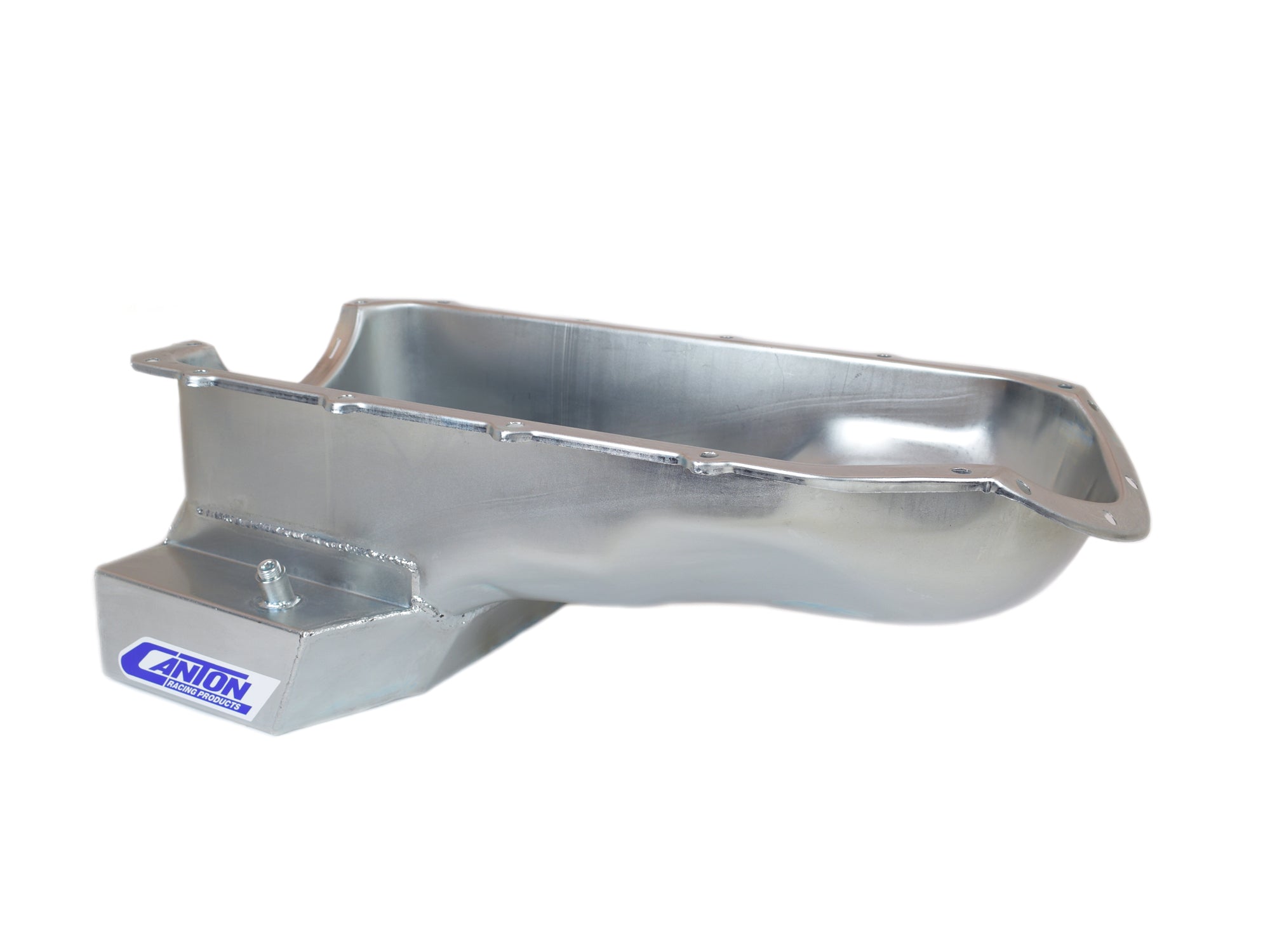

The Canton oil pan # 15-444 is a Pontiac road race T sump oil pan for use in road race competition. Sump is 8" deep by 14" wide by 7" long with a 7 quart system capacity Note: Modification maybe required to the right side of the pan with some exhaust systems 3" required between right side of stock pan and exhaust to clear T sump without mod. This Pan Requires our 15-401 pickup.
- 7 qt System Capacity

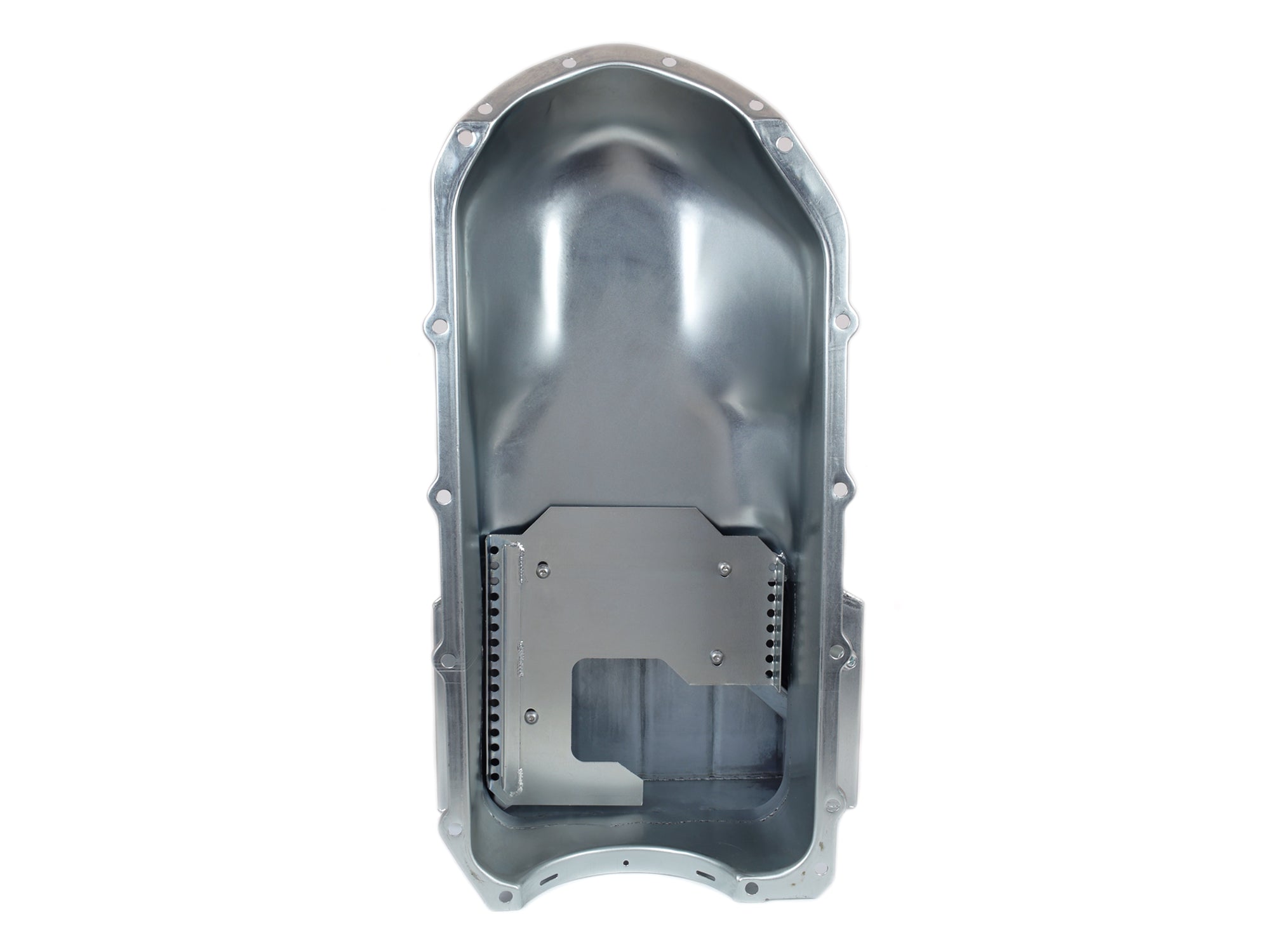

- Triple Trap Door Baffle
- Removable Windage/Anti-Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753712561
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Triple Trap Door Baffle
- Feature 3: Removable Windage/Anti-Slosh Baffle
- Feature 4: Provision For Our Pan Mounted Dipstick
- Feature 5: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-401 - Pontiac Pickup S.S High Volume 301-455
- Windage Tray Included: No
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 27 x 16.25 x 9.75 inches
- Weight: 16.1 POUNDS
