Description

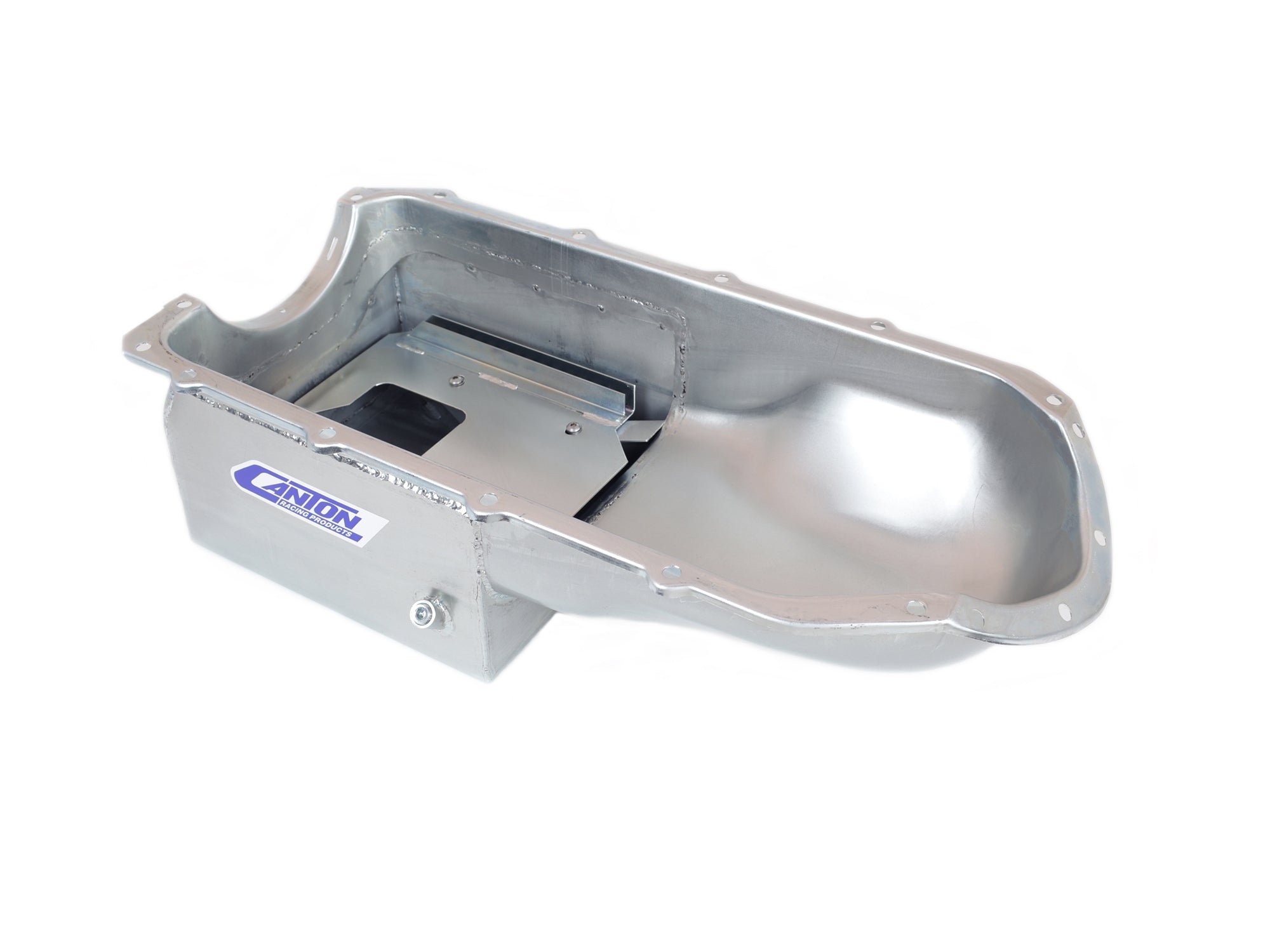

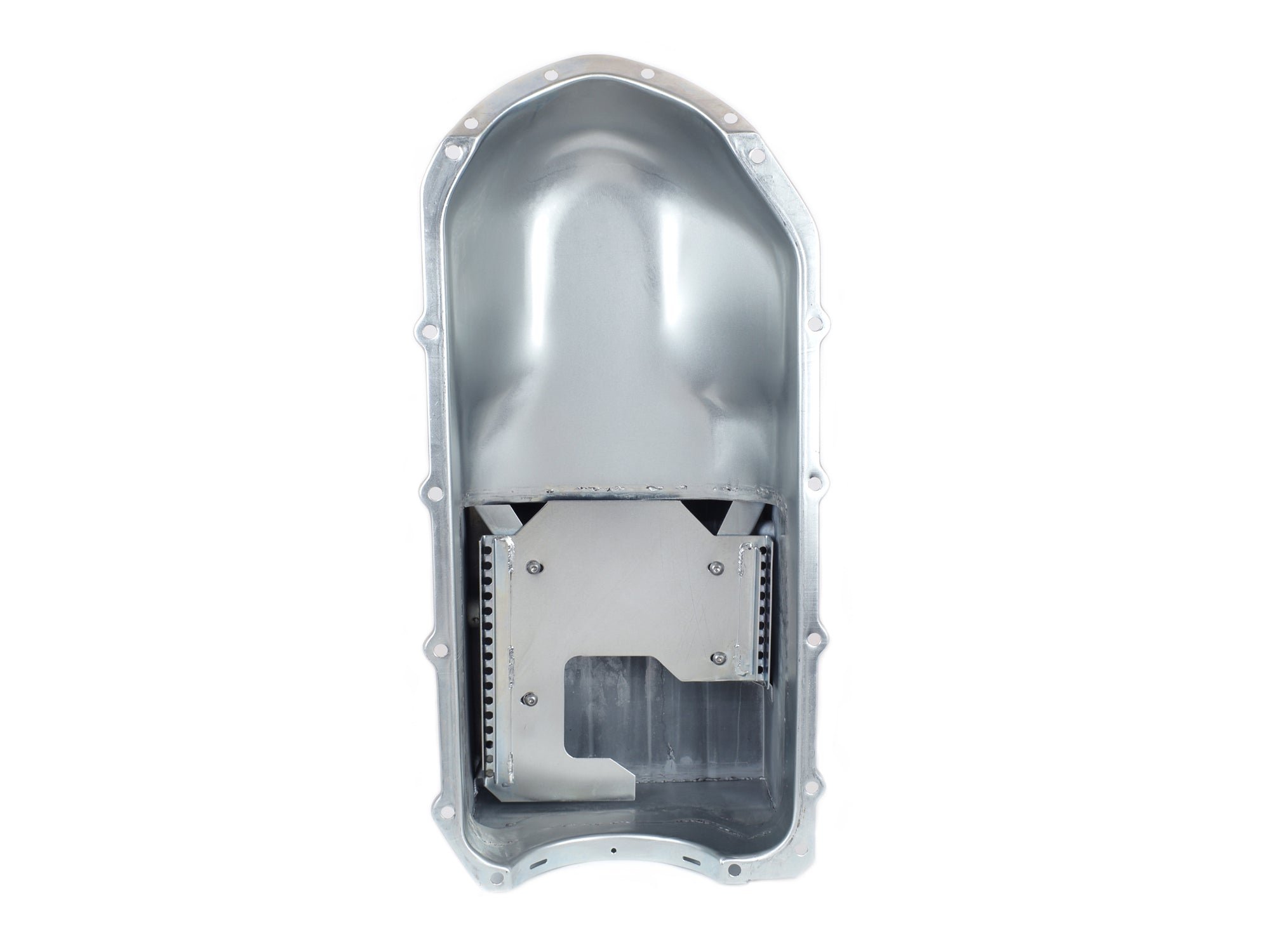

This shallow pan for Pontiac 301-455 engines and fits all popular chassis except G.T.O.s and '67-'69 Firebirds. It has a 7" deep, 10-1/2" long sump for a 6 quart system capacity. Cannot be used with some stock exhaust systems (measure for clearance). This pan requires our 15-451 pickup.
- 6 qt System Capacity
- Triple Trap Door Baffle
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753712585
- Baffled: Yes
- Capacity: 6 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 6 qt System Capacity
- Feature 2: Triple Trap Door Baffle
- Feature 3: Removable Windage/Anti-Slosh Baffle
- Feature 4: 1/2" NPT Temperature Bung
- Feature 5: Provision For Our Pan Mounted Dipstick
- Feature 6: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-451 - Pickup with 3/4" Inlet for M-54DS or M-10541 Oil Pumps
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 88-400 - Pontiac Oil Pan Gasket
- Stoke: 4.5 inches
- Sump Depth: 7 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 18 POUNDS
